Automatic Vertical Panel Saws, V-Grooving Vertical Panel Saws

Delivered and installed to BEAULIEAU INVEST (Rillieux-la-Pape, France) Automatic Vertical Panel Saw V-Grooving MAKK CPM-AV

sezionatrice verticale automatica alucobond CPM-AV Makk
06 Dec

Delivered and installed to BEAULIEAU INVEST (Rillieux-la-Pape, France) Automatic Vertical Panel Saw MAKK CPM-AV for Cutting and Milling (V) V-Grooving of Composite Panels (Alucobond, Dibond, etc …) #alucobond #verticalpanelsaw #seccionadoravertical #sezionatriceverticale #vgrooving #makxilia

ALUCOBOND AUTOMATIC VERTICAL PANEL SAW Mod.CPM-AV, CUT + V-GROOVING

Discover the vertical panel saw that we delivered to our customer ...

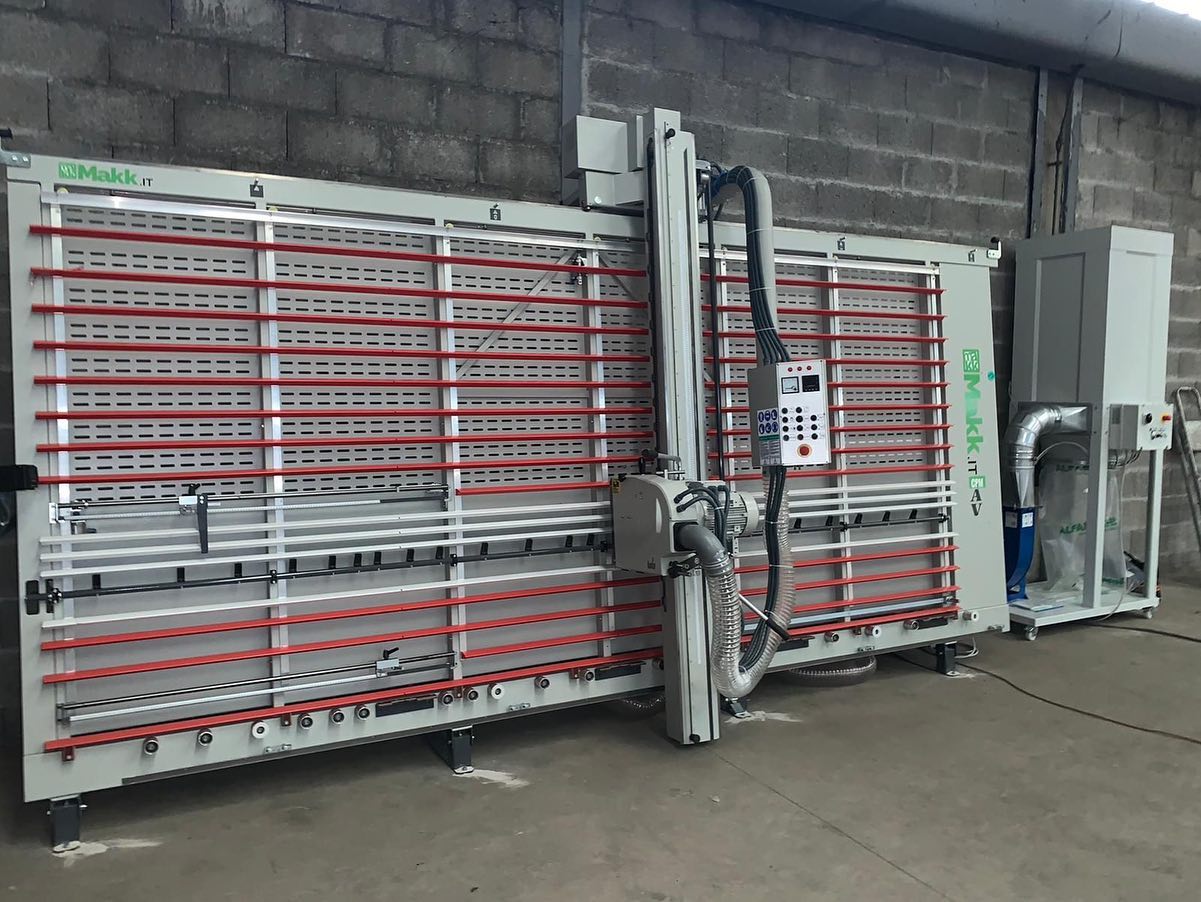

Automatic Vertical Panel Saw V-Grooving MAKK CPM-AV

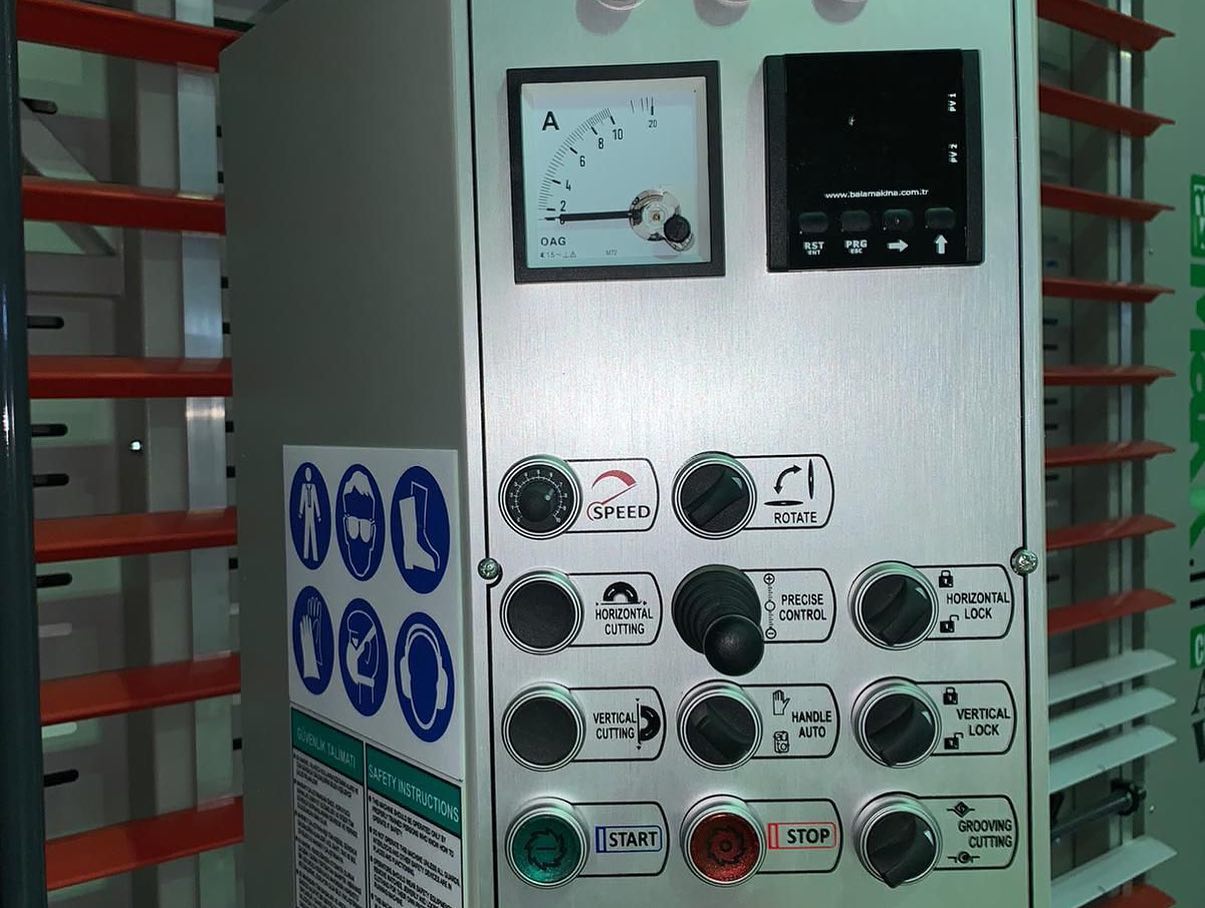

Control panel Automatic vertical panel saw CPM-AV Makk

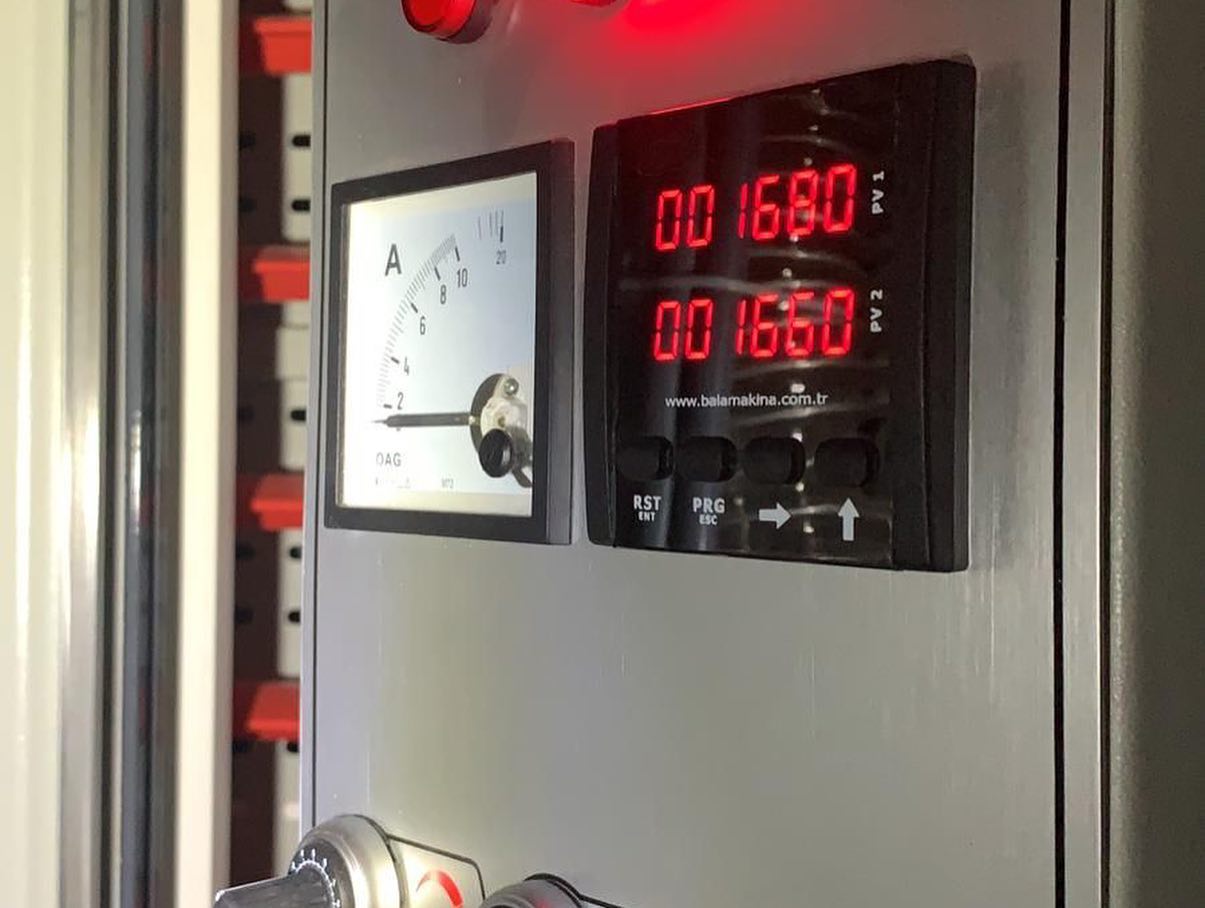

Quadro comandi con visualizzatore digitale misure di taglio

Visualisateur digital pour le parfait reglage des coupes en Vertical et en Horizontal

Visualizzatore digitali per la perfetta regolazione dei tagli in Verticale ed in Orizzontale

Gruppo lama circolare e Fresa per V-Grooving

Gruppo Lama circolare (Taglio) e V-Grooving (Fresa V 90°)

Sistema aspirazione TRK

Dispositivo Aspirazione TRK, composto da cappa posizionata su lato destro della macchina per tutta l’altezza, con bocca di aspirazione posteriore diam.120 mm, per ottimizzare il sistema di aspirazione della macchina (Optional)

Tilting device for support of small pieces to be cut

Dispositivo ribaltabile per l’appoggio di pezzi piccoli da tagliare

Lower supports with metal wheels for panel support

Supporti inferiori appoggio e scorrimento pannelli con ruote in metallo

Alucobond V Grooving

Speciale per Fresare, V-Grooving, Canali a V a 90°, 135° su Pannelli Alucobond, Pannelli Compositi

Tags

Alucobond® Alucobond® panels Alucobond® panels punching machine angled cuts angled cuts of panels automatic cutting of the panels Automatic movable table automatic panel saw circular panel saw composite panels Control PC cutting 3200x1600 mm cutting 4100x2200 mm cutting 5100x2200 mm cutting 5100x2400 mm cutting mm 4000x2100 cutting optimization cutting panels cutting thickness 80 mm cutting thickness 100 mm cutting thickness mm 60 Dibond® digital display for measures Forex® hooking Alucobond® panels Insulated Panels insulating panels lifting panels system methacrylate Milling panels motorized panel saw optimization software panel lifting pliers system panel sizing PLC Plexiglas polycarbonate Sandwich Panels scoring group Solid wood vertical panel saw vertical panel saw for brico V Grooving wall panels wood

AUTOMATIC VERTICAL PANEL SAW Mod.CPM-AV, CUT + V-GROOVING.
Special for Cutting and V-Grooving of Composites Alucobond Panels.
Motorized movement Circular Blade Group from control panel.
Patented System to Pass from Cutting to V-Grooving (Milling) in 1 second.
Automatic movable table. Cut of panels mm. 4000×2100.
Digital visualizers for vertical and horizontal cuts and grooving.
Machine for cutting panels either in vertical or in horizontal, for any cutting need, with the best quality/price ratio on the market.

  • Cutting Dimensions = mm.4000×2100
  • Cutting Thickness = mm.24
  • Motor Power = Hp.4 (Kw.3)
  • Circular Blade Diameter = mm.250
  • V-Grooving Milling Cutter = mm.200
  • Scoring Blade Group = NO
  • Group V-Grooving = YES
  • Blade Group Movement = AUTOMATIC
  • Panels Lifting System = NO
  • Movable Table = AUTOMATIC
  • Digital Display for Measures = YES
  • Device Angled Cuts = NO
  • Lower Support for Panel = METAL WHEELS
FIND OUT MORE
