Delivered and installed to EM WOODWORKING (Nicosia, Cyprus) Automatic Vertical Panel Saw MAKK DPM-AV with 100% automatic cut. Cuts Optimization Software. Panel Lifting System. Cutting panels mm.5100×2100. Engraver/Scoring group. Digital displays for cutting measurements. #sezionatrice #sezionatriceverticale #makxilia #makk #tagliopannelli #macchinelavorazionelegno #segacircolare #macchinatagliopannelli #legno #plexiglas #alucobond

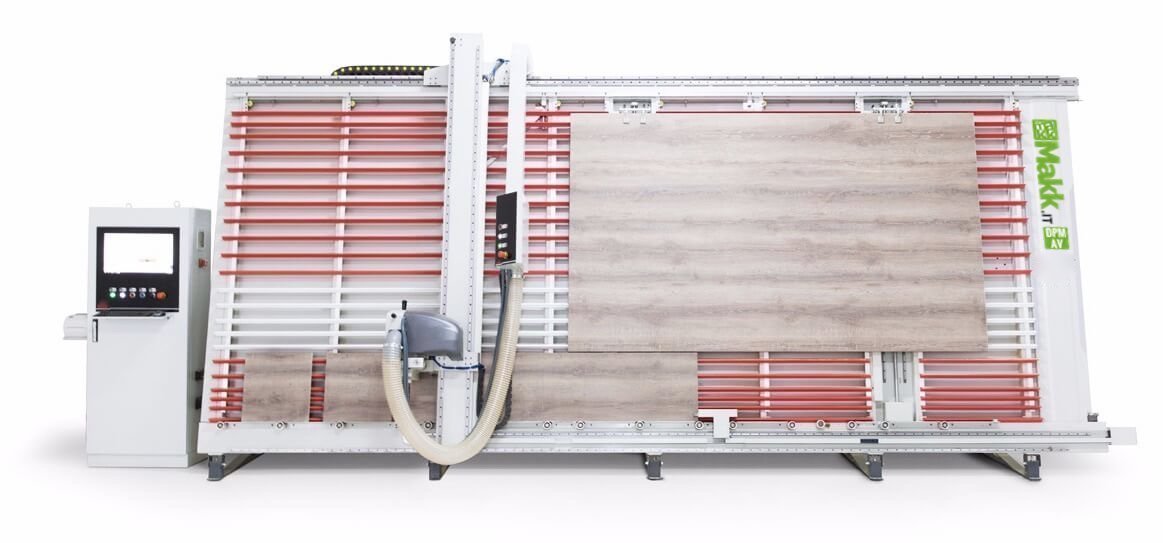

AUTOMATIC VERTICAL PANEL SAW MAKK Mod.DPM-AV, WITH OPTIMIZING PANELS CUTS
Sistema a Pinze per Sollevamento Pannelli
PC controllo con software per Ottimizzazione dei tagli
Stampante codici a barre
Guide THK superiori ed inferiori per scorrimento montante
Doppia pinza di bloccaggio pannelli inferiore per tagli verticali
Gruppo incisore con Lama Circolare HM
Sistema a Pinze per Sollevamento Pannelli
Spintore automatico per posizionamento pannelli per tagli verticali
AUTOMATIC VERTICAL PANEL SAW Mod.DPM-AV, WITH OPTIMIZING PANEL CUTS.
Cutting Panels mm.5100×2100 (3700×2100 with optimizer).
PC Control Panel with Software Optimizing Panel Cuts.
Automatic cutting program. Panel lifting system.
Automatic positioning system. System with Scoring Blade.
Machine for cutting panels either in vertical or in horizontal, for any cutting need, with the best quality/price ratio on the market.
- Cutting Dimensions = mm.5100×2100
- Cutting Thickness = mm.60
- Motor Power = Hp.4 (Kw.3)
- Circular Blade Diameter = mm.250
- Scoring Blade Group = YES
- PC Control Panel = YES
- Software Optimization of Cuts = YES
- Group V-Grooving = NO
- Blade Group Movement = AUTOMATIC
- Panels Lifting System = YES
- Upper and Lower THK Guides = YES
- Movable Table = AUTOMATIC
- Digital Display for Measures = YES
- Device Angled Cuts = NO
- Lower Support for Panel = METAL WHEELS
