Vertical Panel Saws

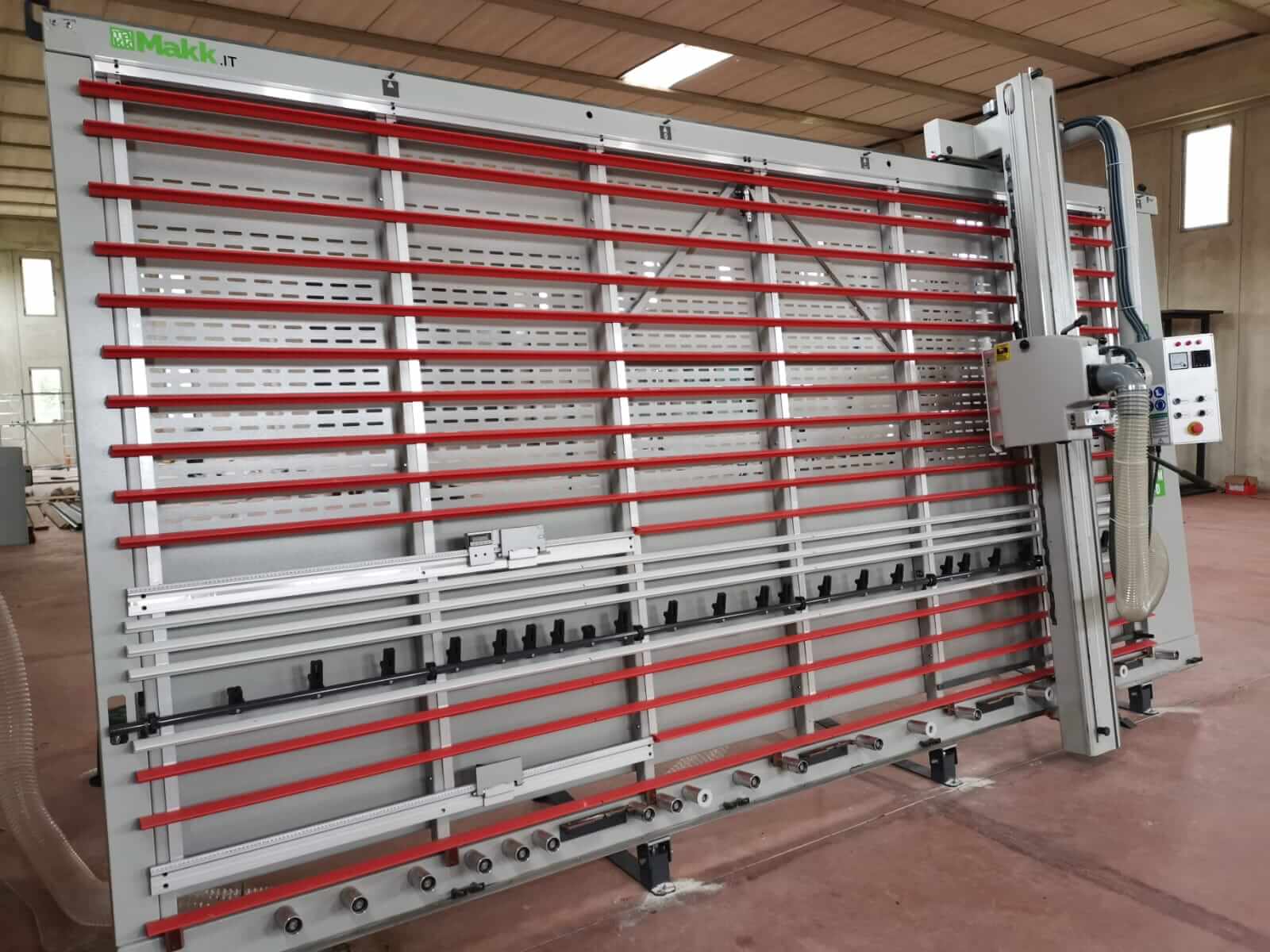

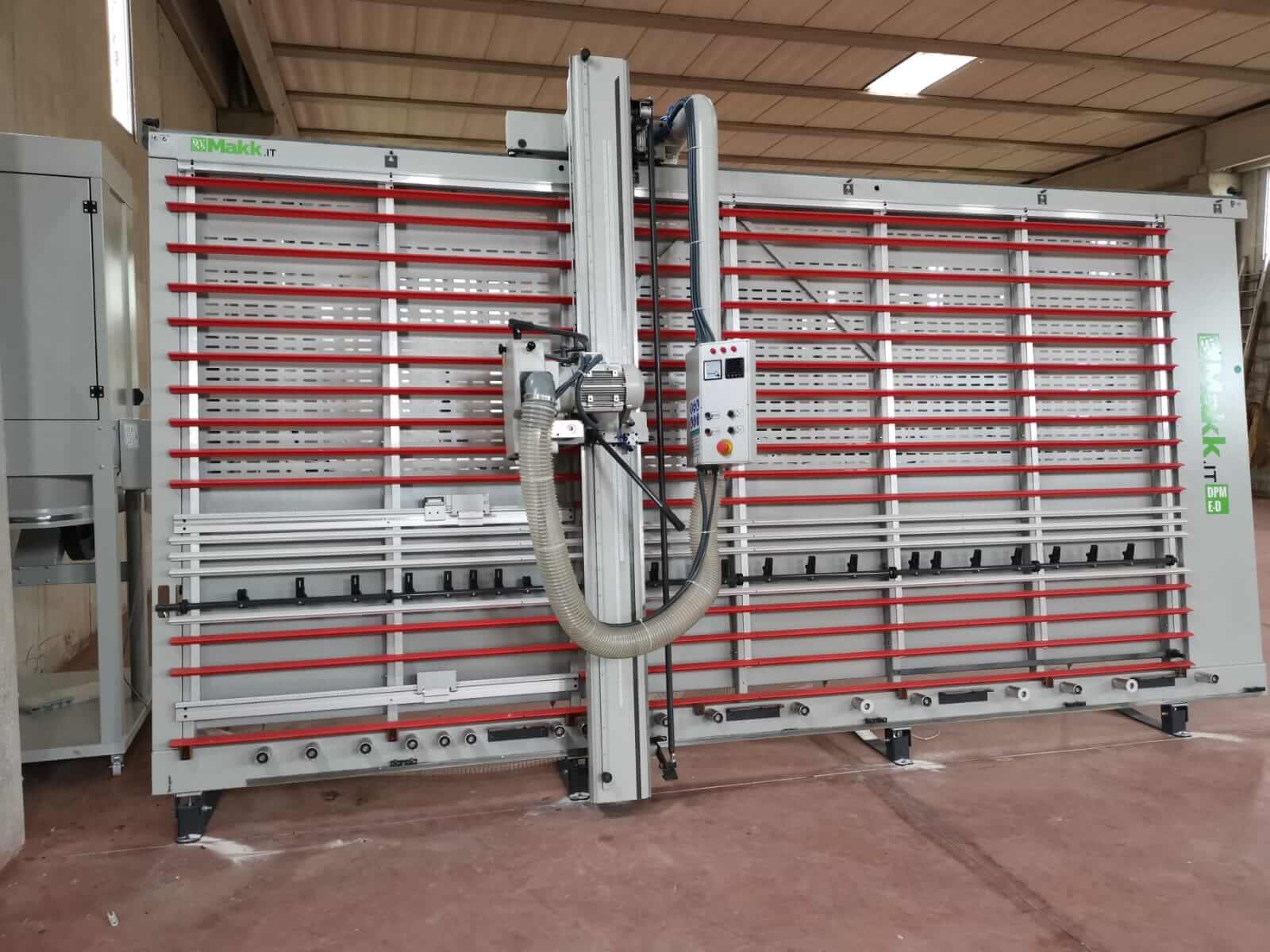

Delivered and installed to PETROZZI snc (RIETI, Italy): Vertical Panel Saw DPME-D

sezionatrice verticale DPME-D MAKK a ditta Petrozzi, Rieti 2
19 Nov

Delivered and installed to PETROZZI snc (RIETI, Italy): Vertical Panel Saw DPME-D MAKK  #sezionatriceverticale #verticalpanelsaw #cuttingpanels #brico #panelsaw #tagliolegno #makkpanelsaw

VERTICAL PANEL SAW MAKK Mod.DPME-D

Discover the vertical panel saw that we delivered to our customer ...
Vertical Panel Saw DPME-D MAKK
Sistema aspirazione TRK

Dispositivo per aspirazione TRK (optional)

Digital visualizer for the perfect adjustment of cuts in vertical and horizontal

Battuta su guida millimetrata per misure di taglio pannelli

Tilting device for support of the small pieces to be cut.

Appoggio per taglio pezzi piccoli

Circular group Vertical Panel Saw MAKK

Taglio pezzi piccoli in verticale

Lower panel supports with metal wheels

Routine appoggio inferiore pannelli

Scoring group Vertical Panel Saw MAKK

Gruppo incisore con Lama Circolare HM

Kit angular cuts device.

Dispositivo per tagli angolati

VERTICAL PANEL SAW MAKK Mod.DPME-D.
Cutting panels mm. 4100×2200. Scoring group included.
Automatic movable table. Kit angular cut device. Digital visualizer for vertical and horizontal cuts.
Machine for cutting panels either in vertical or in horizontal, for any cutting need, with the best quality/price ratio on the market.

  • Cutting Dimensions = mm.4100×2200
  • Cutting Thickness = mm.60
  • Motor Power = Hp.4 (Kw.3)
  • Circular Blade Diameter = mm.250
  • Scoring Blade Group = YES
  • Group V-Grooving = NO
  • Blade Group Movement = MANUAL
  • Movable Table = AUTOMATIC
  • Digital Display for Measures = YES
  • Device Angled Cuts = YES
  • Lower Support for Panel = METAL WHEELS
FIND OUT MORE
