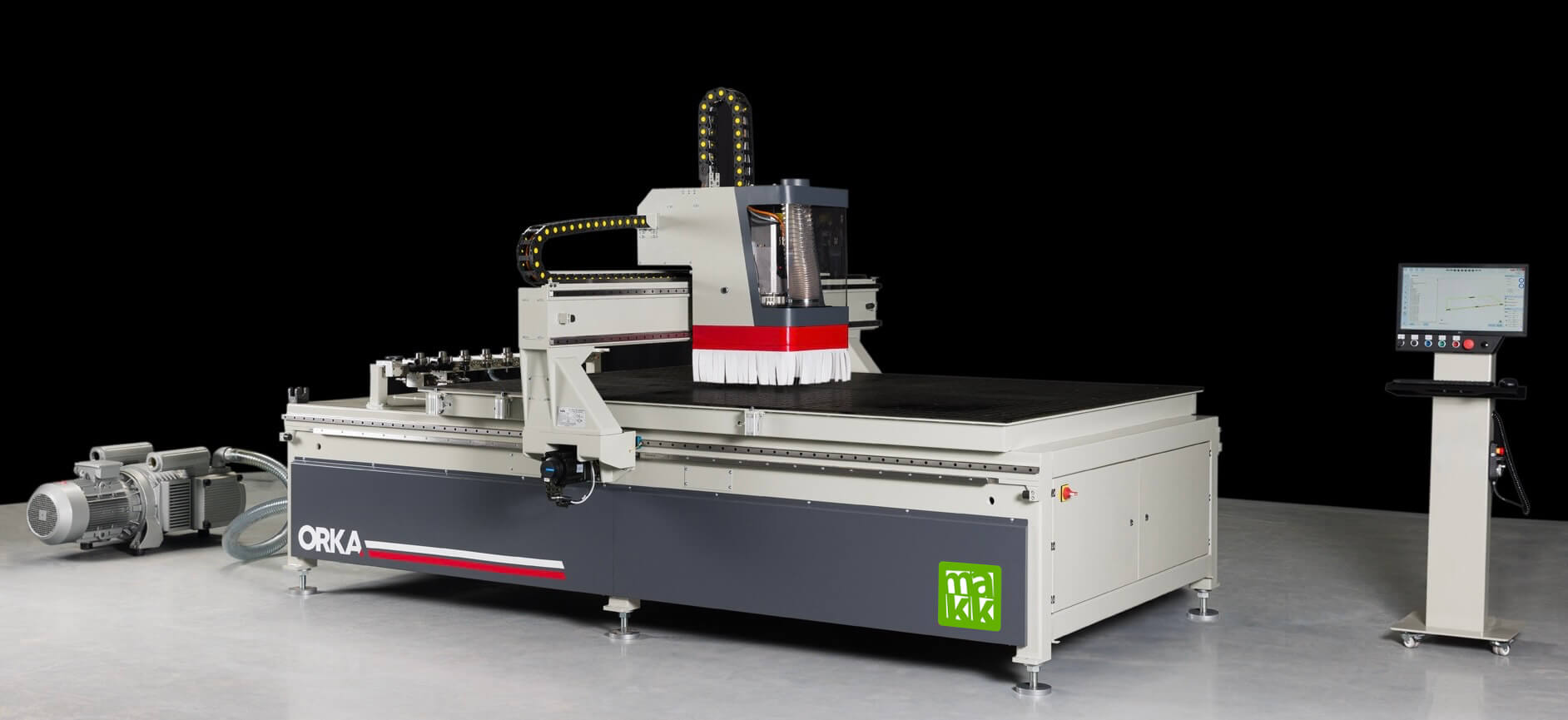

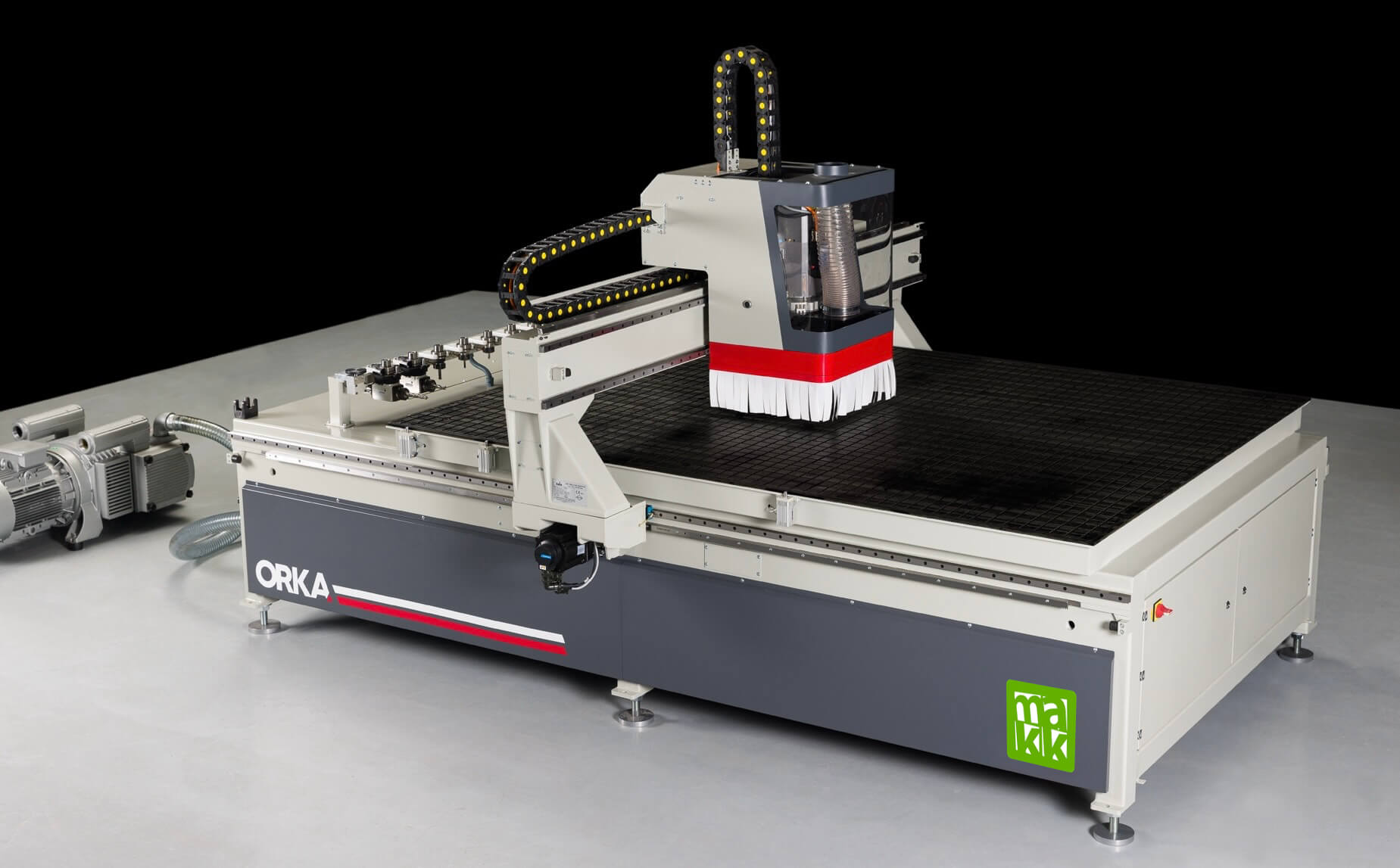

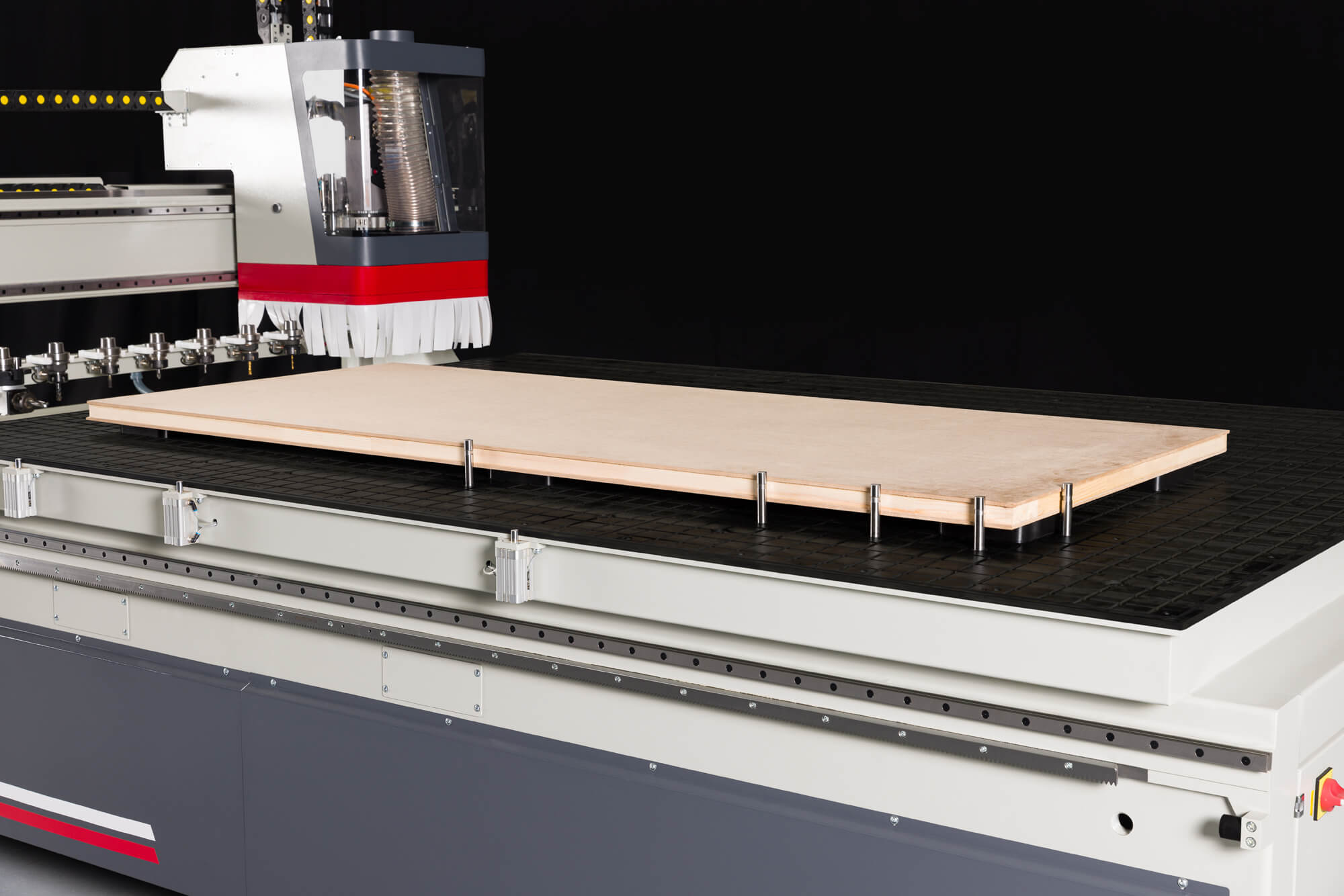

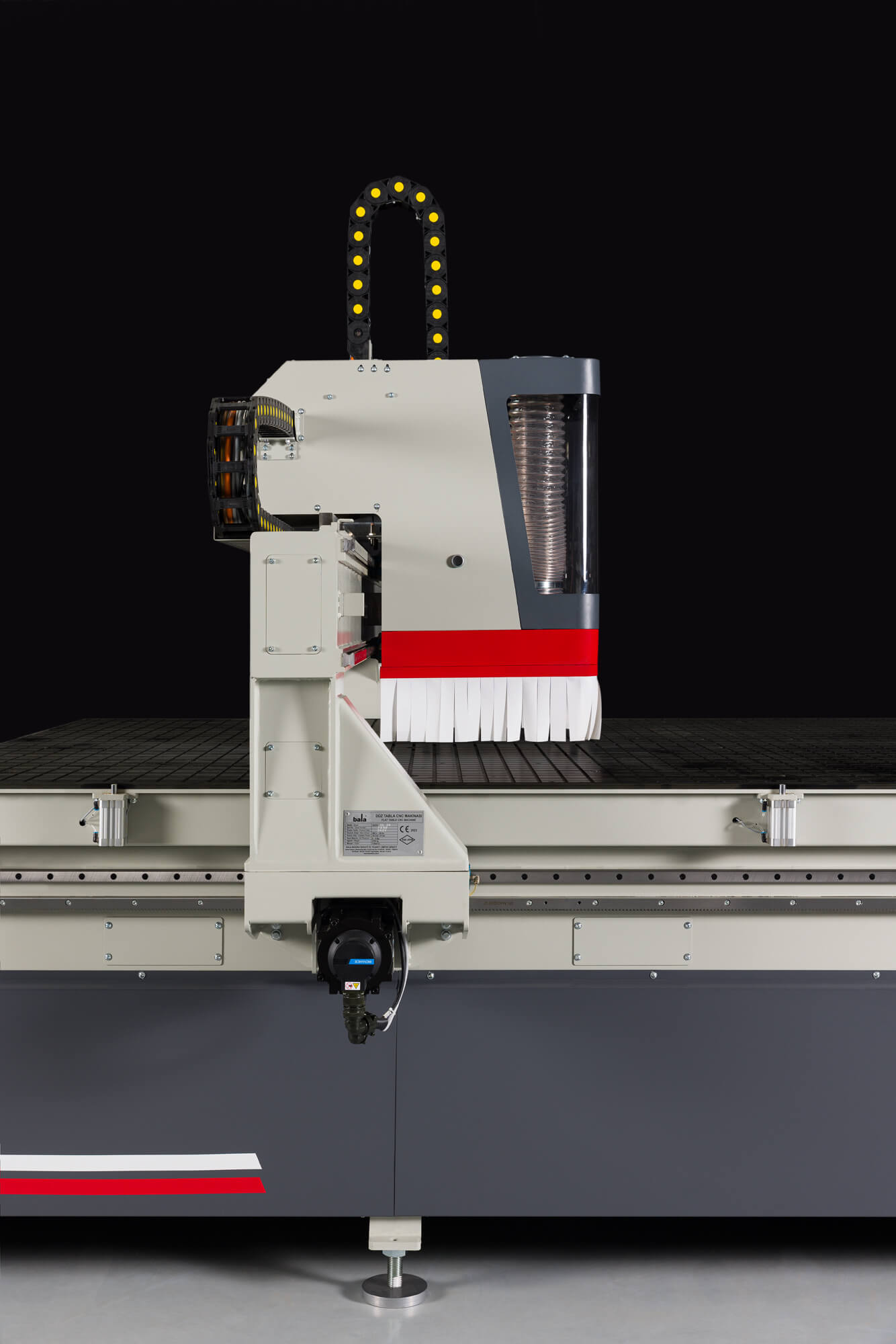

CNC HORIZONTAL WORKING CENTER COMPOSITE PANELS ACM MAKK Mod. ORKA 2137 / mm. 3700 x 2100

iM SMART SENSOR(optional)…
Speed, vibration and temperature of the bearings and core of the spindle directly to the PC (link).
The iM Smart sensor monitors vibrations and core temperatures of the spindle independently of normal machine vibration and alarms for unusual activities of the spindle motors.

– Accelerometer: Triaxial with 3 orthogonal axes X, Y and Z
– Sensor type: MEMS
– Measuring range: 16 G (156 m/sec 2)
– Bandwidth: 1000 Hz
– Resolution: 0.125 g/sample
– Operating temperature: 5 to 85°
– Impact resistance: 3000 G (29400 m/sec 2)
– Connectivity: Modbus over RS485

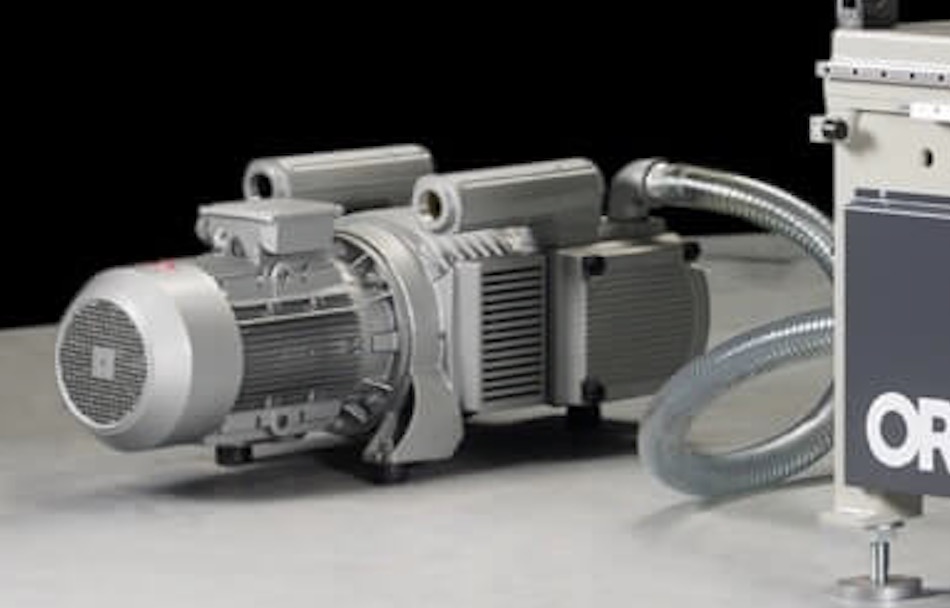

VPS DRY VACUUM PUMP……

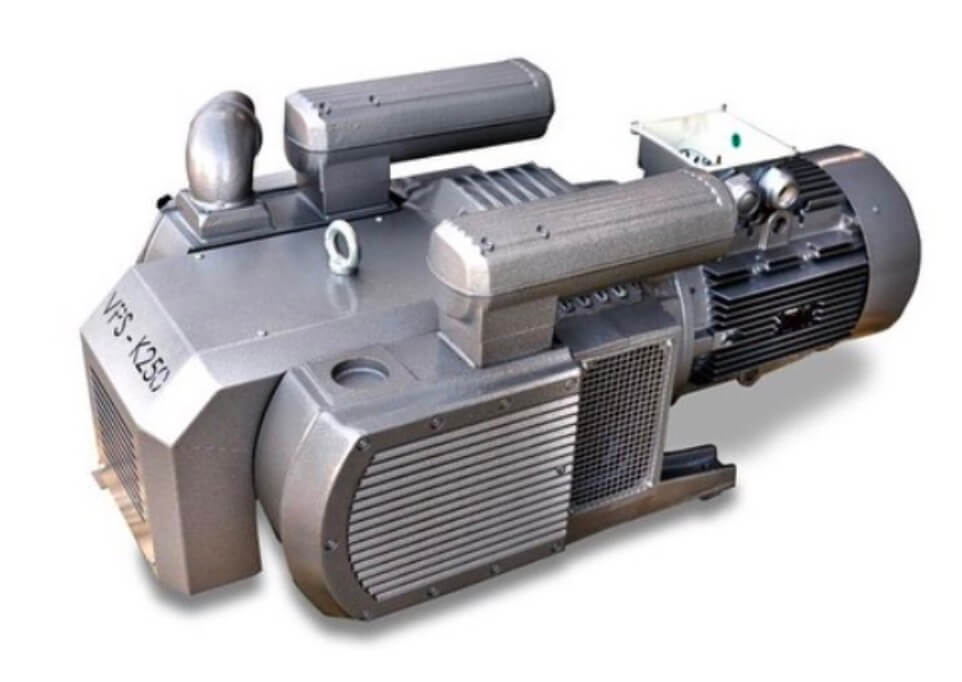

The dry run VPS K250, designed to operate in continuous service. It uses self-lubricating graphite composite vanes, requires only minimal maintenance and does not require oil change.

– Model: VPS K250
– Volume flow 50 hz: 250 m 3/h
– Absolute vacuum 50 hz: 200 mbar
– Power 50 hz: 7.5 kW
– Noise level 50 hz: 79.0 dB(A)
– Volume flow 60 hz: 286 m 3/h
– Absolute vacuum 60 hz: 200 mbar
– Power 60 hz: 9.0 kW
– Noise level 60 hz: 79.0 dB(A)
– Weight: 260,0 kg without motor

• 100% dry operation (without oil)
• Silent operation
• Air cooled
• Direct drive to single shaft
• Compact design
• Variety of motors available

• Low operating and maintenance costs
• No cycling hours
• Space-saving footprint
• Simple construction for quick and easy on-site service to reduce downtime

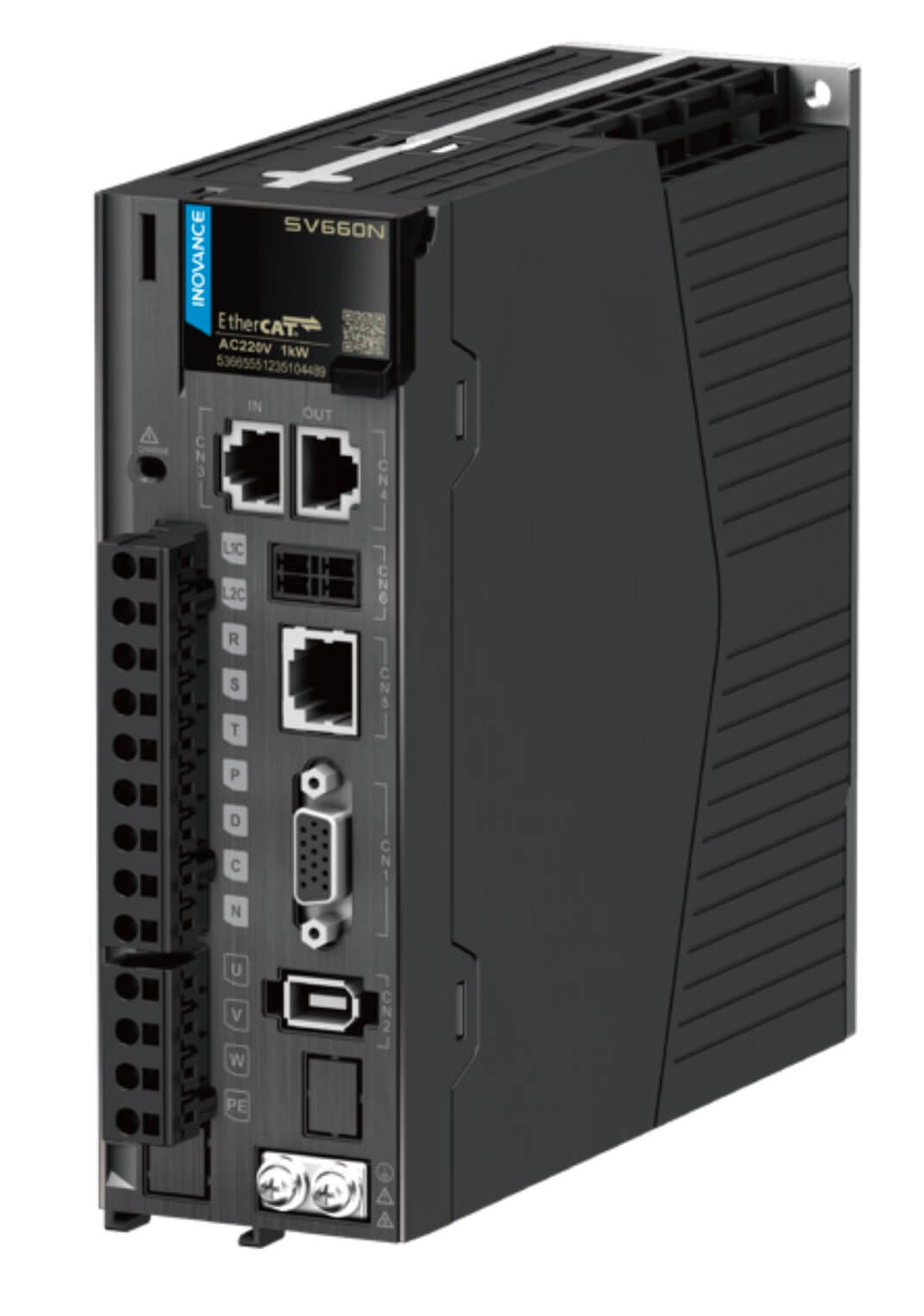

INOVANCE SERVO DRIVE FOR 3 AXES…
– Model: SV660N
– Product or component type: Servo drive
– Phase: Three-phase
– Nominal supply voltage [EU]: 380…440 V – 10…+ 10 %
– Rated supply voltage [USA]: 220… 240 V – 10…+ 10 %
– EMC filter: Integrated
– Supply voltage limit [EU]: 323…528 V
– Supply voltage limit [USA]: 170… 264 V
– Frequency supply: 50/60 Hz – 5…5 %

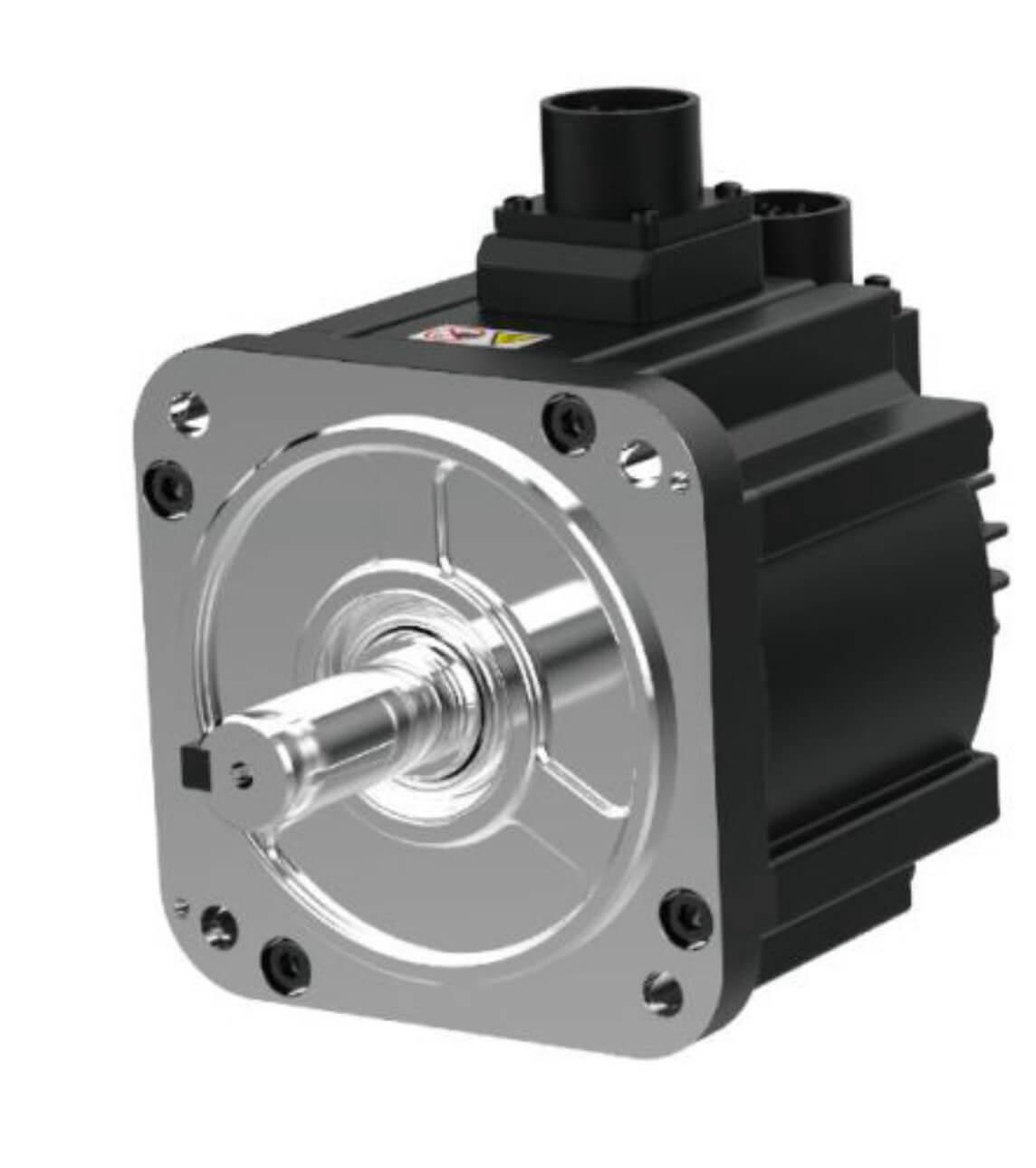

INOVANCE SERVO MOTOR FOR 3 AXIS …
– Model: MS1H1-10C30CB-A331Z-INT [axes X1 and X2]
– Product or component type: Servo motor
– Rated speed (rev/min): 1500
– Nominal torque (N-m): 8.34
– Shaft end: Grooved + threaded hole
– IP protection grade: IP67 standard
– Electrical connection: Connectors spec. Military

– Model: MS1H1-10C30CB-A331Z-INT [y-axis] / MS1H1-10C30CB-A334Z-INT [z-axis]
– Product or component type: Servo motor
– Rated speed (rev/min): 3000
– Nominal torque (N-m): 3.18
– Shaft end: Grooved + threaded hole
– IP protection grade: IP67 standard
– Electrical connection: Connectors spec. Military

– Speed axis X: 70 m/min
– Speed Y axis: 70 m/min
– Speed Z axis: 20 m/min

HITECO DRILLING UNIT (optional)…

• Point lubrication for each spindle to increase service life
• Quick spindle replacement in just a few simple steps
• Unique dust protection system

– Model: TF.A.9V.0H.0B.A
– Number of vertical shafts: 9
– Tool taper: 10 H7 mm
– Tool distance: 32 mm
– Max. tool length: 70 mm
– Vertical shaft travel: 60 mm (opz. 75 mm)
– Engine power: 1.5 kW
– Max. vertical rotation: 8000 rpm
– Weight: 25 kg

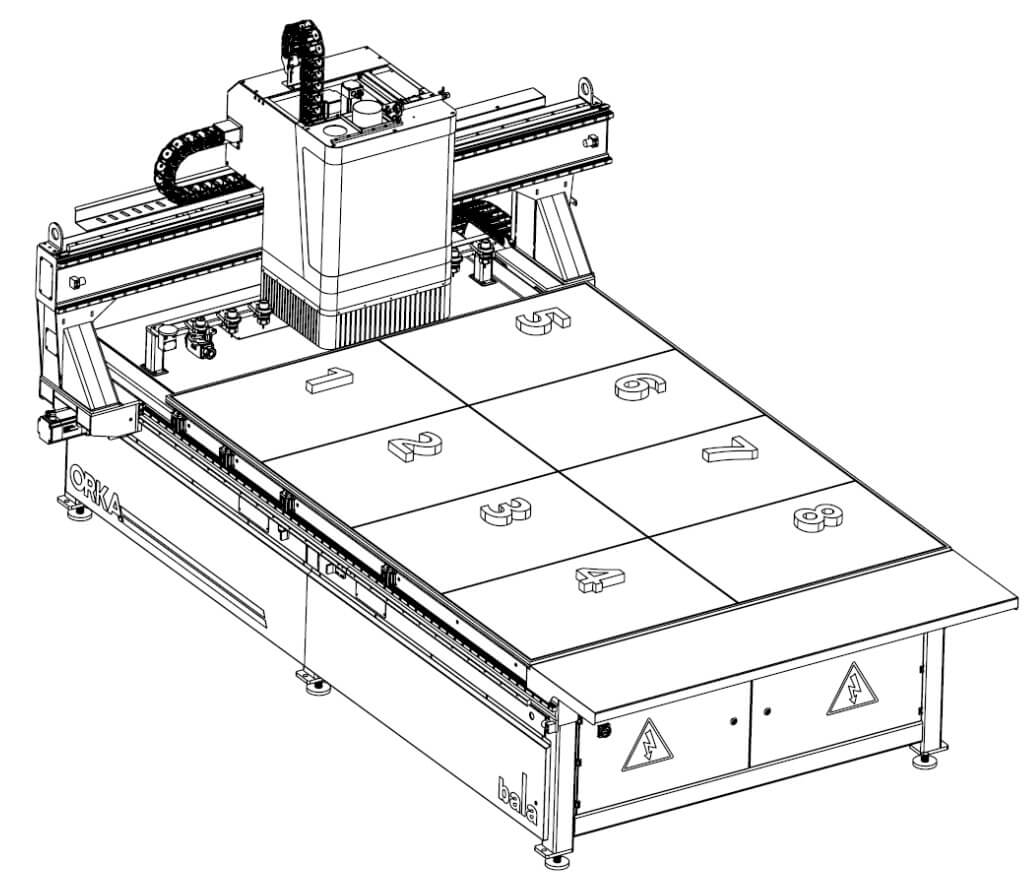

AUTOMATIC SUCTION ZONES…

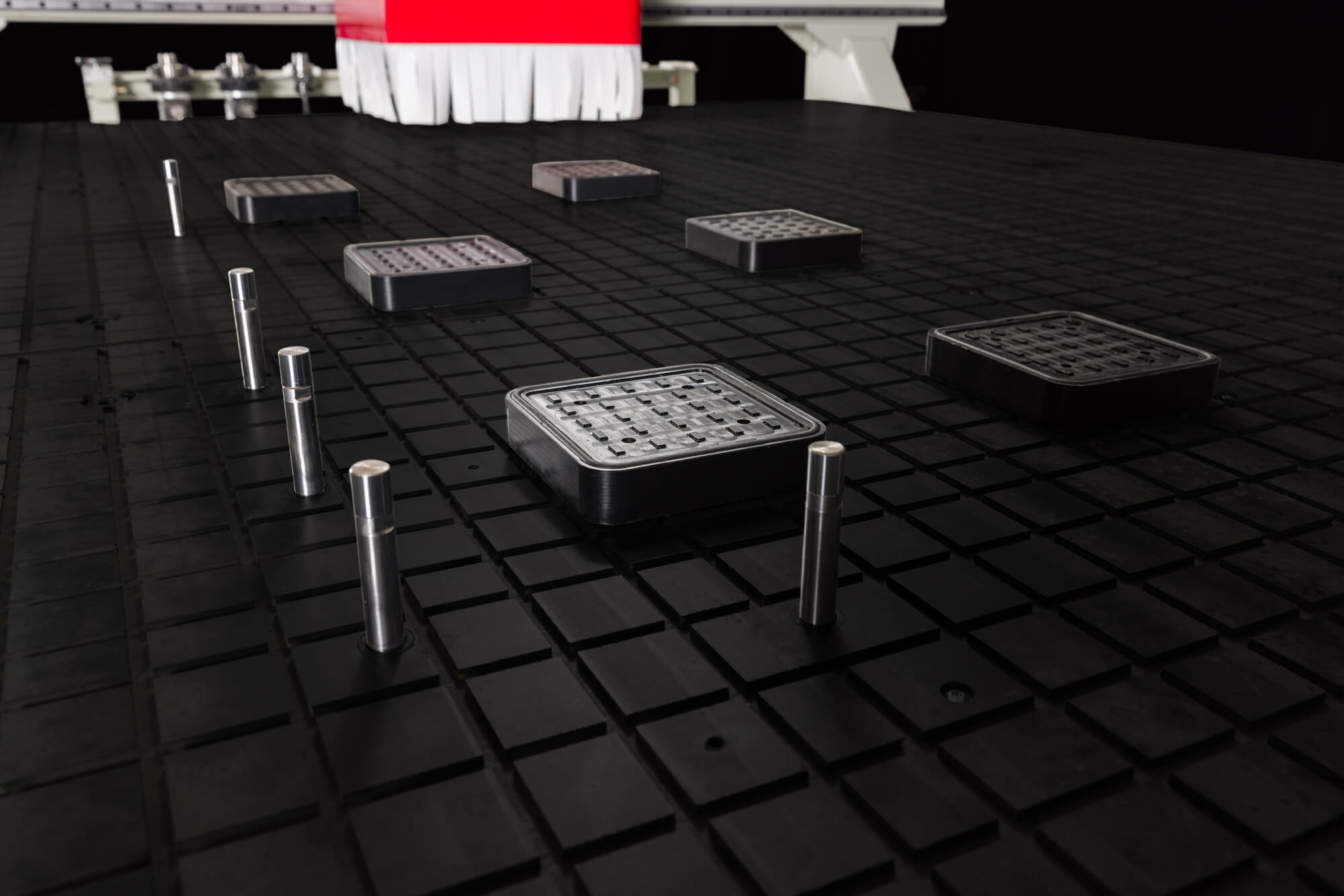

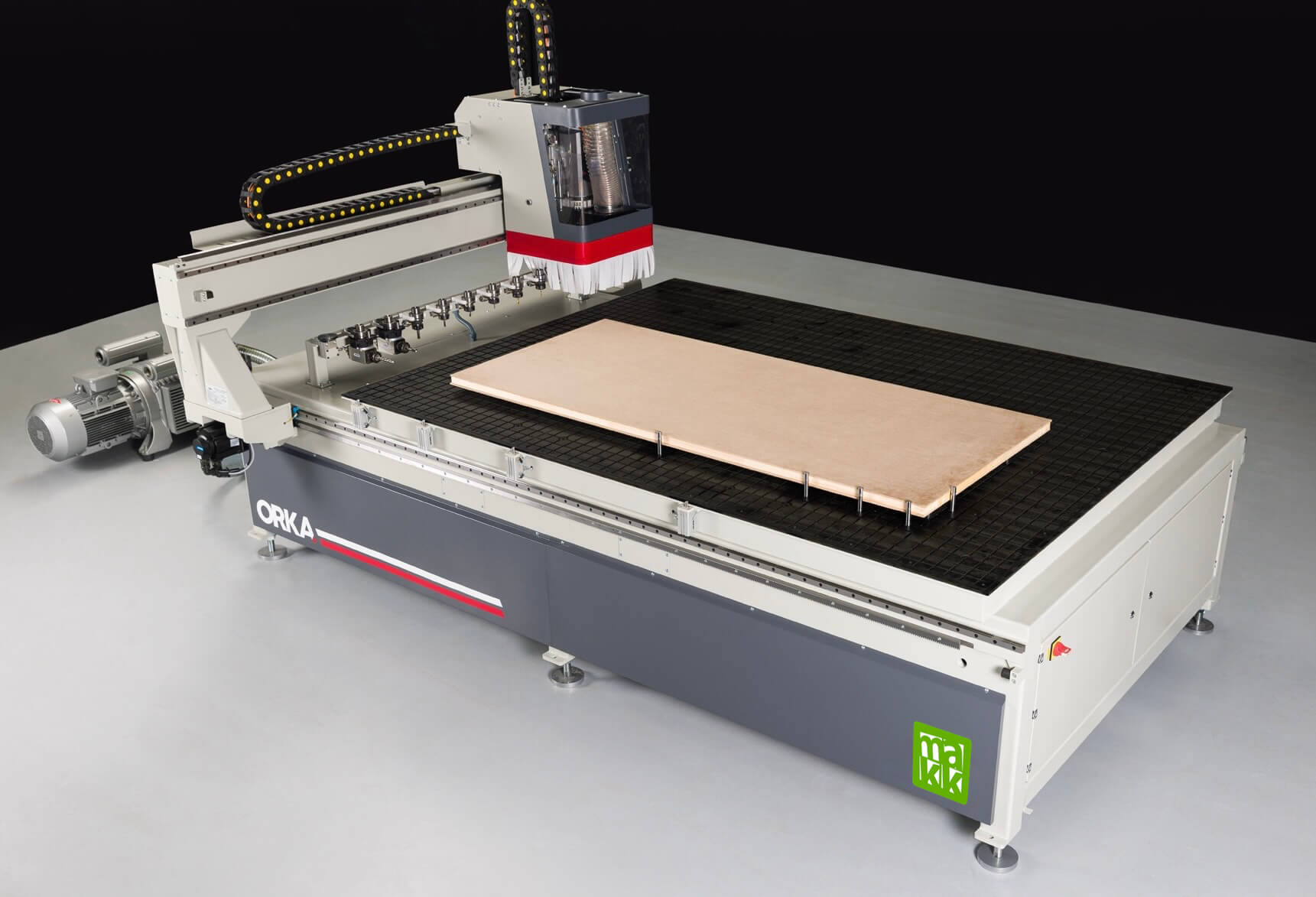

The machine’s working surface is divided into 8 asymmetric vacuum zones.
More vacuum zones provide a stronger grip during cutting.
The suction zones are controlled by software and activated separately and automatically according to the panel size on the worktop.

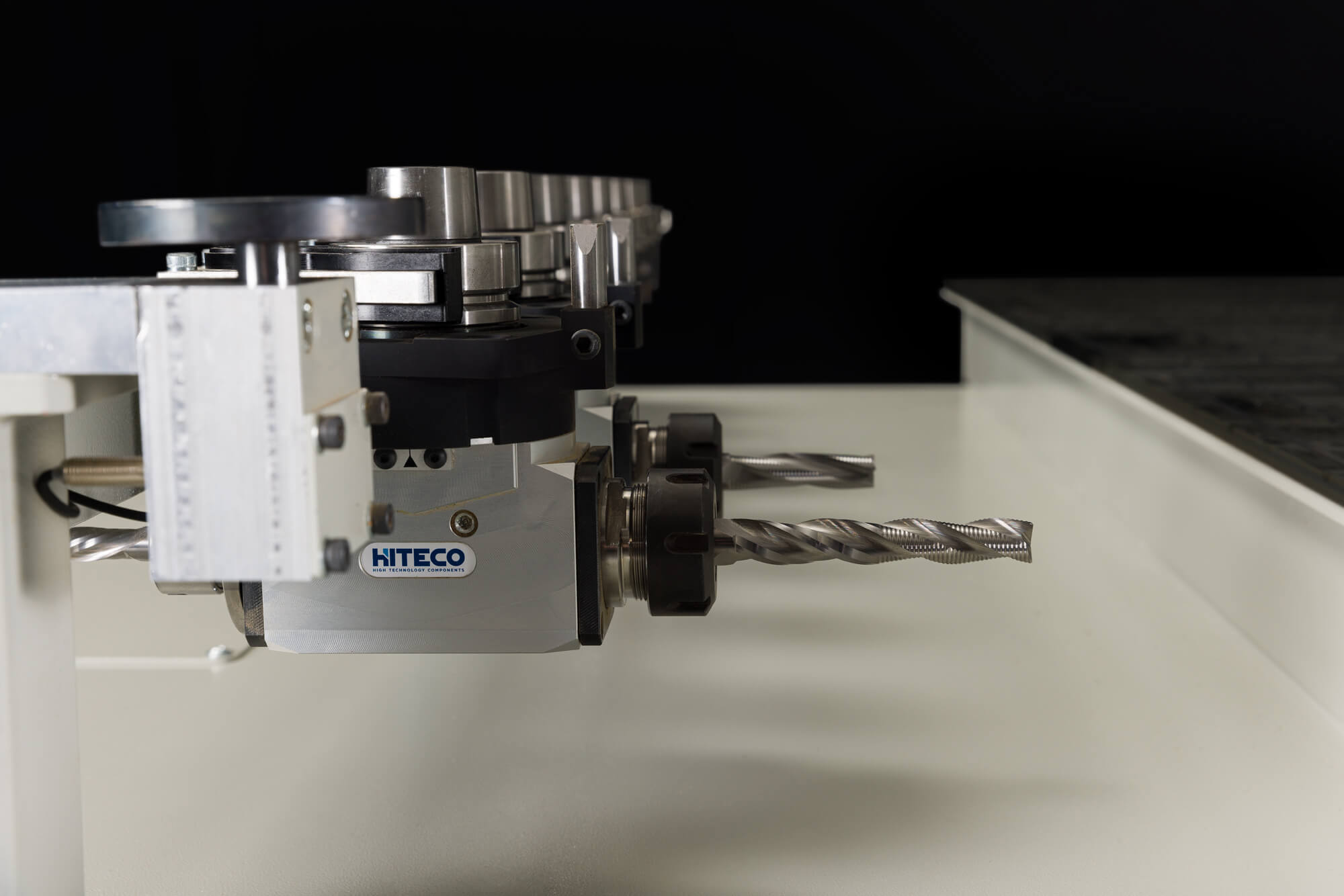

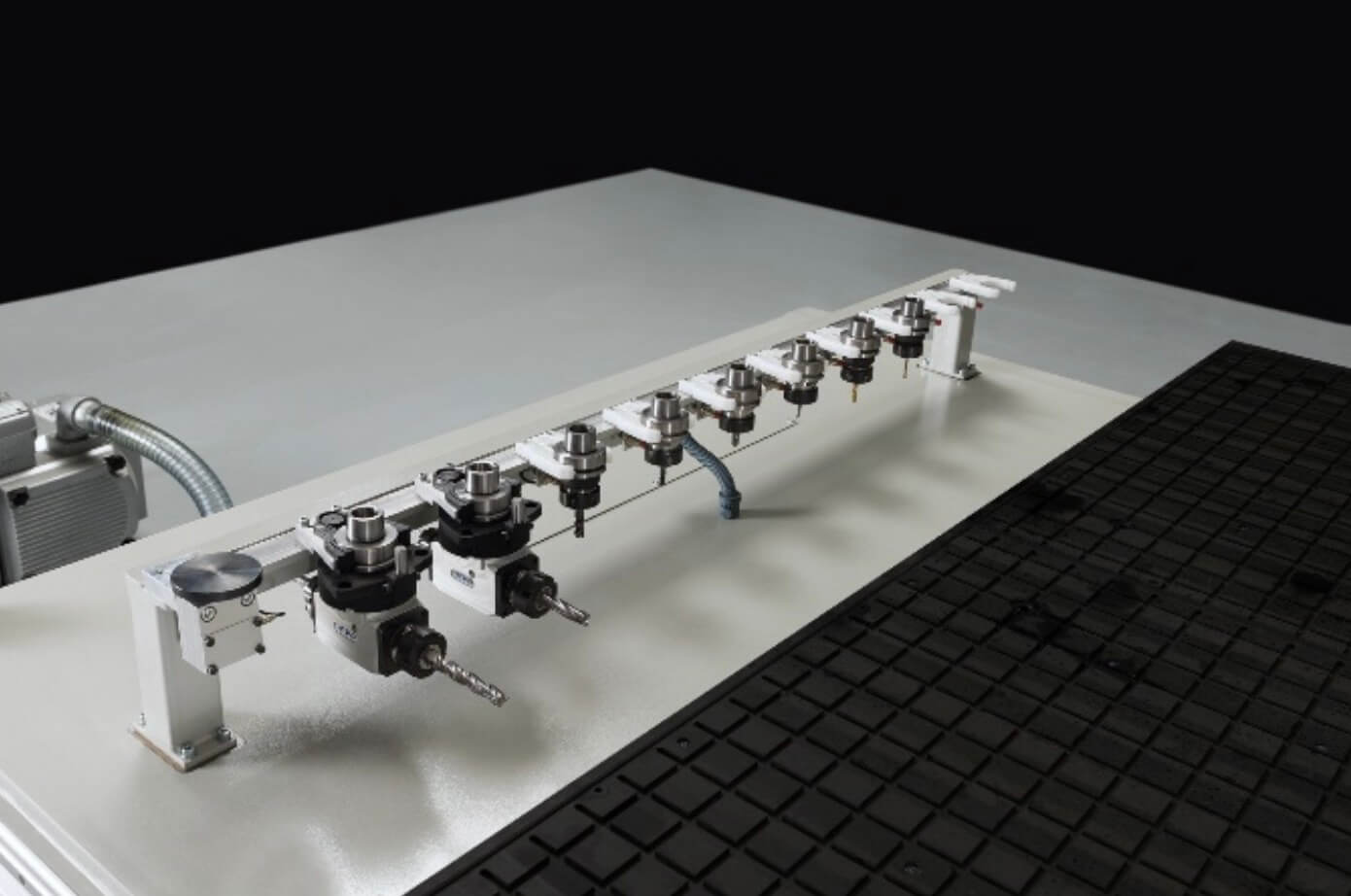

LINEAR TOOL CHANGE UNIT…

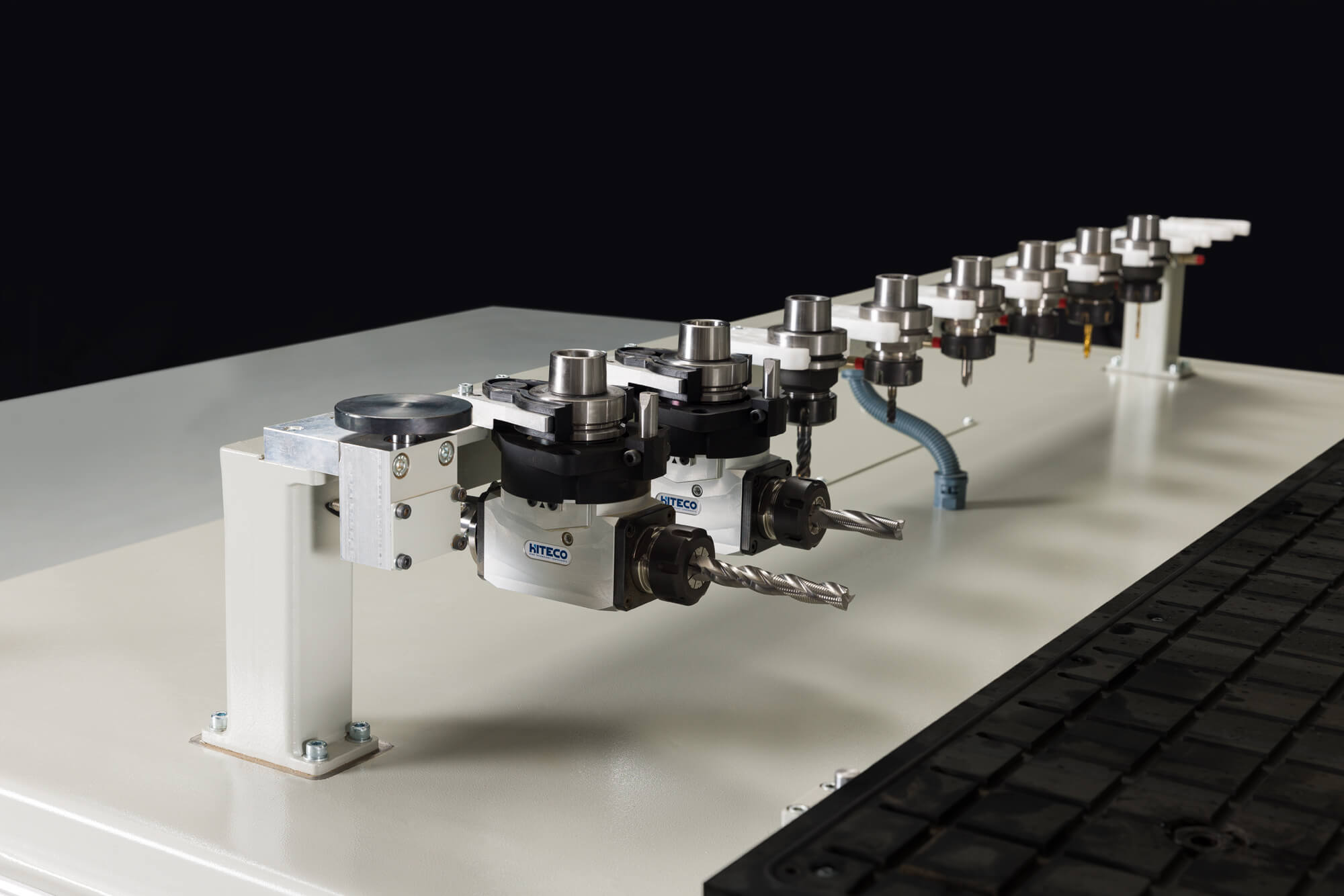

The automatic linear tool changer improves the production and transport capacity of the Orka CNC router by changing tools very quickly without the help of a manual operator.
In this way, the unit reduces downtime on a given project.
There are sensors for each linear tool change caliper to prevent collisions.
(*Tool change numbers are 10 on Orka 2137).

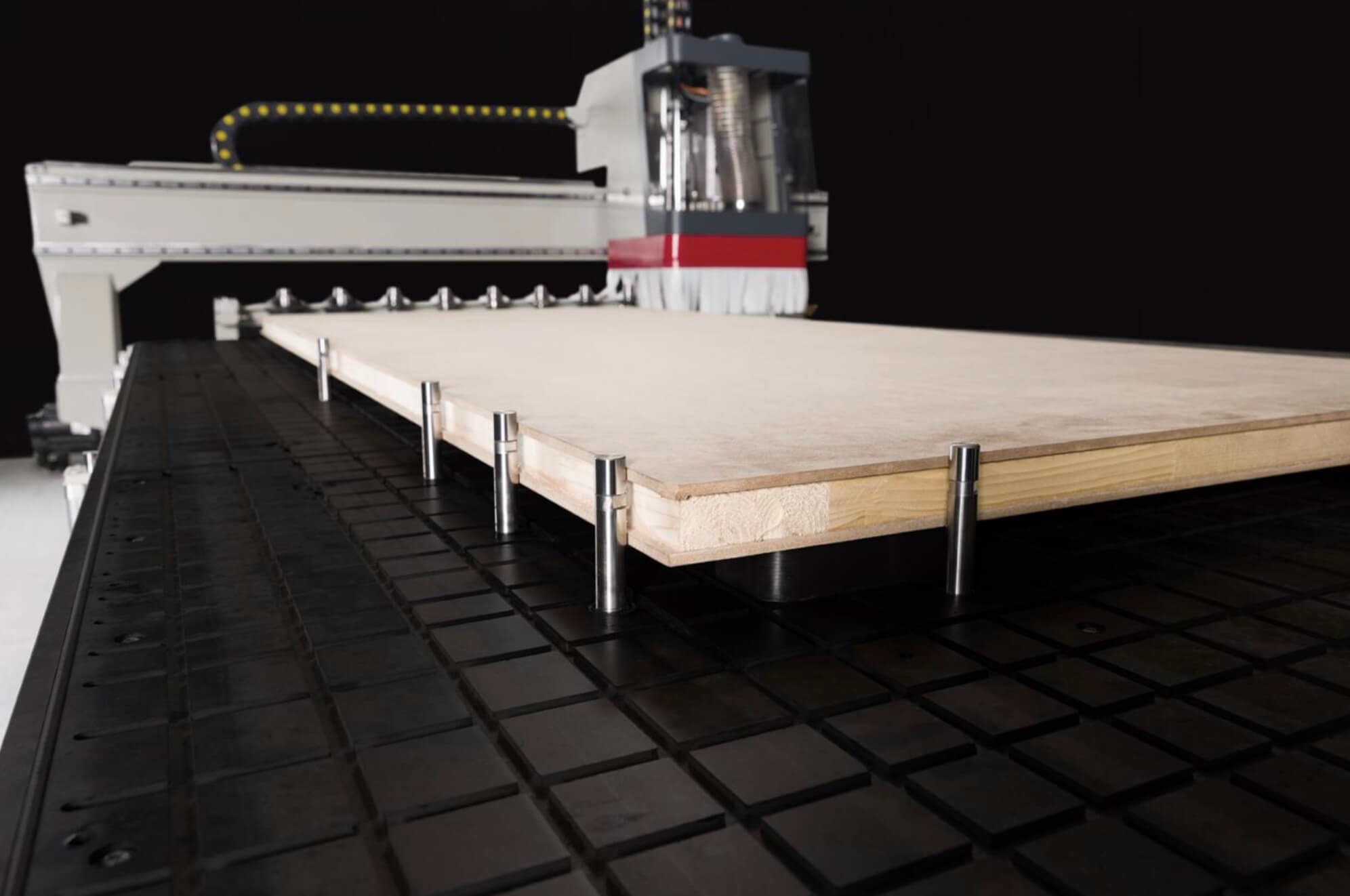

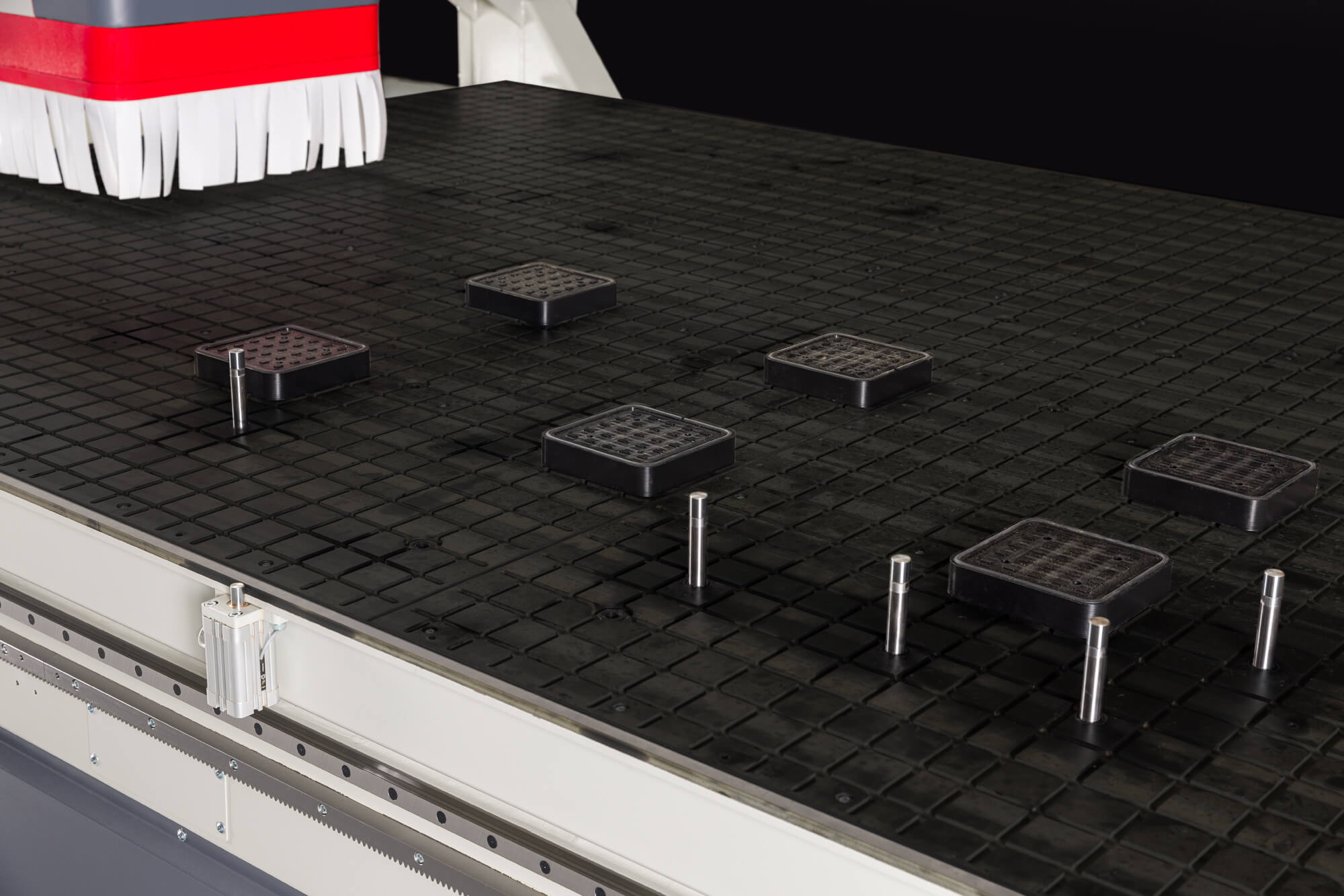

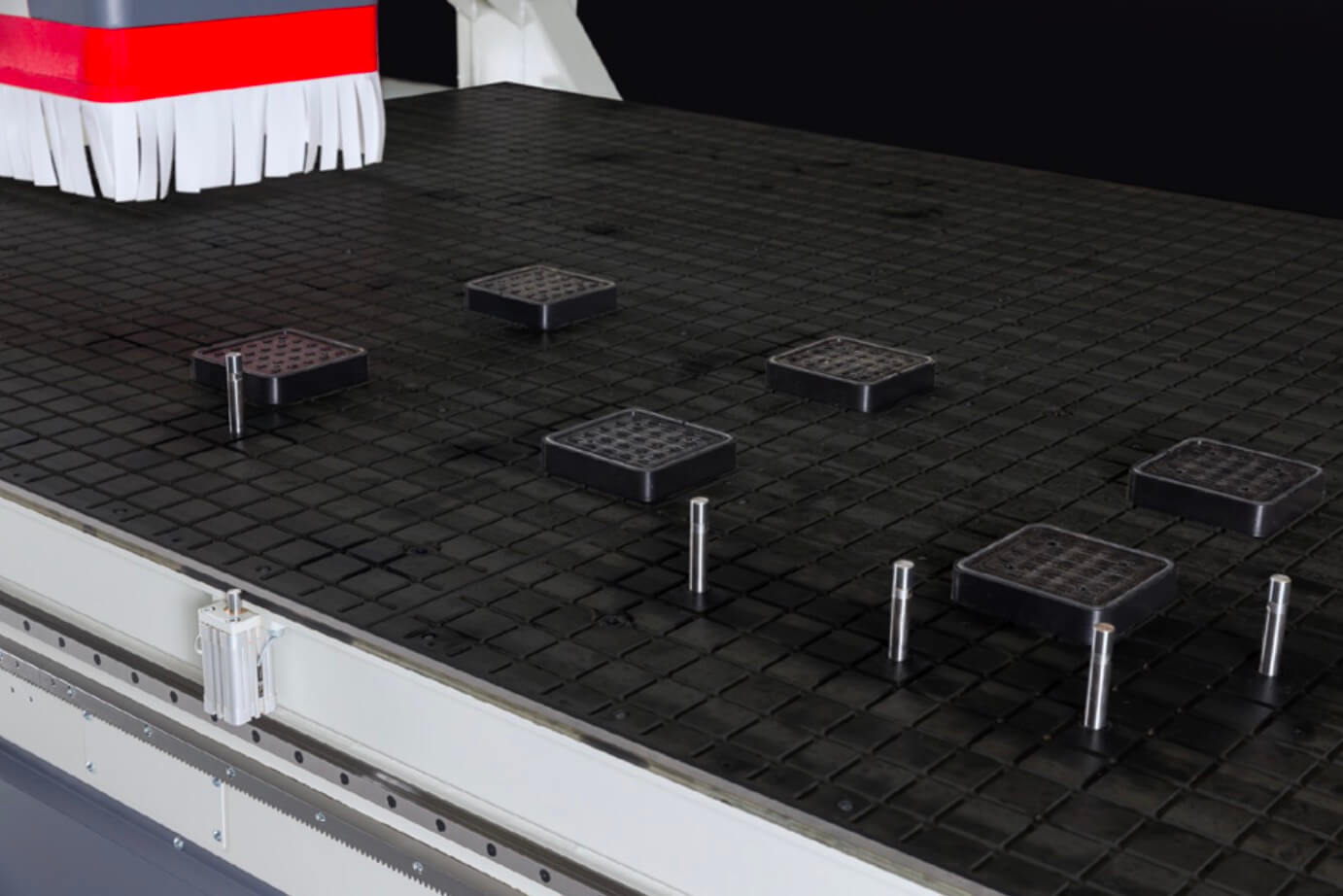

MATERIAL POSITIONING RETRACTABLE PINS…
The automatic, concealed material positioning pins are controlled manually via the machine’s software interface.
Each retractable pin has sensors to avoid collisions.

PRESS ROLLERS (optional)…

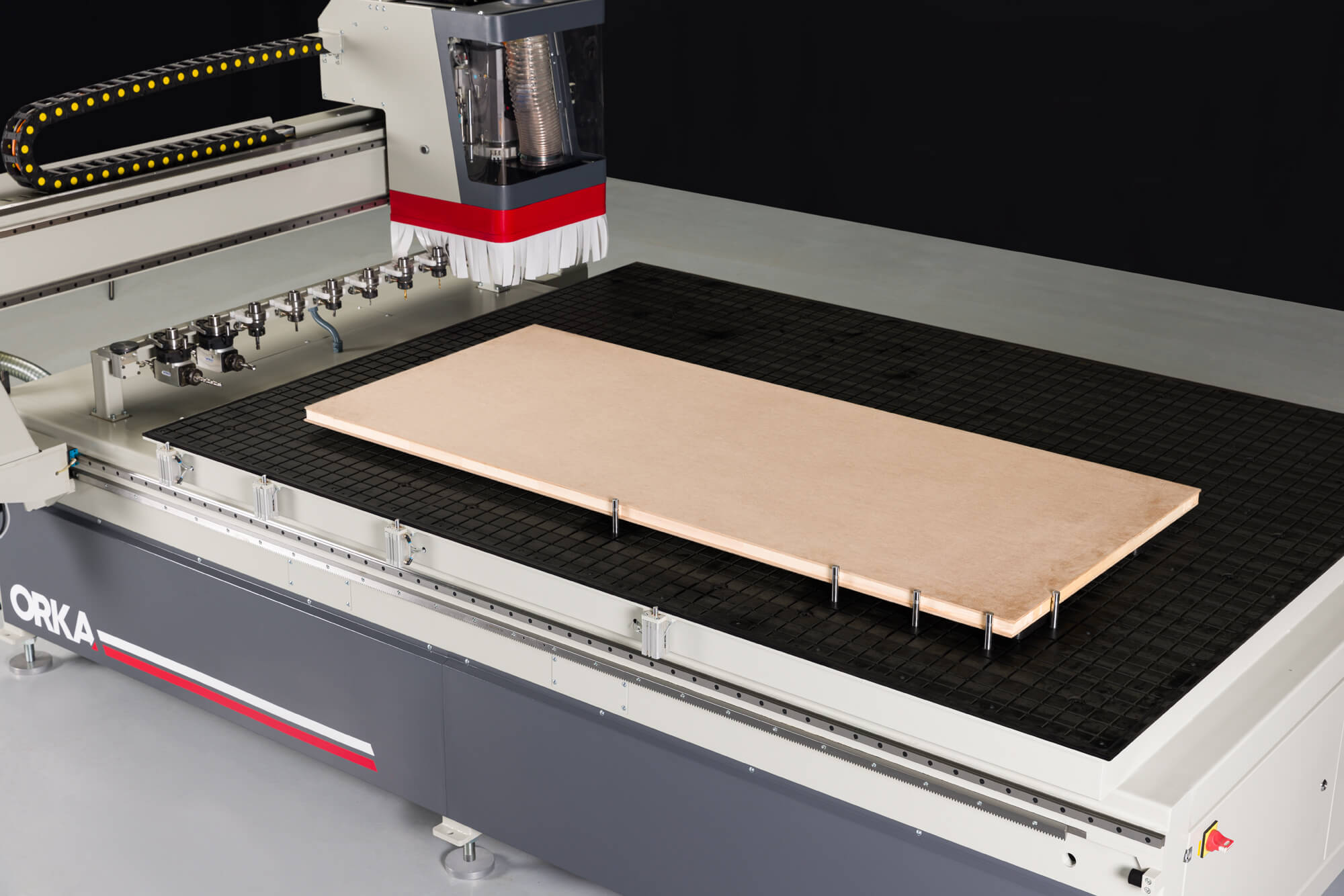

Dynamic and position press rollers for cutting small parts and also cutting multiple boards at the same time.

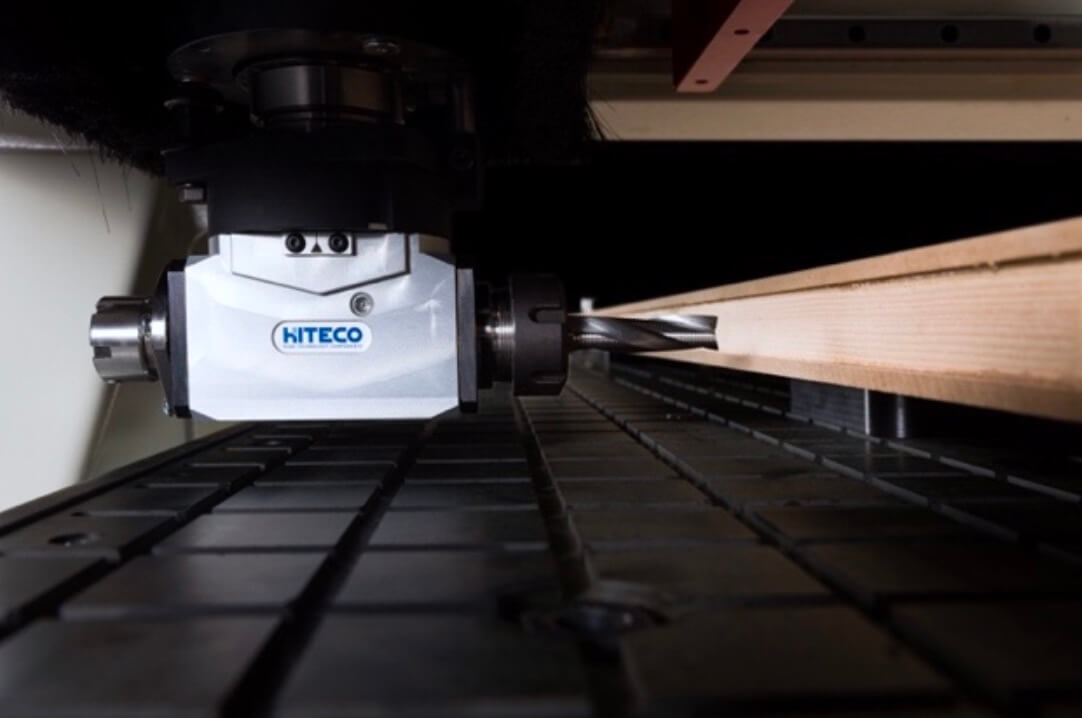

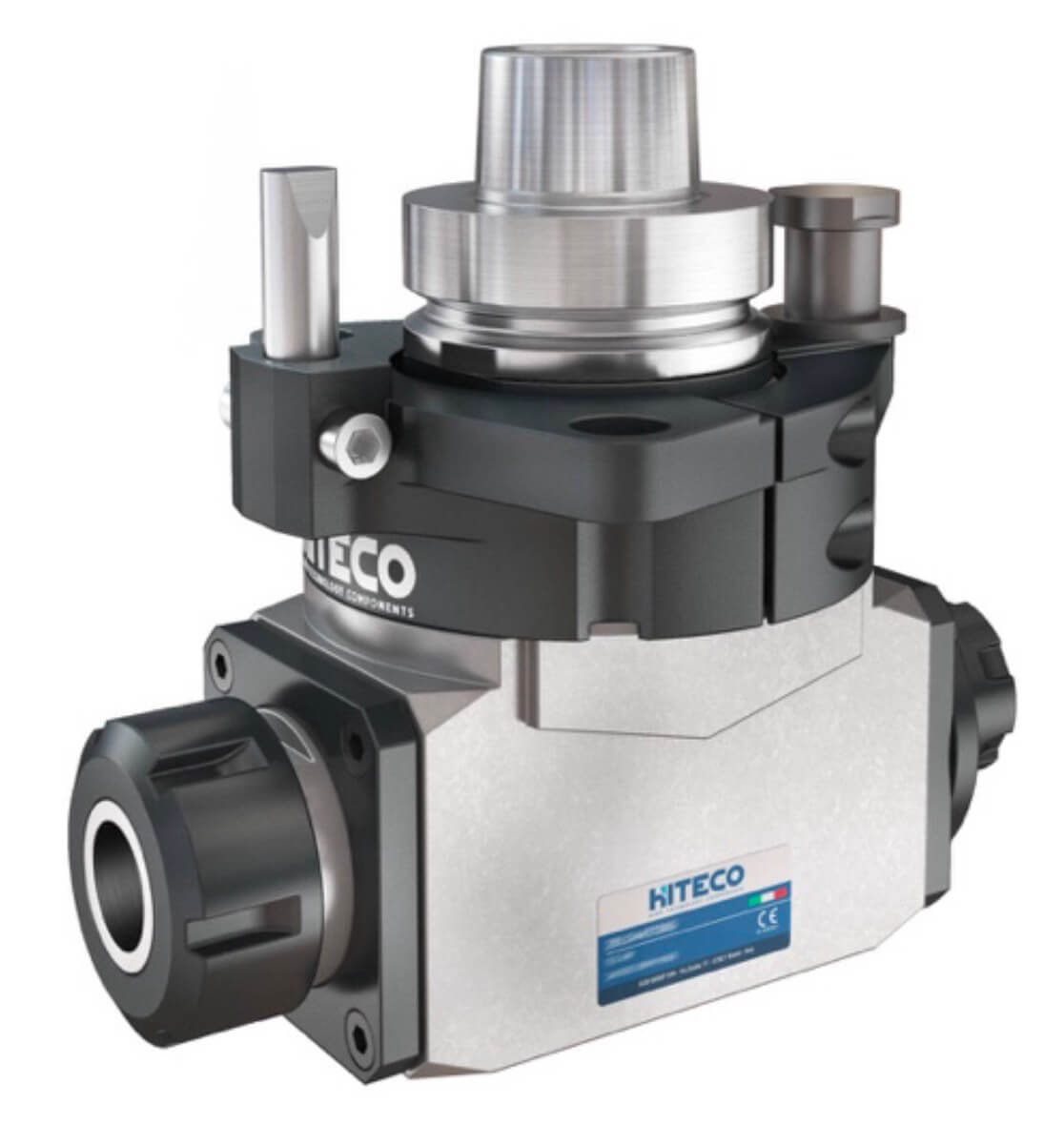

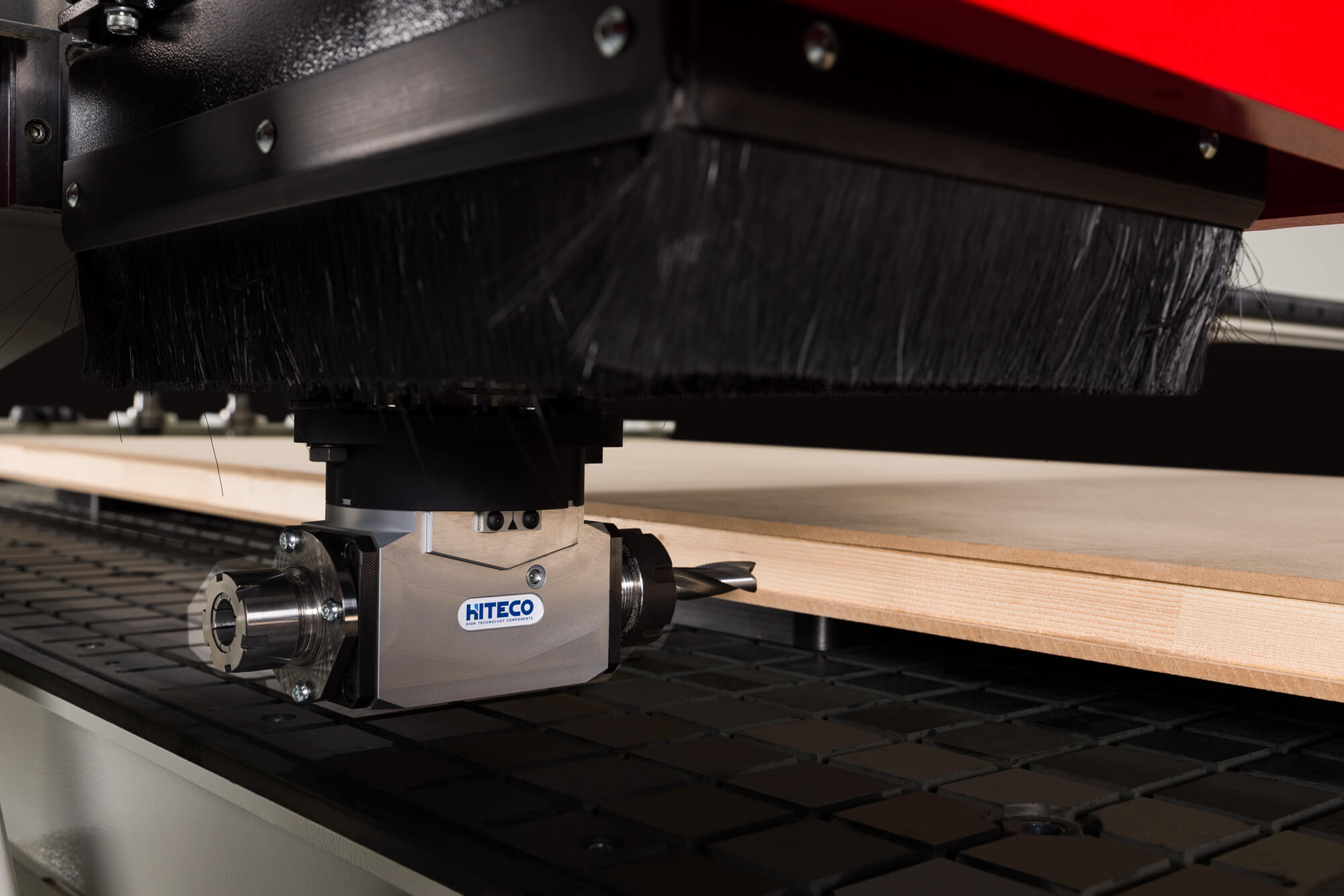

HITECO TWIN AGGREGATE SYSTEM AND C-AXIS (optional)…
With the dual ER25 and ER32 connection, the Hiteco Twin Aggregate system offers a special application for door hinge and flap milling operations.
The aggregate unit on the Orka CNC router comes with the Hiteco C, 6 suction cups, 5 pop-up stops. in the work table, as a complete set.
The C-axis is the fourth additional axis for the milling machine, making the machine available for 4-sided door machining.

– Model: TWIN H:100
– Spindle coupling: HSK63F
– Spindle speed: max. 10850/min
– Tool speed: max. 15500/min
– Type of clamp: ER32 + ER35
– Tool shank diam. ER32 2-20 / ER35 2-16
– Weight: 4.7 kg

SPECIFICATIONS OF THE HITECO C-AXIS
– Model: 29L0181872B
– Total reduction rate: 1:100
– Nominal input torque: 0.95 Nm
– Maximum input torque: 3.82 Nm
– Nominal speed in input: 3000 U/min
– Max. input speed: 5000 U/min
– Servo motor: Innovance MS1H1 0.4 kW
– Weight: 14 kg

CAD/CAM SOFTWARE AND CNC CONTROLLER…
Alphacam 3D CAD/CAM software.
Alphacam is a separate program not installed on the existing CNC controller.
Alphacam can be used by installing it on the computer connected to Vesta or on a separate computer.
The cutting simulation is available in Alphacam and in the Vesta software interface.

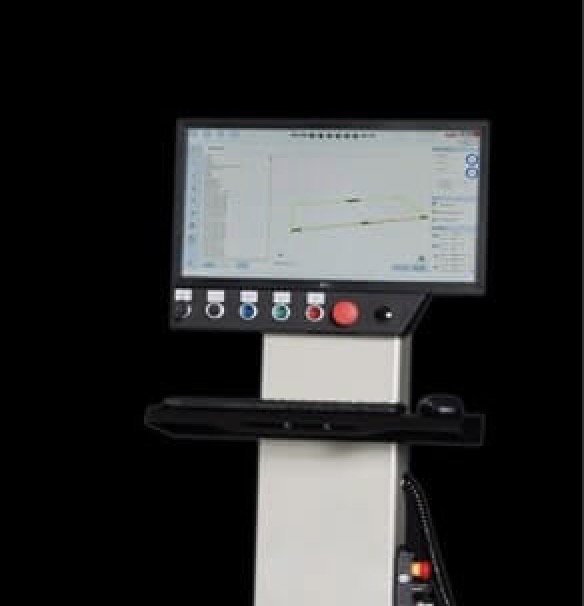

The machine is equipped with a developed interface and the machine controller is powered by Codesys.
