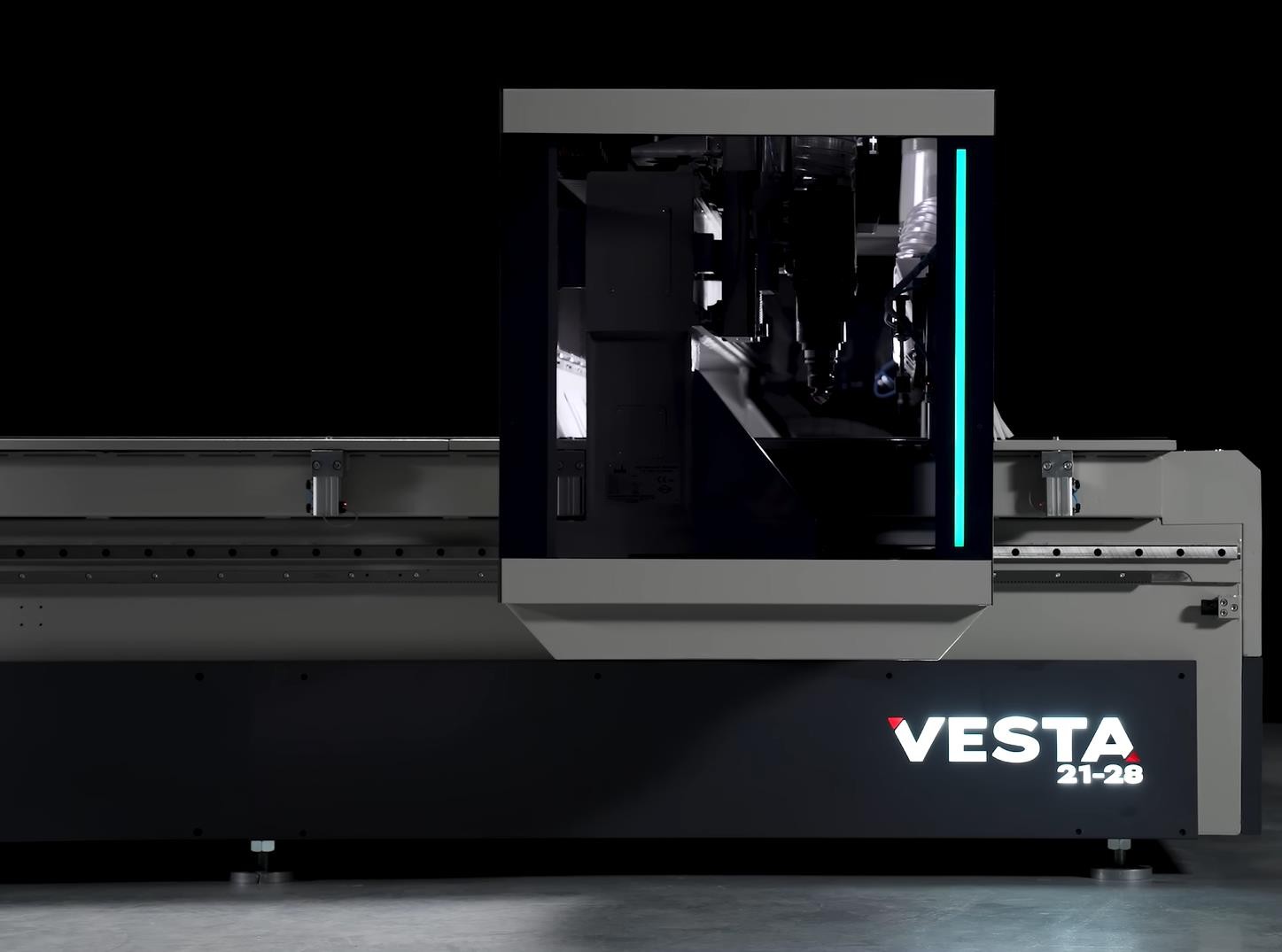

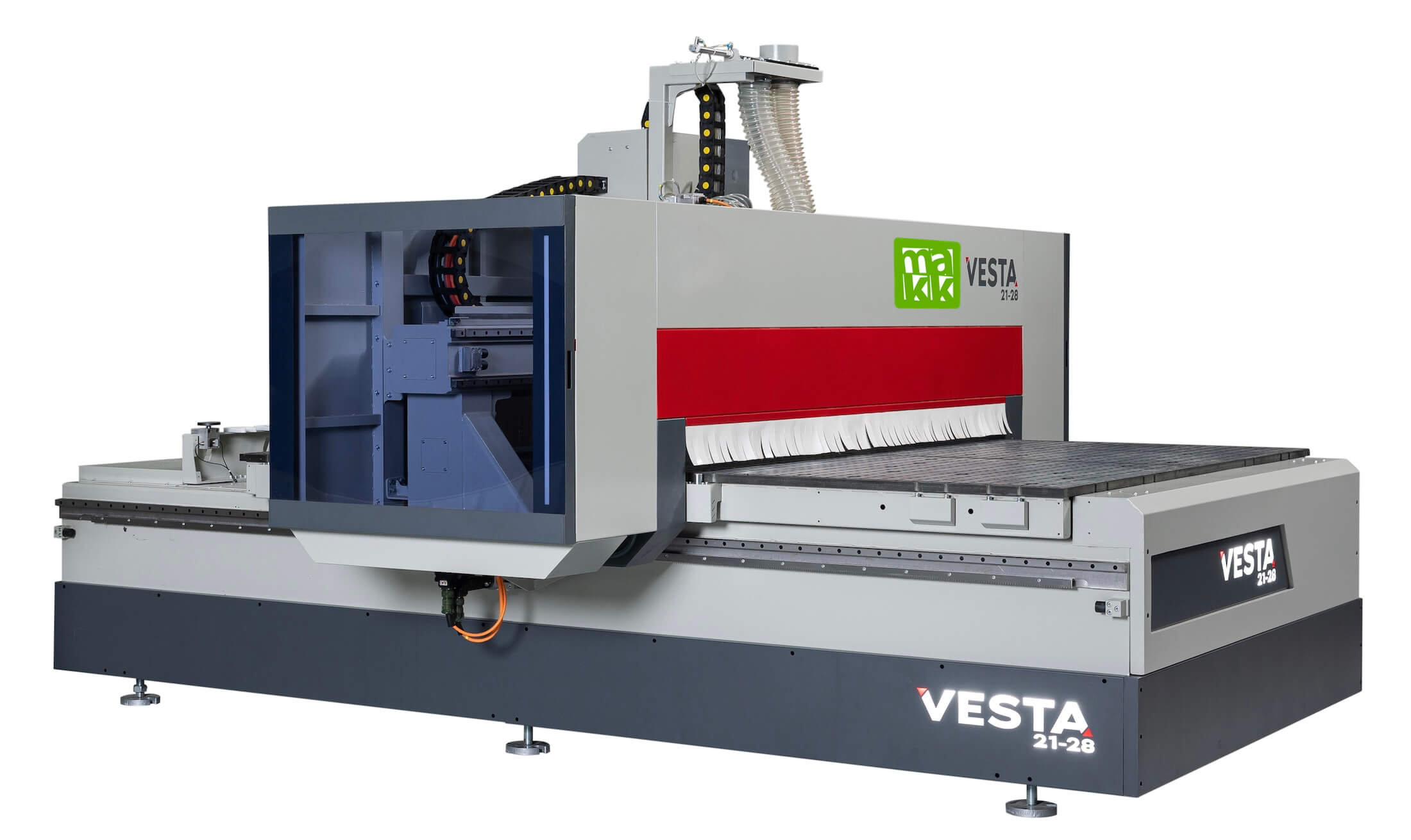

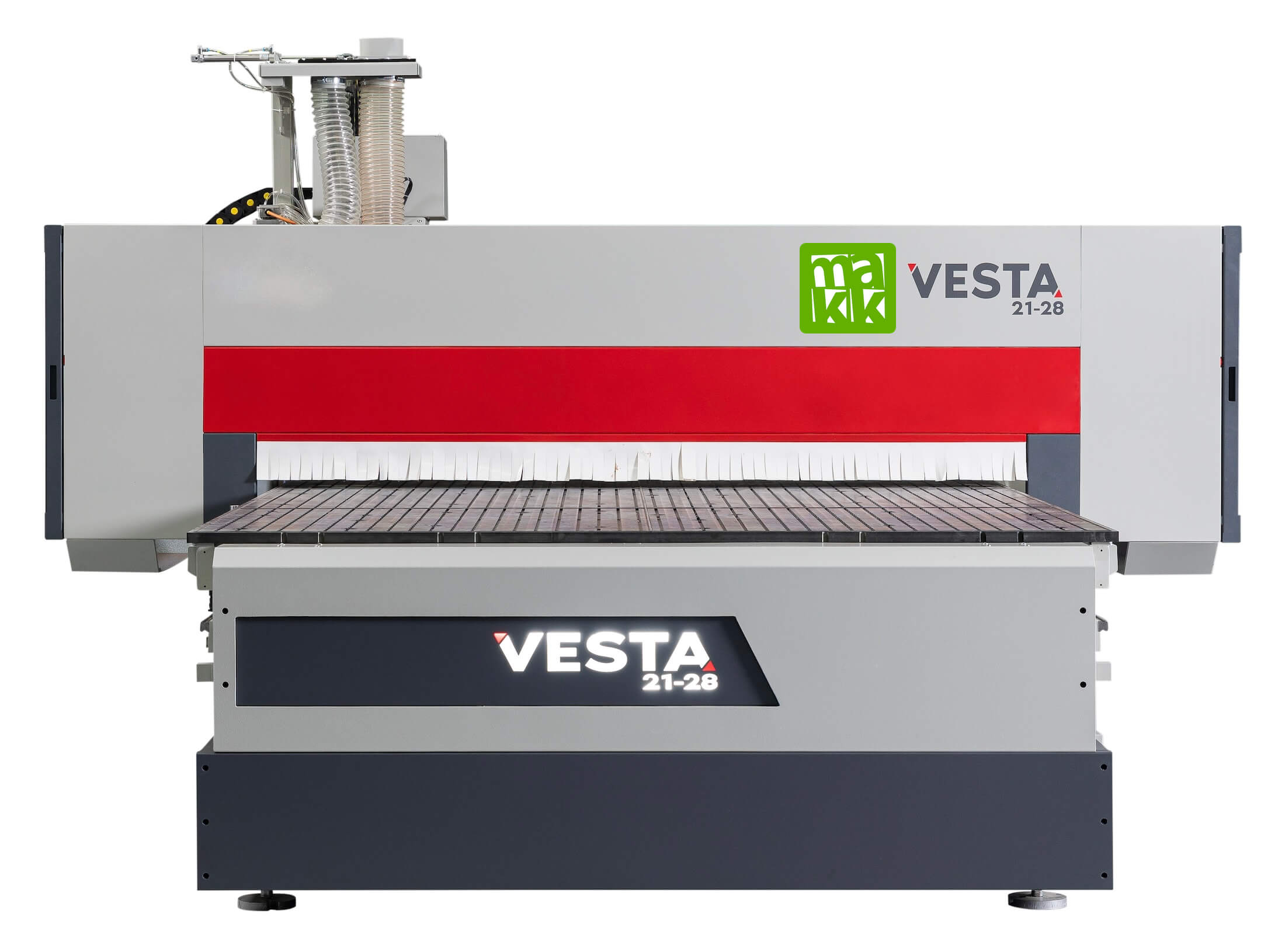

CNC HORIZONTAL WORKING CENTER MAKK Mod. VESTA PRO 2137
The MAKK VESTA offers high-end solutions for your milling, cutting and drilling applications thanks to its robust structure and advanced configuration.
It allows flexible production thanks to its state-of-the-art technical specifications, capable of operating the machining center using multiple applications and functions, including software and hardware.

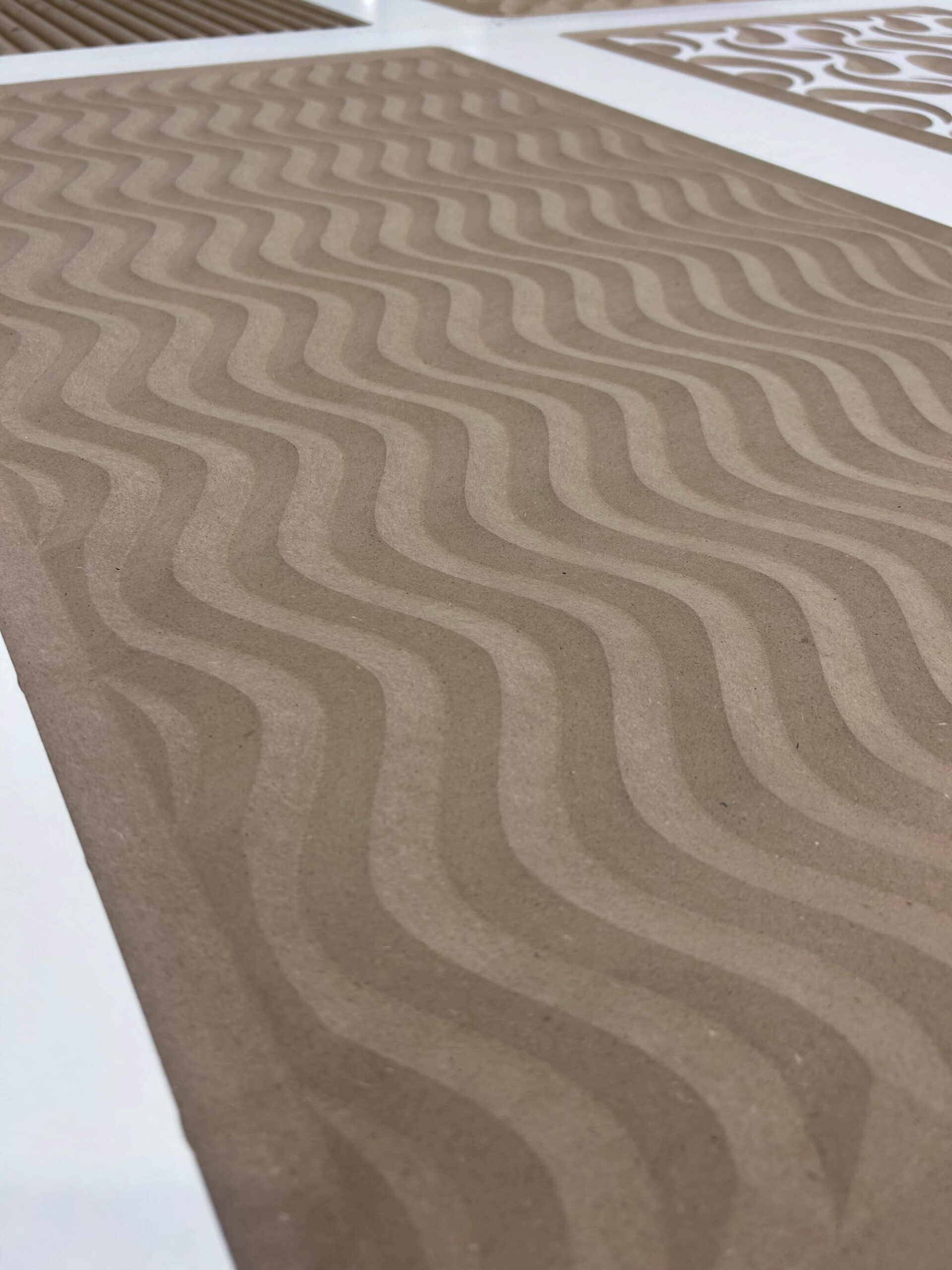

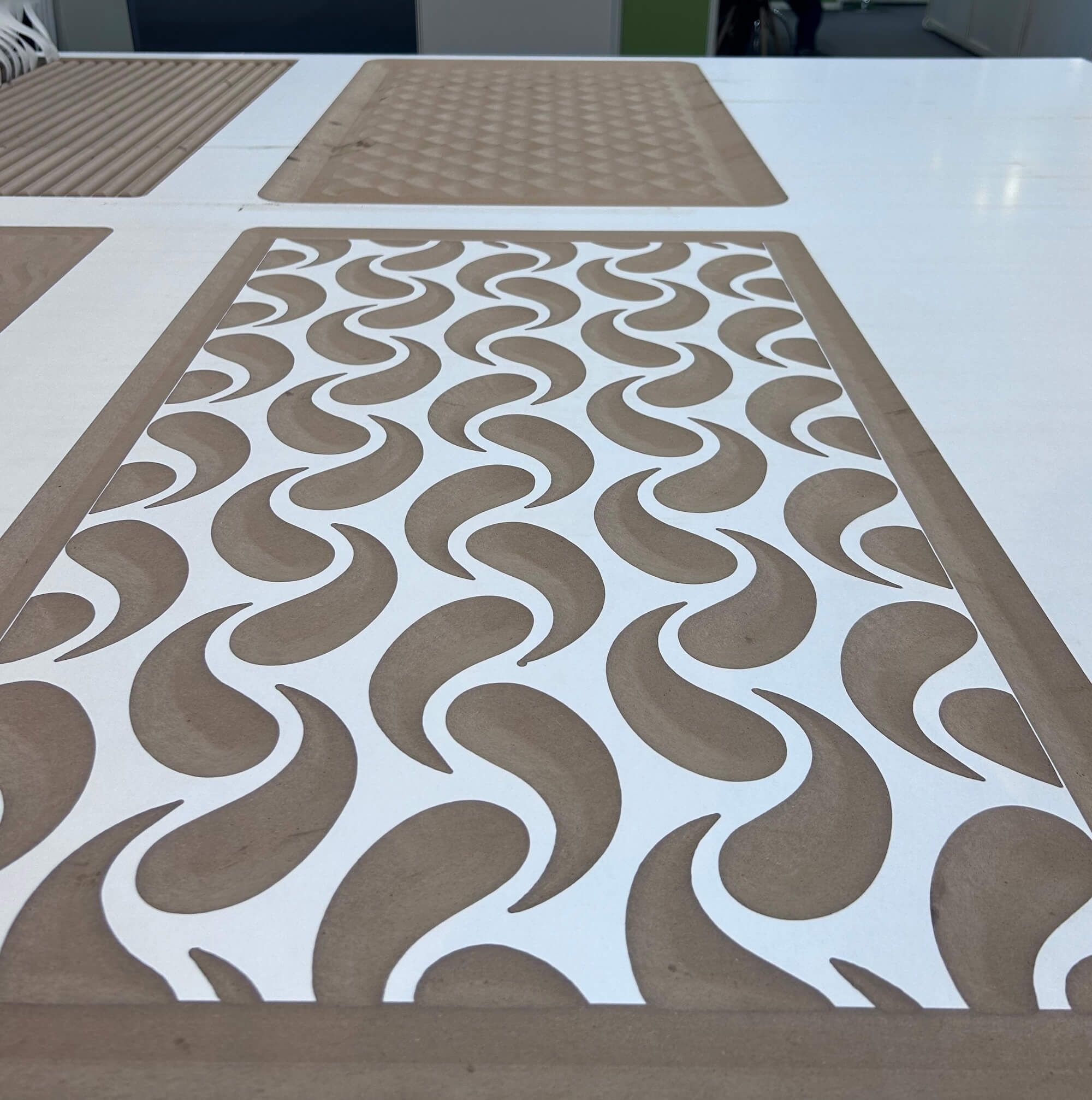

For Milling, Drilling, Cutting, Nesting on Panels in:
– Chipboard
– Ennobled Particleboard
– Multilayer
– Solid wood
– MDF
– Plexiglas
– Polycarbonate
– Plastic materials
– Corian®
– Alucobond®
– Dibond®
– Etc.
TECHNICAL SPECIFICATIONS…
Working dimensions: mm 3700 2100
Machine dimensions (useful area): mm 5600 3400 (with control panel, PC and all side components)
Z axis dimension: mm 140
Total machine weight: kg 3450
EU voltage: 400 V/three-phase/50 Hz
Worktop material: Phenolic (compact)/25 mm
Automatic vacuum zones: 8
Material positioning pins: 5 pcs. automatic pop-up pins with sensors to avoid collisions
Automatically lubricated linear guides: 30 mm linear guide rails
Tool length measurement: automatic
Shaft motor power: kW 8.5/11
Shaft motor rev/min: 24000 r.p.m.
Automatic tool change: Std 10 pcs. tool holder with sensors to avoid collisions
Tool holder: HSK 63F (4 pcs. HSK 63F tool holder are included in the machine)
Type: dry
SCHNEIDER SERVO MOTORS FOR 3 AXIS…
motor X-axis: Schneider BMH1003P16A2A kW 2.50
motor X1-axis: Schneider BMH1003P16A2A kW 2.50
motor Y-axis: Schneider BMH1003P16A2A kW 2.50
motor Z-axis: Schneider BMH0702P16F2A kW 0.7
AXIS SPEED…
X-axis speed: m/min 70
Y-axis speed: m/min 70
Z-axis speed: m/min 20

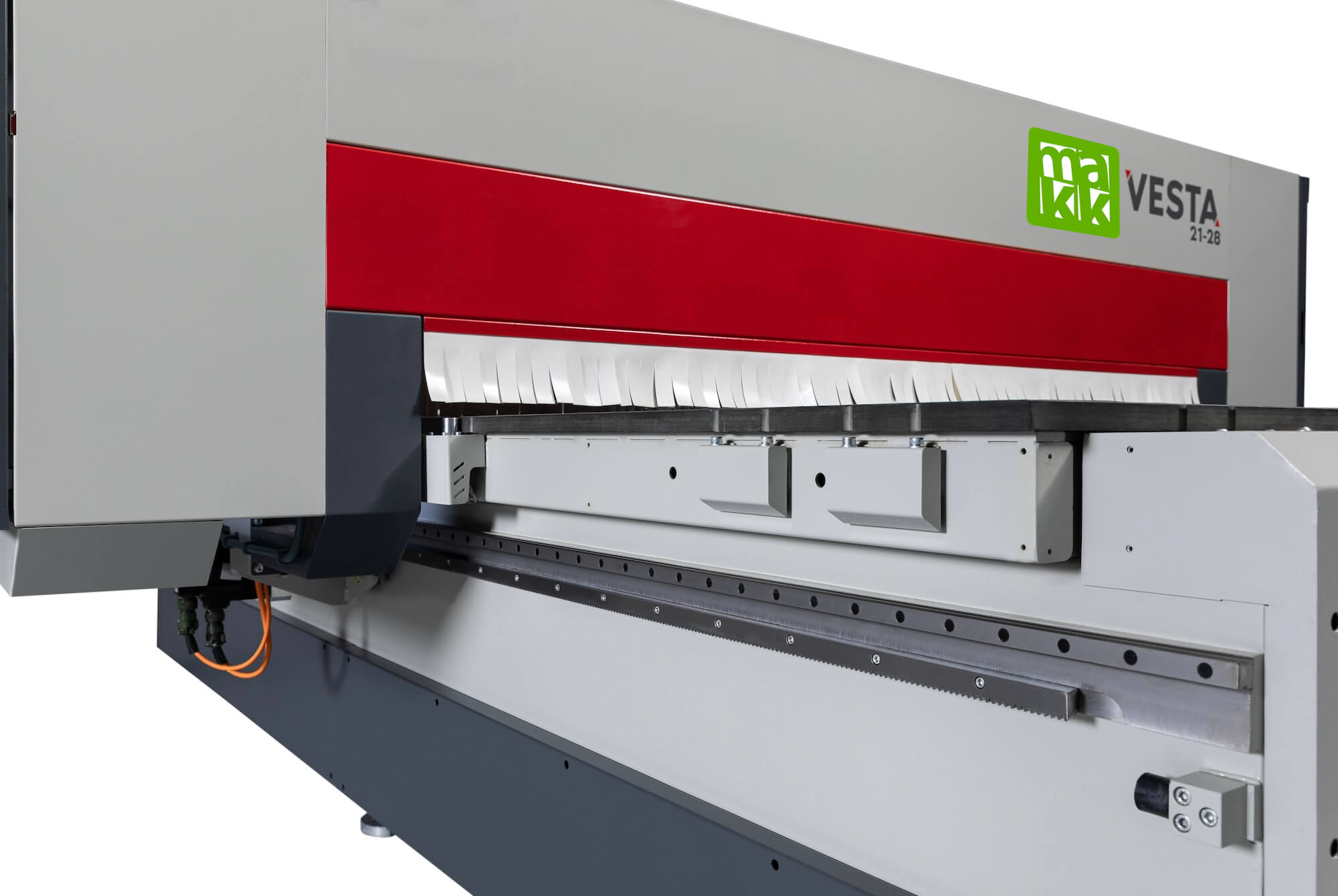

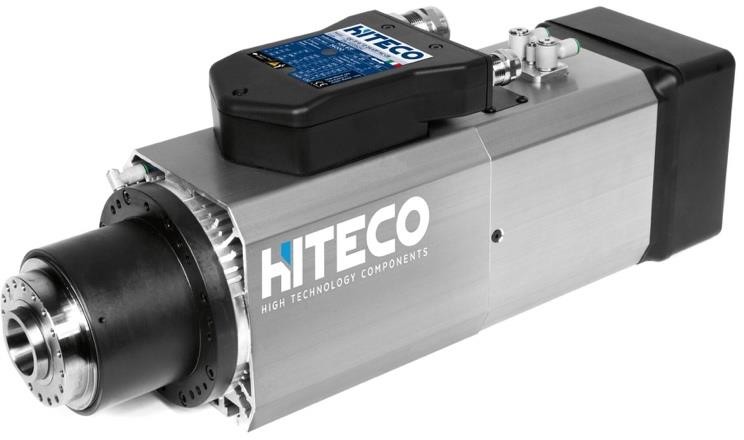

Components MAKK VESTA PRO 2137 CNC MACHINING CENTER
Simple maintenance with spindle kit management.
Drilling and threading possible.
Maximum power from 6000 rpm
– Model: QE-1F 8.5/12 24 63F
– Maximum power S1/S6: 8.5/11 kW
– Rated power: 12000 r.p.m.
– Max rotation speed: 24000 r.p.m.
– Maximum torque S1/S6: 13.5/16.7 Nm
– Current S1/S6: 22/23 A
– Voltage/ frequency: 380V / 50-60 Hz
– Type of electromancer: 4-pole synchronous
– Weight: 151.0 kg without engine
– Tool taper HSK 63F
– Type of tool holder Automatic
– Ceramic bearings – oil lubrication for long life
– Cooling Electric fan
– Sensors S1 (tool handle) – S2 (open gripper) – S3 (shaft rotation)
– Pneumatic double acting release cylinder
– Other specifications 4-pole synchronous – pressurized maze
(*4 pcs. HSK 63F tool holder are delivered with Vesta CNC milling machine)

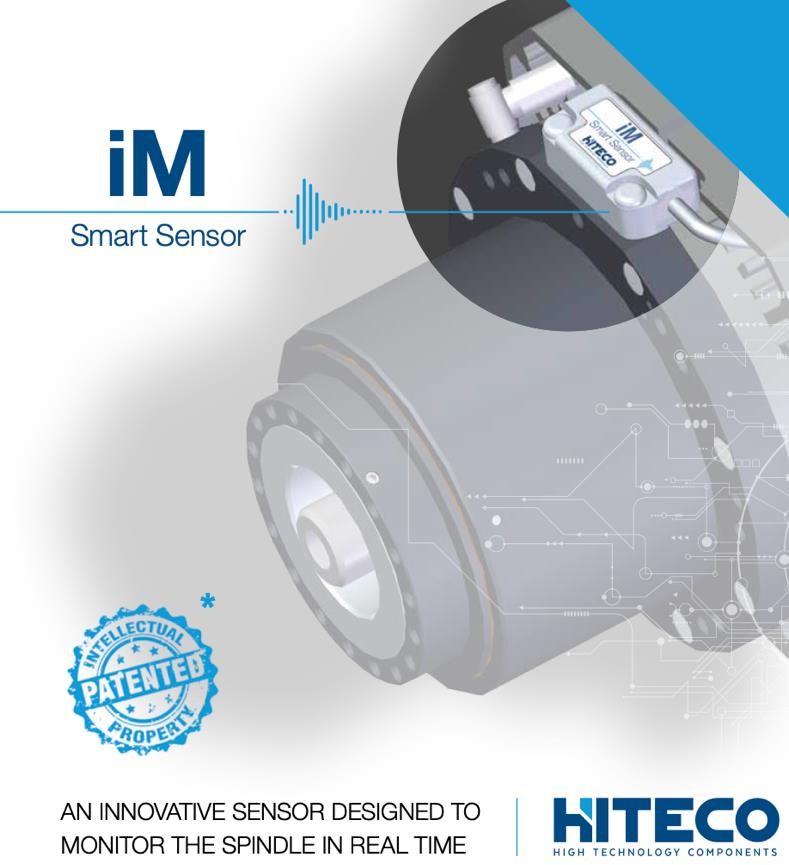

iM SMART SENSOR (optional)…
Speed, vibration and temperature of the bearings and core of the spindle directly to the PC (link).
The iM Smart sensor monitors vibrations and core temperatures of the spindle independently of normal machine vibration and alarms for unusual activities of the spindle motors.
– Accelerometer: Triaxial with 3 orthogonal axes X, Y and Z
– Sensor type: MEMS
– Measuring range: 16 G (156 m/sec 2)
– Bandwidth: 1000 Hz
– Resolution: 0.125 g/sample
– Operating temperature: 5 to 85°
– Impact resistance: 3000 G (29400 m/sec 2)
– Connectivity: Modbus over RS485
BECKER SUCTION PUMP…
The VTLF 2.500 is a medium vacuum, dry-running pump designed to operate on a continuous basis.
It uses self-lubricating graphite composite vanes, requires only minimal maintenance and does not require oil change.
– Model: VTLF 2.250
– Volume flow 50 hz: 244 m 3/h
– Absolute vacuum 50 hz: 200 mbar
– Power 50 hz: 5.5 kW
– Noise level 50 hz: 77.0 dB(A)
– Volume flow 60 hz: 286 m 3/h
– Absolute vacuum 60 hz: 200 mbar
– Power 60 hz: 6.6 kW
– Noise level 60 hz: 79.0 dB(A)
– Weight: 151.0 kg
• 100% dry operation (oil-free)
• Silent operation
• Long life of the blades
• Nominal continuous duty
• Air cooled
• Single shaft direct drive
• Compact design
• Variety of engines available
• Low operating and maintenance costs
• No cycling hours
• Silent operation – no silencer housing required
• Space-saving footprint
• Simple construction for quick and easy on-site service to reduce downtime

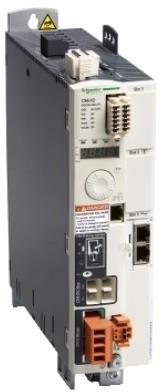

SERVO DRIVE FOR 3 AXIS SCHNEIDER…
– Model: Lexium 32
– Product or component type: Servo drive
– Phase: Three-phase
– Nominal supply voltage: 380…480 V – 15…10 %
– Phase: Three-phase
– EMC filter: Integrated
– Supply voltage limit: 323…528 V
– Frequency supply: 50/60 Hz – 5…5 %
– Network frequency: 47.5… 63 Hz

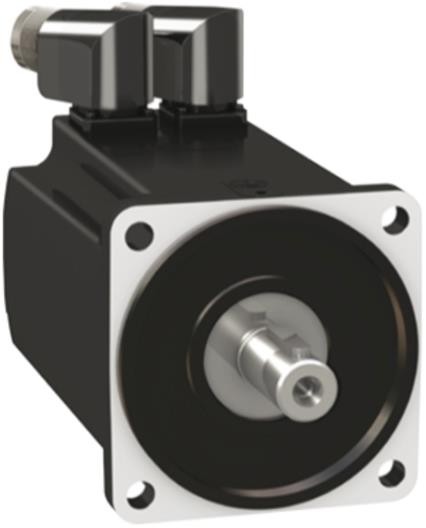

SERVO MOTOR FOR 3 AXIS SCHNEIDER…
– Model: BMH1003P16A2A/ BMH0702P16F2A
– Product or component type: Servo motor, 2.50 kW
– Series: BMH.
– Maximum mechanical speed: 6000 / 8000
– Shaft end: Striped
– IP protection degree: IP54 standard
– Brake Seal: Without
– Electrical connection: Right-angle swivel connectors
– X-axis speed = 70 m/min
– Y-axis speed = 70 m/min
– Z-axis speed = 20 m/min
– X-axis motor power = 2.50 kW
– Y-axis motor power = 2.50 kW
– Z-axis motor power = 0.75 kW

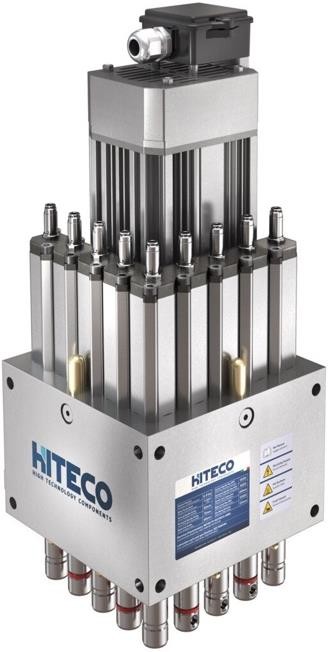

HITECO DRILLING UNIT (optional)…
• Point lubrication for each spindle to increase service life
• Quick spindle replacement in just a few simple steps
• Unique dust protection system
– Model: TF.A.9V.0H.0B.A
– Number of vertical shafts: 9
– Tool taper: 10 H7 mm
– Tool distance: 32 mm
– Max. tool length: 70 mm
– Vertical shaft travel: 60 mm (opz. 75 mm)
– Engine power: 1.5 kW
– Max. vertical rotation: 8000 rpm
– Weight: 25 kg

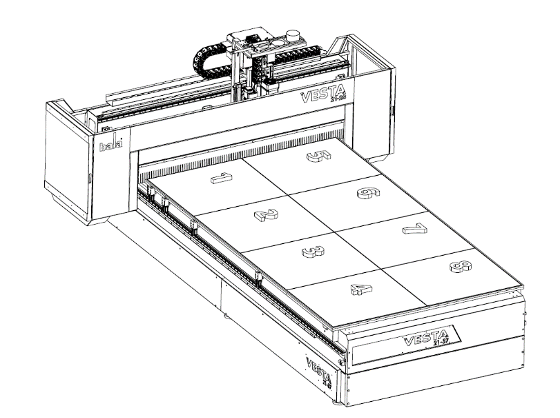

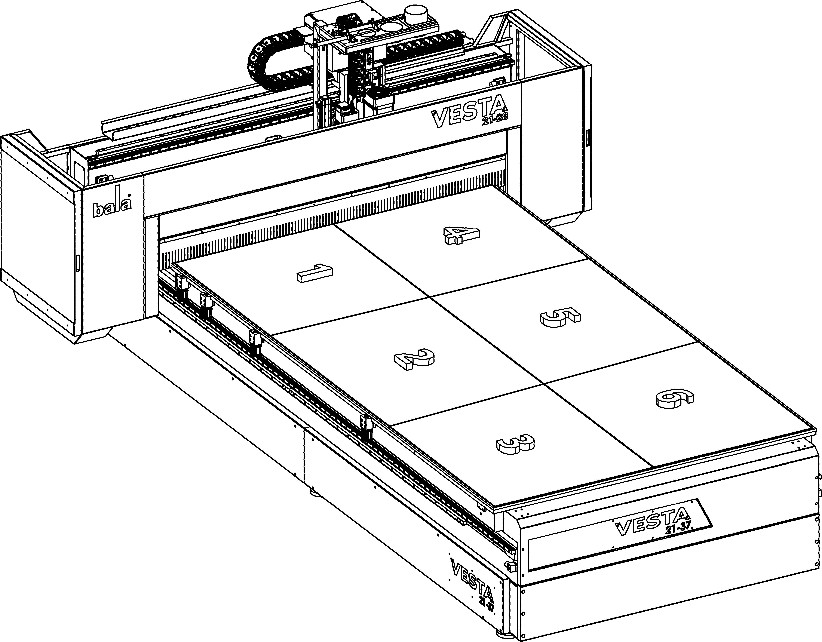

VACUUM ZONES…
The machine’s working surface is divided into 8 asymmetric vacuum zones.
More vacuum zones provide a stronger grip during cutting.
The suction zones are controlled by software and activated separately and automatically according to the panel size on the worktop.

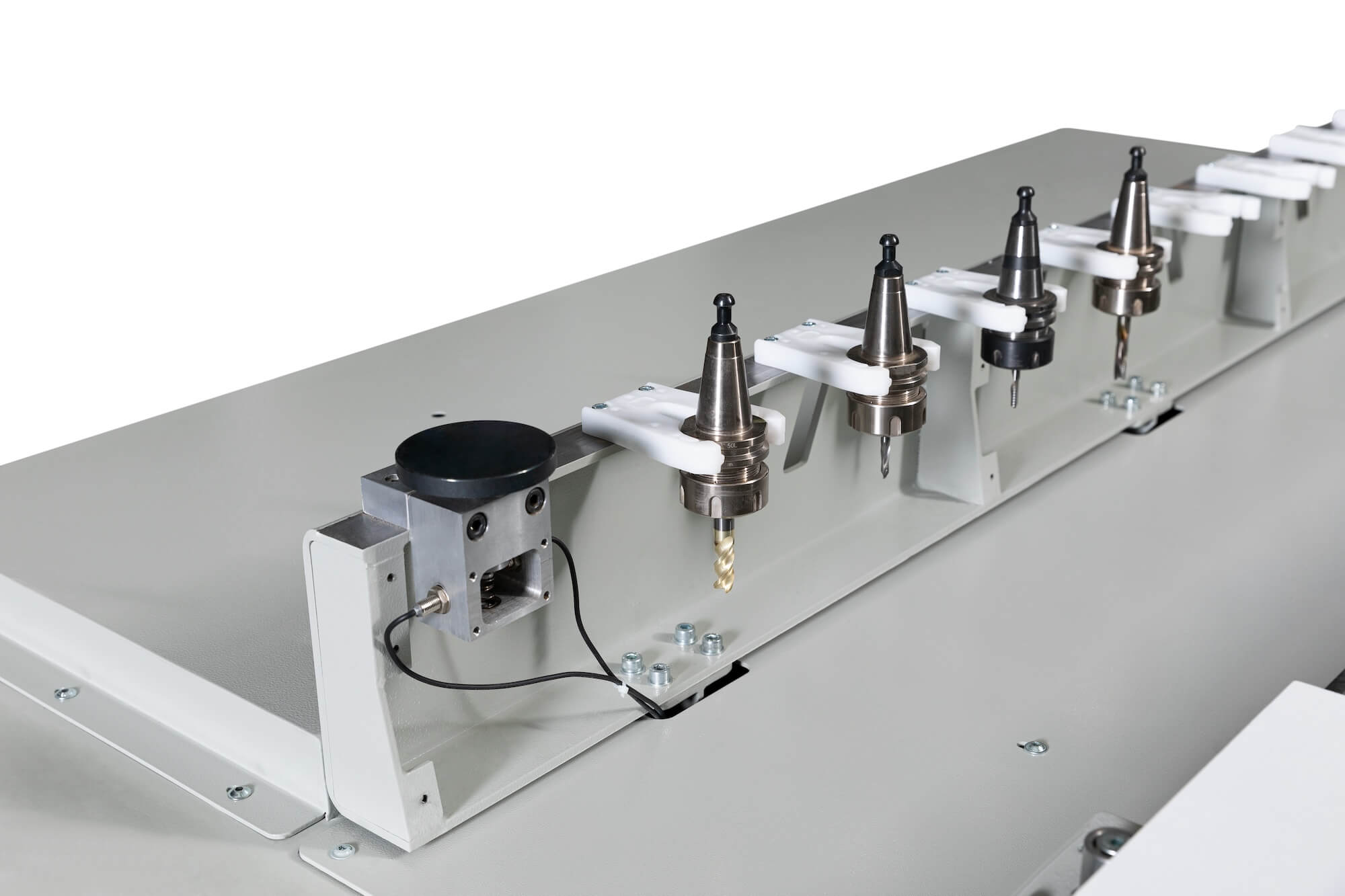

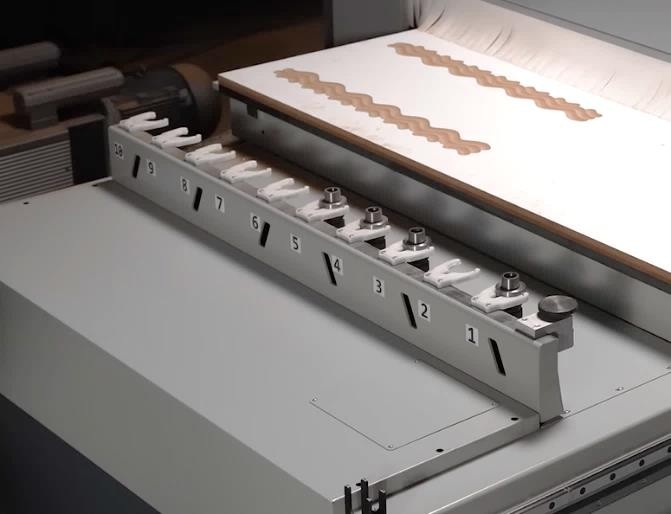

LINEAR TOOL CHANGE UNIT…
The automatic linear tool changer improves the production and transport capacity of the Vesta CNC router tools by changing tools very quickly without the help of a manual operator.
In this way, the unit reduces downtime on a given project.
There are sensors for each linear tool change caliper to prevent collisions.
(*Tool change numbers are 10 on VESTA 2137).

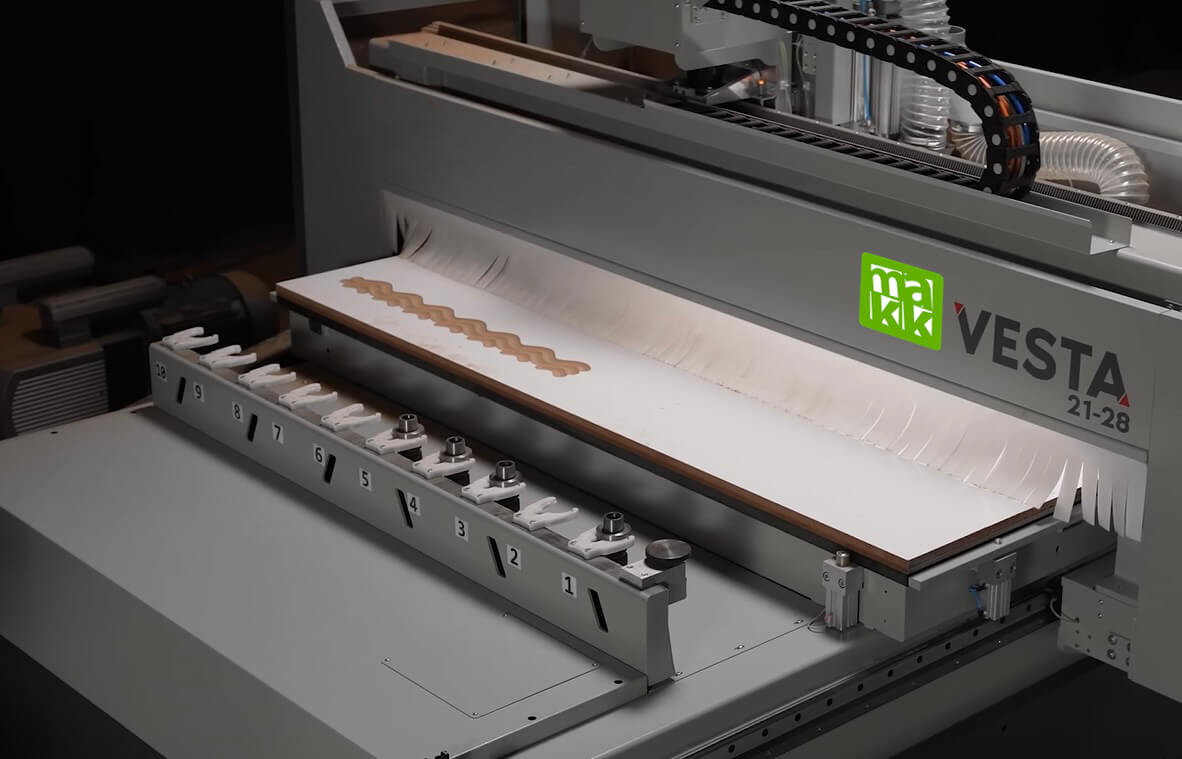

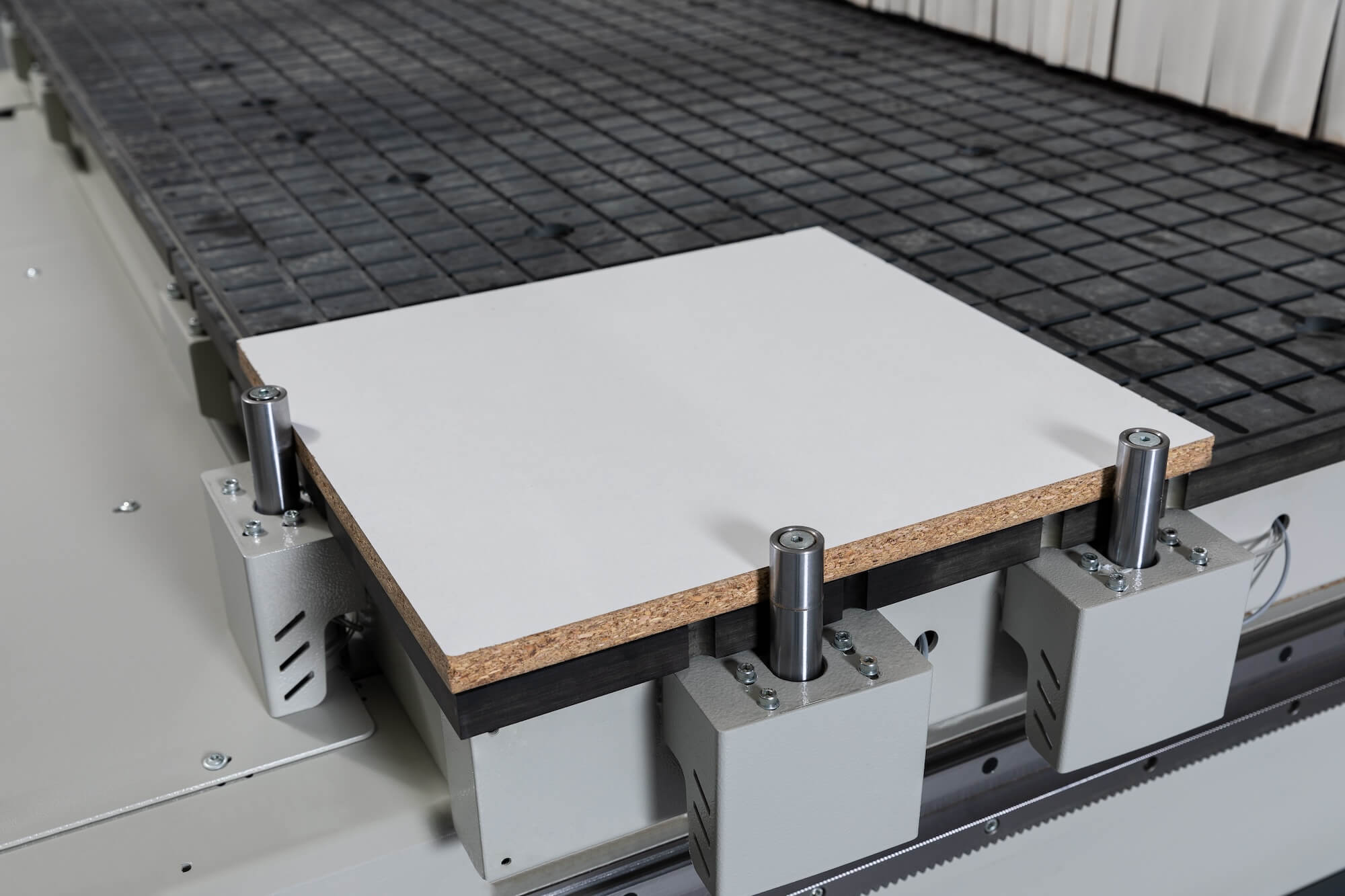

RETRACTABLE MATERIAL POSITIONING PINS…
The automatic, concealed material positioning pins are controlled manually via the machine’s software interface.
Each retractable pin has sensors to avoid collisions.

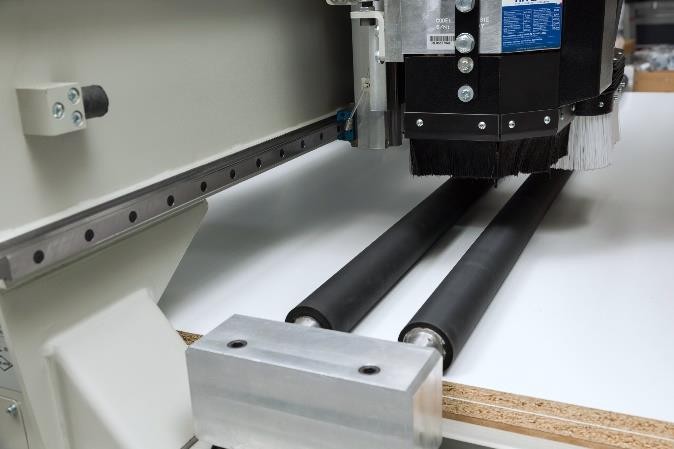

PRESS ROLLERS (optional)…
Dynamic and position press rollers for cutting small parts and also cutting multiple boards at the same time.

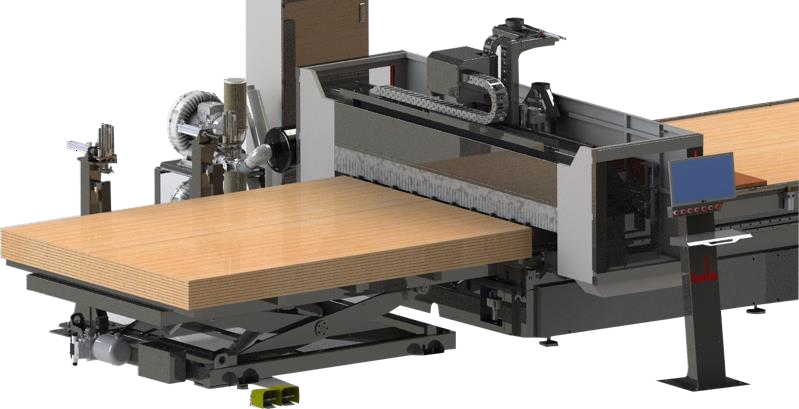

AUTOMATIC LOAD LIFT (optional)…
The loading unit automatically transports the pallets, on the lift, to the work table for processing; which provides an efficient and fast production. (10 pcs of tool changer on VESTA 2137).
LIFTING CHARACTERISTICS:
– Panel dimensions: 3700×2100 mm
– Maximum lifting capacity: 2500 kg
– Max. lifting capacity: 95 kg
– Max. height of material: 600 mm
– Stop Y axis: Automatic
– Stop X axis: Automatic
– Unit hydraulic power: 2.2 KW
– Hydraulic tank: 10 lt, 190 bar
– Weight: 800 kg

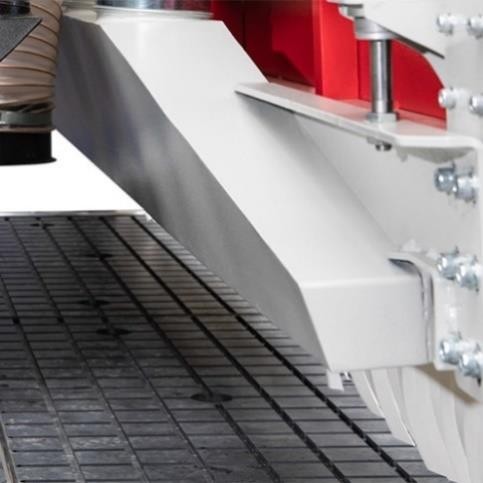

CLEANING UNIT (optional)…
This unit unloads materials onto the work table and cleans it after processing.
Thus, it makes the work table ready for the next operation in a few seconds.

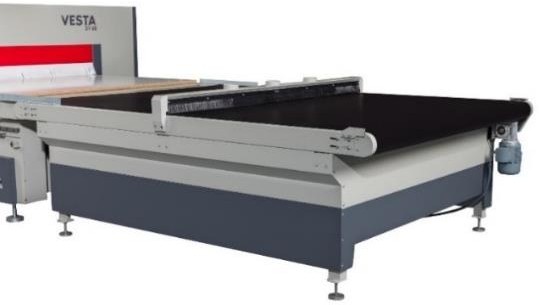

AUTOMATIC DISCHARGE CONVEYOR (optional)…
The cut parts are moved to the discharge conveyor with the help of the cleaning unit in a few seconds.
The work plan is thus ready for another panel and for subsequent work without any loss of time.

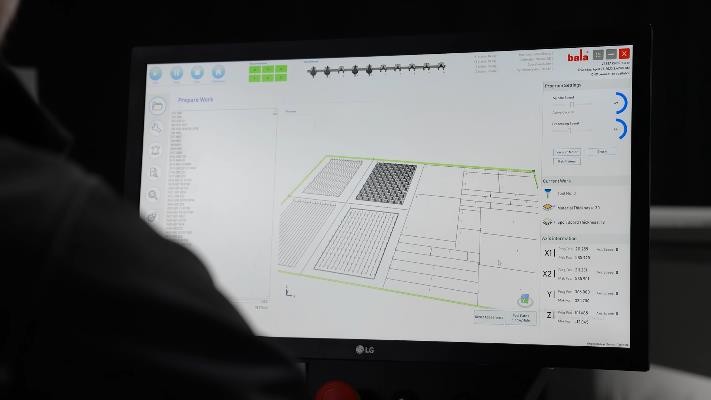

CAD/CAM SOFTWARE AND CNC CONTROLLER…
Alphacam 3D CAD/CAM software.
Alphacam is a separate program not installed on the existing CNC controller.
Alphacam can be used by installing it on the computer connected to Vesta or on a separate computer.
The cutting simulation is available in Alphacam and in the Vesta software interface.
The machine is equipped with a developed interface and the machine controller is powered by Codesys.
OPTIONAL ON DEMAND:
DOWNLOAD THE CATALOGUE
VIDEO
MORE INFORMATION?
Concealed pins for positioning panels

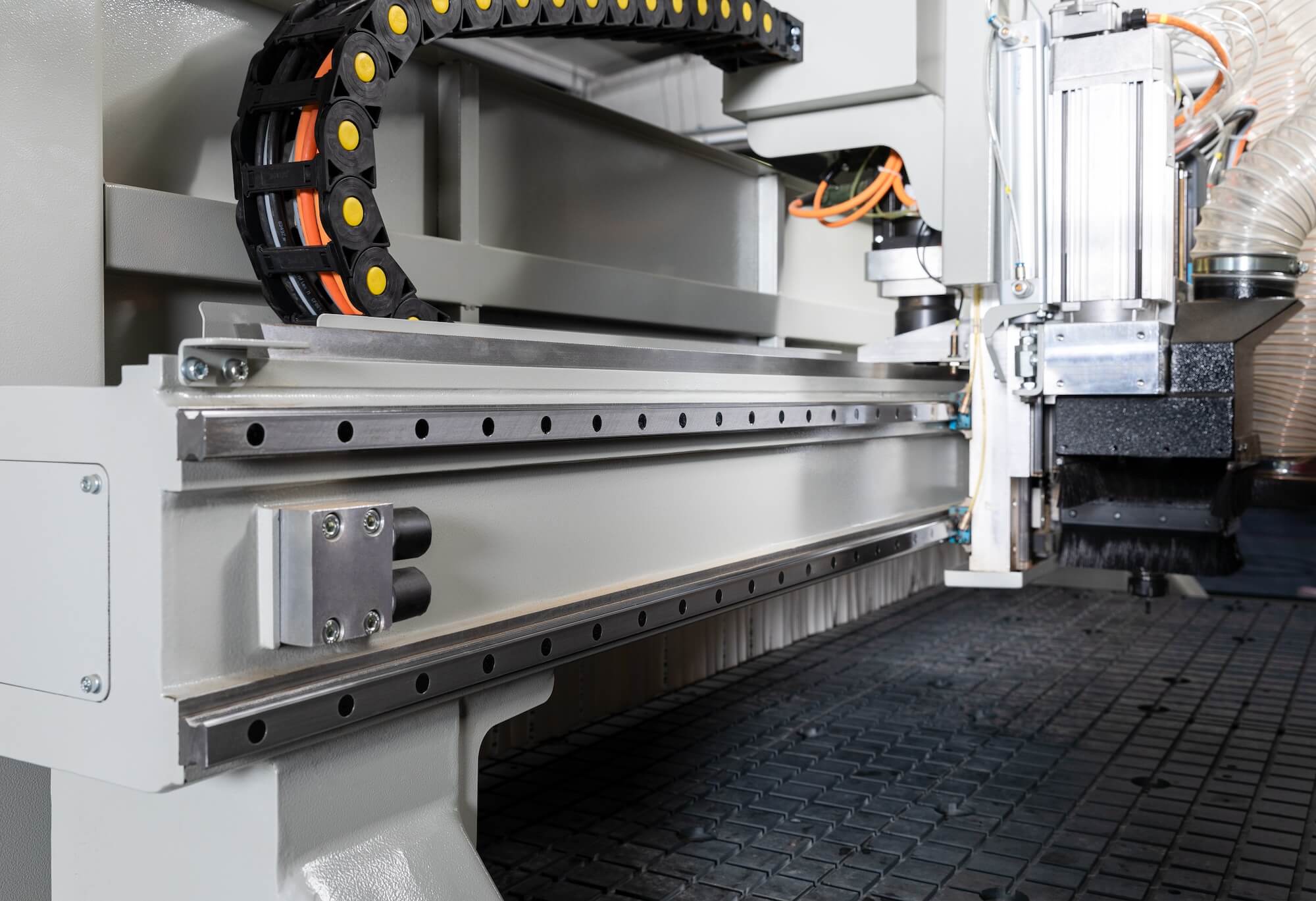

Sliding guides of panel working groups

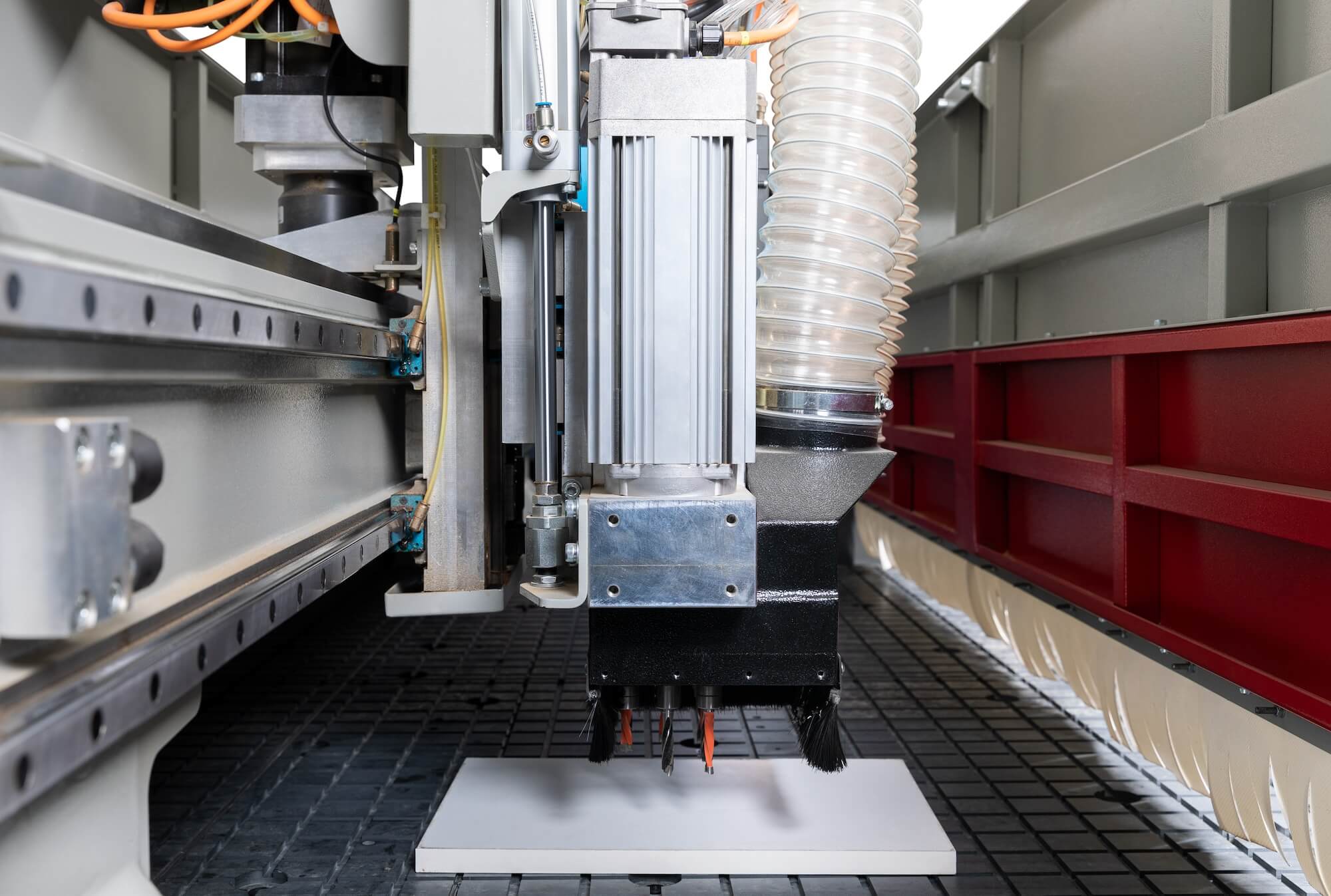

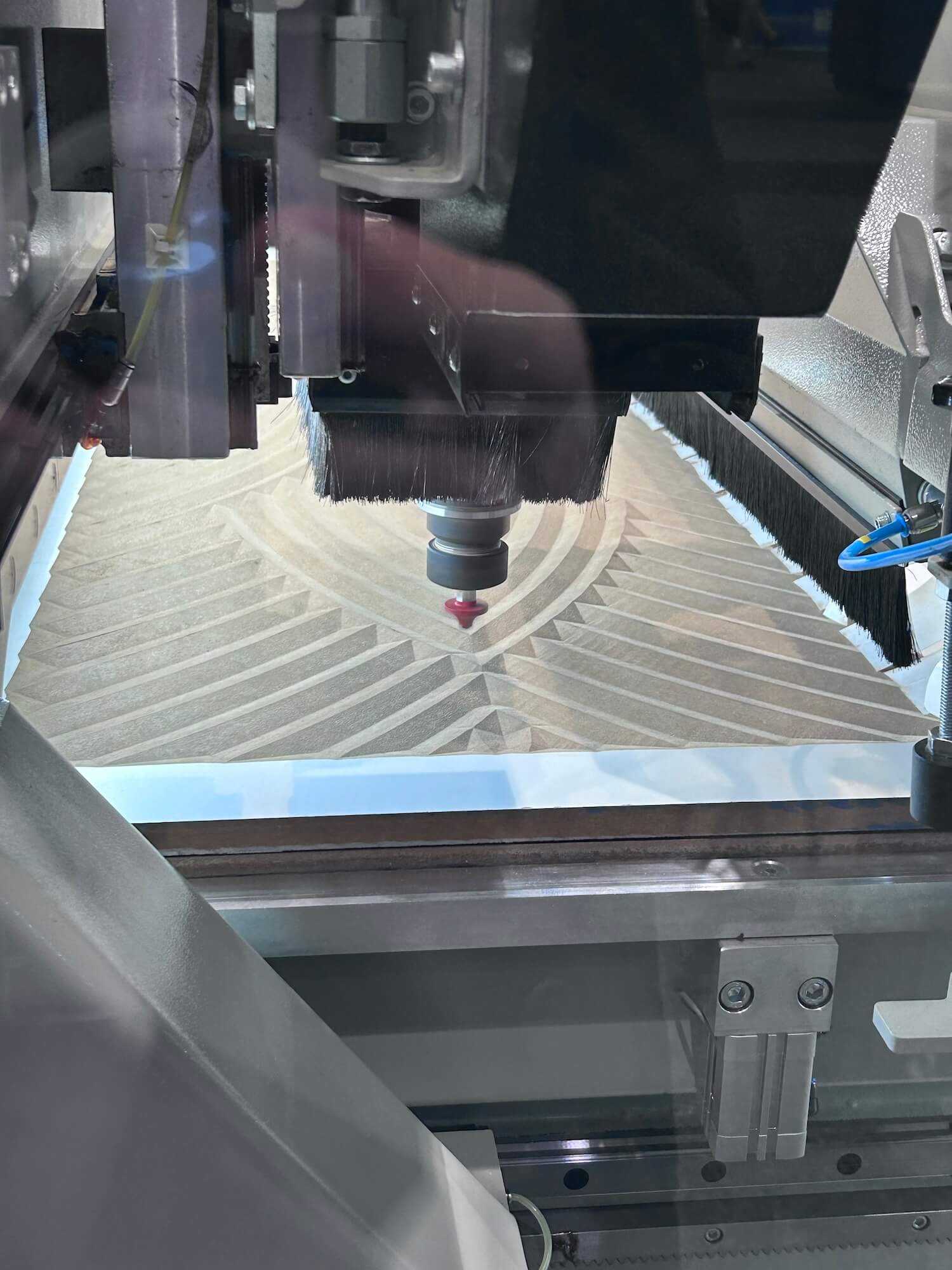

Milling, drilling, cutting group operating head
Automated tool storage
Vacuum suction zones on the worktop
Dynamic press rolls
Some of the main technical specifications
Loading unit
The loading unit automatically transports the pallets, on a lift, to the work table for processing, ensuring an efficient and fast production.
Transport unit
This unit moves the workpieces to the end of the line, after machining. Then, the dust collection system on the unit cleans the parts so that the operator can easily unload them.
Unloading and cleaning unit
This unit unloads materials onto the work table and cleans it after machining. In this way, the unit is ready for the next operation.
Linear tool change unit
For the needs of an additional warehouse unit, a linear warehouse unit with 10 capacities can be used.
High efficiency suction pump
The high performance and efficiency suction pump guarantees maximum grip of the pieces to be cut. The low maintenance cost and the absence of problems allow its use for many years.
Automatic vacuum zone with 8 asymmetric zones
The machine’s working surface is divided into 6 asymmetric vacuum zones. Multiple vacuum zones ensure a stronger grip during cutting.
