CNC VERTICAL WORKING CENTER COMPOSITE PANELS MAKK Mod. ALU-TECH 22*50 / Working dimensions mm.v5000x2200x200 (X,Y,Z).

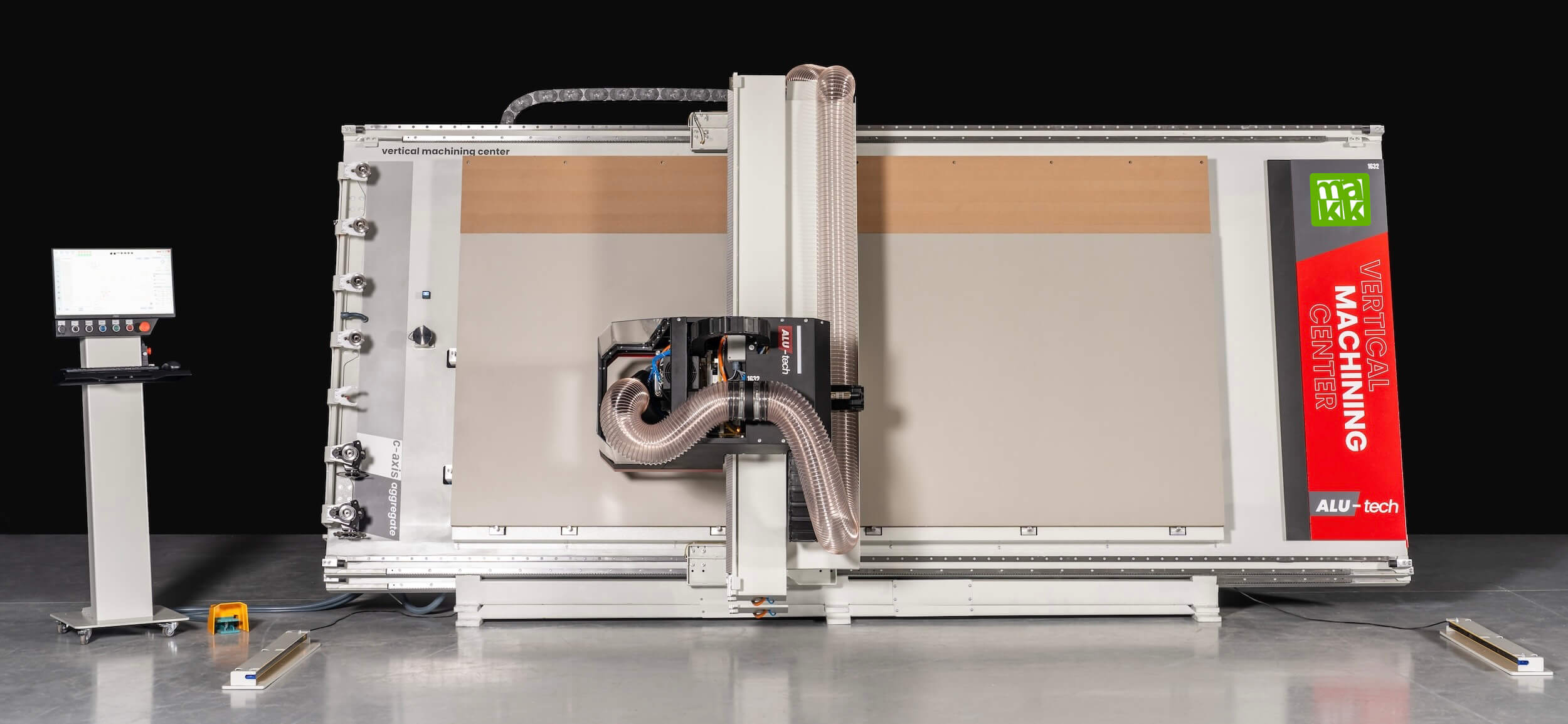

The MAKK ALUTECH is a CNC machining center for panel processing, with which you can easily perform all operations of grooving, milling, drilling, cutting of various types of panels.
For Milling, Drilling, Cutting, Grooving on Panels in:
– ACM / ACP (Alucobond®, Dibond®, Alpolic®, Albond®, Vitrabond®, Sibalux®, Larson®, ecc.)
– Nido d’Ape (Honylite®, Starcell®, Larcore®, Alucore®, ecc.)
– Fibre cement (Equitone®, Copanel®, ecc.)
– HPL (Fundermax®, Trespa®, Polyrey®, ecc.)
– Wood, plywood, chipboard, MDF
– Plexiglas, Metacrylate, Polycarbonate, Corian®
– etc.
Why choose a Vertical CNC?

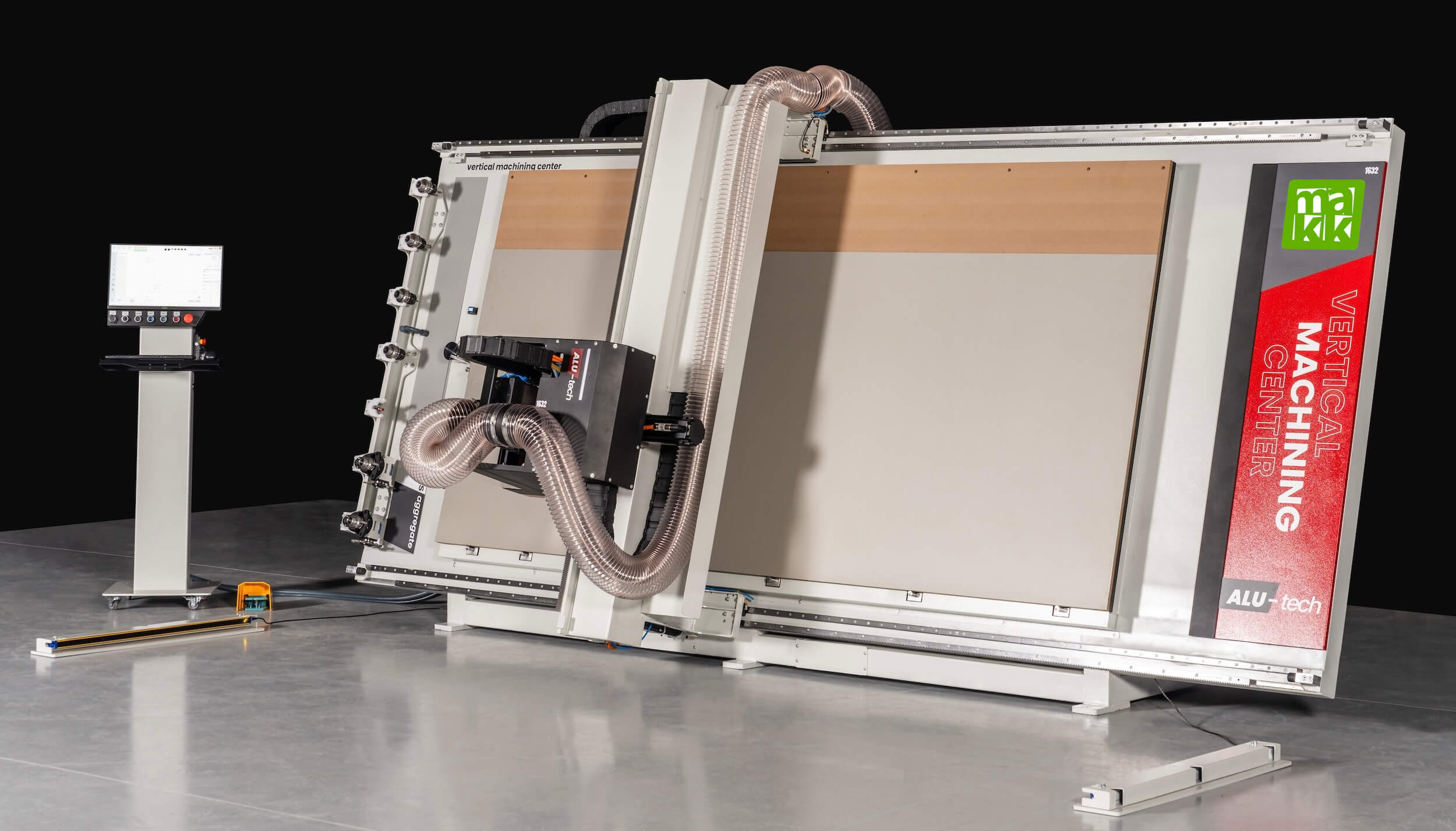

Alutech is a high-tech vertical machining centre that offers you maximum versatility.

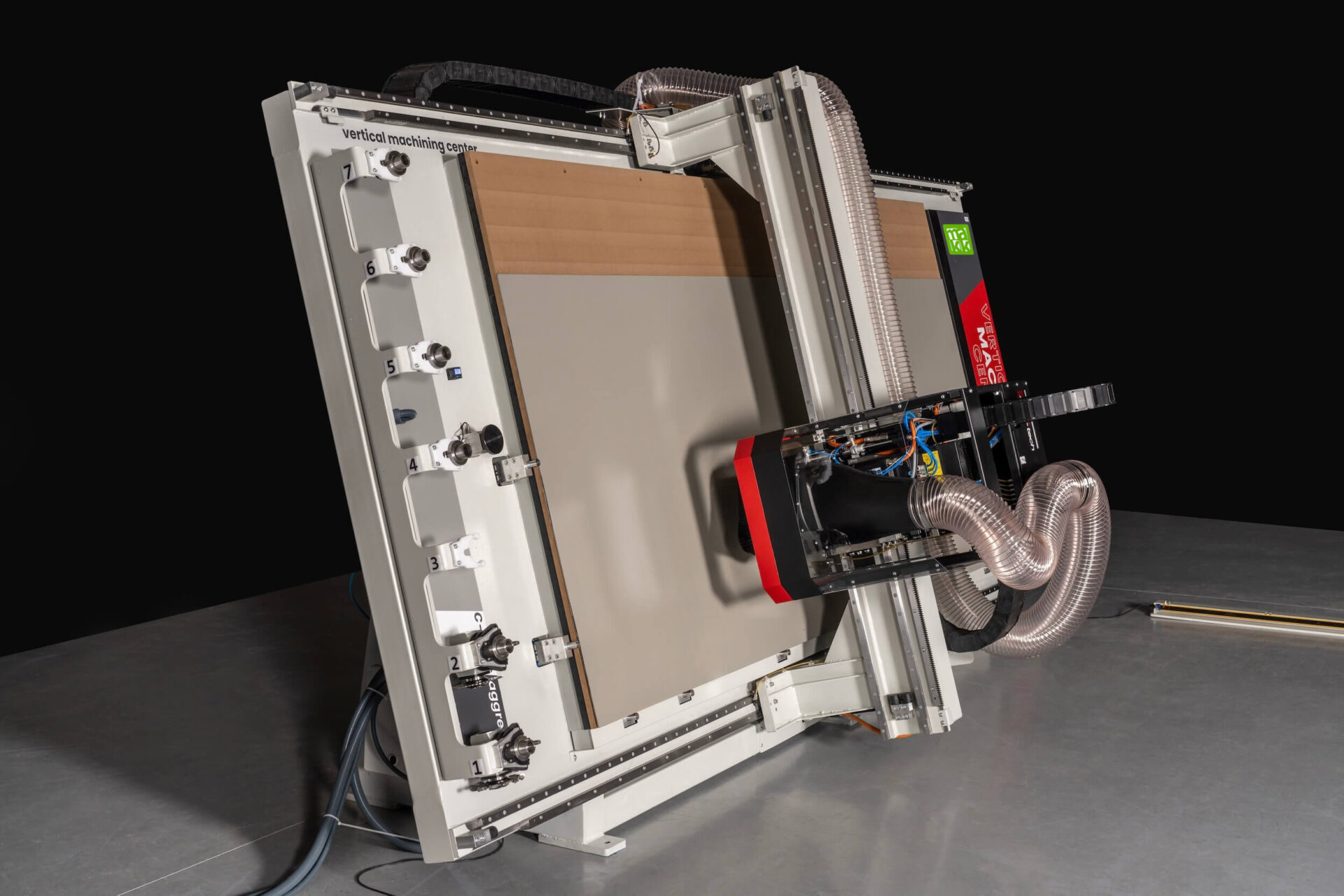

Thanks to its vertical design, MAKK ALU-TECH takes up less floor space than a traditional CNC, freeing up valuable square metres for other operations.
Despite its compact size, MAKK ALU-TECH is able to handle large panels without problems thanks to its advanced support system.
At the same time, it is perfect for working with smaller panels and complex cuts.
MAKK ALU-TECH 22*50 Tecnical features...
* Signs: Make custom signs of any size and shape with precision and speed.
* Ventilated facades: Create lightweight and durable panels for ventilated façades with maximum efficiency.
* Interior design: Create unique interior design projects thanks to the versatility of Alutech.
* Cladding and exterior structures: Produce high-quality exterior claddings for buildings and structures.
* Urban furniture: Create cutting-edge urban furniture elements with precise and detailed processing.
* Exhibition stands: Design impact exhibition stands with custom and functional panels.
With its power, versatility and cutting-edge technology, ALU-TECH is the perfect choice for companies operating in different industries and looking to maximize productivity and creativity.
- Working dimensions (mm) X 2200 – Y 5000 – Z 200
- Overall dimensions (mm) L 7200 – W 2500 – H 3000
- Package dimensions (mm) L 6600 – W 2200 – H 2550
- Automatic vacuum zones 14 (Auto)
- Vacuum pump (Becker) 1 x 250 m3/h

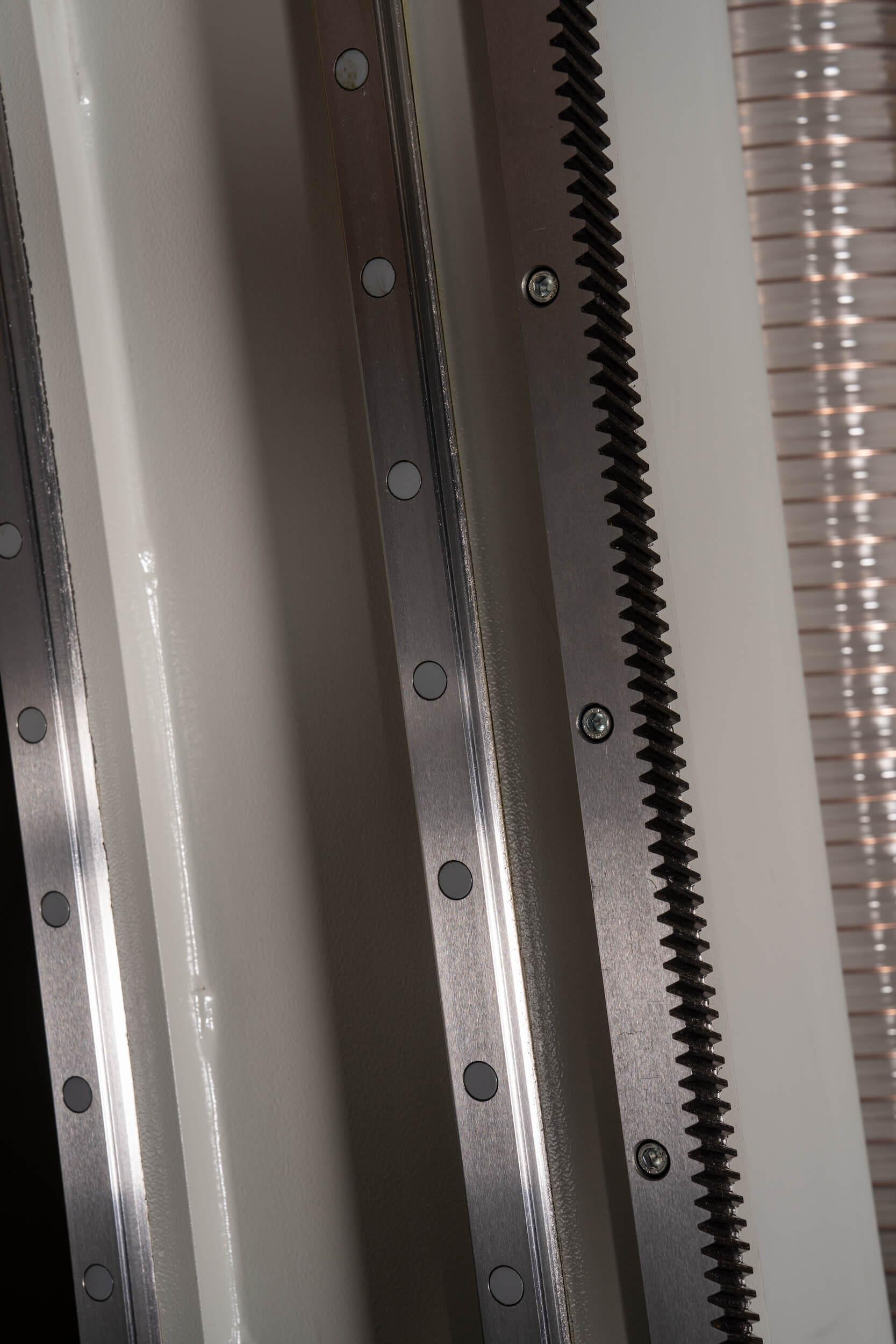

- Speed of axles (Schneider servo motors) X 80 – Y 30 – Z 10 mt/min

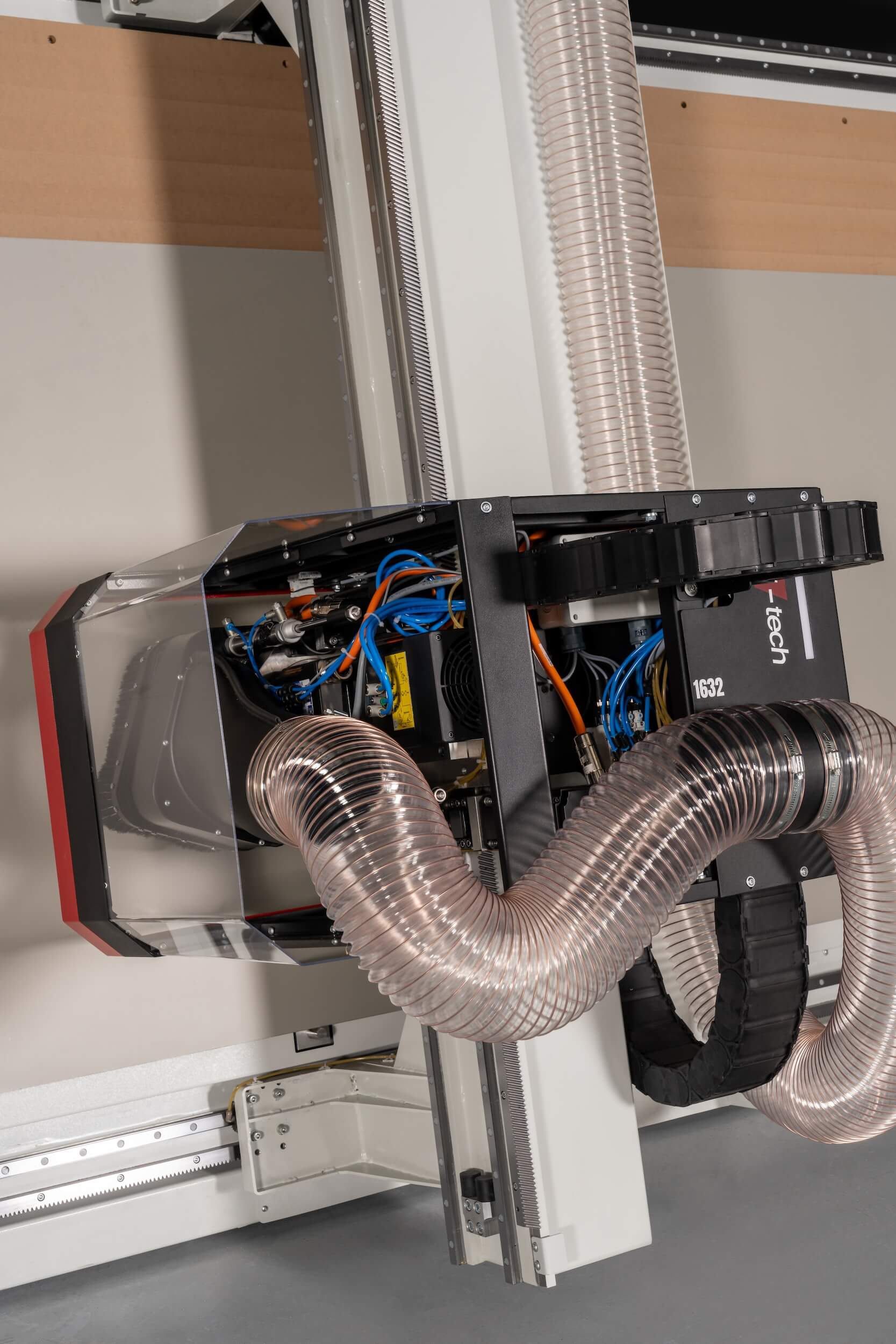

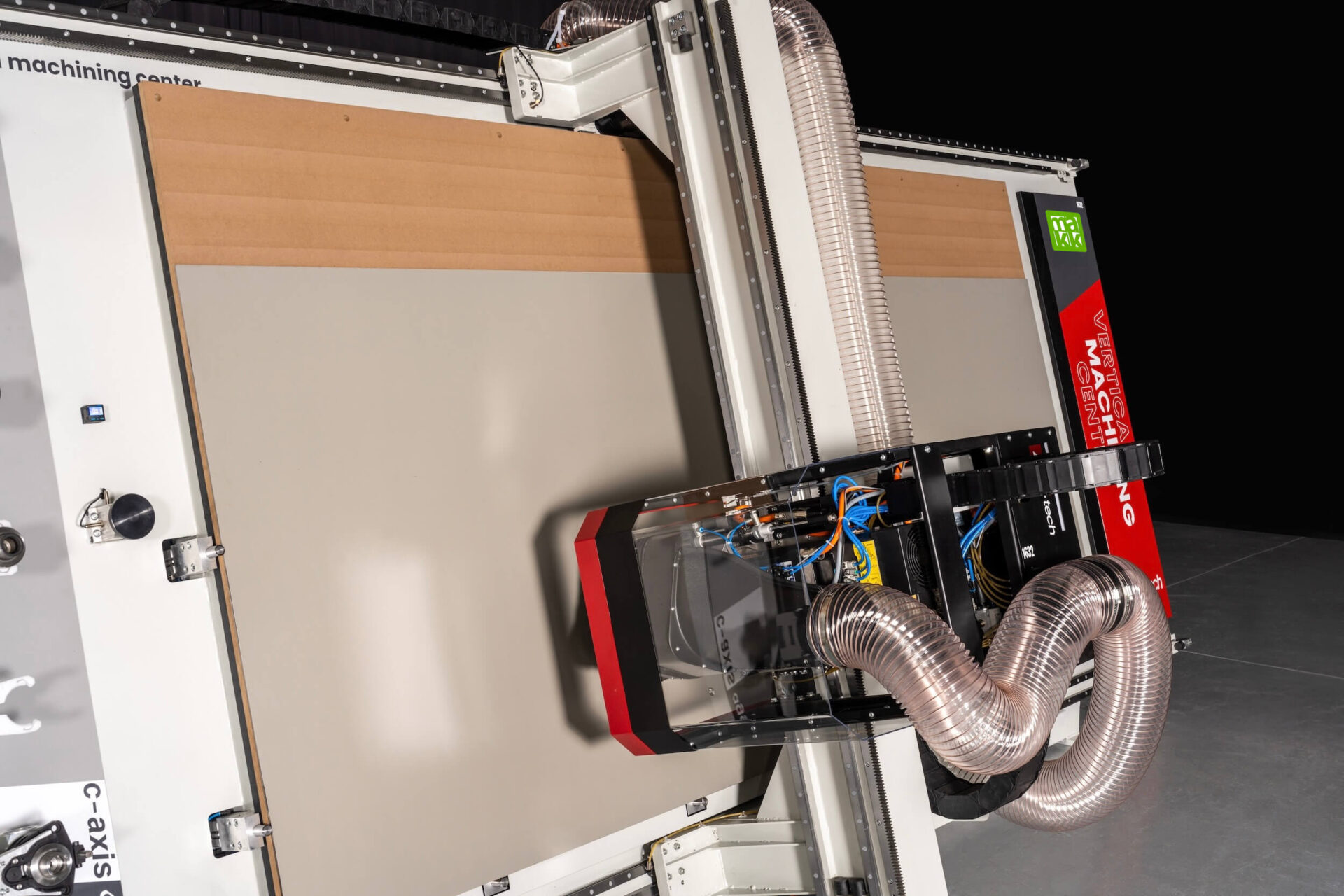

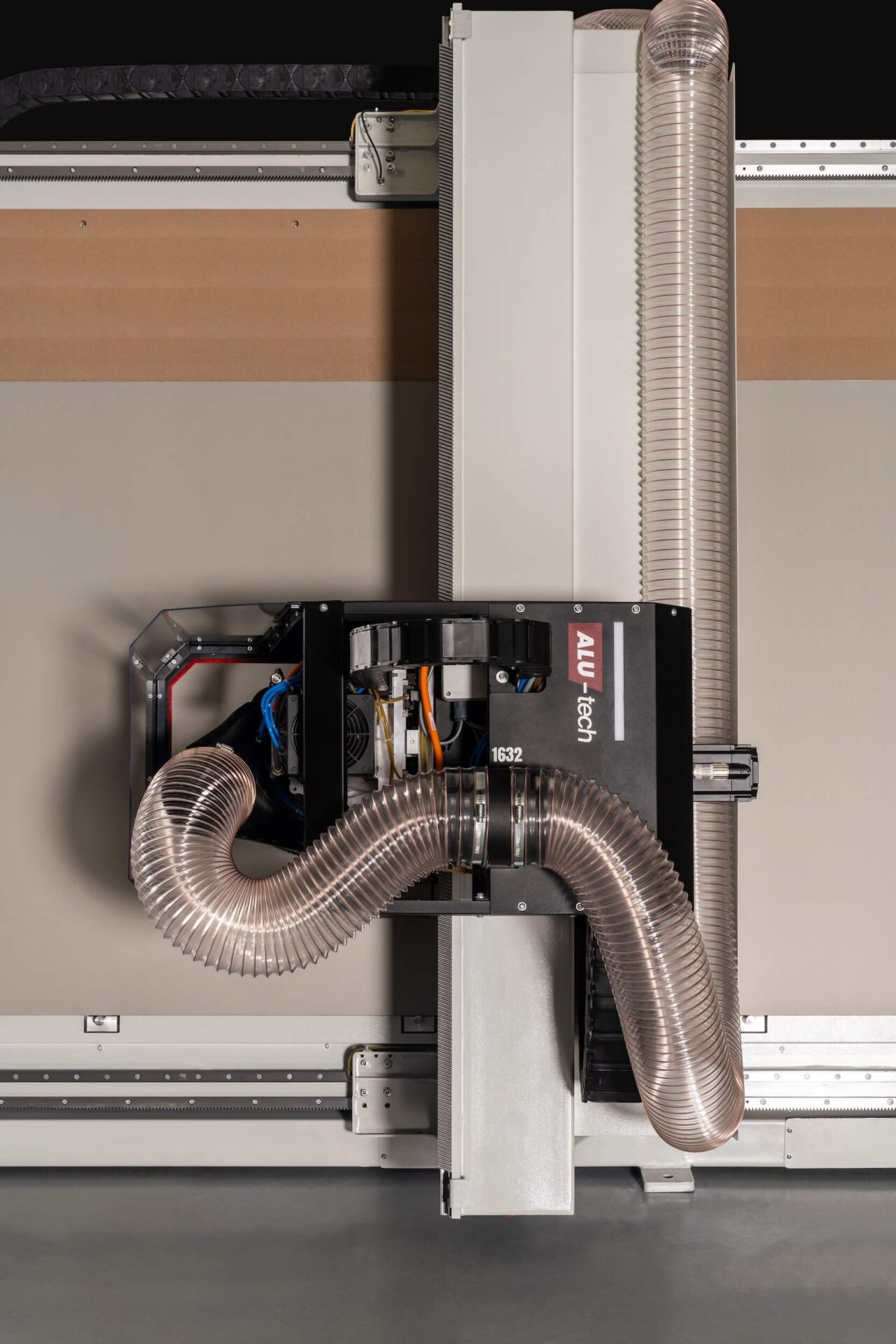

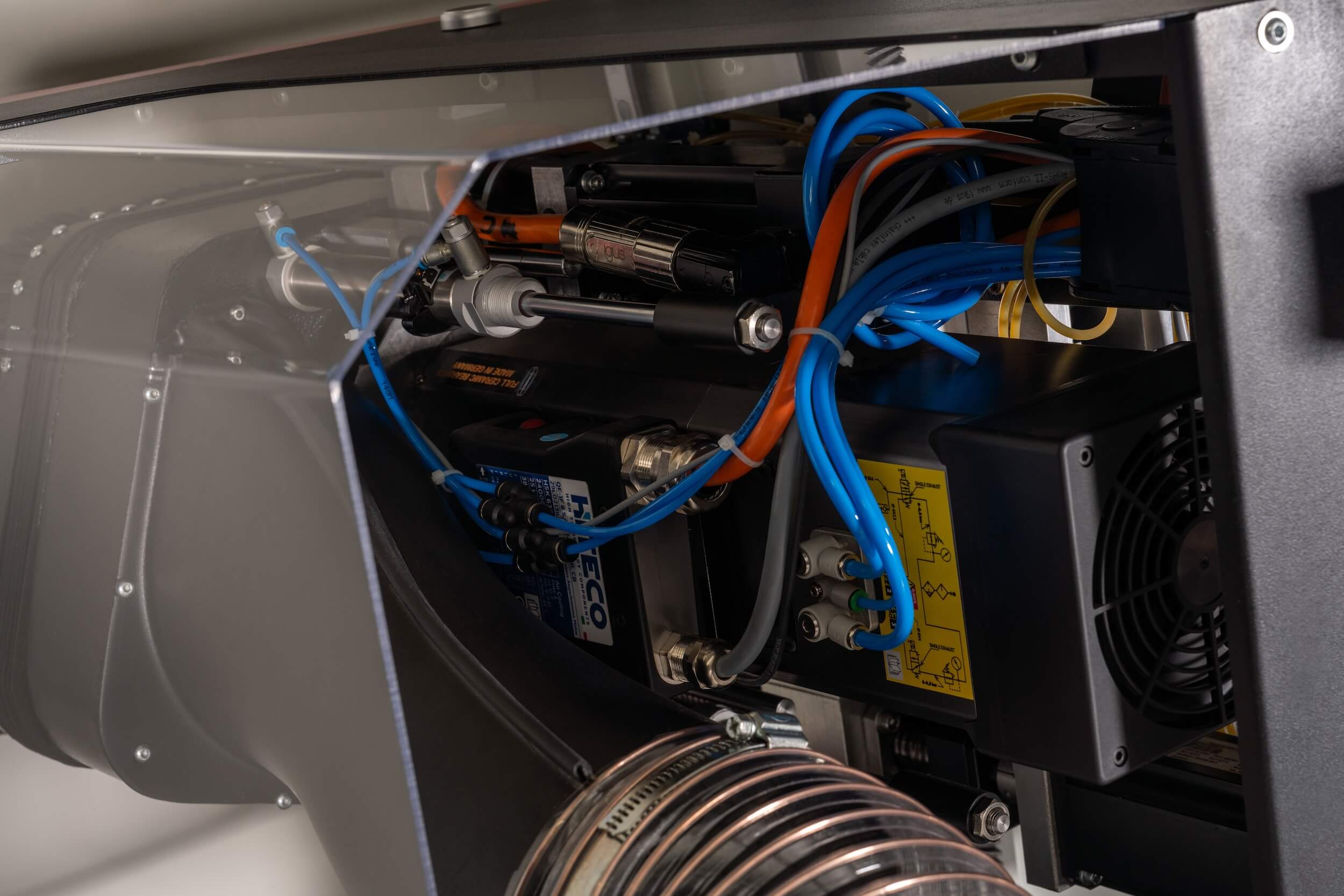

- Electric spindle (Hiteco) 8,5 / 11 Kw – 24000 rpm – HSK 63F – ER32
- Automatic tool change number of positions 6+2 (Aggregate)
- Total power 22 Kw
- Maximum weight of the panel during operation 200 Kg
- Total weight 2750 Kg

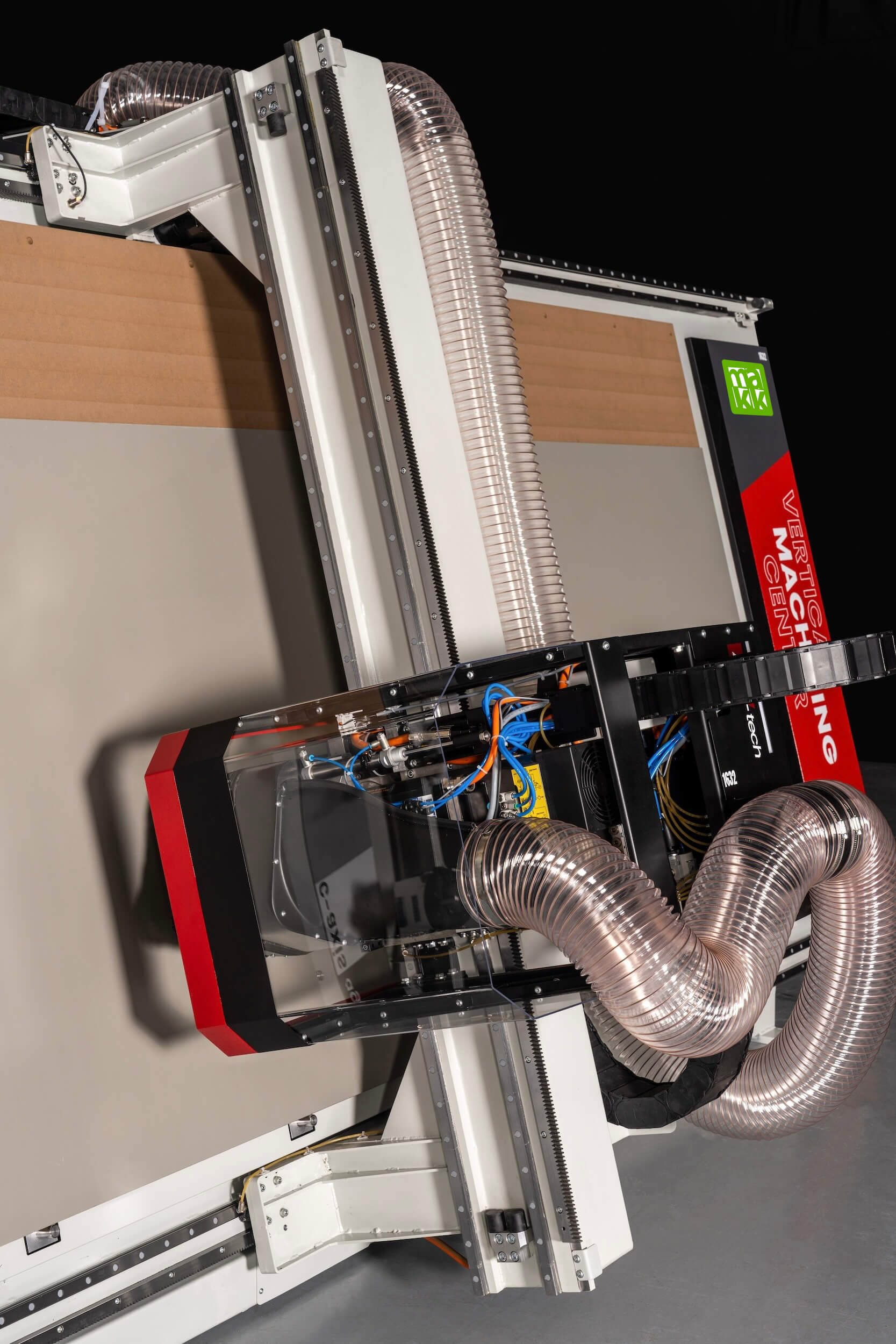

Some Possible Machining with MAKK ALU-TECH...

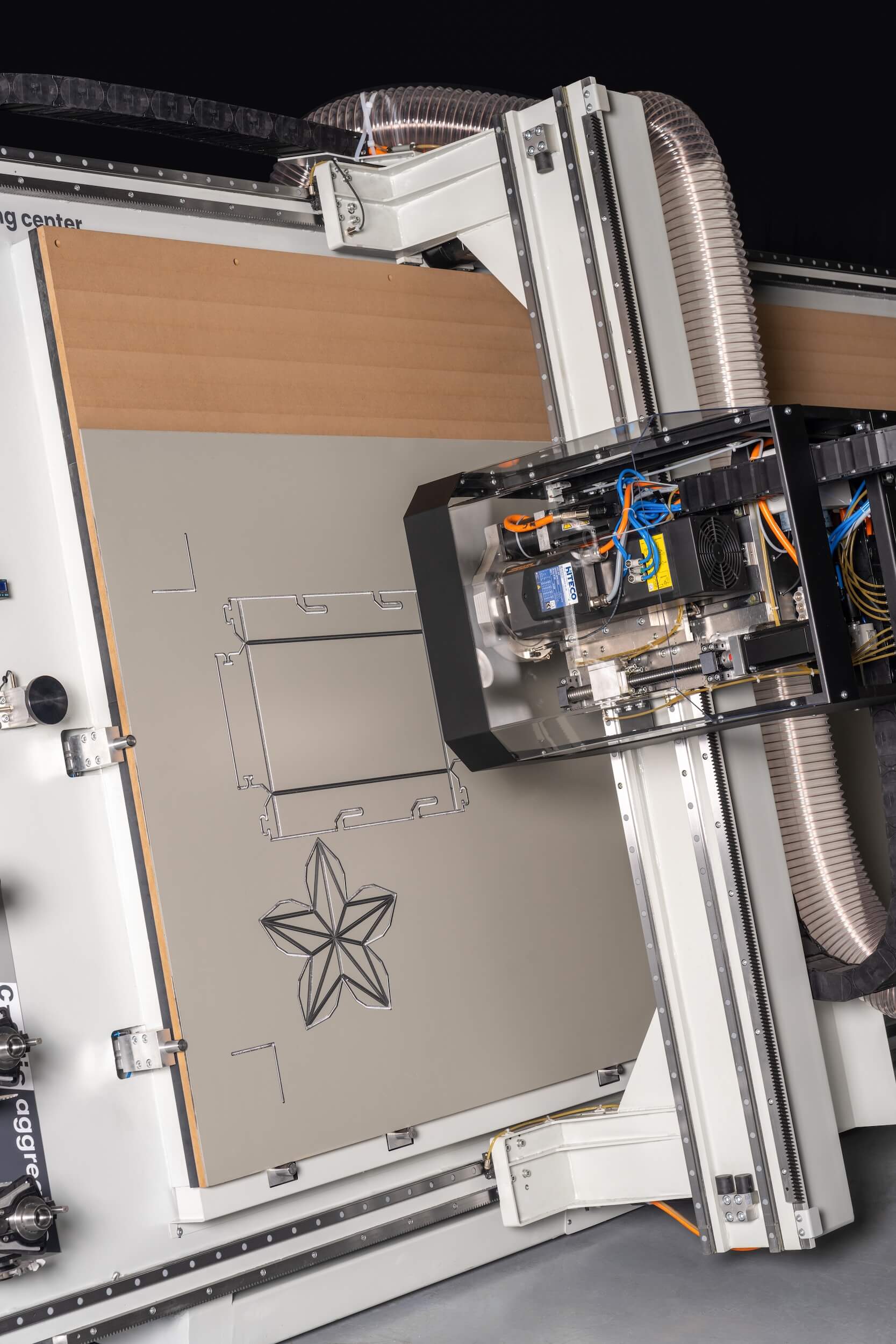

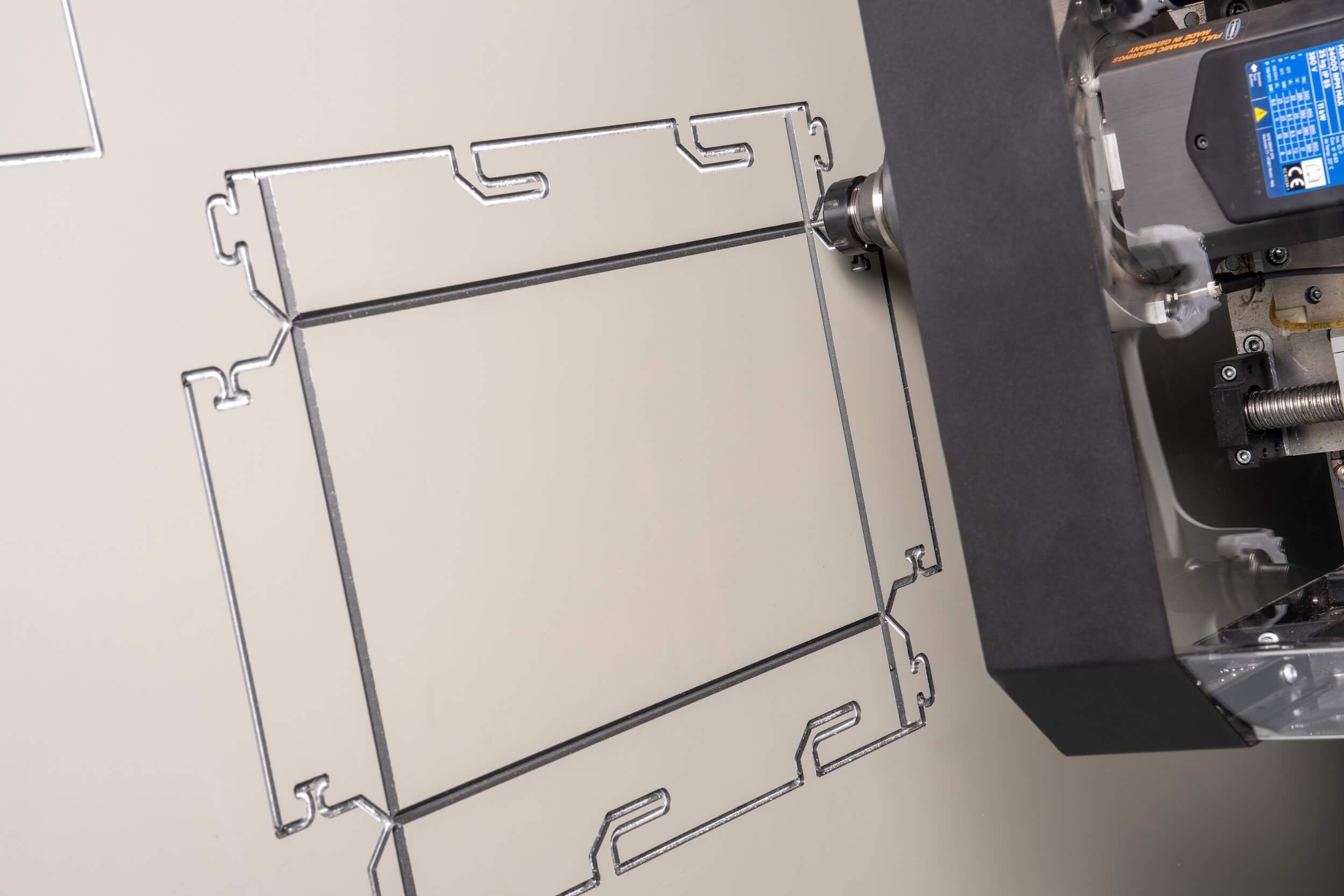

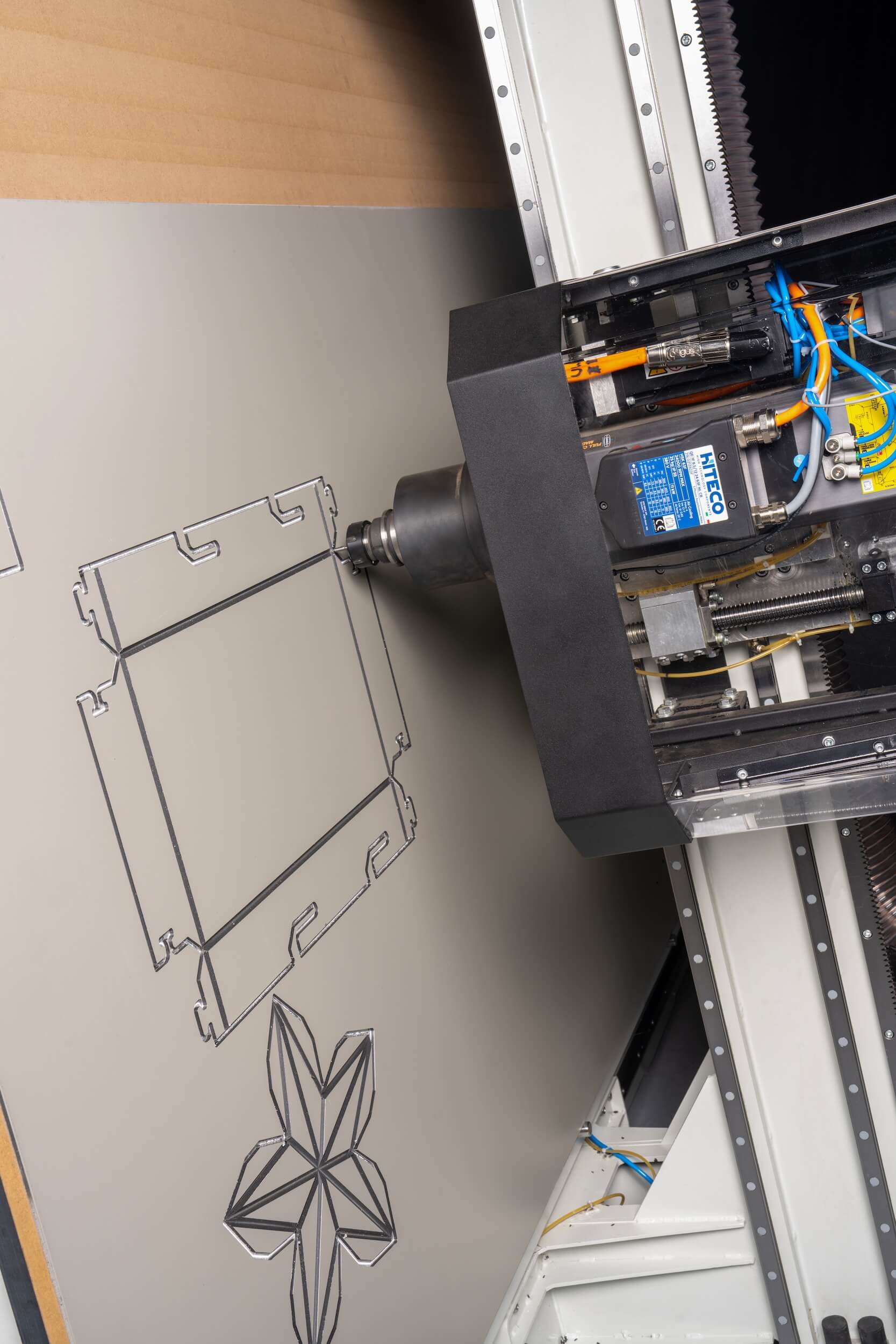

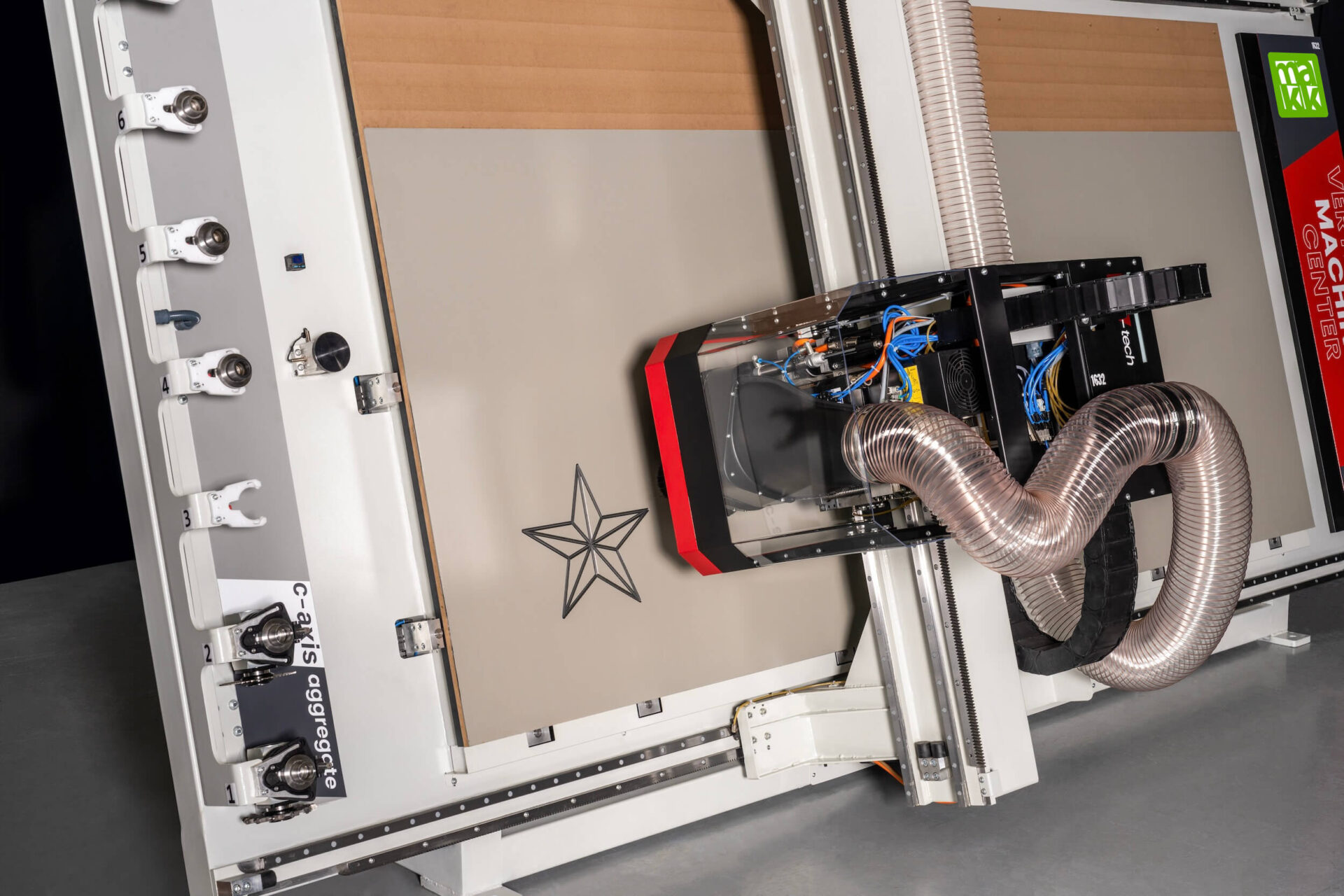

3D milling is used to create complex designs on various panels.
With ALU-TECH, you can perform the 3D milling process in a highly efficient way, achieving precision machining and maximum aesthetic performance.

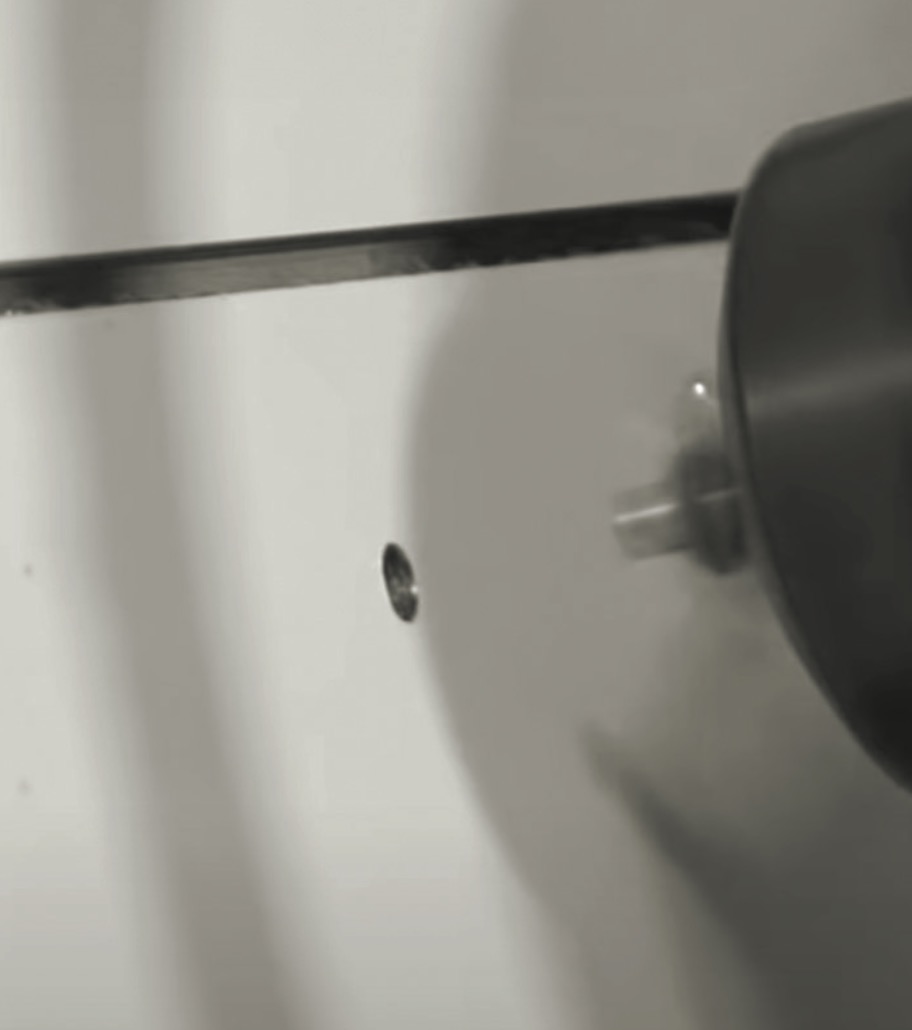

With ALU-TECH, you can easily drill panels, taking you one step further in precision coating applications.
Drilling is an important step in the manufacture of cladding and facades.
Cutting of panels into smaller pieces is carried out by means of cutting tools connected to the electric spindle through tool holders, as standard equipment, or by a circular blade connected to the optional aggregate tool holder, This allows faster cuts.
The aggregate is an additional option for the machine.

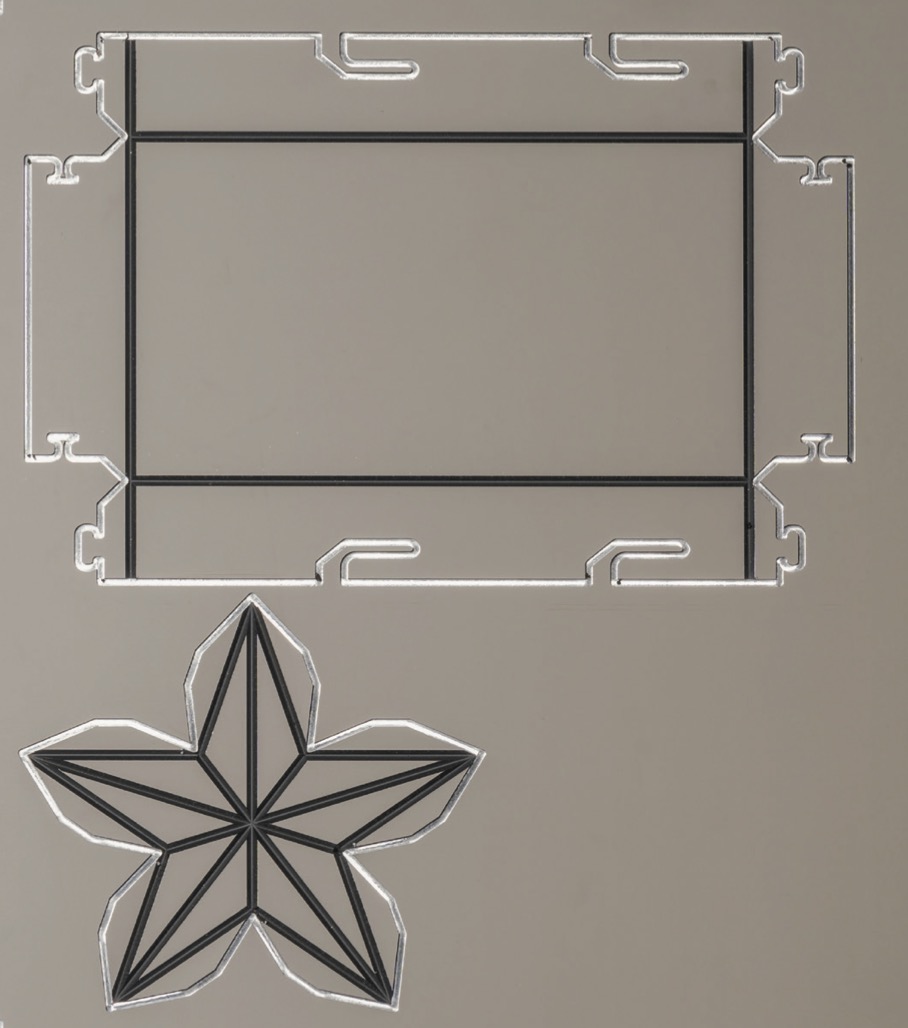

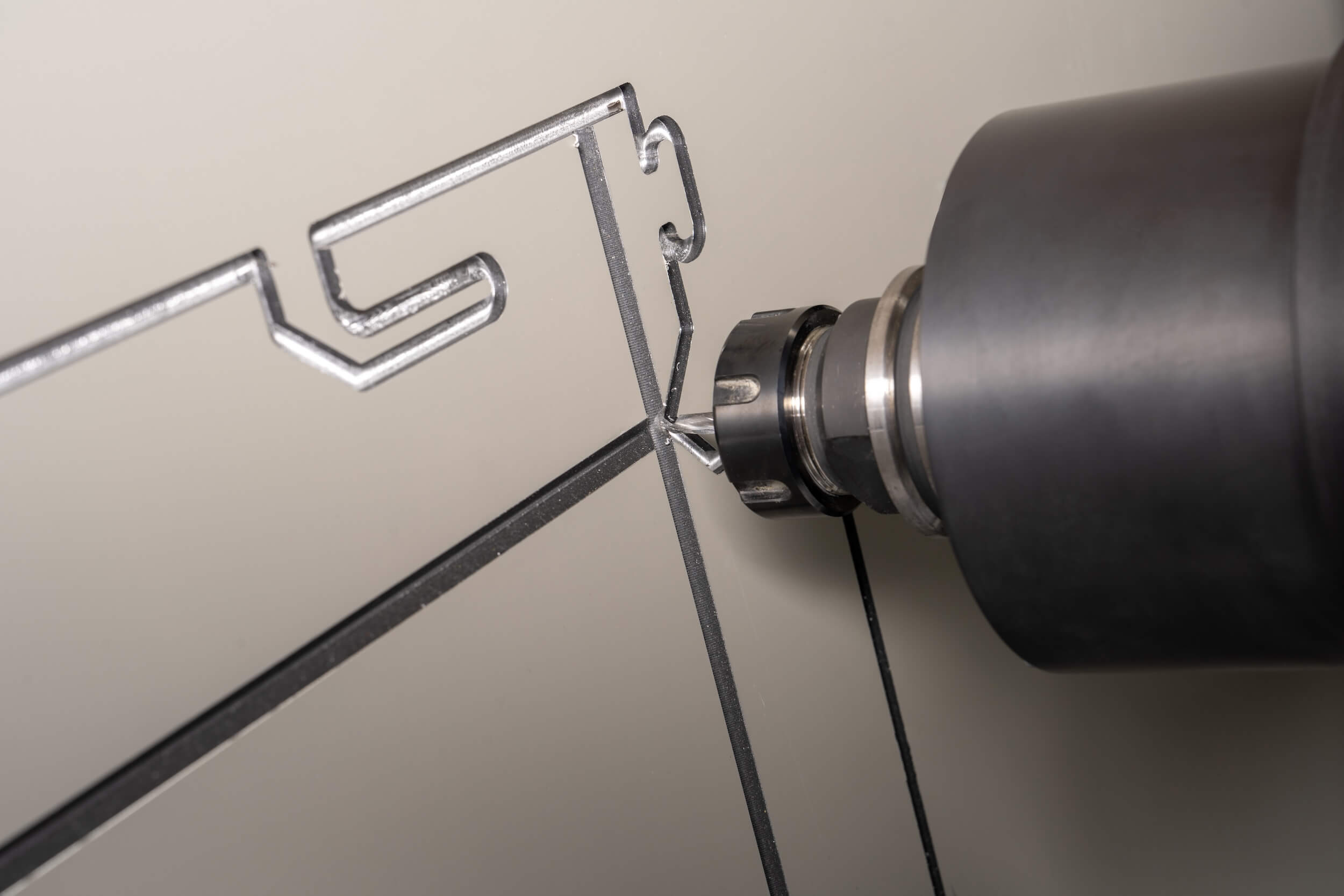

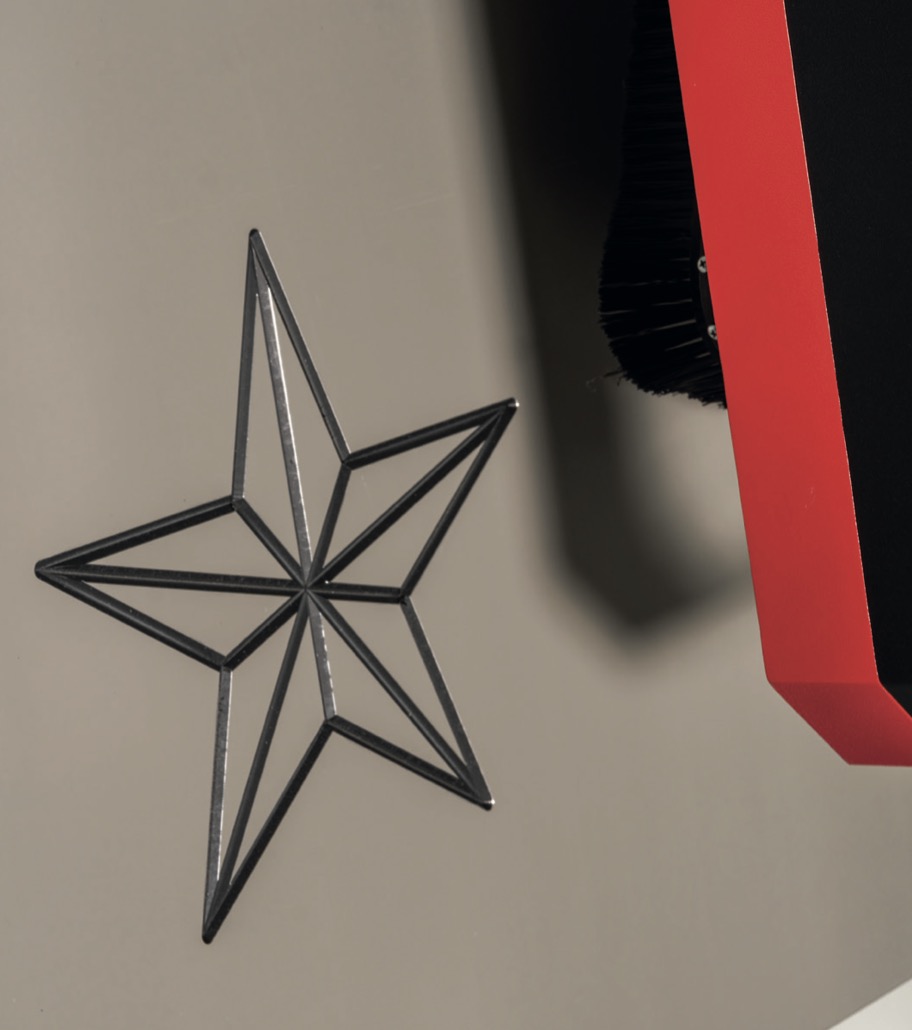

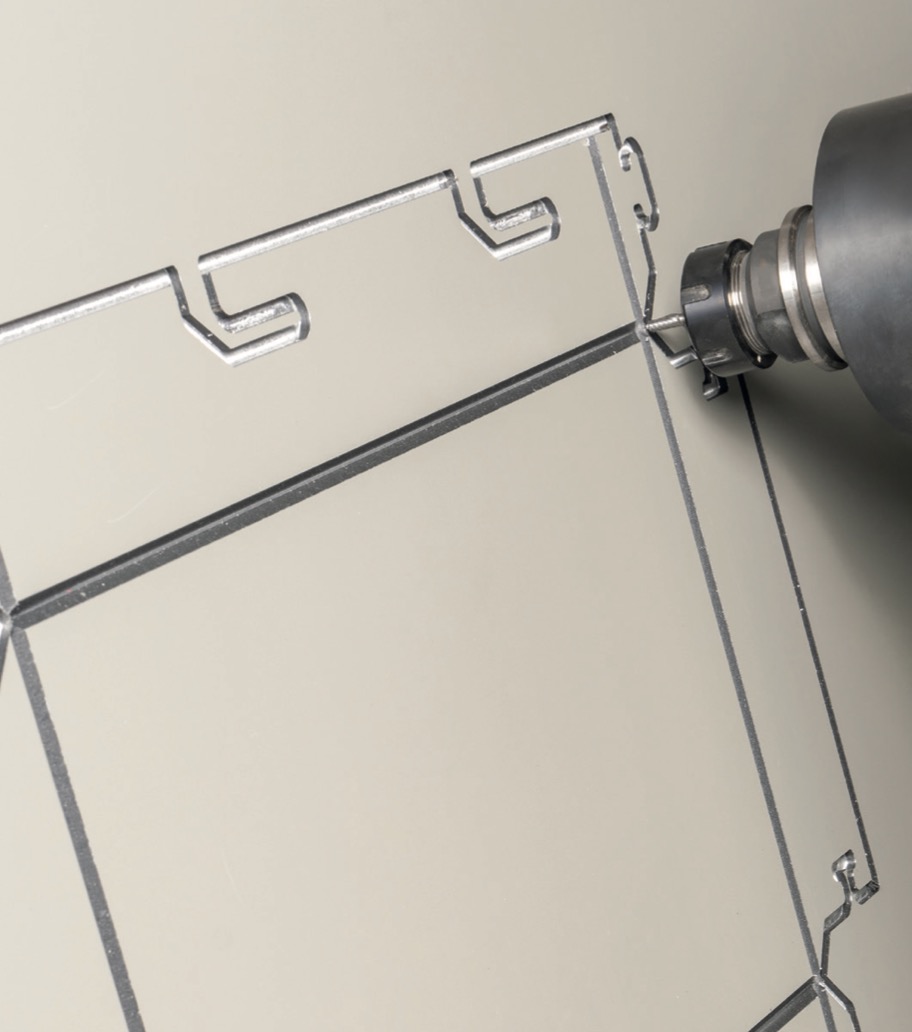

Grooving is an important step in the processing of aluminium composite panels and ALU-TECH performs this process flawlessly thanks to its sensitive and fast machining capabilities.
Main Components MAKK ALU-TECH Vertical CNC Machining Center

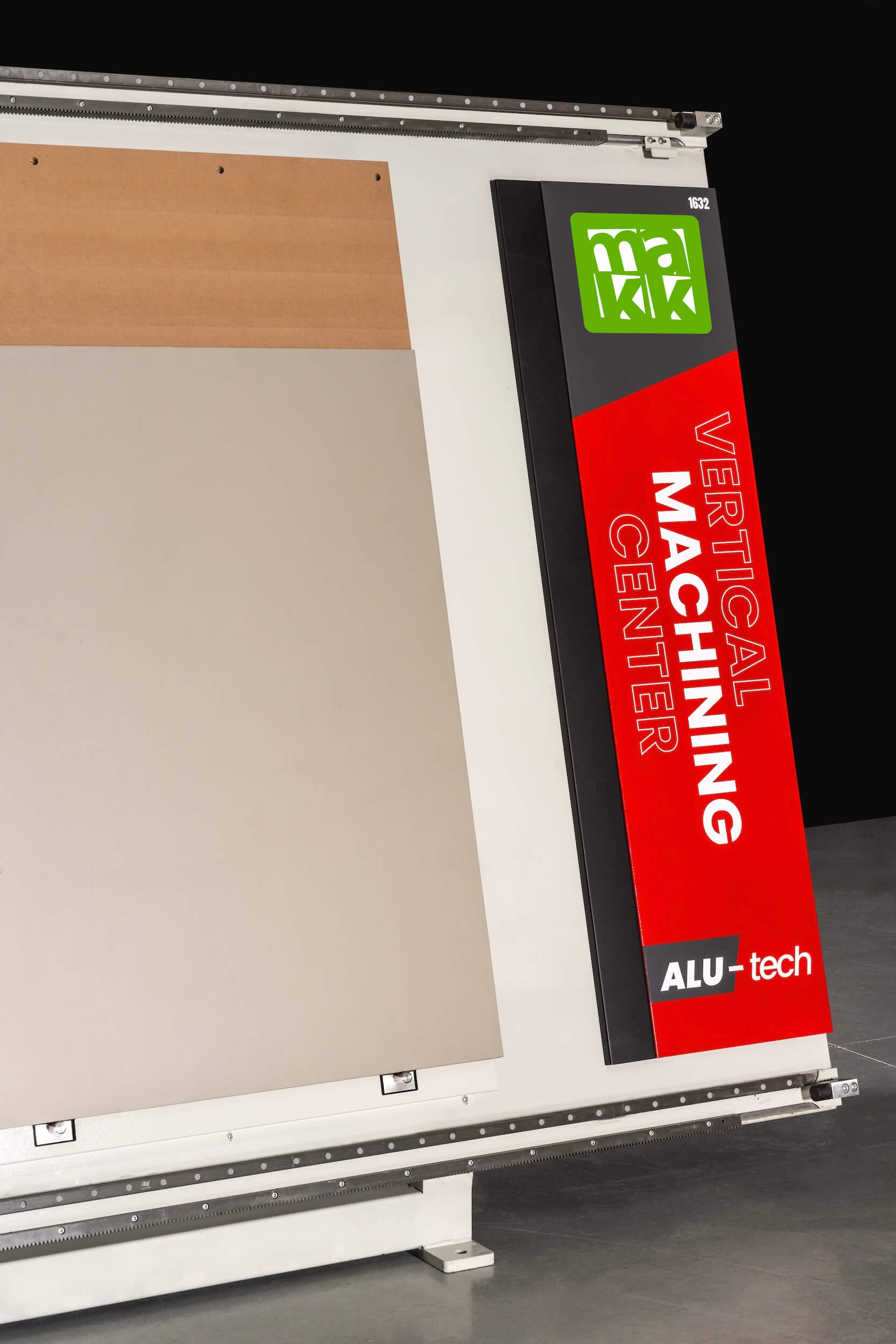

VACUUM WORKTOP.

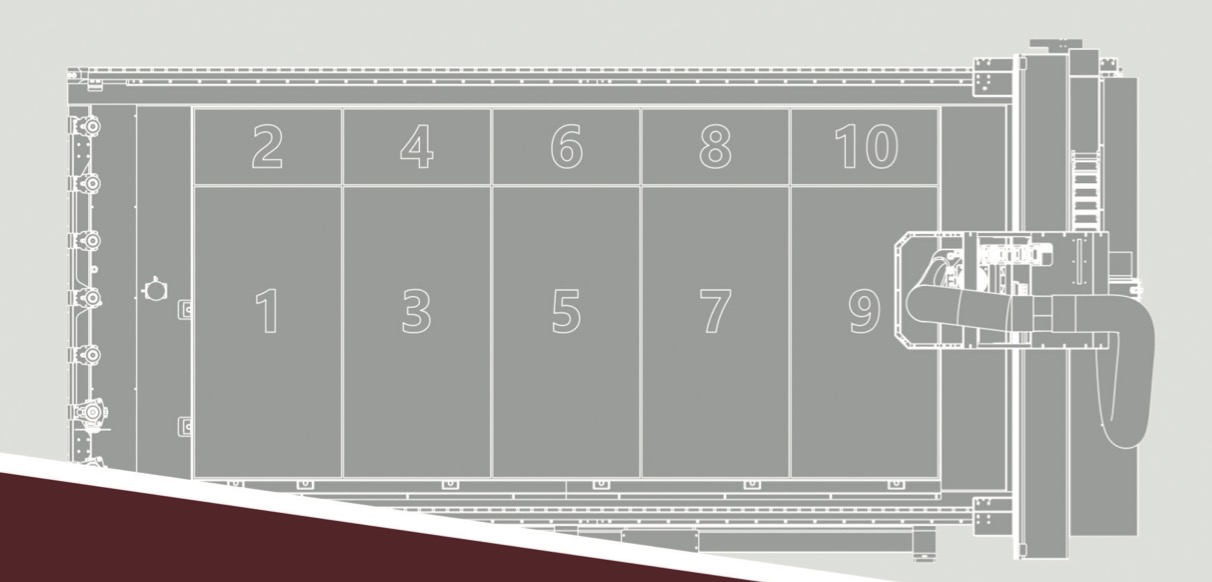

The ALU-TECH worktop is divided into multiple vacuum zones, configured according to standard panel sizes. This system offers several advantages:
- Increased grip: Zoning allows the vacuum to be concentrated on specific areas of the panel that are being processed at that time, ensuring a firm and secure grip during cutting, milling, drilling and grooving operations.
- Reduced scrap: thanks to improved panel seal, the risk of unwanted vibration and displacement is minimized, thus reducing the possibility of scrap due to inaccurate cuts.
- Easy removal of parts: at the end of the machining, the vacuum power is automatically reduced to allow the operator to remove the machined panels in a simple and fast way.
This automatic vacuum zone system is a major advantage in terms of efficiency, precision and safety for ALU-TECH machining.
The main body of the machine is completely welded.
The ALU-TECH model with a single block body allows, in addition to a longer life of the machine and its components, also greater precision during the various processes.
The presence of an automatic tool measuring system is another strength of Alu-tech.
This system guarantees the highest machining precision from the first cut.
How the automatic tool measurement works:
- Each time a new tool is loaded on the machine, the automatic system automatically measures its length.
- This measurement is saved in the machine memory and used to automatically compensate for the length of the tool during subsequent machining.
- This automatic measurement eliminates the need to measure tools manually, minimising the risk of human error and ensuring perfect calibration for each operation.
The automatic tool measurement system is a key element in Alu-tech’s accuracy and reliability, allowing you to get flawless results from the start.

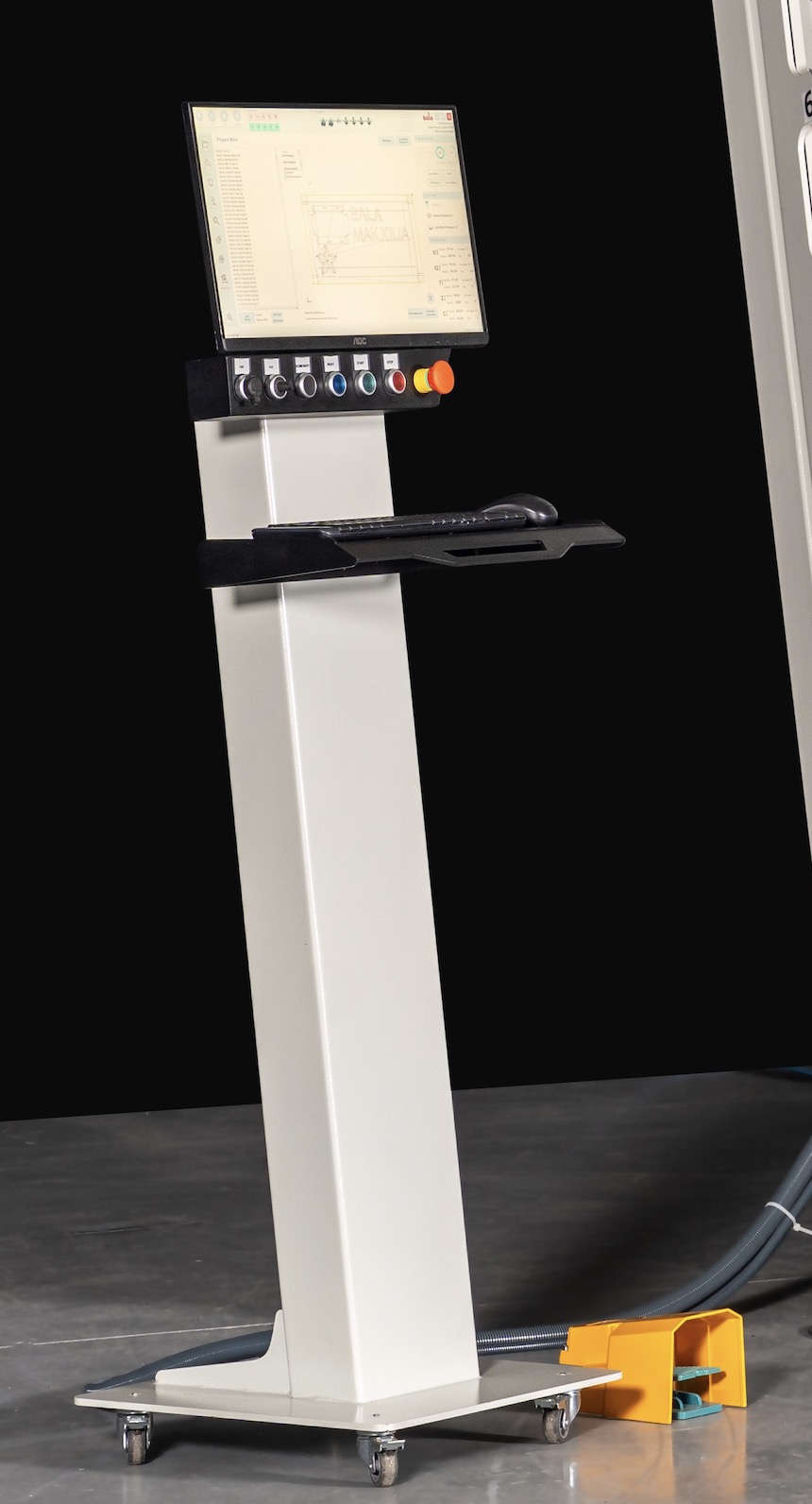

Special ALPHACAM CAD software designed for cutting, grooving/milling (grooving) and drilling on all types of panels.
• Industrial PC (64GB SSD 4 GB RAM NDO 10 IO)
• Full HD 16:9 22″ LCD screen
• Q keyboard (English design)

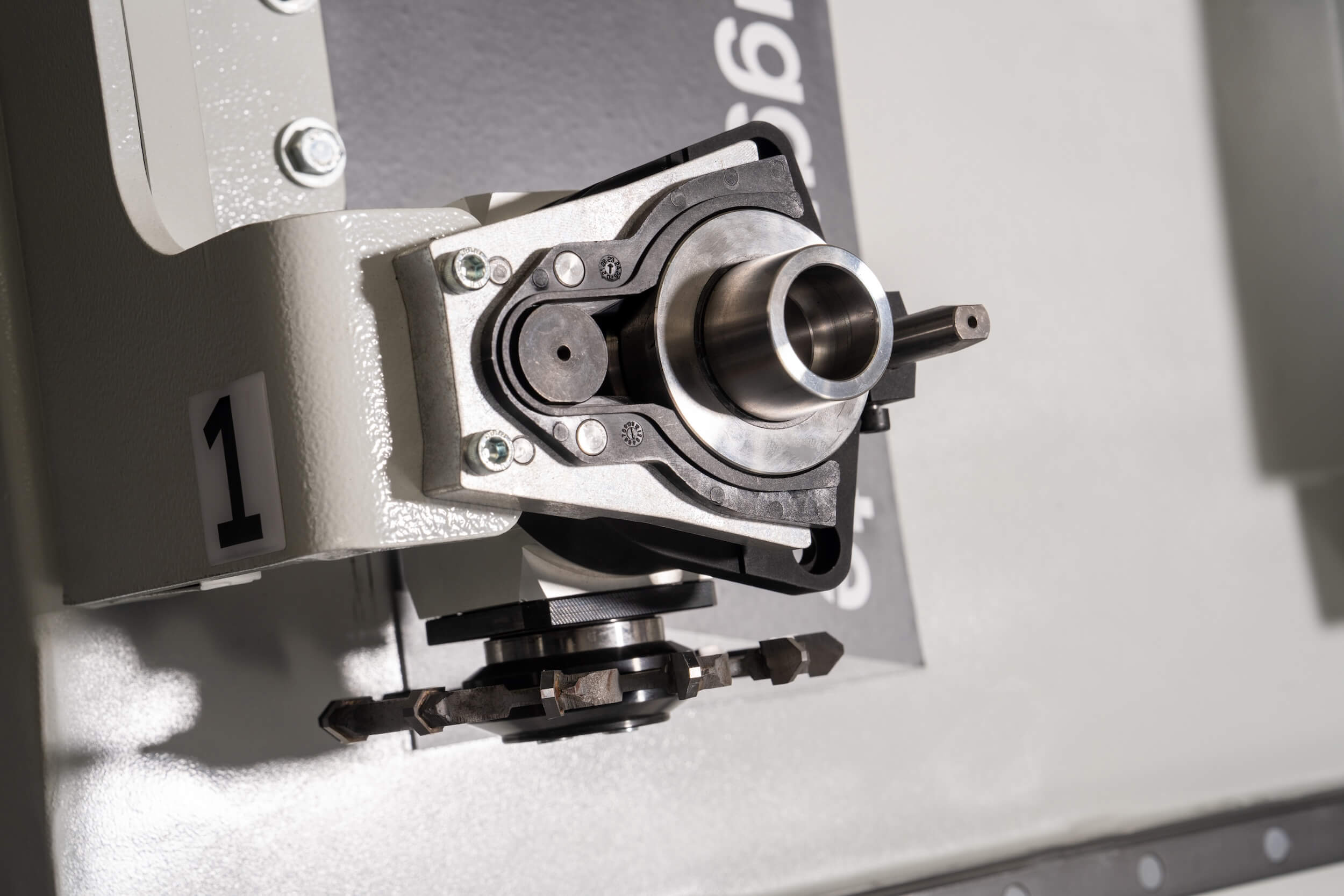

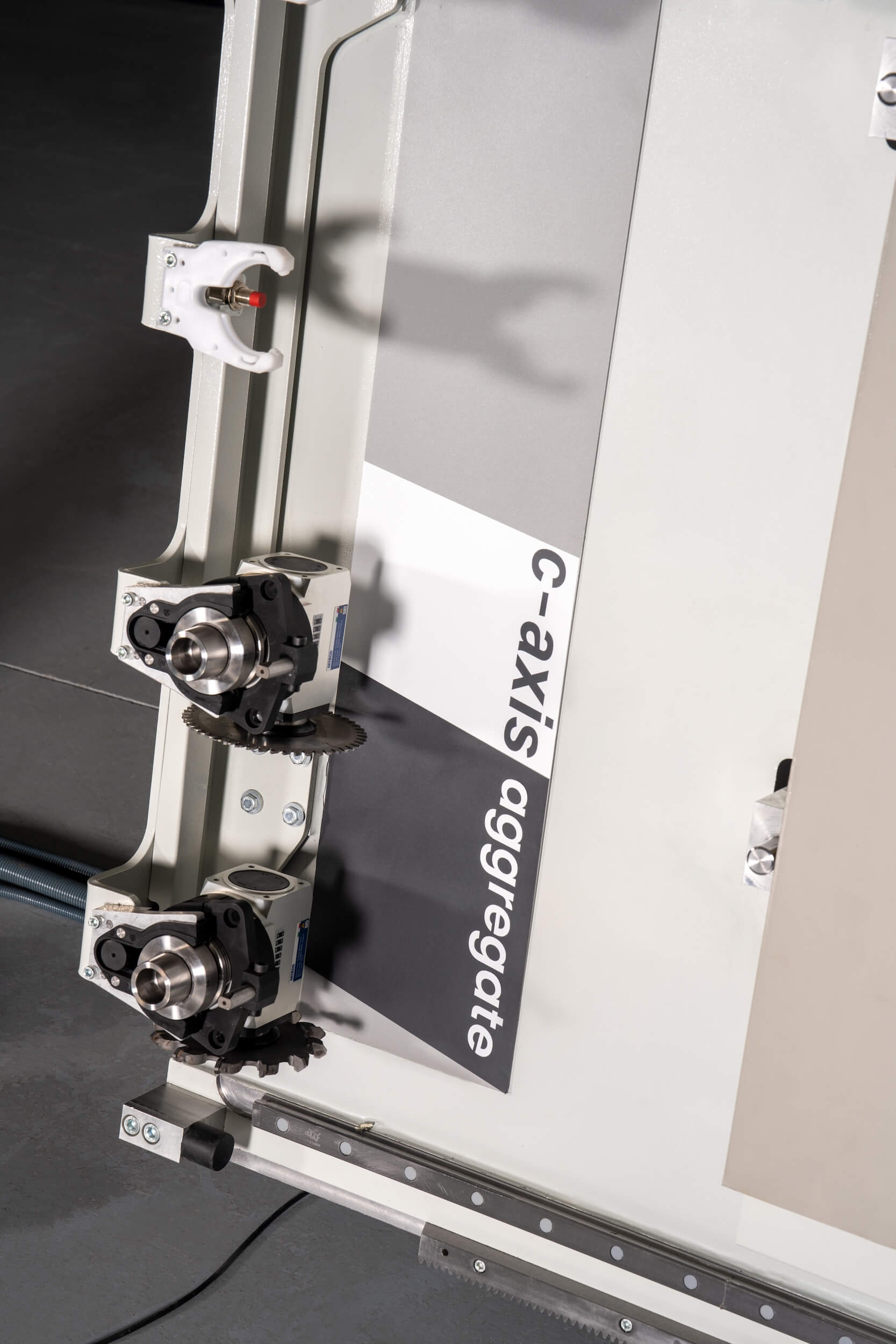

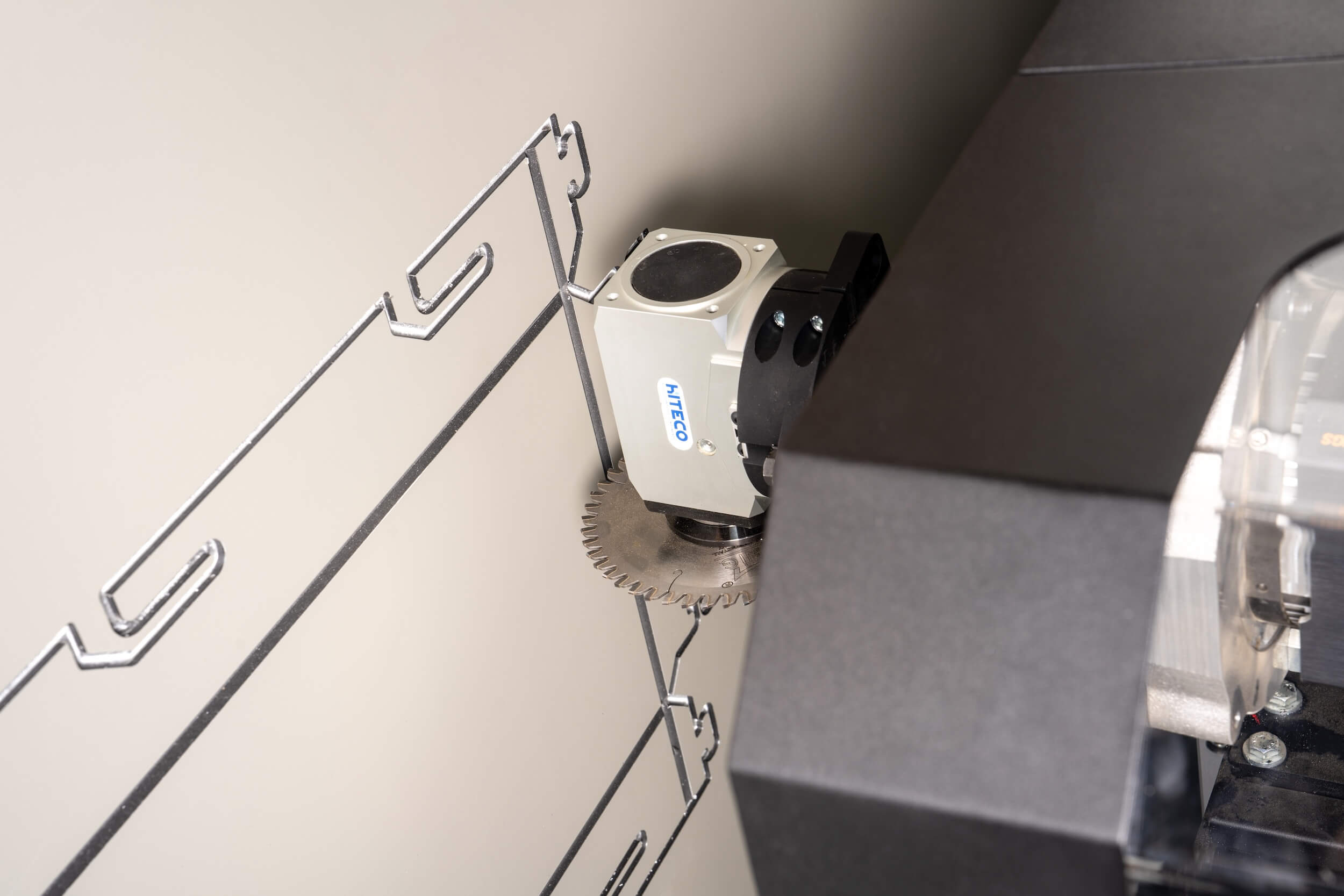

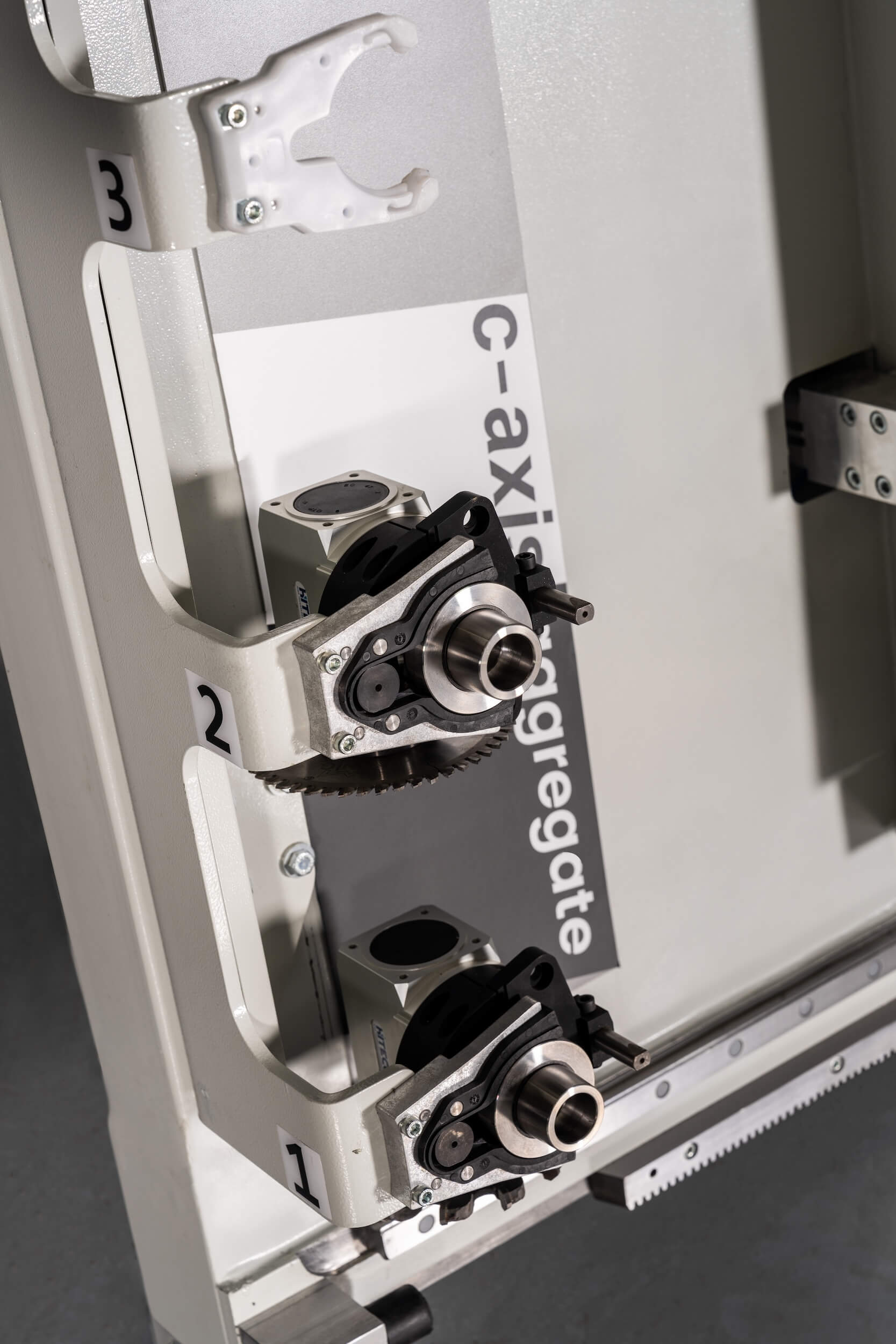

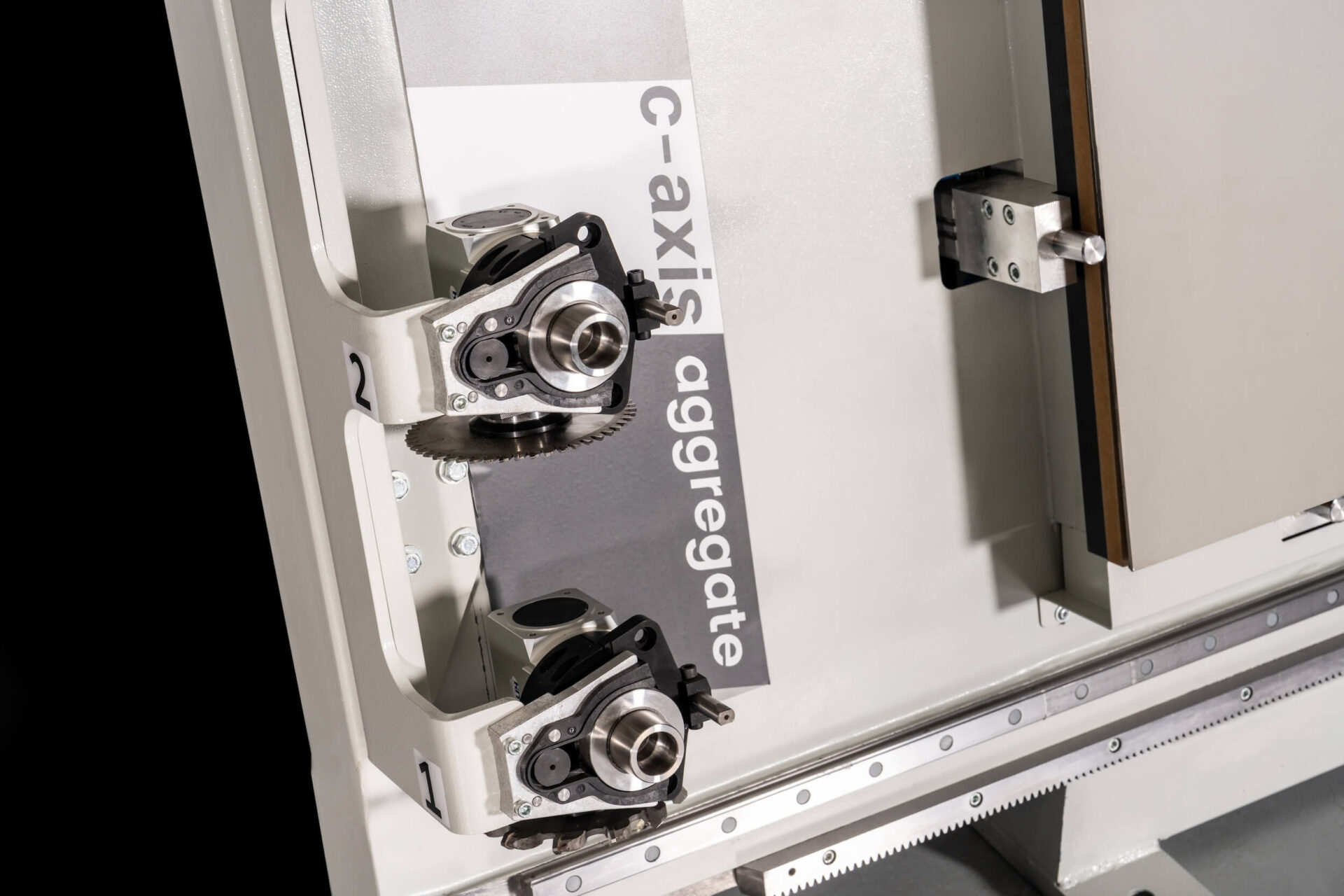

ALU-TECH offers the possibility to integrate an optional aggregate unit equipped with the Hiteco C-Axis unit.
This configuration extends the machine’s processing capabilities.
Advantages of the Hiteco C-axis aggregate unit:

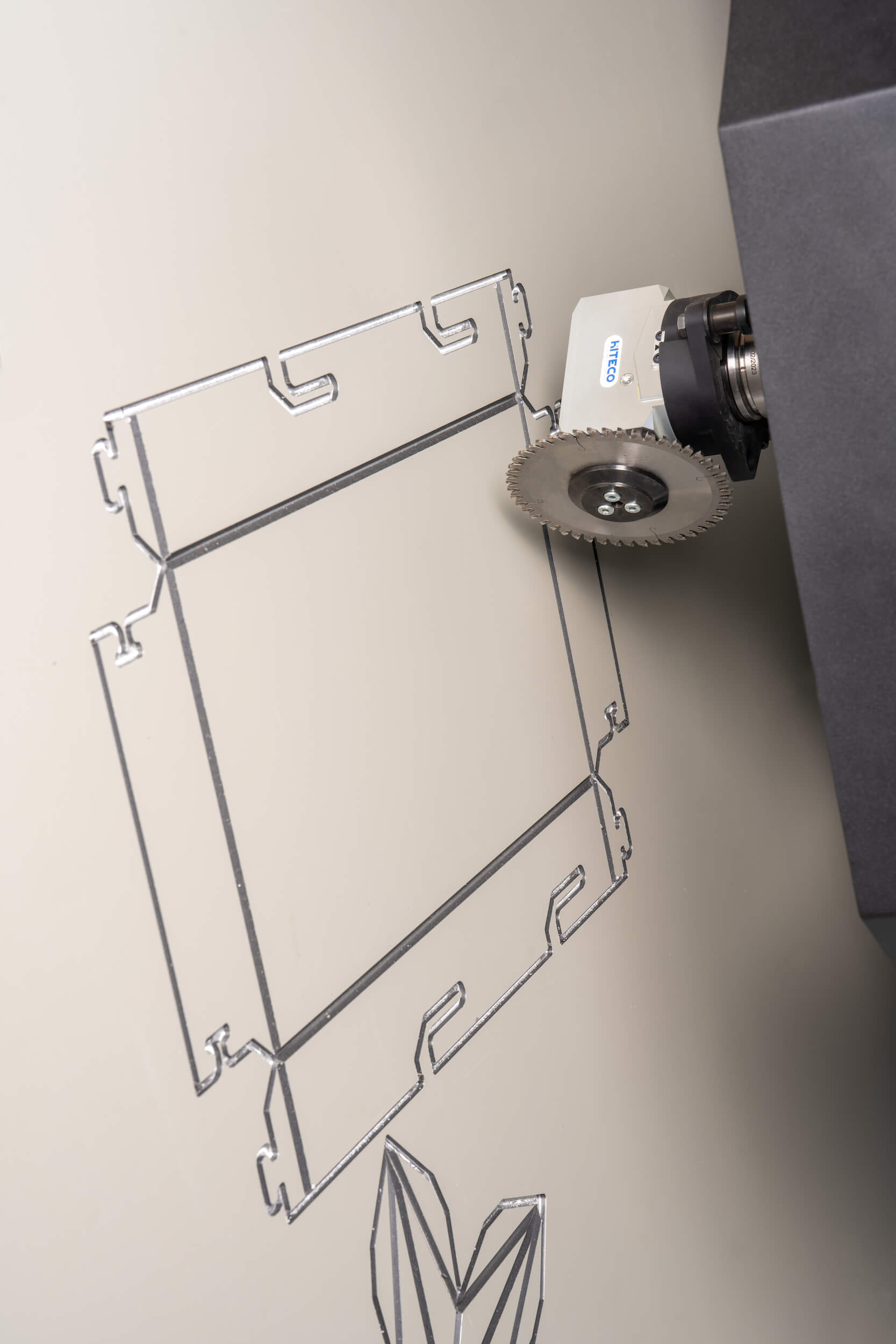

- Circular blade cutting: thanks to the aggregate unit, ALU-TECH can be equipped with a circular blade for fast and precise cuts on panels even of large dimensions.
- Grooving: the Hiteco C-Axis unit allows the use of a special V-cutter (or other profile on drawing) to achieve precise and high quality V-grooves.
- Increased versatility: the addition of the aggregate unit makes Alu-tech an even more versatile machine, able to meet a wider range of machining needs.
It is important to note that the aggregate unit and the Hiteco C-axis unit are optional.

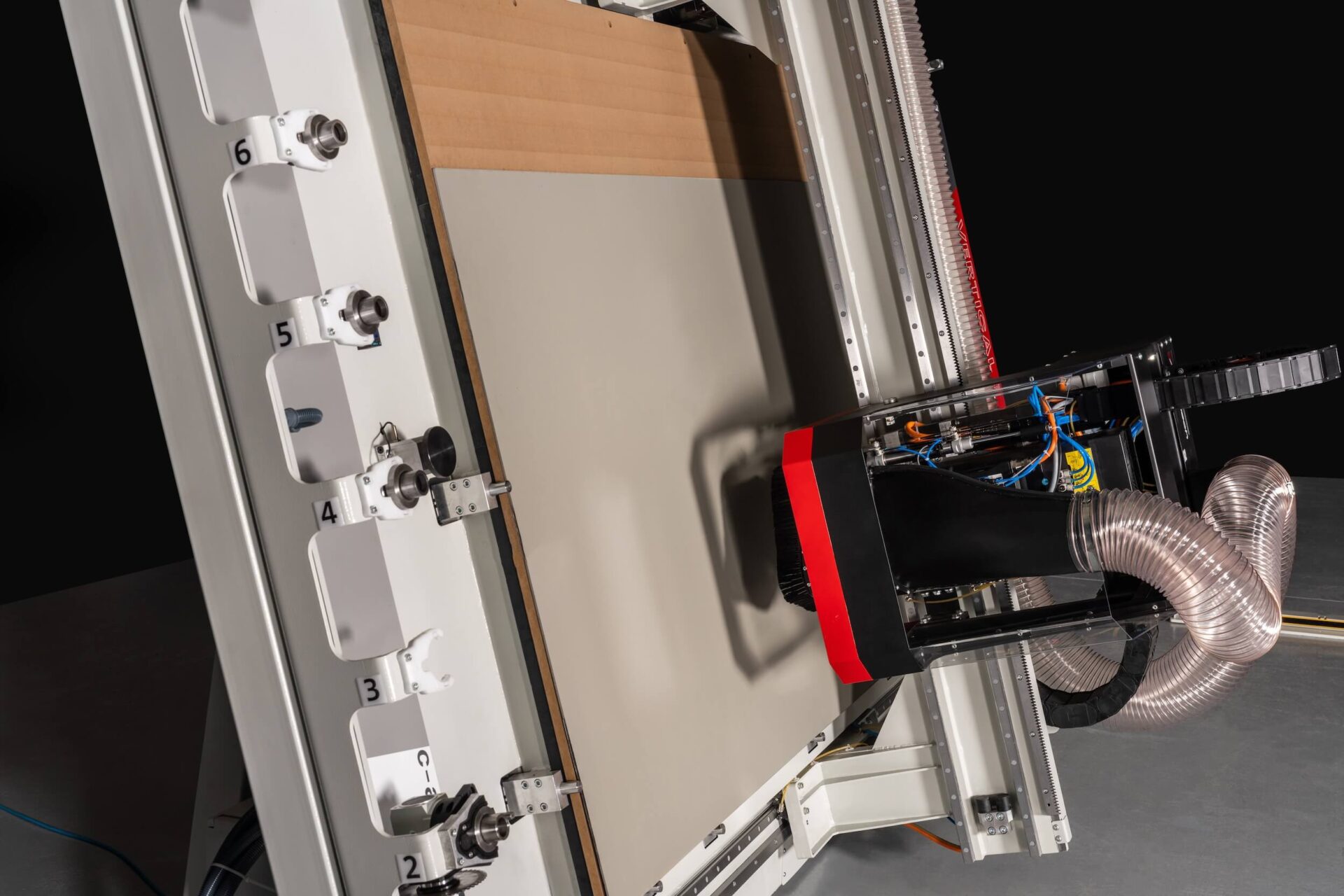

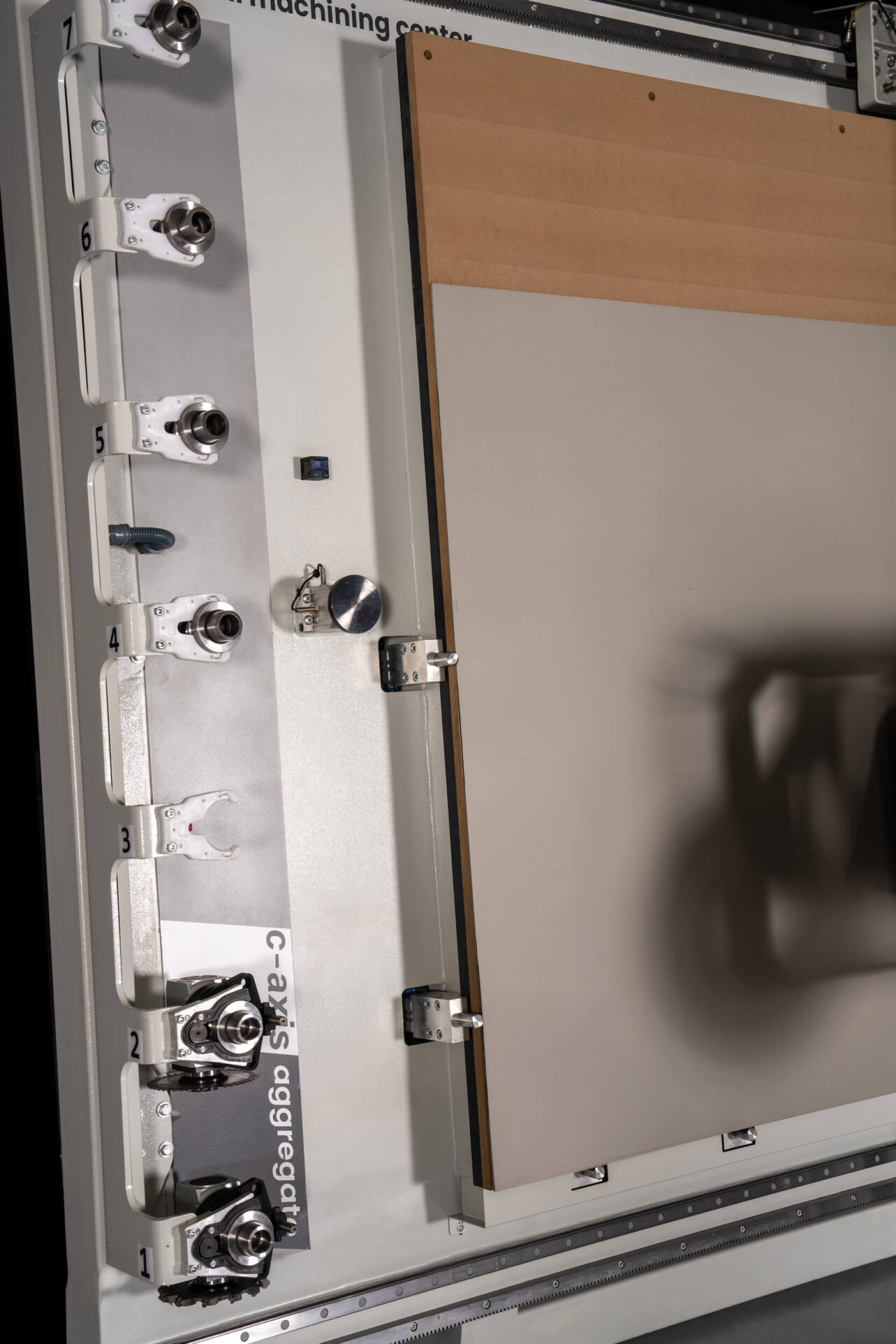

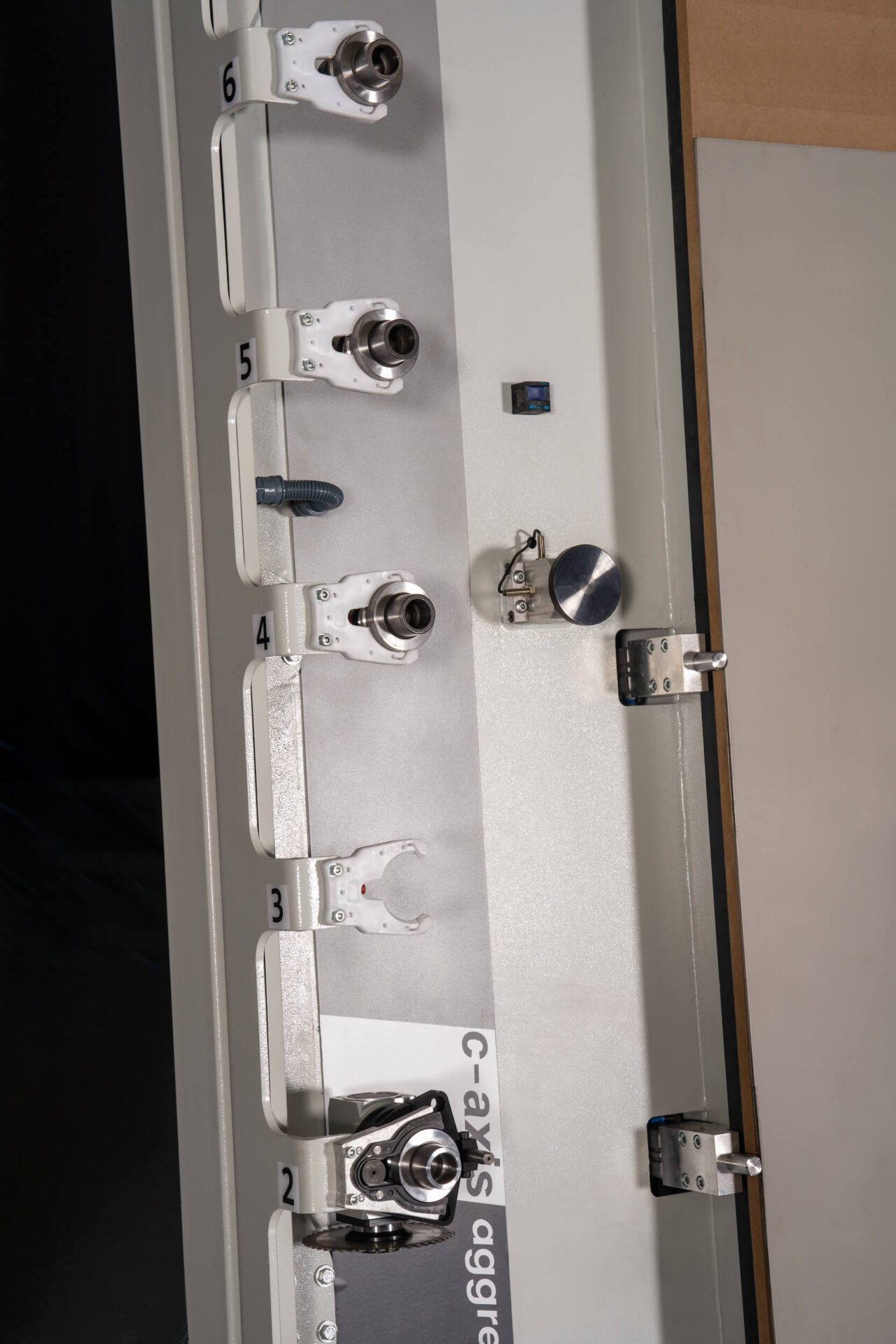

The automatic tool change unit saves time when switching between process steps (cutting, grooving, milling, drilling, etc.) thanks to the HSK 63 6-cone tool attachment points.

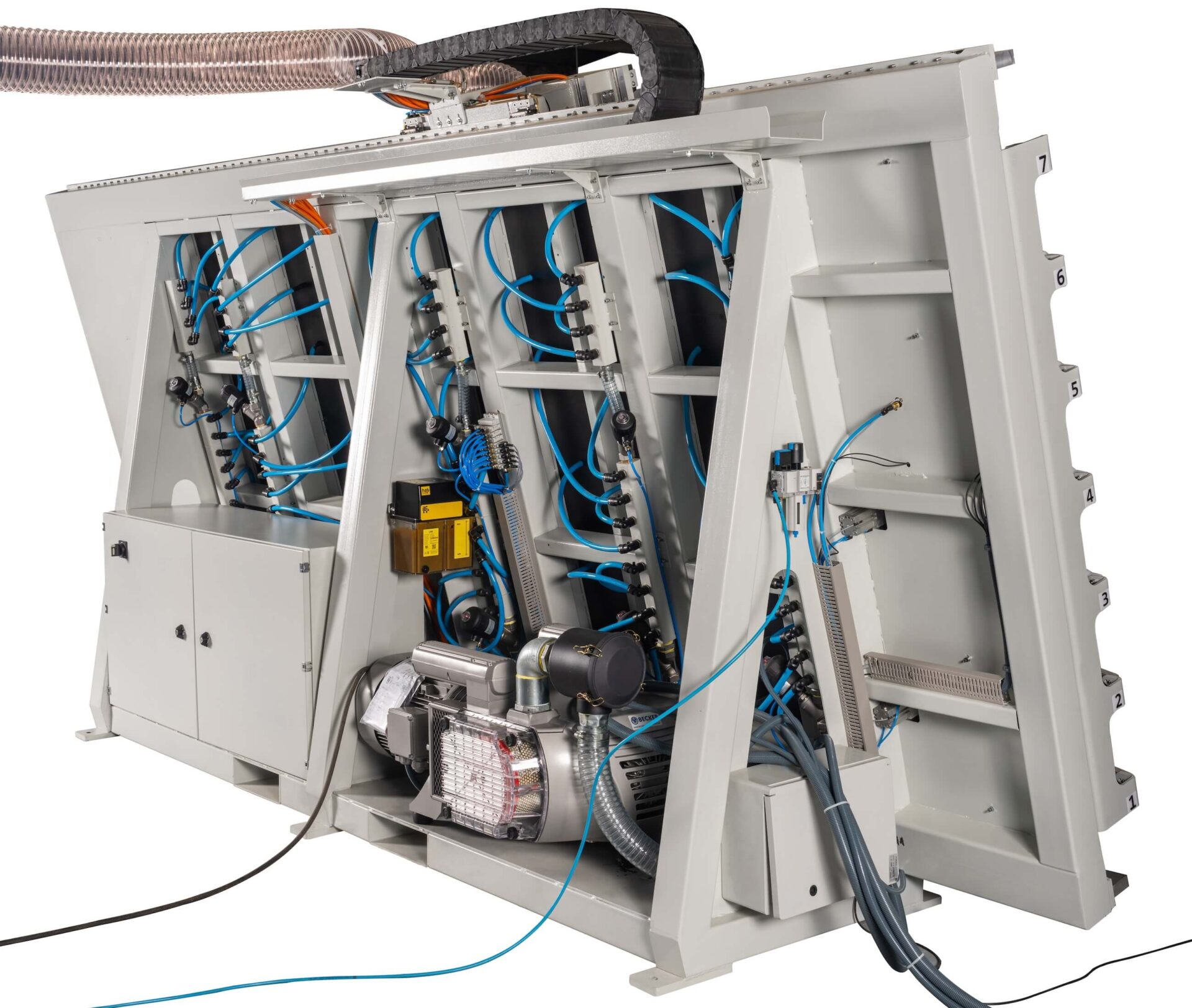

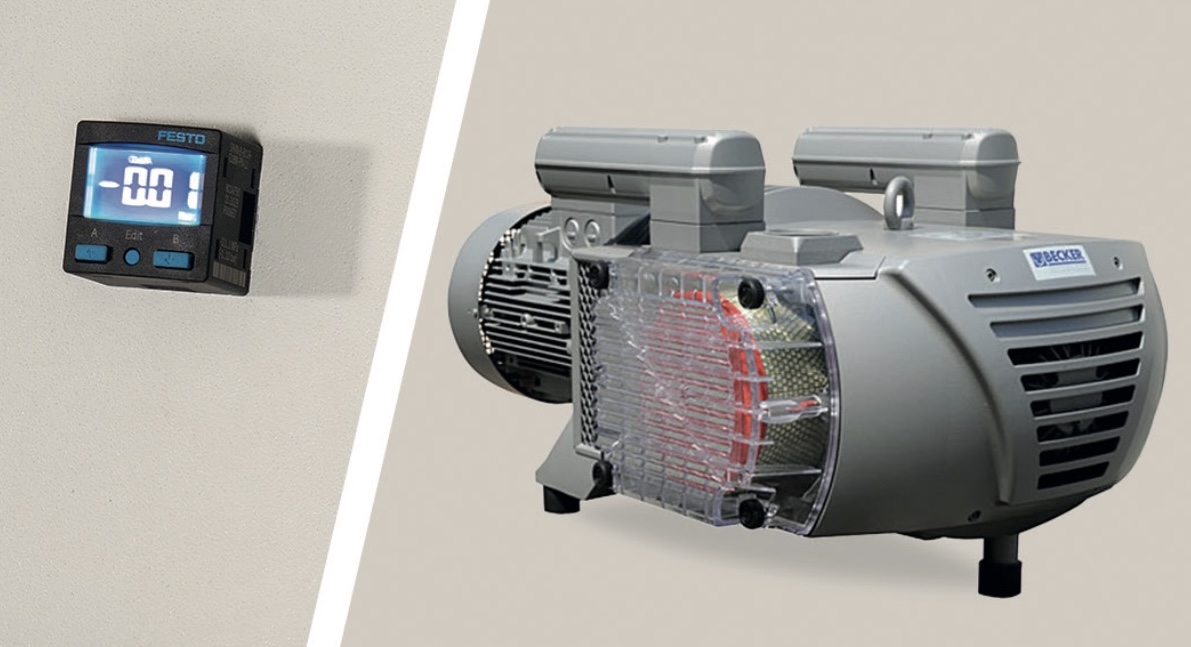

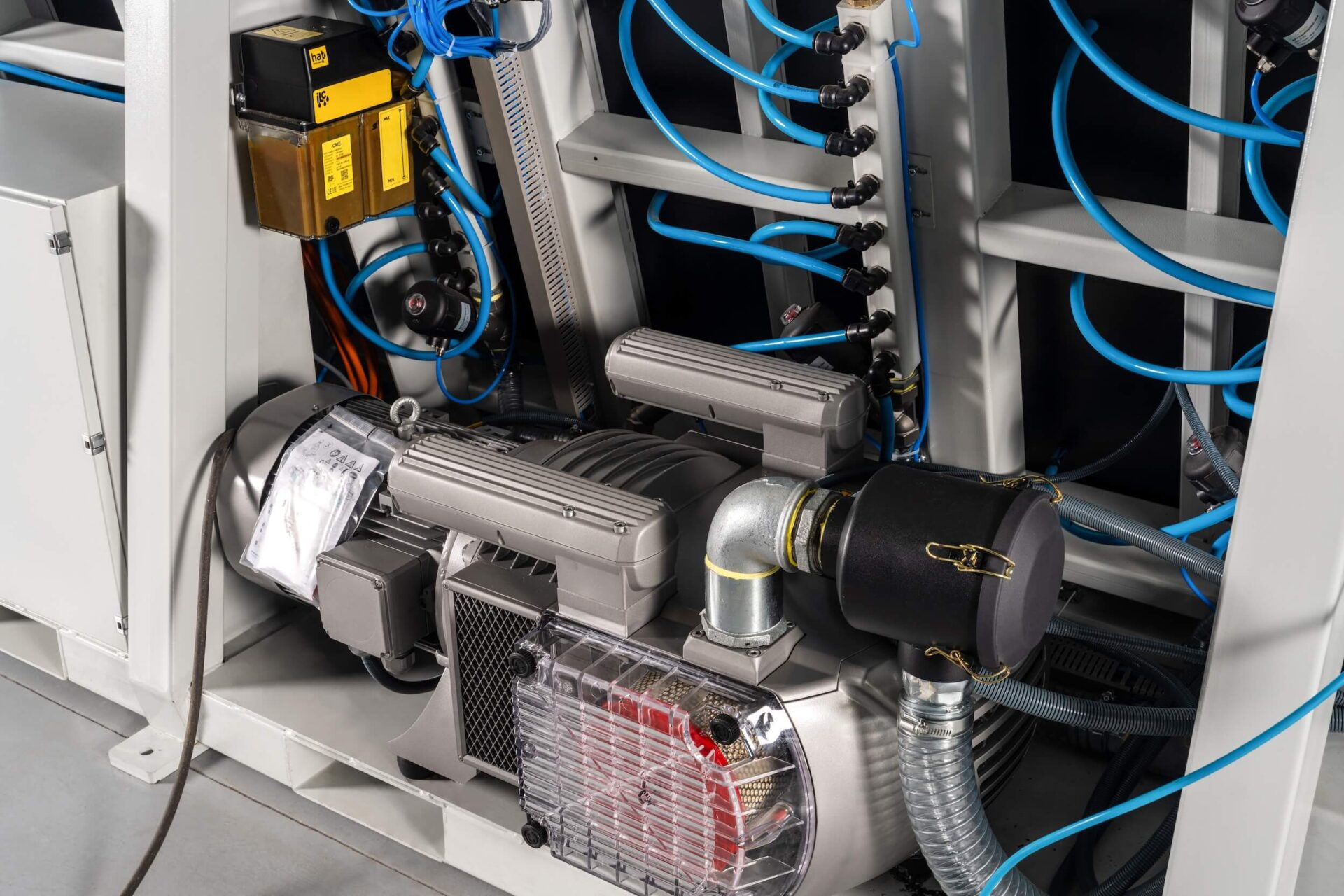

Alu-tech is equipped with a powerful and efficient vacuum system thanks to the Becker VTLF 2.500 vacuum pump.
This system ensures a firm and secure grip on the panels during machining, improving the precision and quality of the results.
Advantages of the Alu-tech vacuum system:
- Becker VTLF 2.500 Pump: The presence of this high quality pump ensures a powerful and reliable vacuum, essential for flawless cutting, milling, drilling and grooving operations.
- Real-time monitoring: the vacuum pressure is constantly monitored on a digital display placed on the frame of Alu-tech. This allows the operator to always have under control the state of the system and to intervene promptly in case of need.
- Greater precision: thanks to the powerful vacuum and continuous monitoring, Alu-tech is able to guarantee maximum machining accuracy, avoiding defects due to unwanted movement of the panel.
The vacuum system is a fundamental element of Alu-tech and contributes significantly to its high performance.

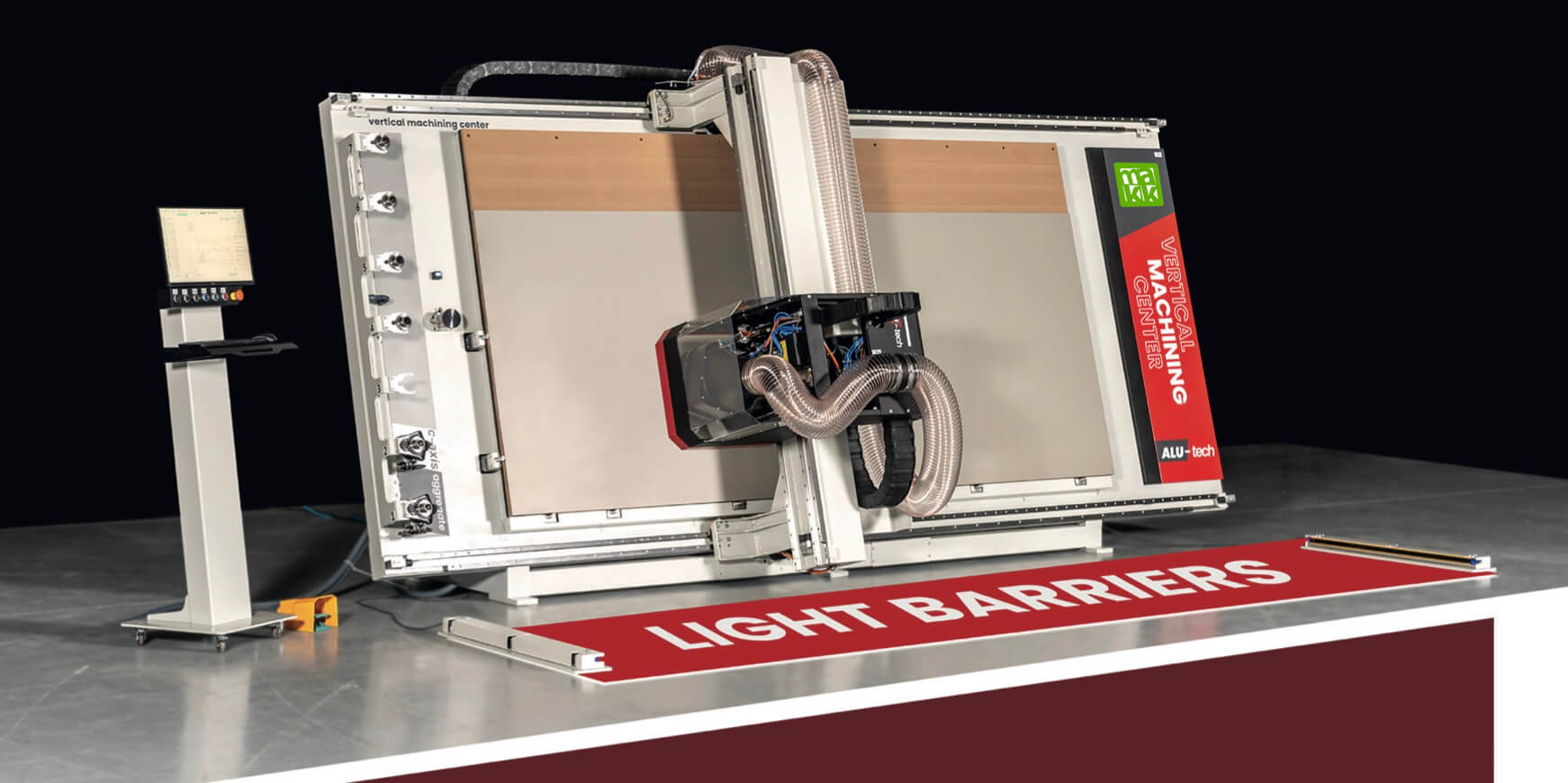

ALU-TECH is designed with the highest possible safety. One of the key systems to ensure operator safety is the light barrier.
How the photoelectric barrier works:
- The barrier is positioned around the machine’s working area and operates simultaneously with it.
- If something or someone enters the work area while the machine is running, the photoelectric barrier detects the break in the light beam and stops the machine immediately.
- Once the obstruction has been removed and safety is assured, the operator can restart the machine and the process will resume exactly where it was stopped.
This automatic system guarantees maximum safety for the operator, avoiding potential accidents during work.
Choose MAKK ALU-TECH and discover the power of a true vertical CNC machining centre!
Save Space!
The machine’s footprint is reduced to a few metres in front of a wall.
The vertical machining concept is also advantageous for fast cleaning of the worktop: in horizontal CNCs, the worktop must be cleaned before each panel, while in vertical CNCs, chips that are not sucked during processing fall to the ground, Leaving the working surface clean and thus preventing unwanted scratches.
Maximum Security Guaranteed
The barrier works simultaneously with the machine and stops it if something enters the working area.
Once the safety is guaranteed and the machine is restarted, the process resumes from where it was stopped.
Solid and Long-term Investment
1) COST REDUCTION:
* Space saving: MAKK ALU-TECH’s vertical design takes up less space than traditional CNCs, freeing up valuable square metres for other tasks.
* Reduced manpower: the automatic chip discharge system and easy cleaning of the work surface reduce the time needed for cleaning and maintenance.
* Energy efficiency: MAKK ALU-TECH’s cutting edge technology maximizes energy efficiency, reducing consumption costs.
2) MAXIMUM DURATION:
* Robust construction: ALU-TECH is made with high quality components and designed to last over time.
* Minimal maintenance: its robust design and automatic lubrication systems minimise the need for maintenance.
* Proven reliability: ALU-TECH is produced by Bala, a leading company with over 32 years of experience in the production of composite panel processing machines.
3) ADDITIONAL BENEFITS:
* Versatility: ALU-TECH can be used for a wide range of machining tasks, including grooving, cutting, drilling and milling.
* High precision: the high-precision CNC control system ensures flawless results.
* Ease of use: ALU-TECH has an intuitive and easy to use user interface.
OPTIONAL ON DEMAND:
DOWNLOAD THE CATALOGUE
VIDEO
MORE INFORMATION?
VERTICAL CNC WORKING CENTER for COMPOSITE PANELS MAKK Mod. ALU-TECH
Control unit with PC + Software

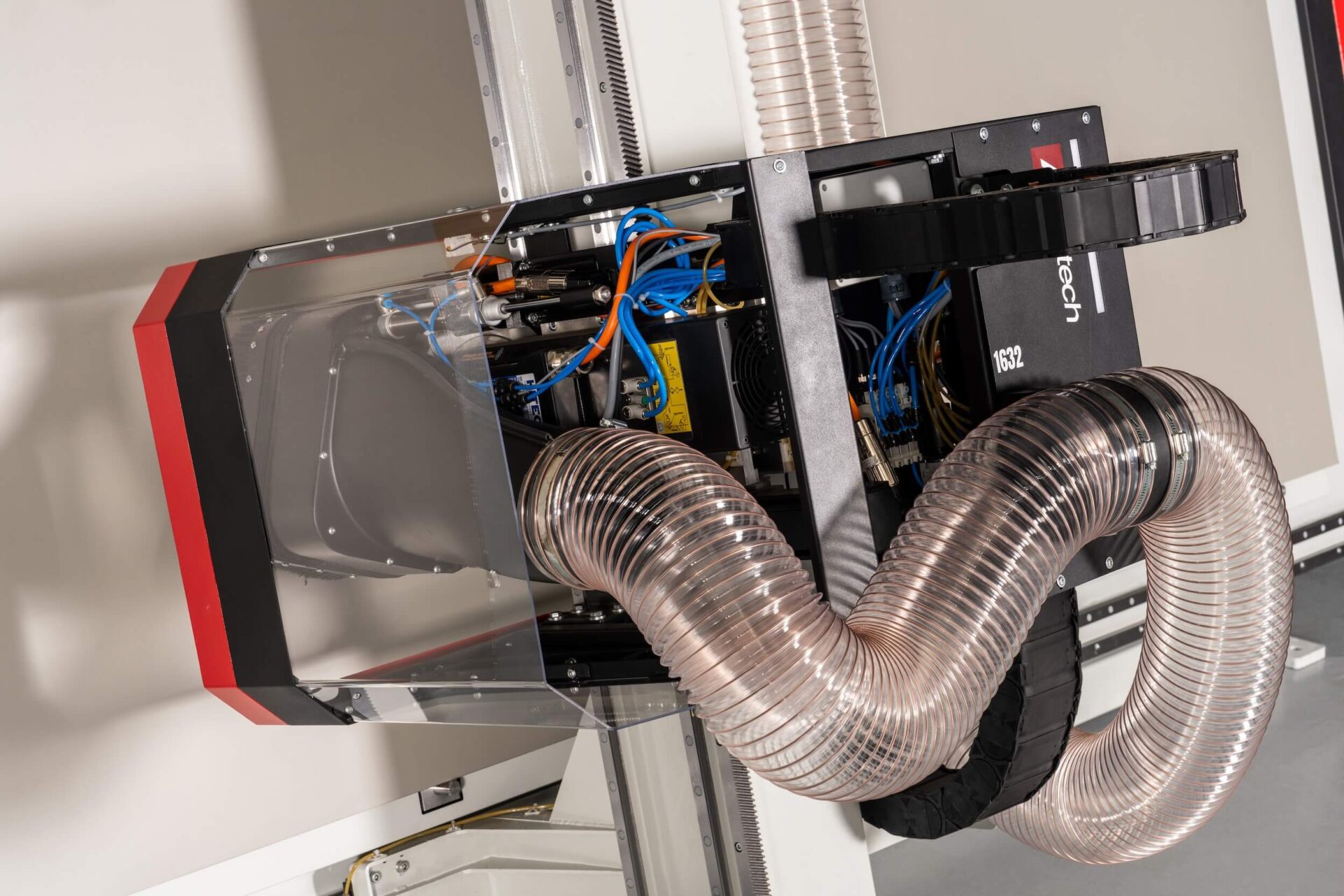

C-axis CNC Vertical Working center MAKK ALUTECH

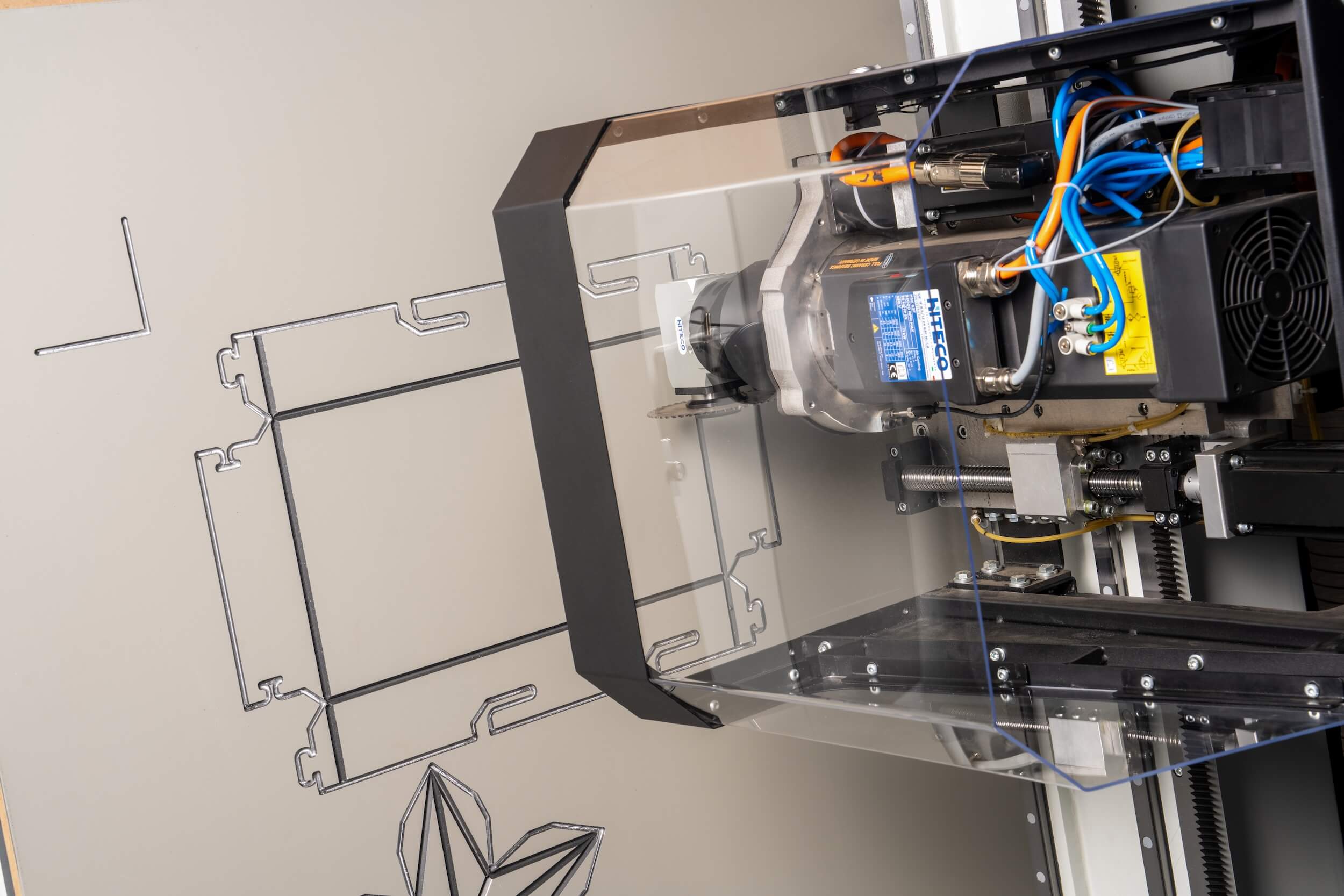

Electr spindle for milling, drilling, cutting, grooving
Automated tool storage
Depression worktop with Vacuum Pump

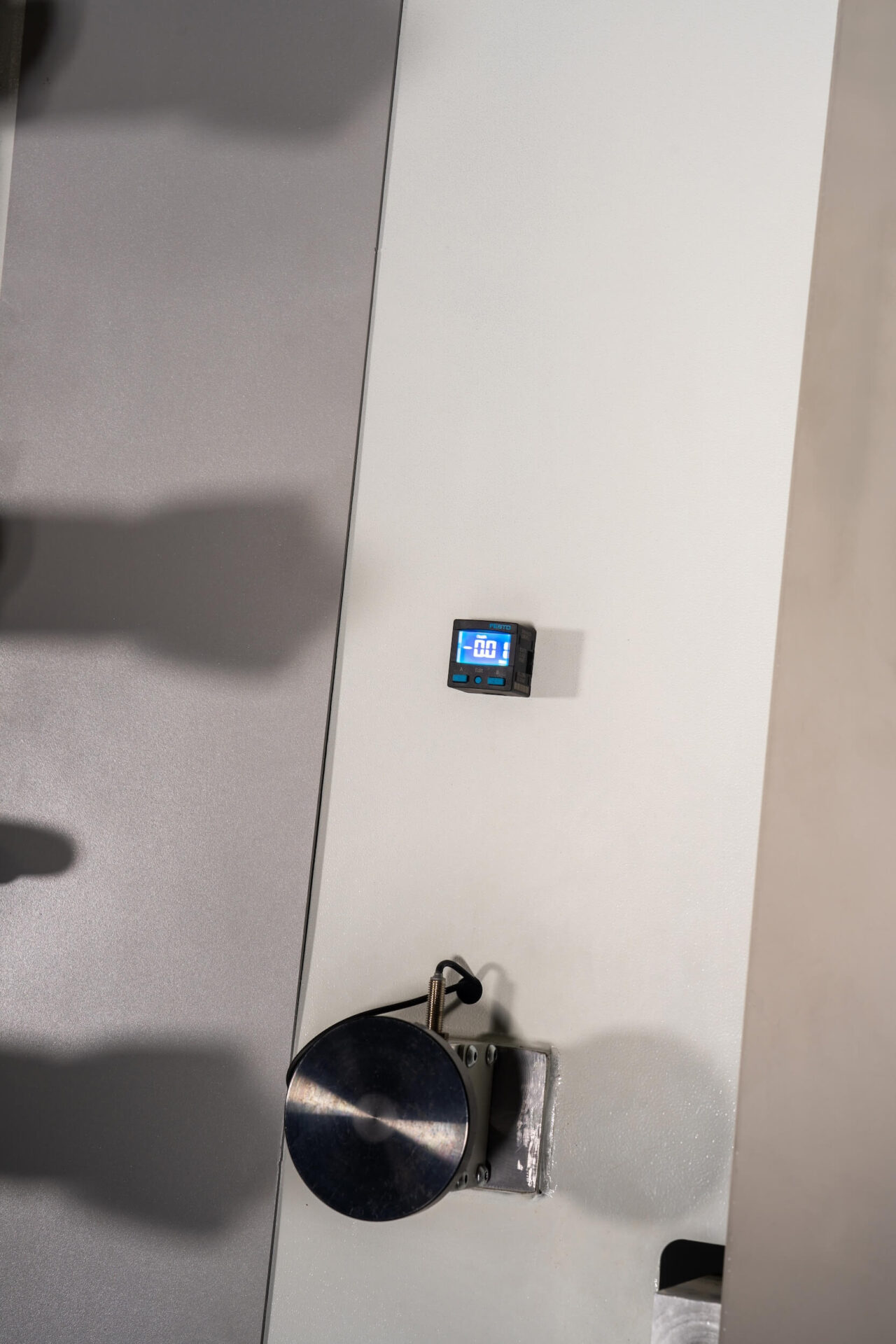

Automatic tool depth adjustment

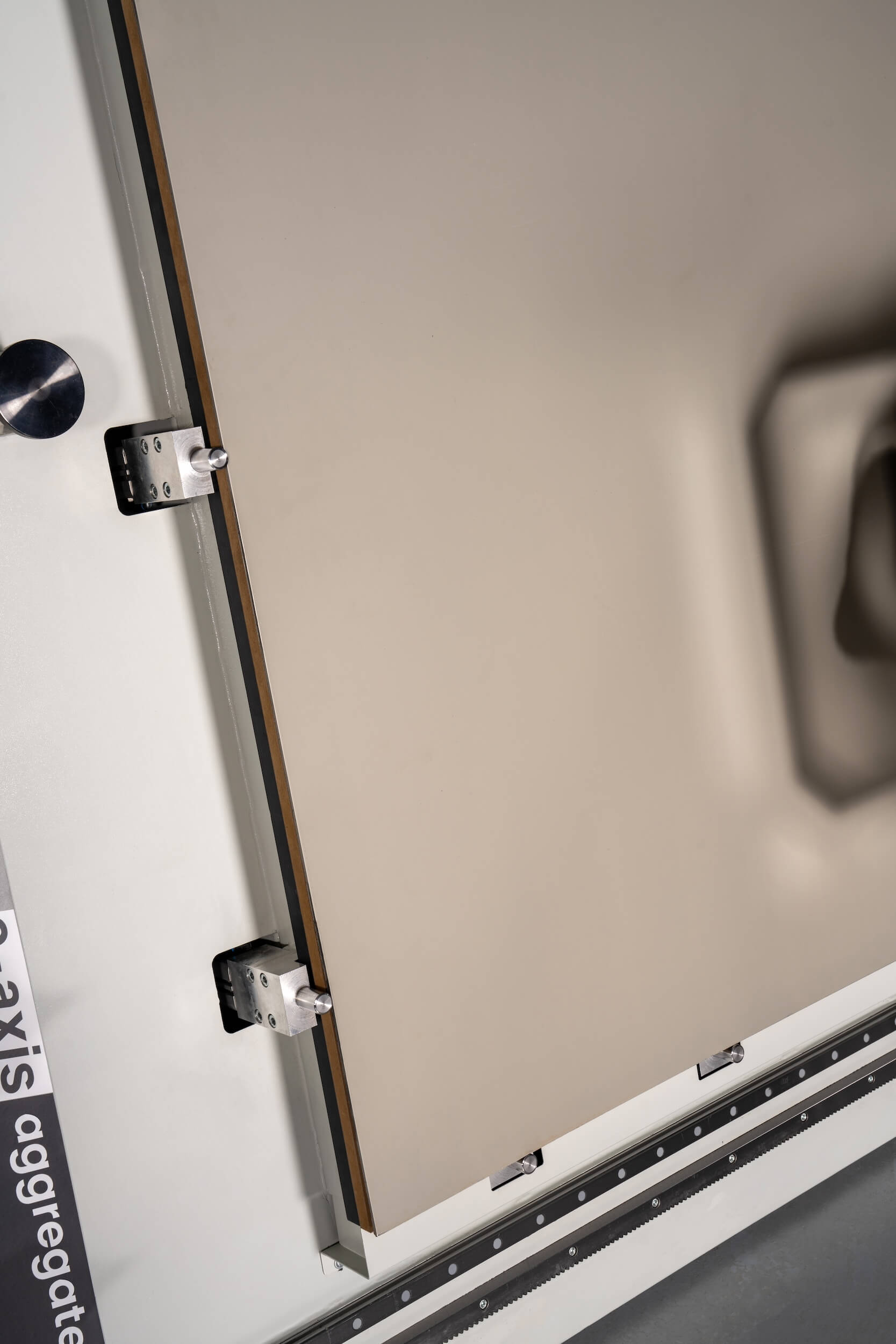

Panel limit locking
Barrier with photoelectric cells
