VERTICAL PANEL SAW ALUCOBOND WALL MACHINE MAKK Mod. CPME-2B – E.C.
Special for Cutting and V-Grooving (V 90°) of composite panels (Alucobond®) ACM.
Patented System to Pass from Cutting to V-Grooving (Milling) in 1 second.
For Cutting and V-Grooving panels mm. 4000×2100.
Automatic movable table.
Machine for cutting and milling Alucobond®-composite panels either in vertical or in horizontal, for any cutting need, with the best quality/price ratio on the market.
For Cut and V-Grooving, either in Vertical or in Horizontal, Panels made of:
– Composite panels ACM (Alucobond®, Etalbond®, Reynebond®, Dibond®, etc..)
– Chipboard
– Ennobled chipboard
– Multilayer
– Massive wood
– MDF
– Plexiglass
– Polycarbonate
– FILS Expanded Metal Sheets
– Plastic materials, etc…
STANDARD EQUIPMENT
- Fully welded frame, with support surface panels, can be moved automatically to avoid contact in horizontal cuts with the circular blade.
- Patented System for Transition from Cutting to Milling in 1 Second.
- Milling/grooving depth adjustment system, with which it is possible to create grooving for composite panels with a thickness of 3-4-5 mm without any further adjustment or measurement.

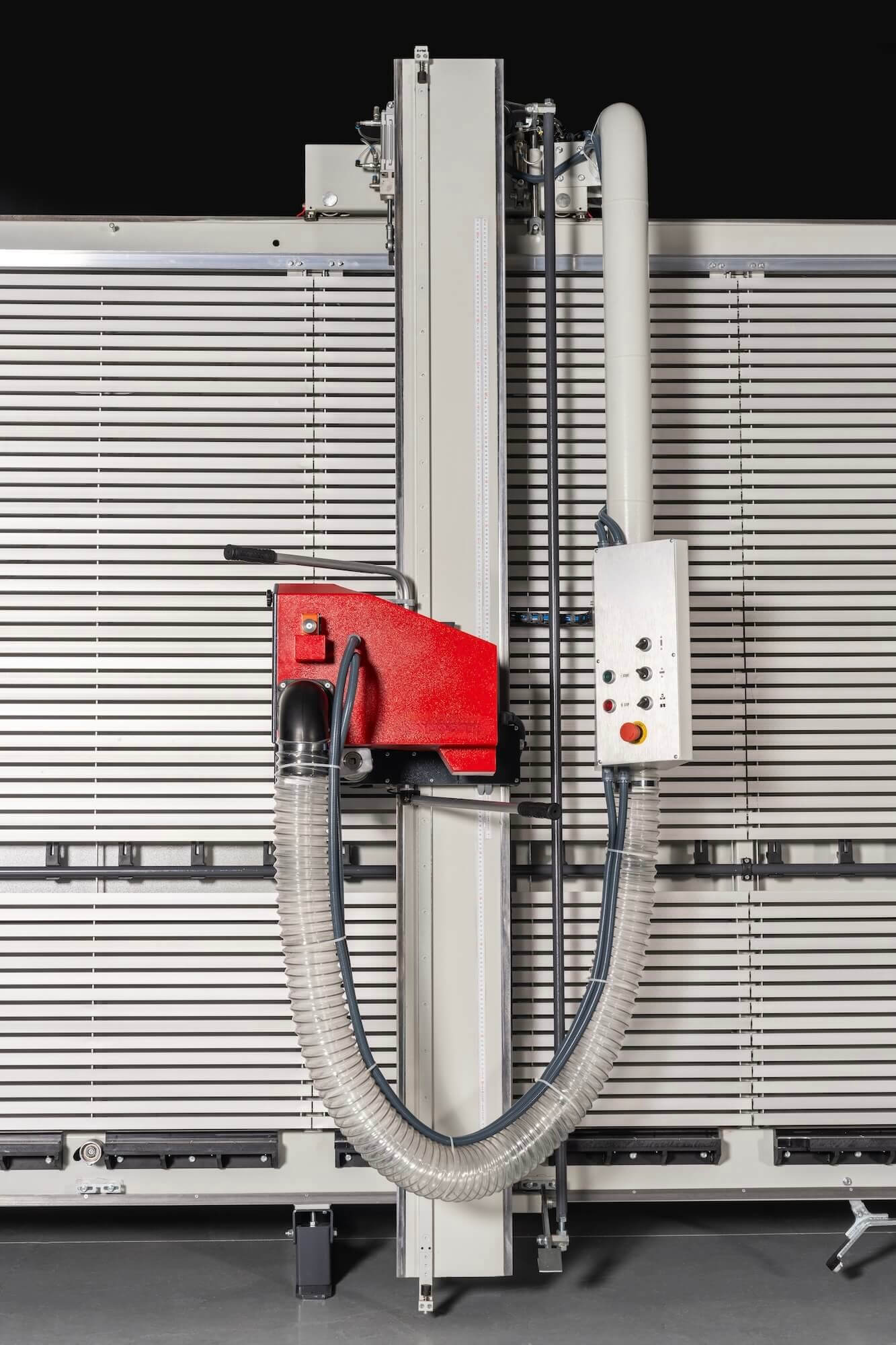

- Manual movement of the upright with blade unit for vertical and horizontal cuts by means of a lever with manual operation.
- Automatic sliding table, with pneumatic operation.
- Tilting device for the support of small pieces to be cut.
- Electric predisposition for simultaneous switching on/off with suction unit.
- Mechanical positioners for horizontal cuts.
- N.2 hinged for vertical cuts.
- Lower supports support panels with metal wheels.
- Safety devices.
- Instruction manual and service keys.
- HM circular blade for composite panels.
- Milling cutter for V 90-shaped milling (HM-cutter).
Technical Data
– Motor power: 4 HP (3 kW)
– Volt 400/50 Hz Three-phase
– Circular blade rotation speed: 4500 rpm
– Cutter rotation speed V-Grooving: 4500 rpm
– Vertical cutting height: 2100 mm (optional mm. 2200)
– Horizontal cutting height: 1950 mm (optional mm. 2050)
– Cutting length: 4000 mm
– Cutting thickness: 24 mm
– Circular blade size: mm. 230x30x3,2 Z=64 HM
– V-Grooving cutter size V-90° mm. 200x18x30 Z=10 HM (interchangeable HM knives)
– Overall dimensions (L x H x L): mm. 5500 x 2800 x 1700
– Total weight: 700 Kg.
OPTIONAL ON REQUEST
VERTICAL PANEL SAWS CATALOG
OTHER INFORMATION?

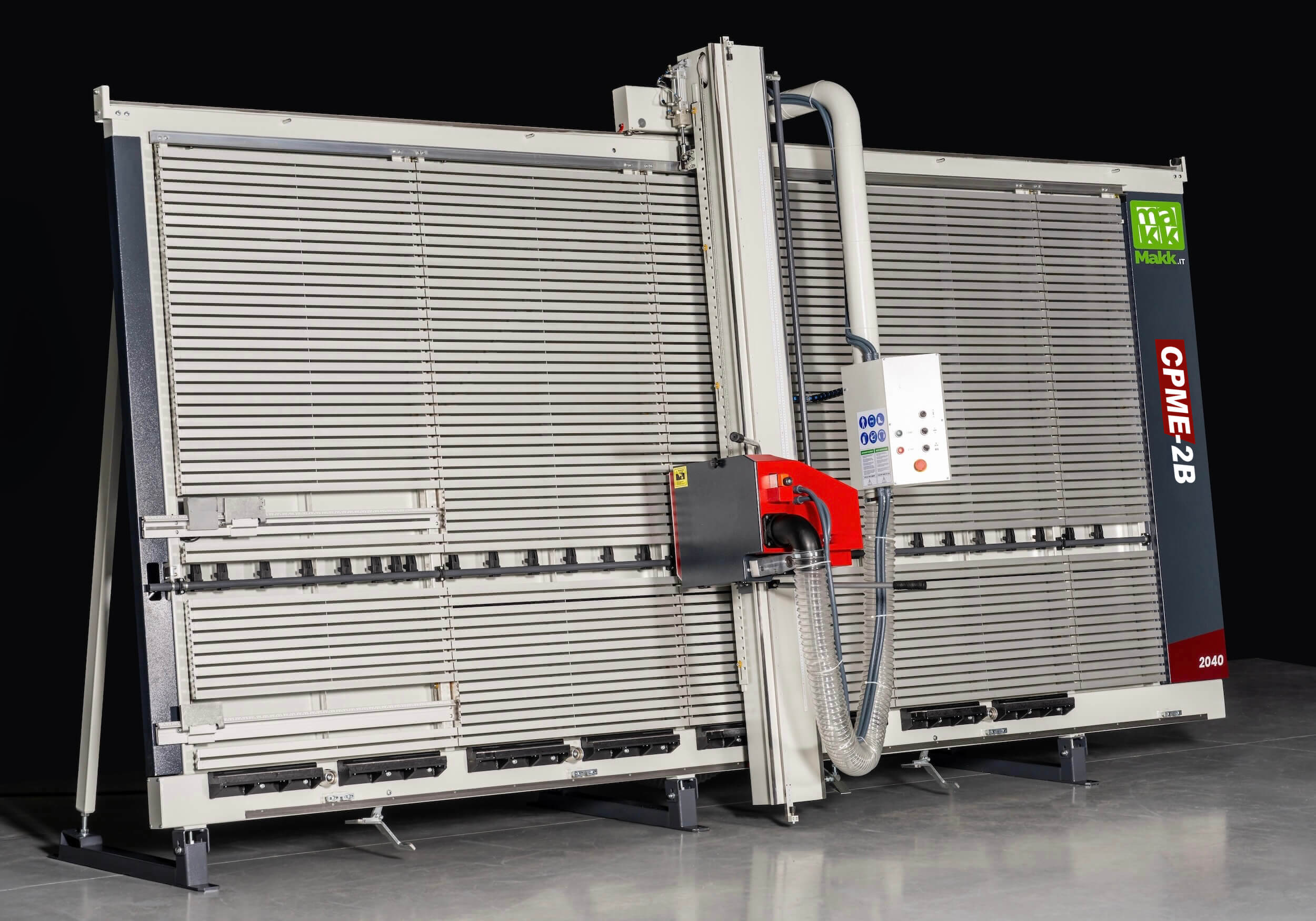

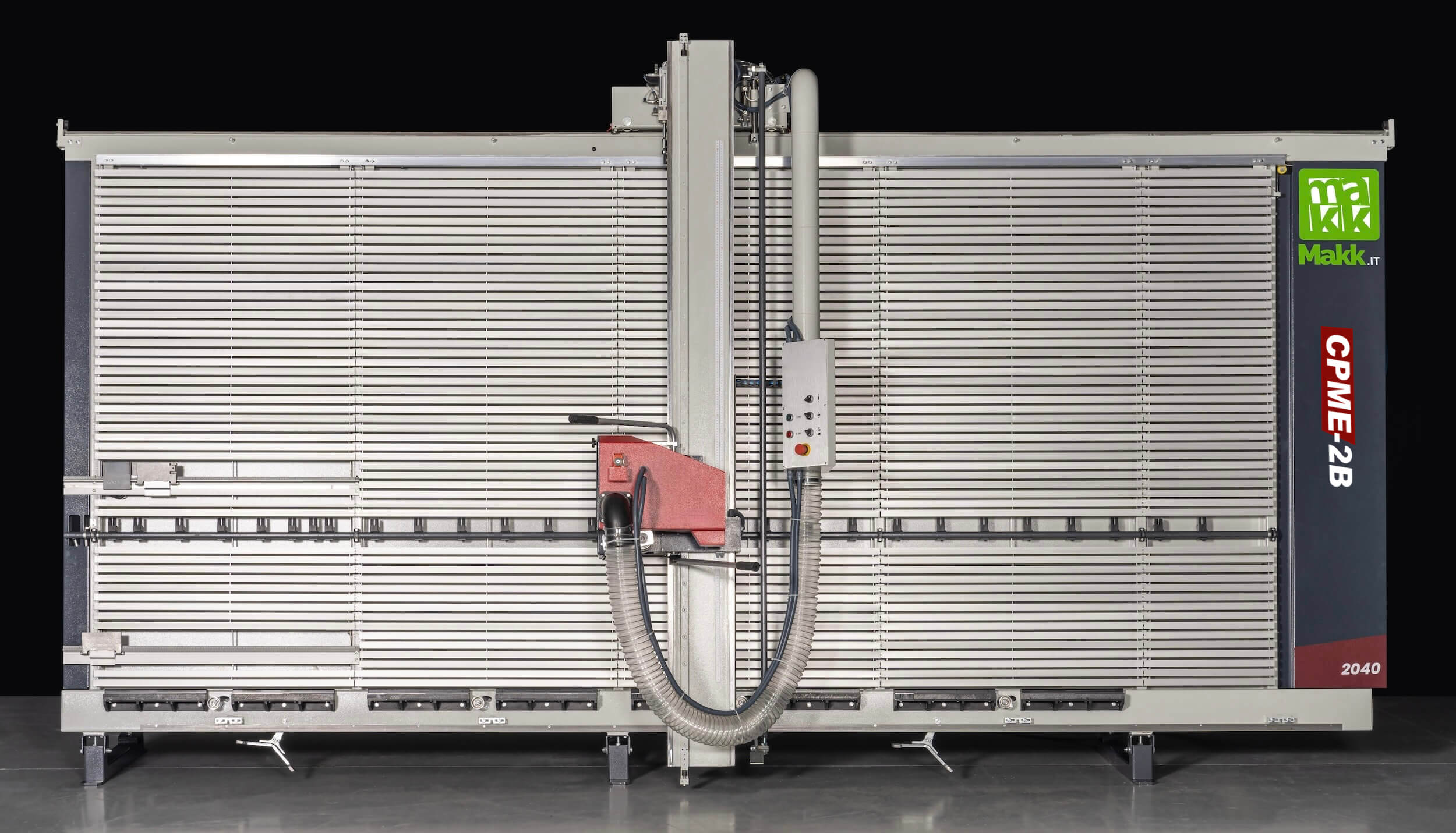

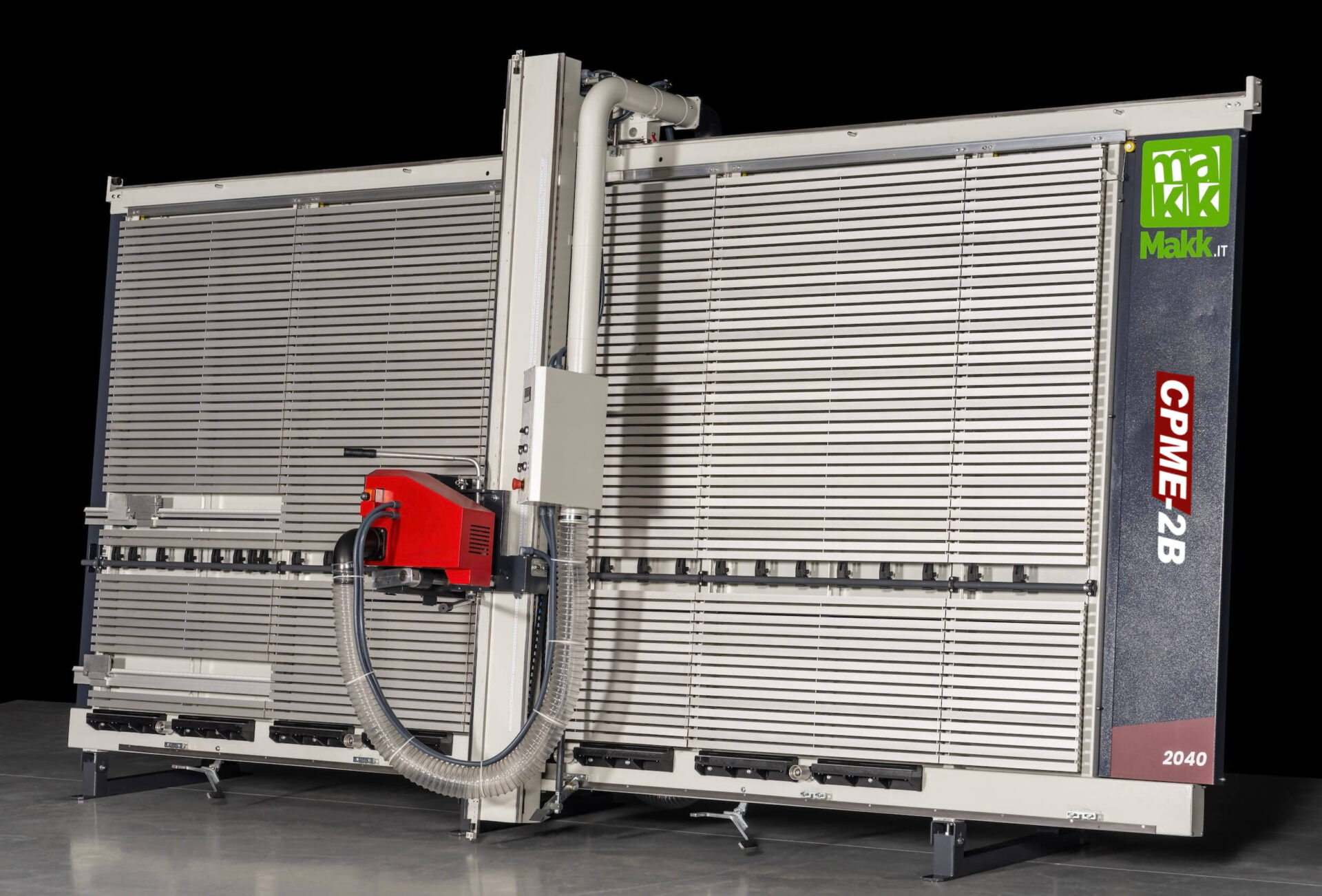

VERTICAL PANEL SAW ALUCOBOND MAKK Mod. CPME-2B

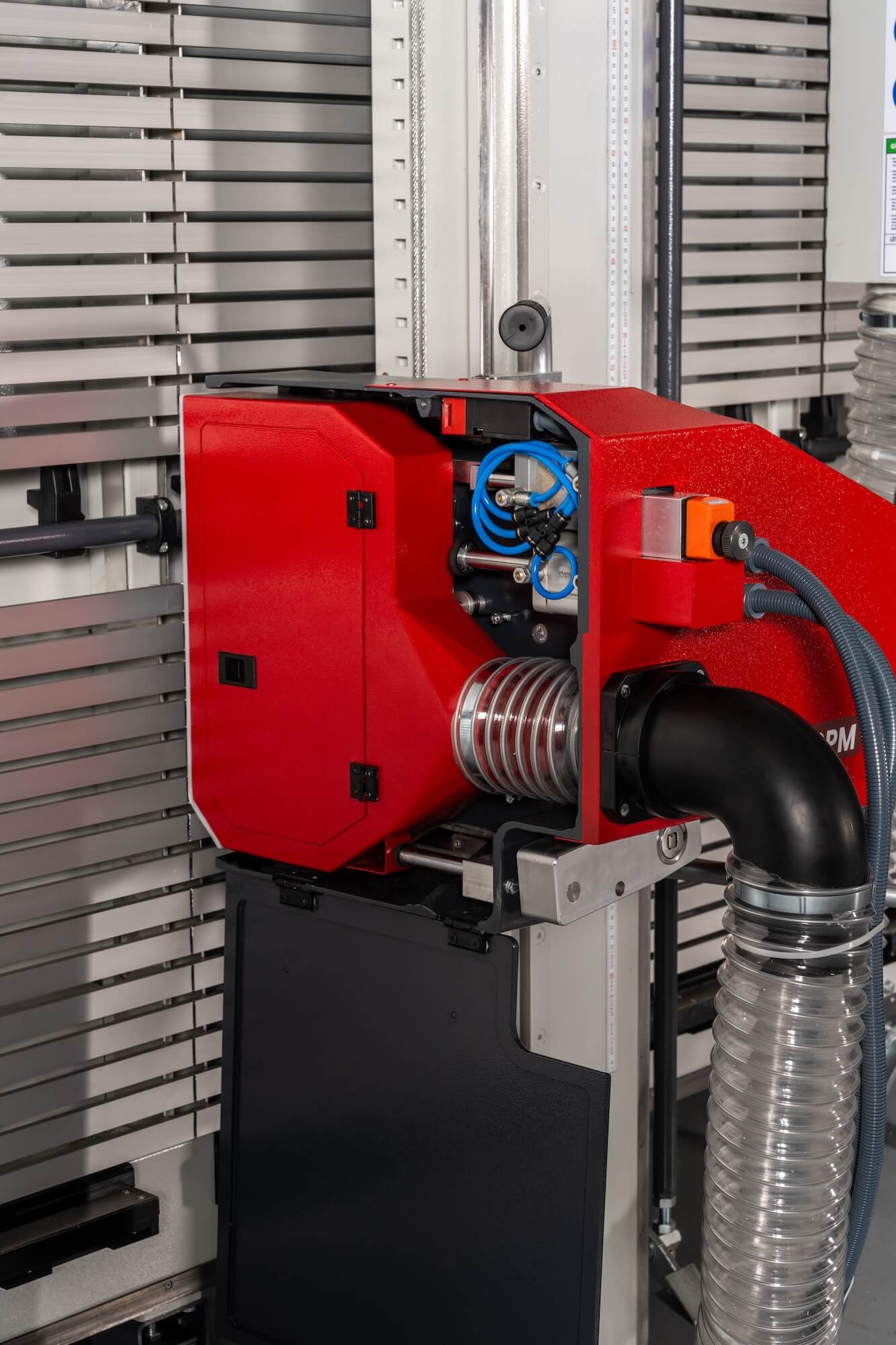

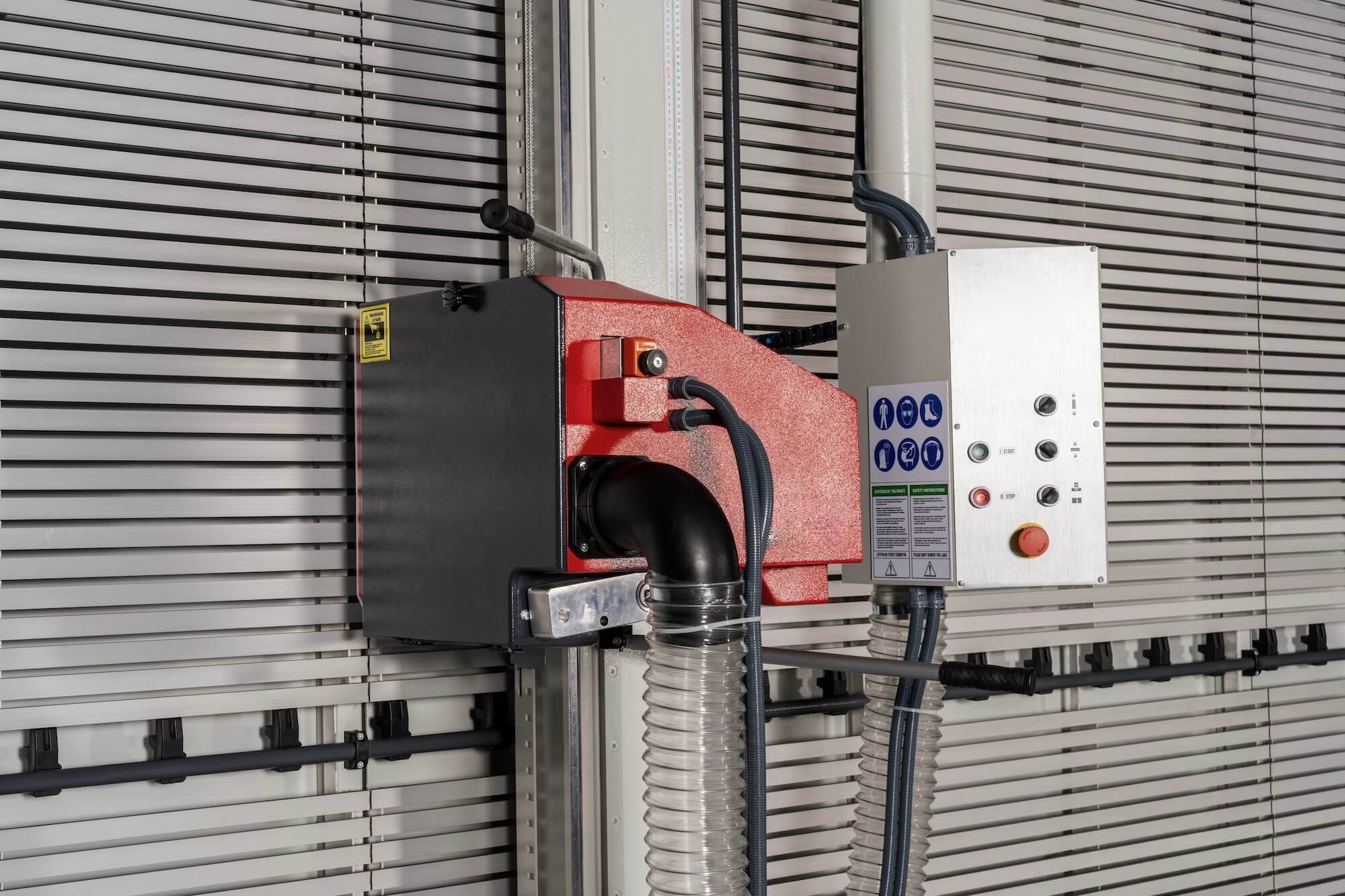

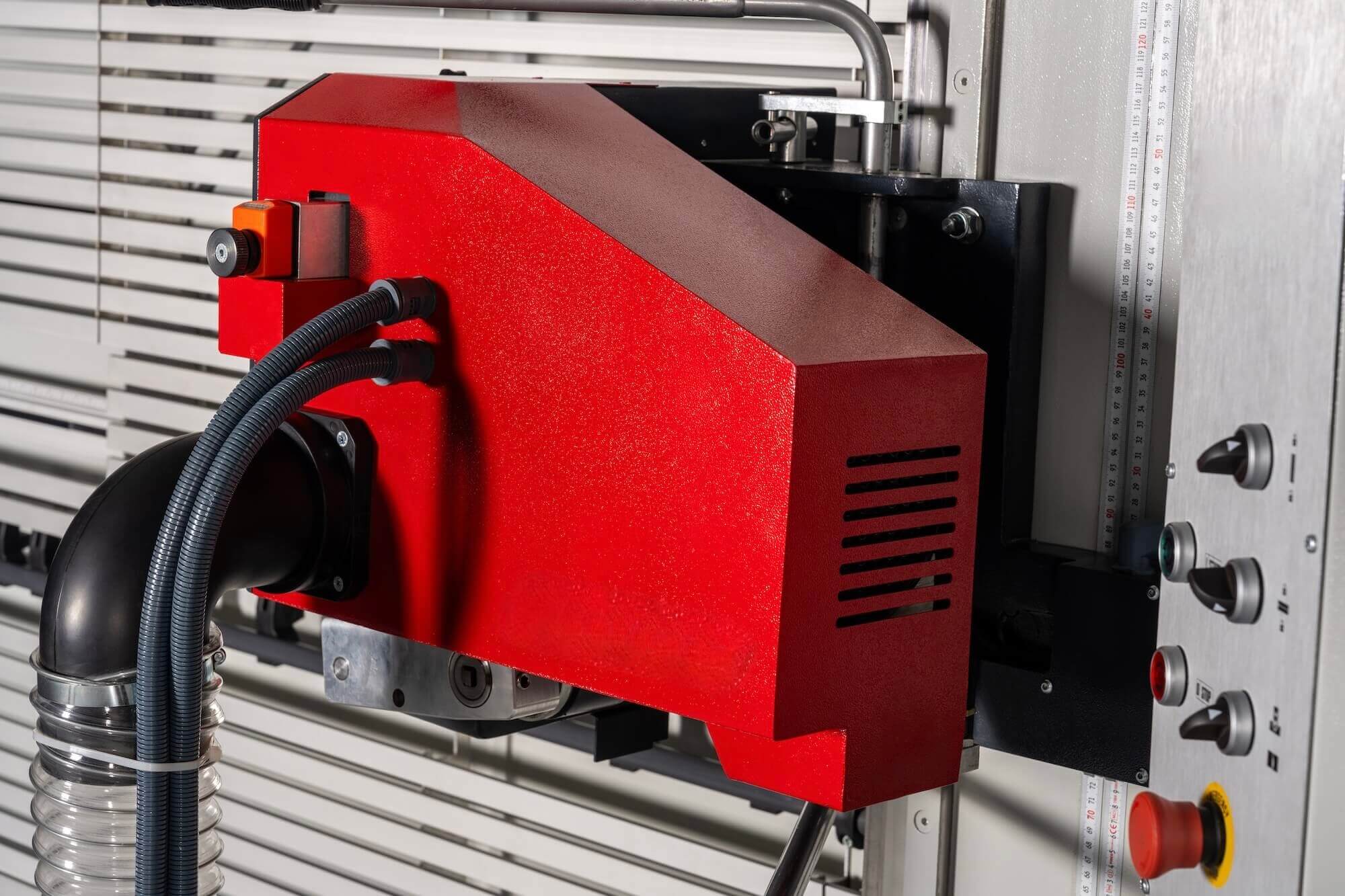

Patented System to Pass from Cutting to V-Grooving (Milling) in 1 second

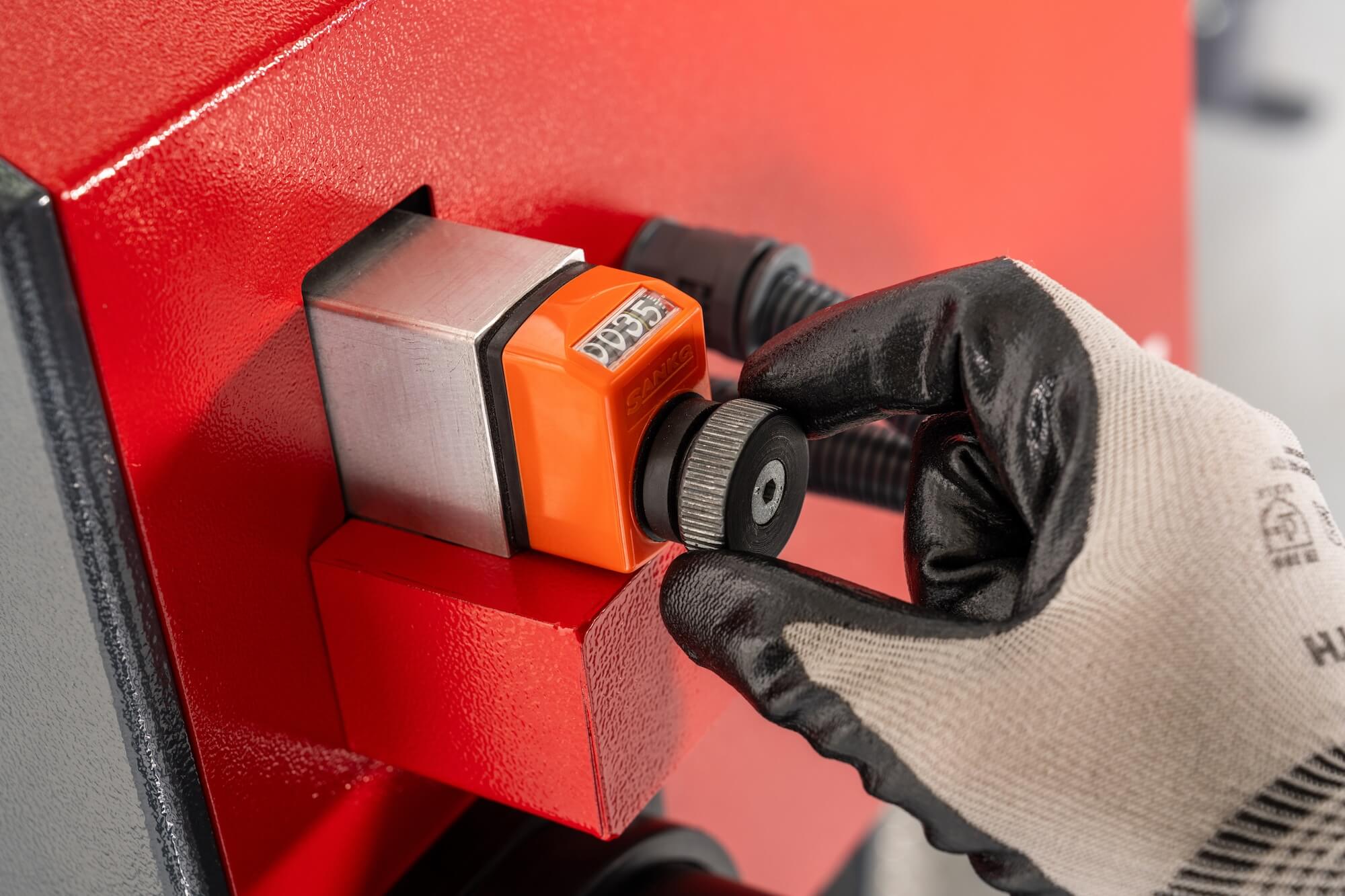

Milling/grooving depth adjustment system, with which it is possible to create grooving for composite panels with a thickness of 3-4-5 mm without any further adjustment or measurement.

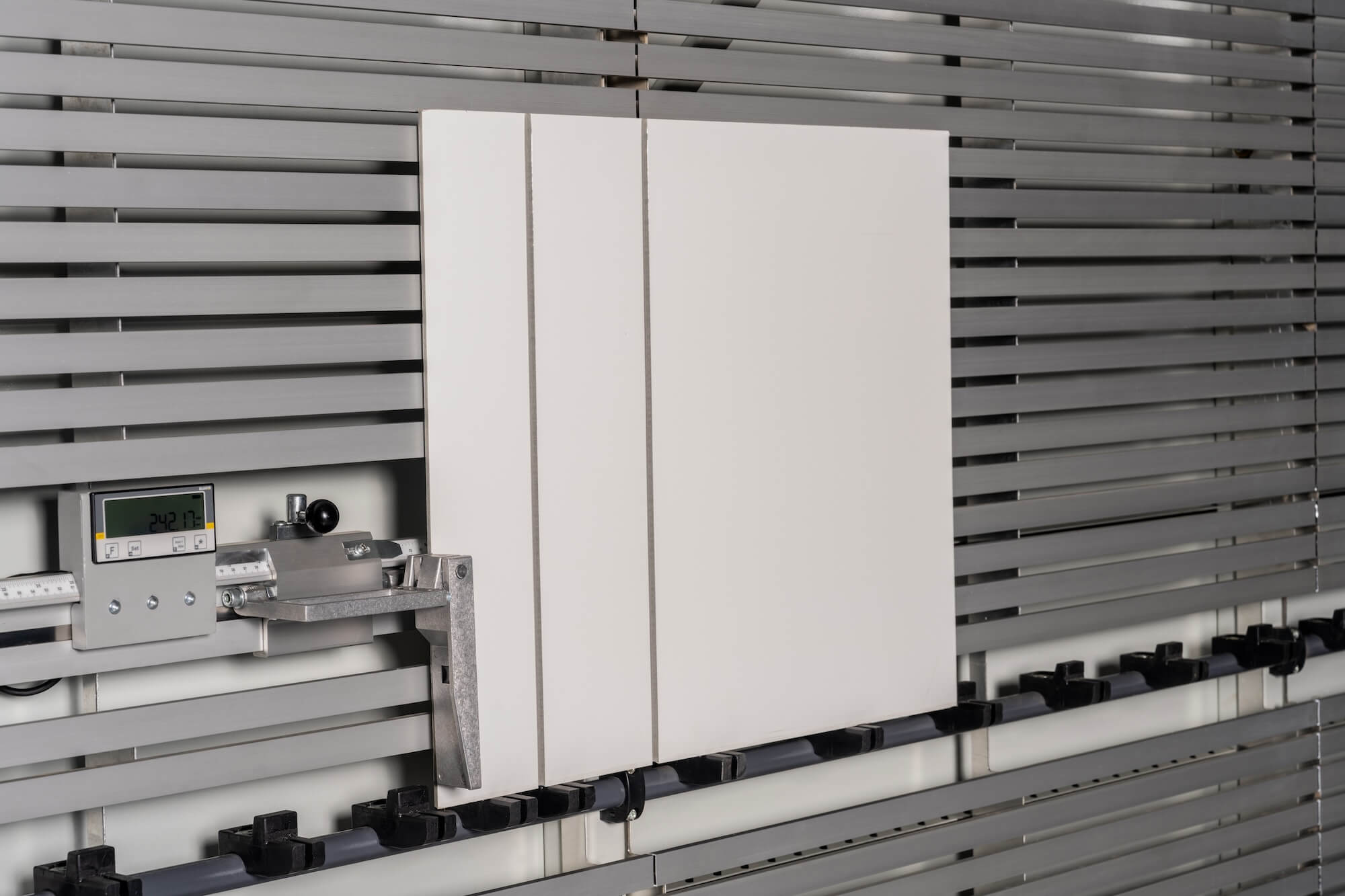

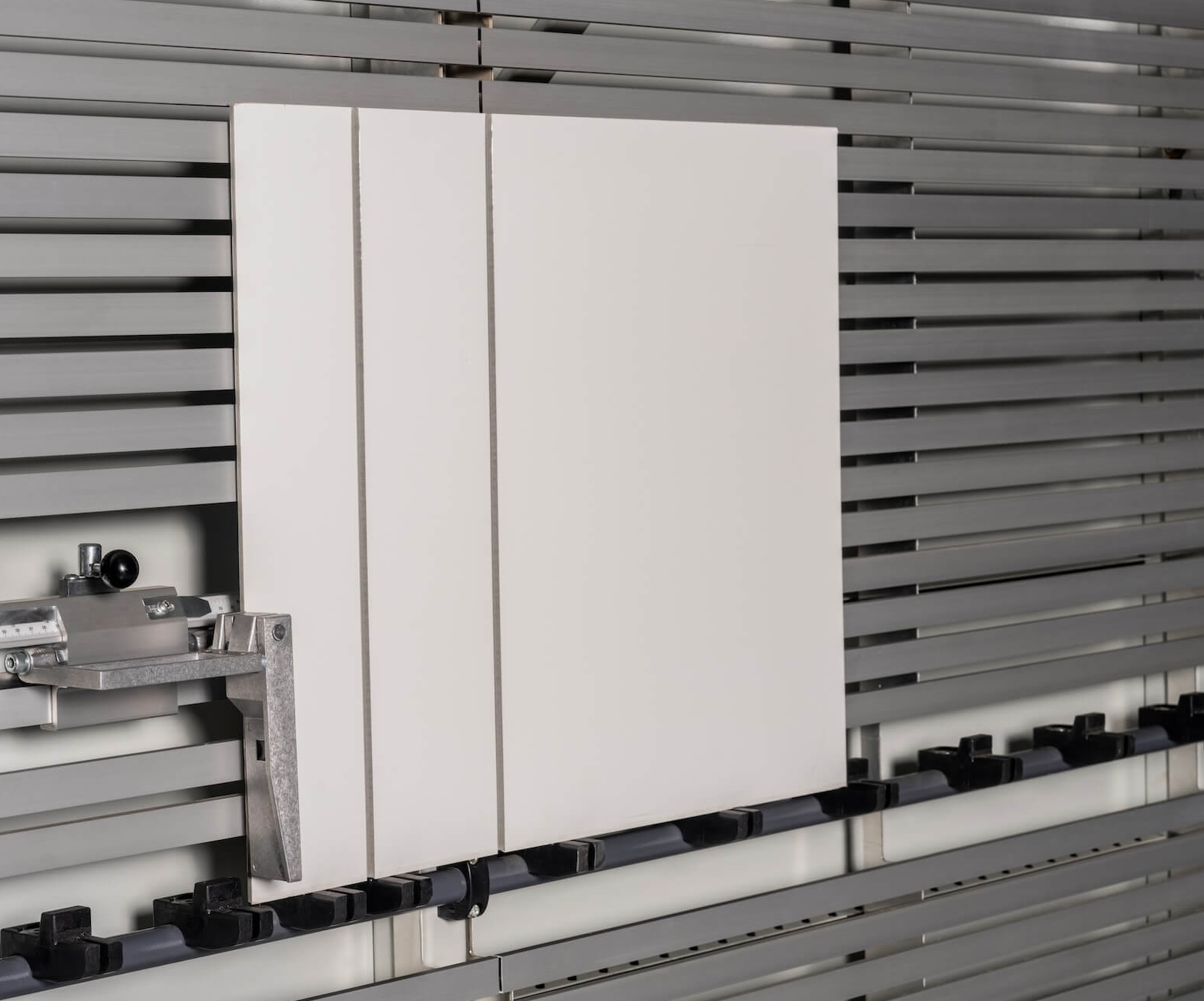

Tilting device for support of the small pieces to be cut and grooving

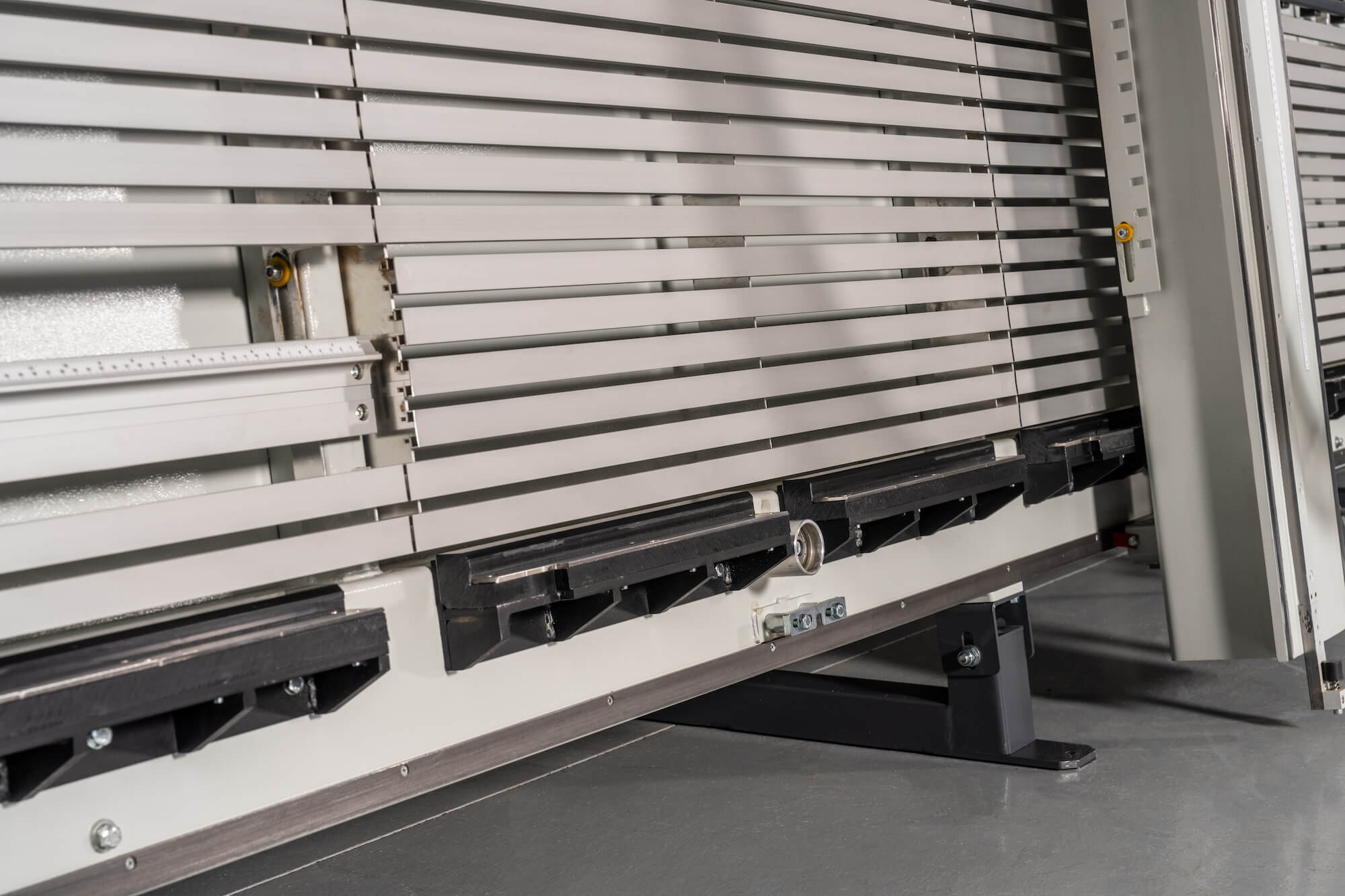

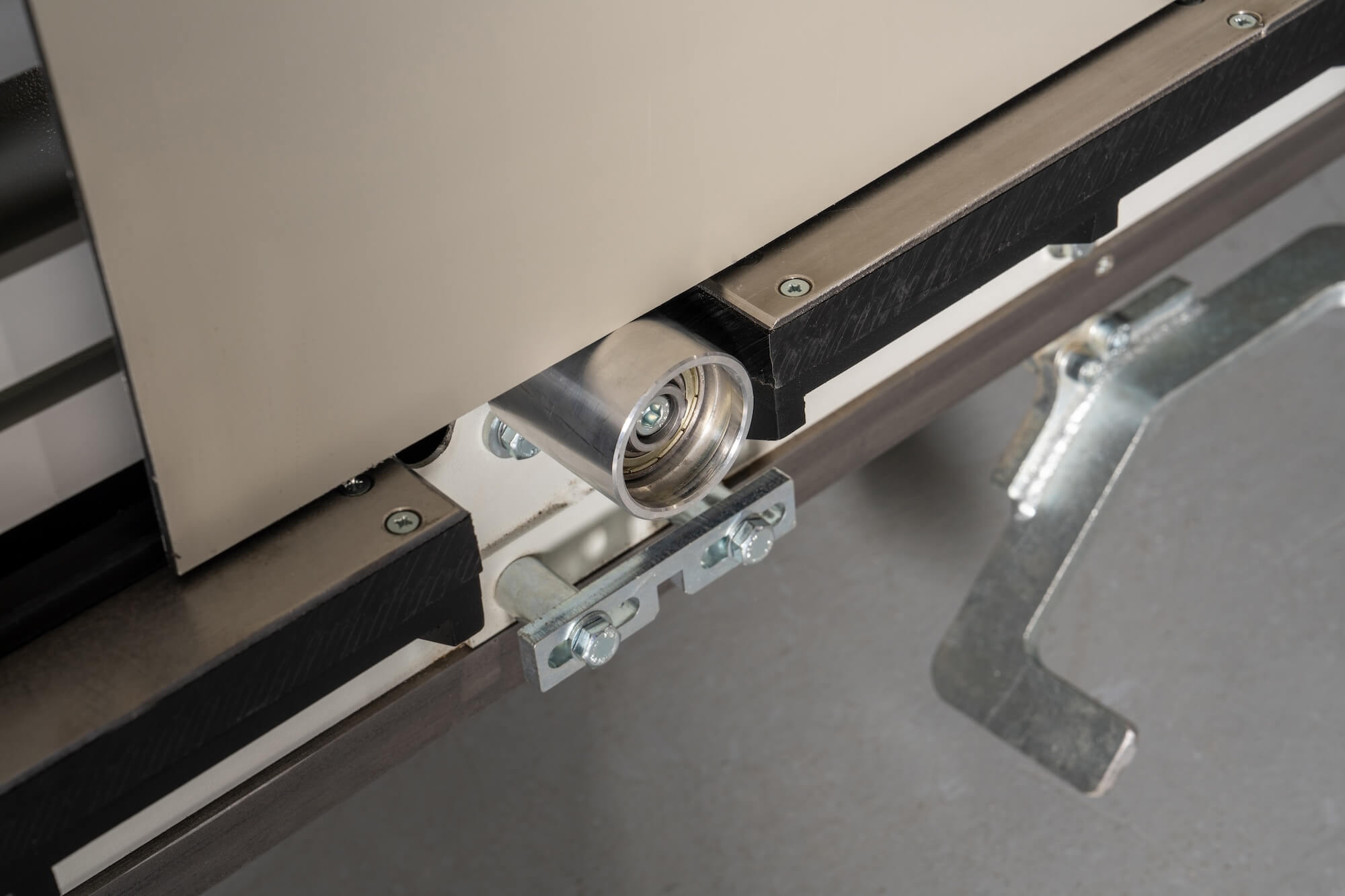

Lower panel supports with metal wheels

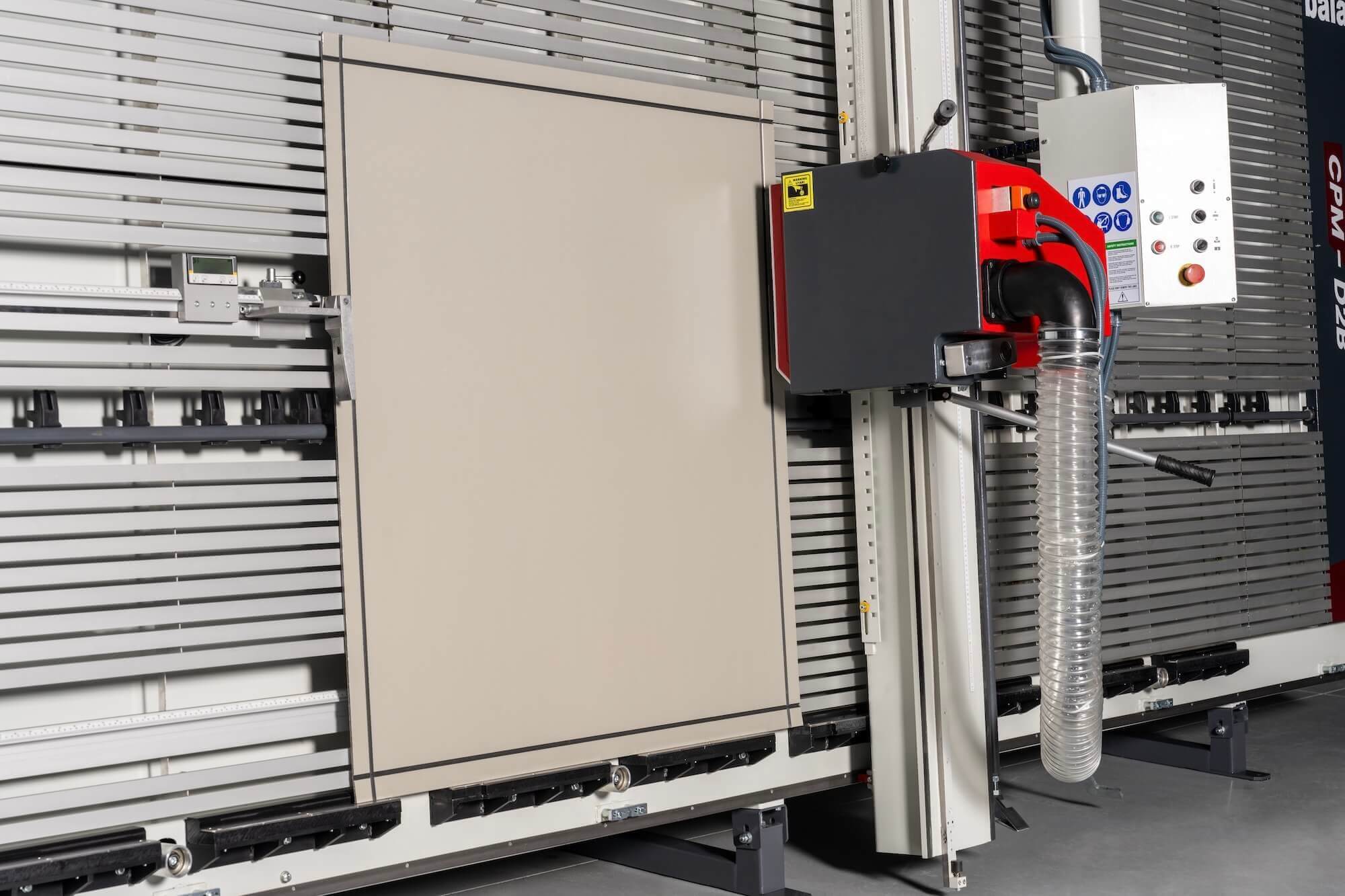

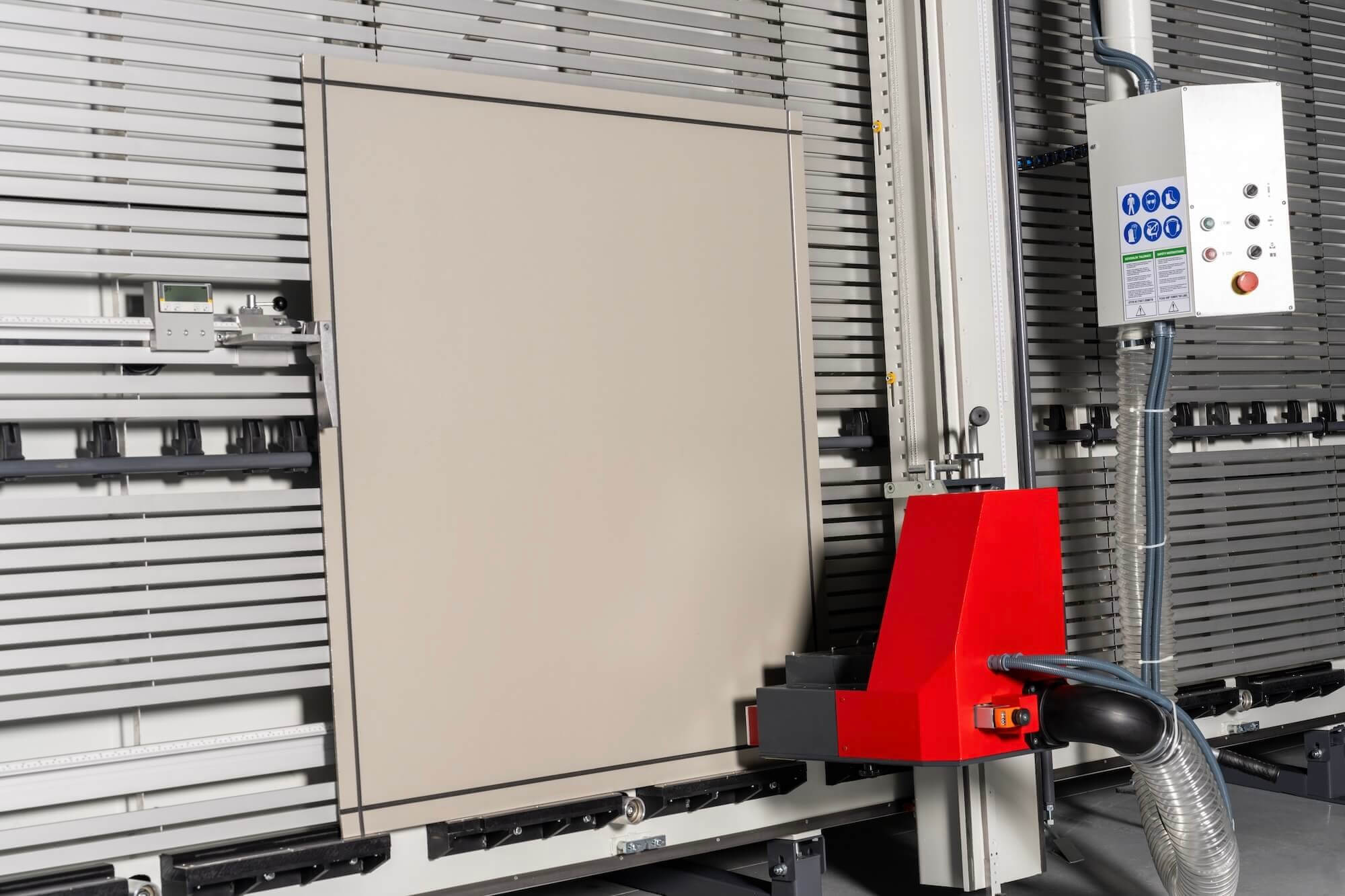

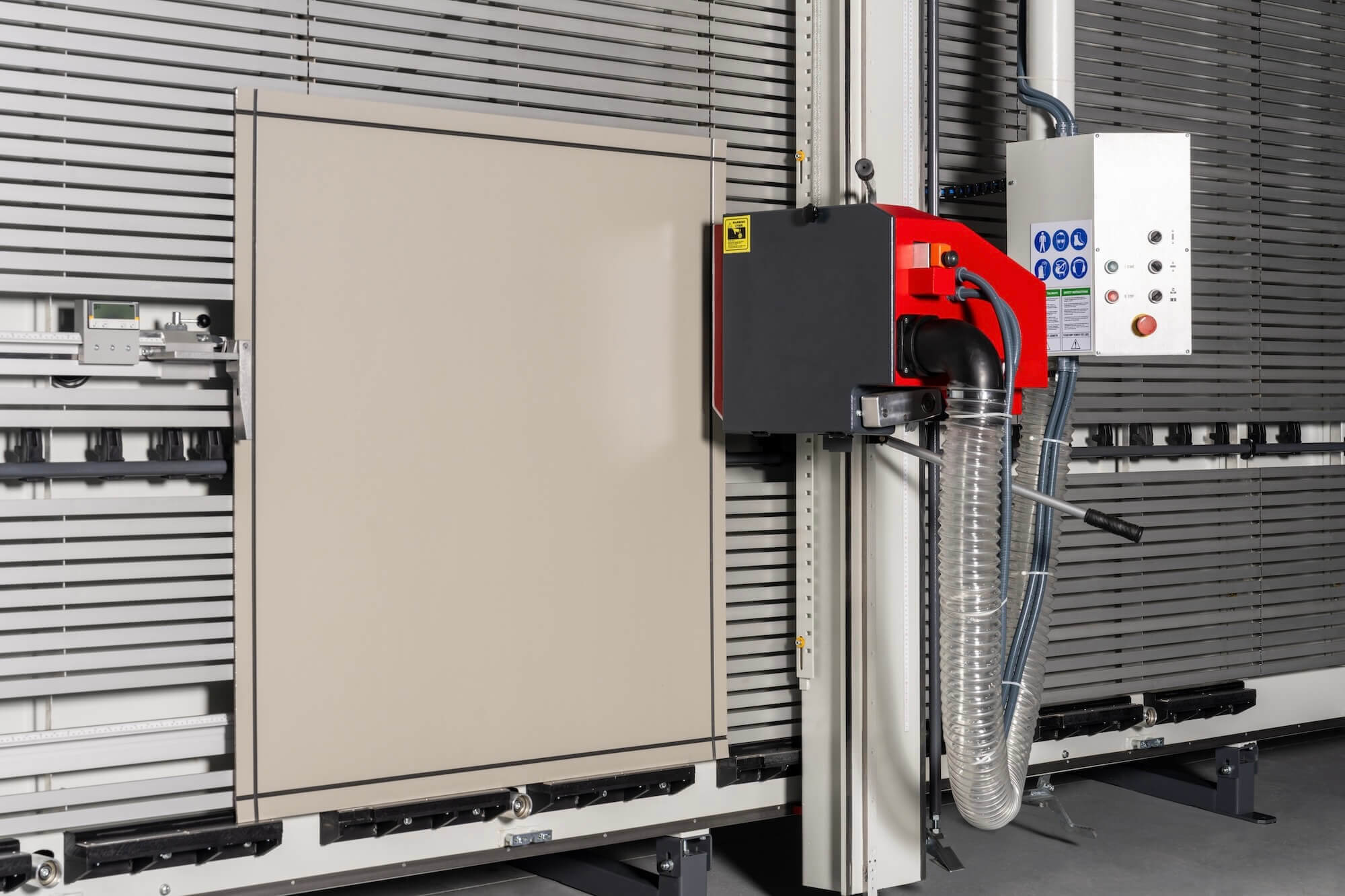

Special for Cutting and V-Grooving (V 90°) of composite panels (Alucobond®)

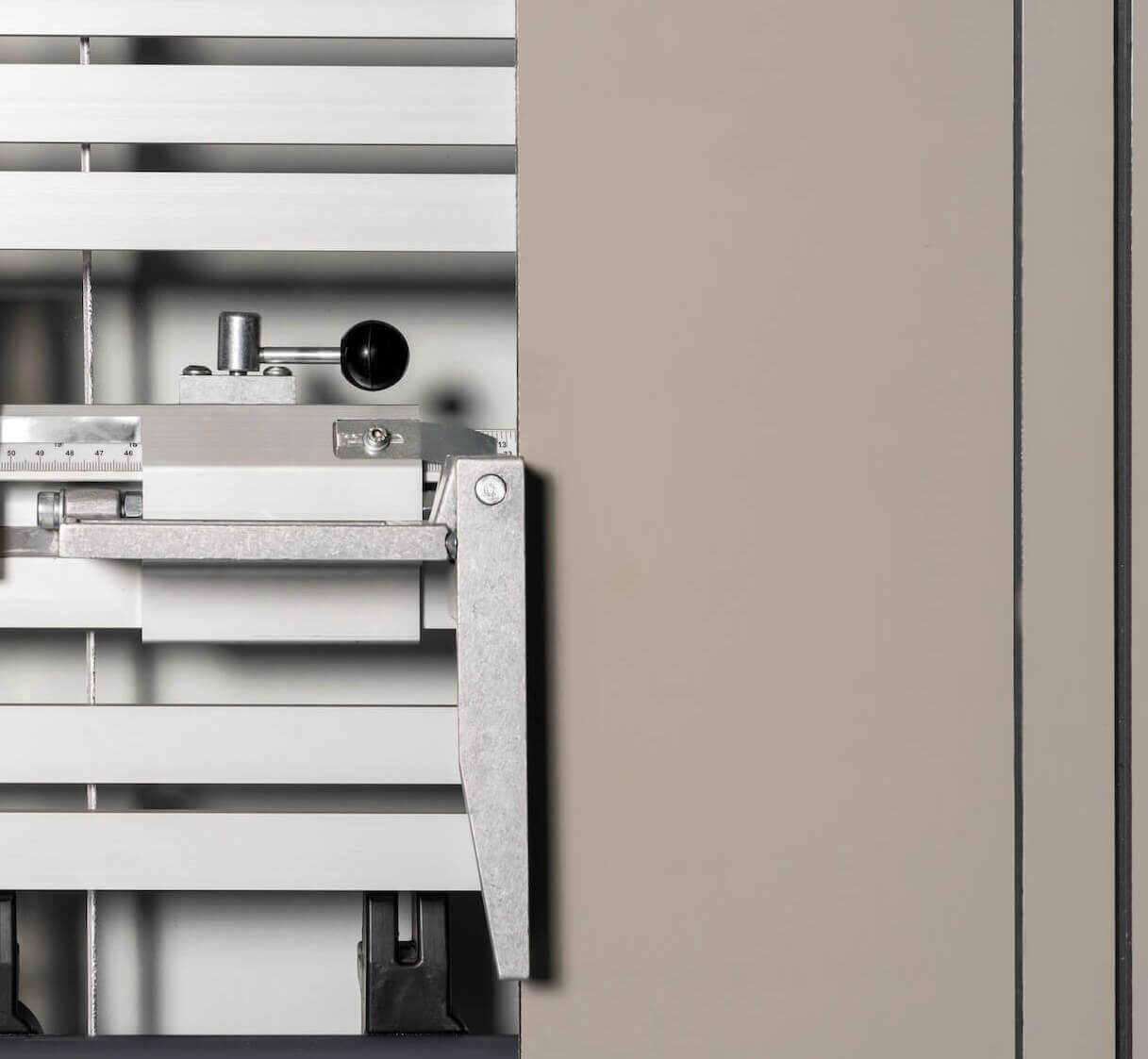

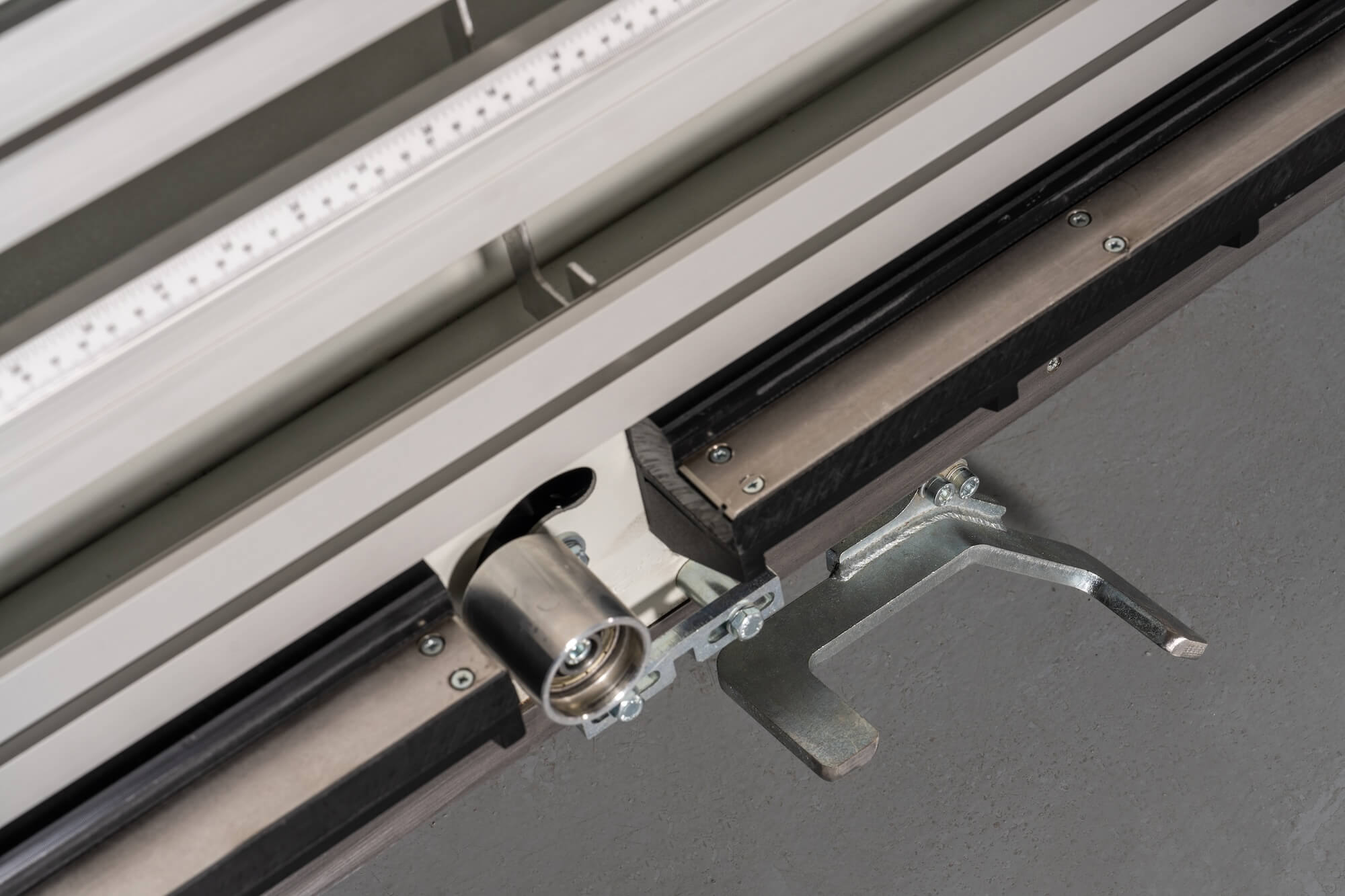

Stop on millimeters guide for panel cutting and grooving measurements
