ALUCOBOND AUTOMATIC VERTICAL PANEL SAW MAKK Mod. CPM-AV – CE.
Special for Milling, V-Grooving, V-Channels at 90°, 135° on Alucobond® panels, Composite panels.
Patented System for Transition from Cutting to Milling in 1 Second.
Motorized movement group for Cutting and Milling from the control panel.
Automatic movable table. Panel cutting mm. 4000×2000.
Digital display for vertical and horizontal cuts.
Machine for the cutting and milling of composite panels type Alucobond, both vertically and horizontally, for every need of cutting, with the best value for money on the market.
For Cutting and Milling V or U Channels of Panels both Vertical and Horizontal in:
– Sandwich composite panels (Alucobond, Etalbond, Reynebond, Dibond, etc.)
– Chipboard
– Chipboard Coated with wood
– Multilayers
– Solid wood
– MDF
– Plexiglas
– Polycarbonate
– Plastics, etc…
STANDARD EQUIPMENT…
- Fully welded frame, with support surface panels with PVC profile strips, can be moved automatically to avoid contact in horizontal cuts with the circular blade; or with MDF panel support surface (as shown in the images on this page).
- Patented System for Transition from Cutting to Milling in 1 Second.
- Motorized movement group for Vertical and Horizontal Cutting and Milling, controlled by a control panel.
- Digital displays for the perfect adjustment of cuts in Vertical and Horizontal.
- Automatic sliding table, with pneumatic operation.
- Tilting device for the support of small pieces to be cut.
- Pneumatic clamping on the upright and blade assembly for horizontal and vertical cuts and/or milling, via selector on control panel.
- Electric predisposition for simultaneous switching on/off with suction unit.
- Mechanical positioners for horizontal cuts.
- No. 2 doors for vertical cuts.
- Lower supports support panels with metal wheels.
- Safety devices.
- Instruction manual and service keys.
- HM circular blade for composite panels.
- Milling cutter “V” 90 in HM.
Technical Features…
– Engine power: 4 HP (3 kW)
– Volt 400/50 Hz three-phase
– Circular blade rotation speed: 4500 revolutions/min
– Motor rotation: 2880 revolutions/min
– Vertical cutting height: 2000 mm
– Cutting length: 4000 mm
– Cutting thickness: 24 mm
– Circular blade: mm. 230x30x3,2 Z=64 HM
– V-Grooving cutter “V” 90 mm. 200x18x30 Z=10 HM (interchangeable HM knives)
– Overall dimensions (L x H x L): mm. 5500 x 2800 x 1700
– Total weight: 800 Kg.
OPTIONAL ON REQUEST
VERTICAL PANEL SAWS CATALOG
OTHER INFORMATION?
AUTOMATIC VERTICAL PANEL SAW MAKK Mod. CPM-AV

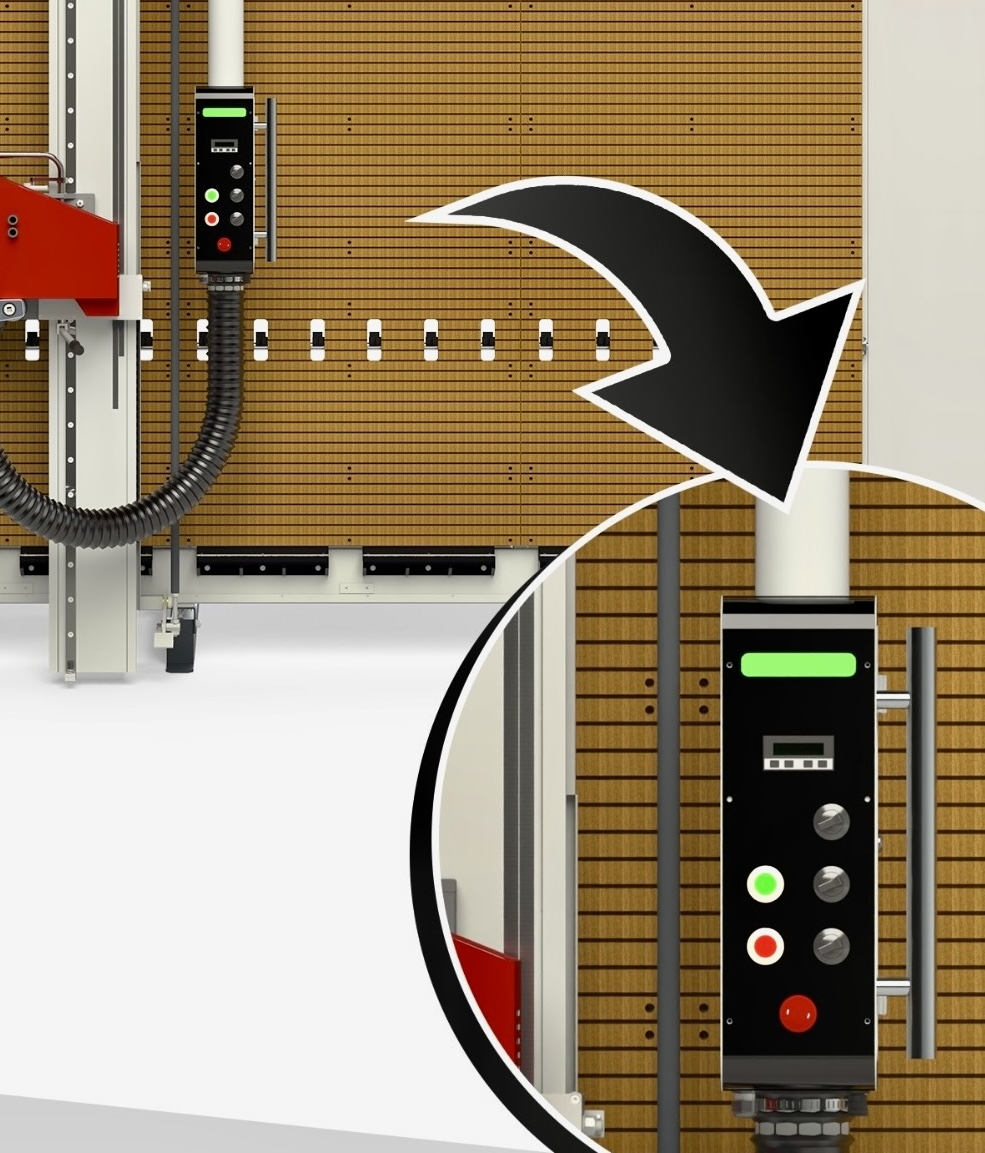

Control panel with digital display for cutting and grooving measurements
Digital visualizer for the perfect adjustment of cuts and grooving in Vertical and horizontal
Circular saw blade (Cutting) and V-Grooving (V 90° cutter)
TRK Suction Device, composed by hood on the right side of the machine for the whole height, with back suction mouth diam.120 mm, to optimize the suction system of the machine
Tilting device for support of small pieces to be cut and grooving
Lower panel supports with metal wheels
