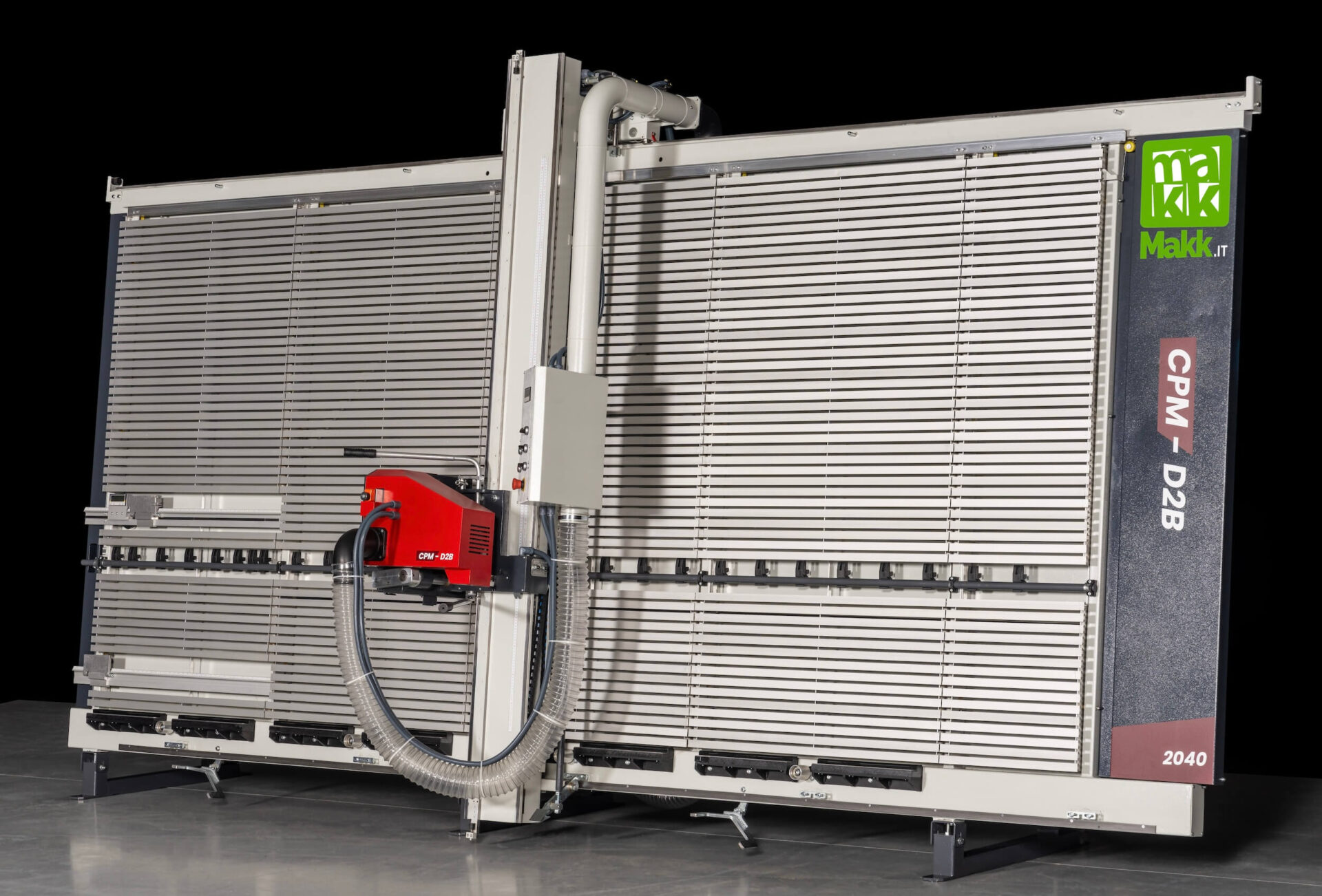

VERTICAL PANEL SAW FOR ALUCOBOND® MAKK Mod. CPM-D2B, FOR CUTTING AND GROOVING ACM COMPOSITES PANELS

ALUCOBOND VERTICAL PANEL SAW MAKK Mod. CPM-D2B – As per E.C. rules
Special for Milling, V-Grooving, V-Channels at 90°, 135° on Alucobond® Panels, ACM Composite Panels, etc.
Patented System for Transition from Cutting to Milling in 1 Second.
Automatic movable table. Cutting Milling Panels mm. 4000×2100.

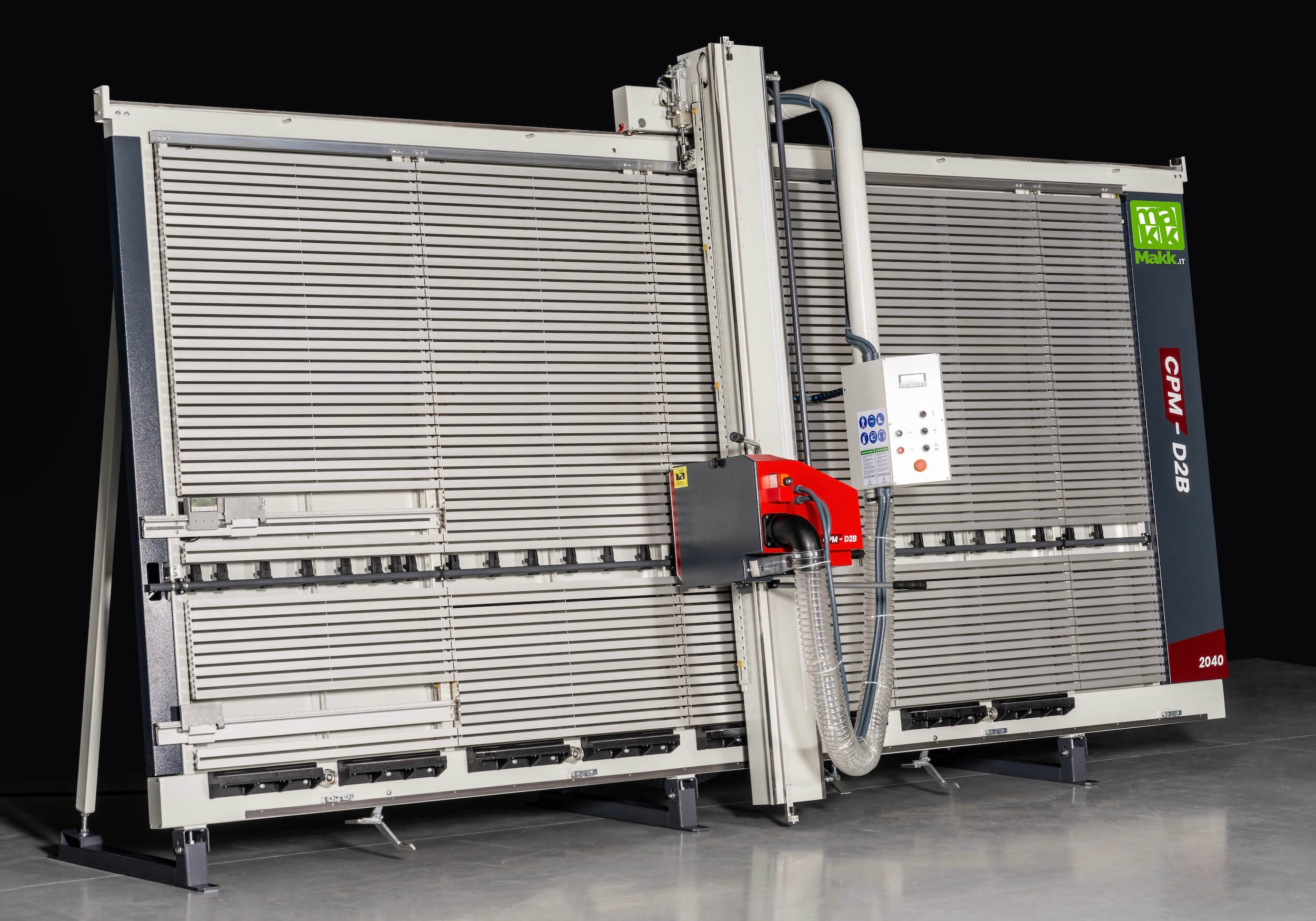

Machine for cutting panels both vertically and horizontally, for every cutting need.

For Vertical and Horizontal V Cutting and Milling of Panels in:
– Sandwich composite panels (ACM, Alucobond®, Etalbond®, Reynobond®, Dibond®, etc.)
– Chipboard
– Chipboard Coated with wood
– Multilayers
– Solid wood
– MDF
– Plexiglas
– Polycarbonate
– FILS Expanded Metal Sheets
– Plastics, etc…

Standard Equipment…

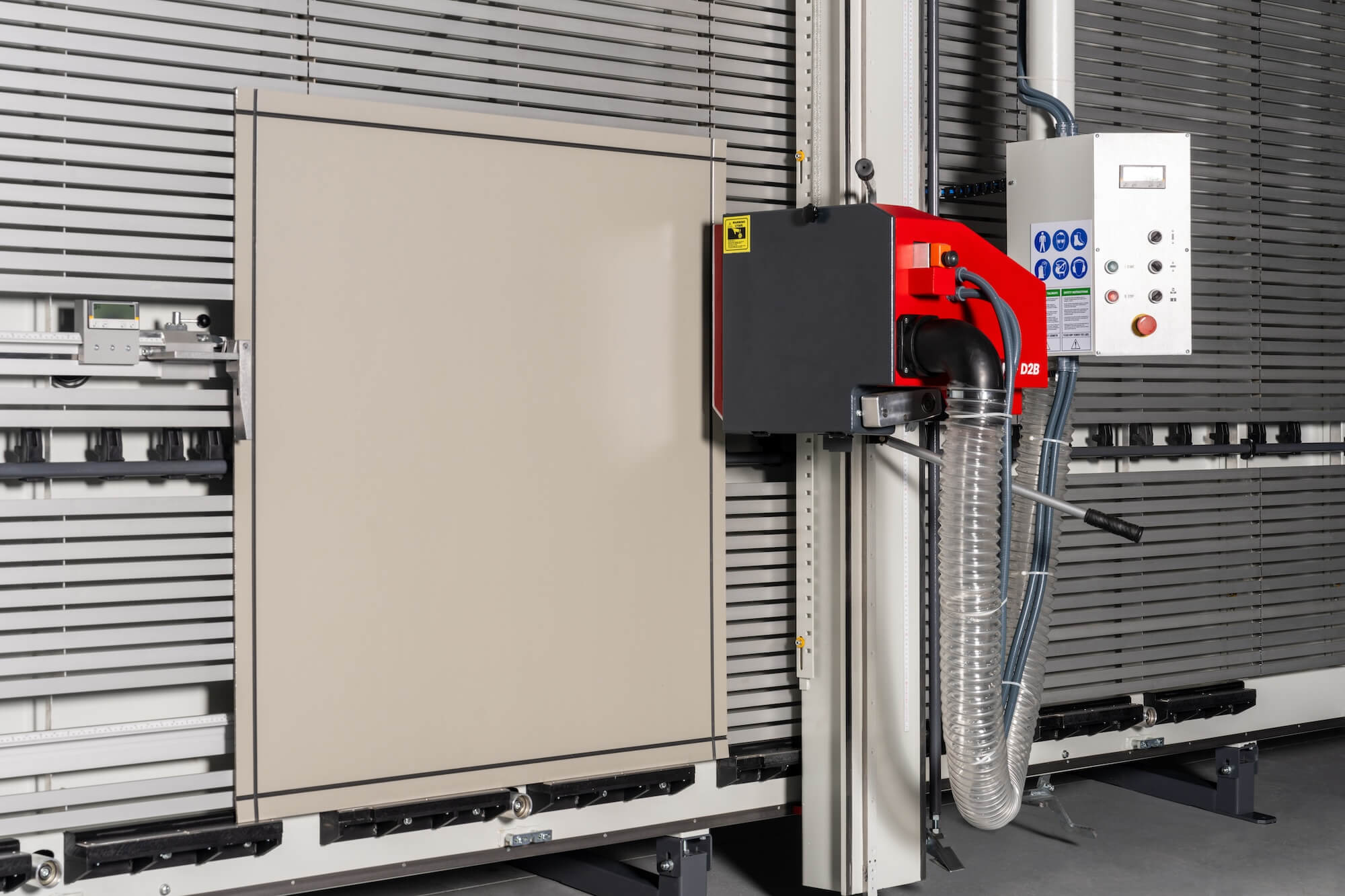

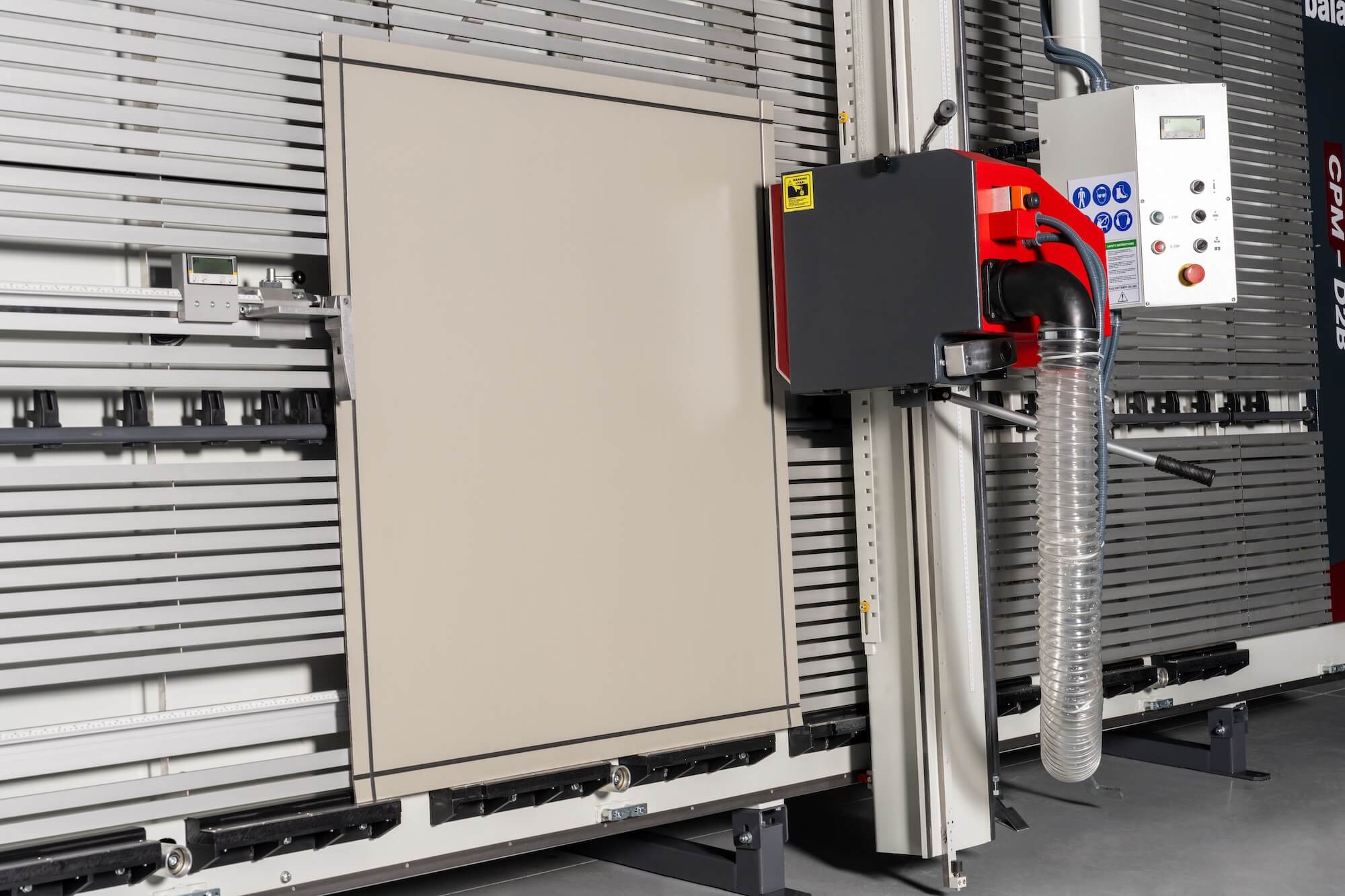

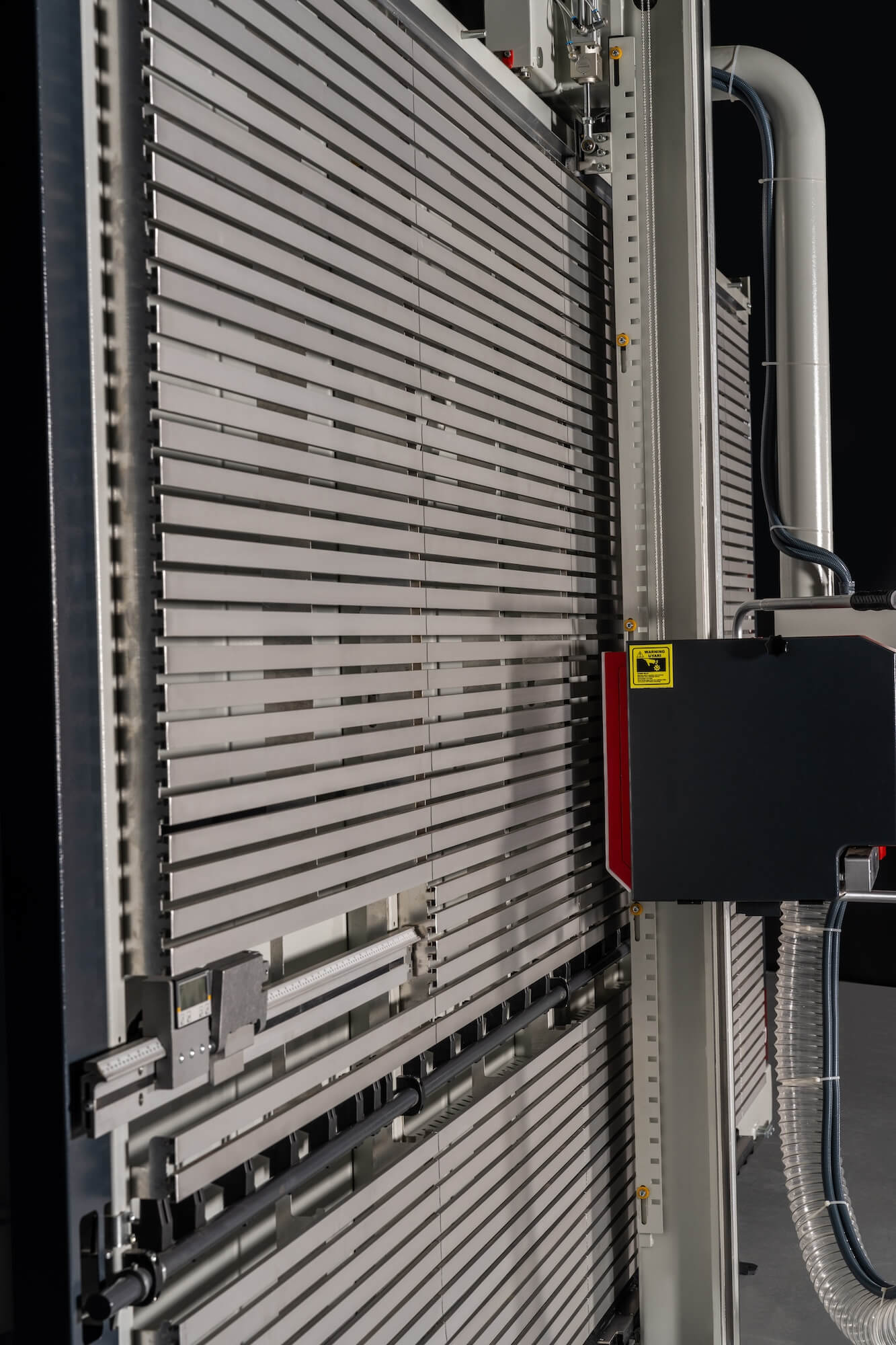

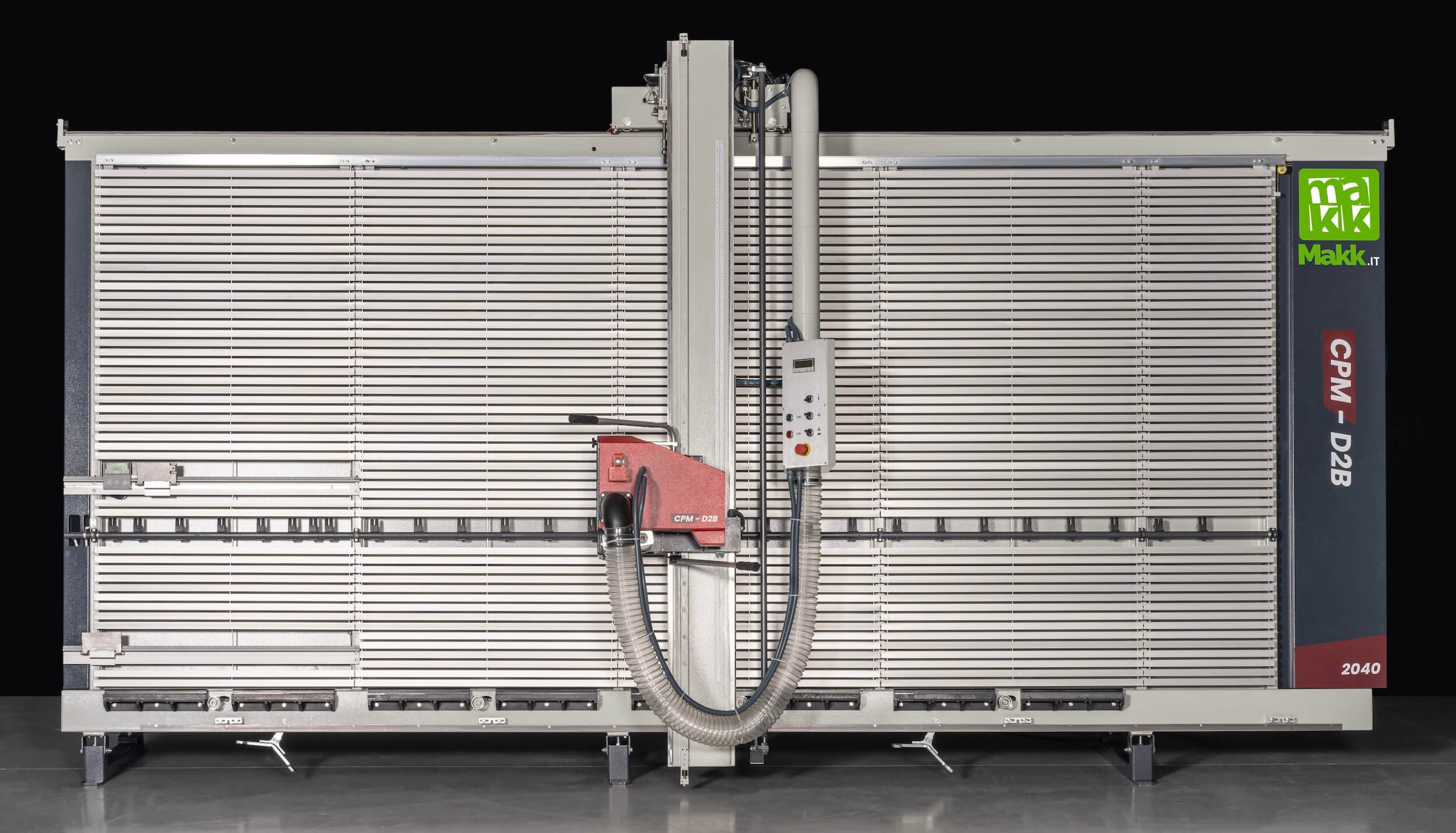

• Fully welded frame, with support surface panels, can be moved automatically to avoid contact in horizontal cuts with the circular blade.
• Patented System for Transition from Cutting to Milling in 1 Second.
• Milling/grooving depth adjustment system, with which it is possible to create grooving for composite panels with a thickness of 3-4-5 mm without any further adjustment or measurement.

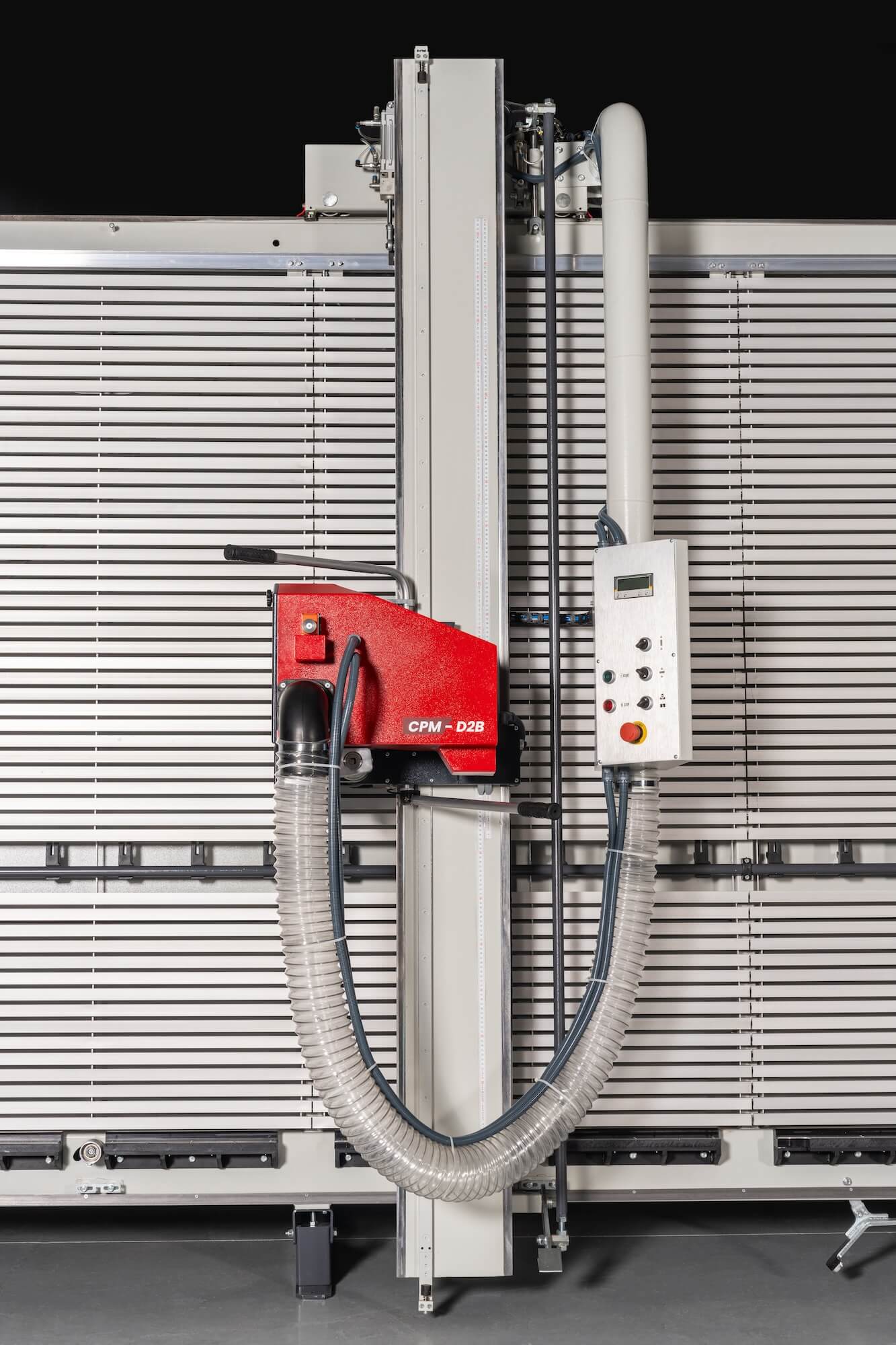

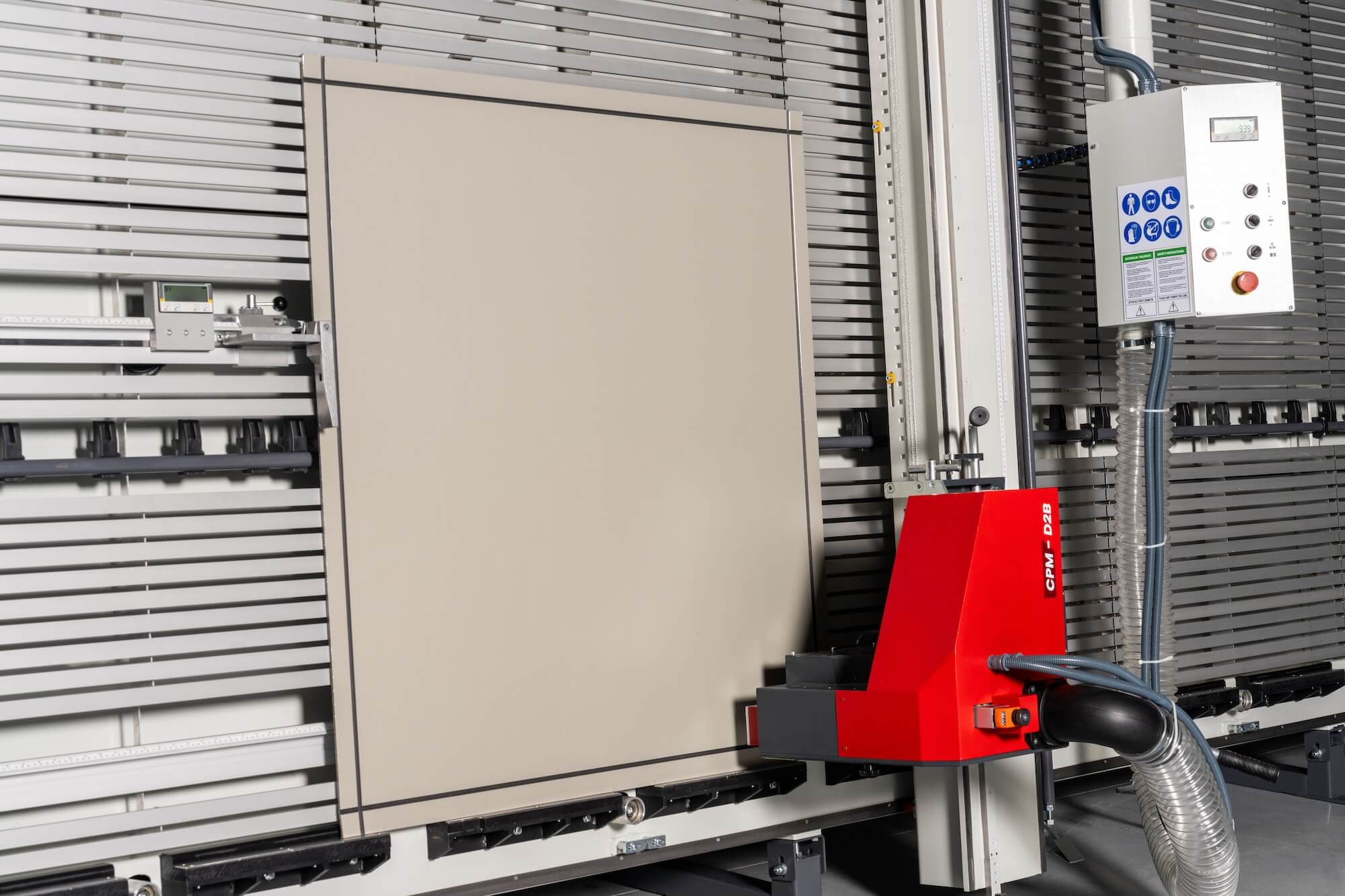

• Manual movement of the upright with blade unit for vertical and horizontal cuts by means of a lever with manual operation.

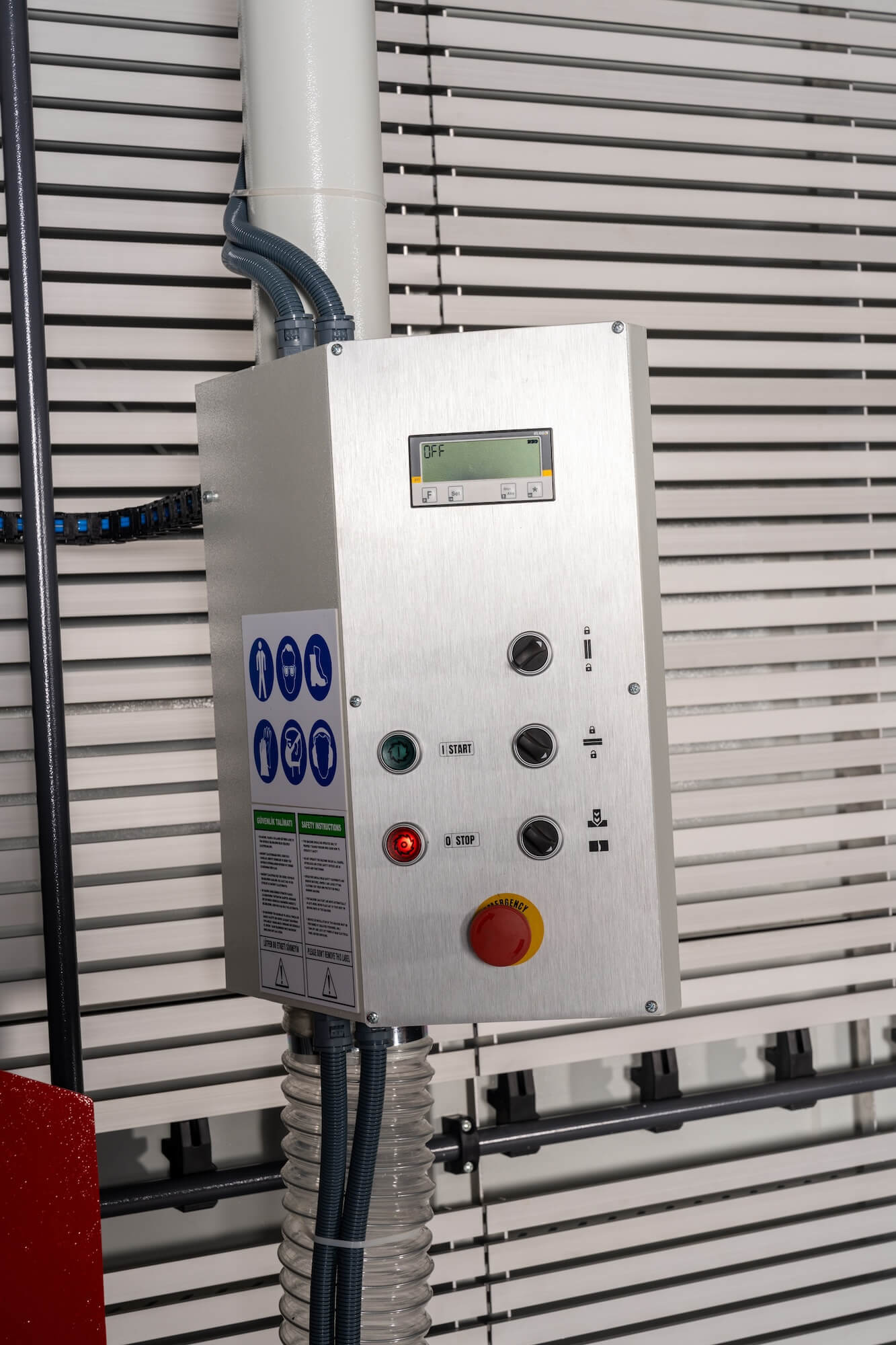

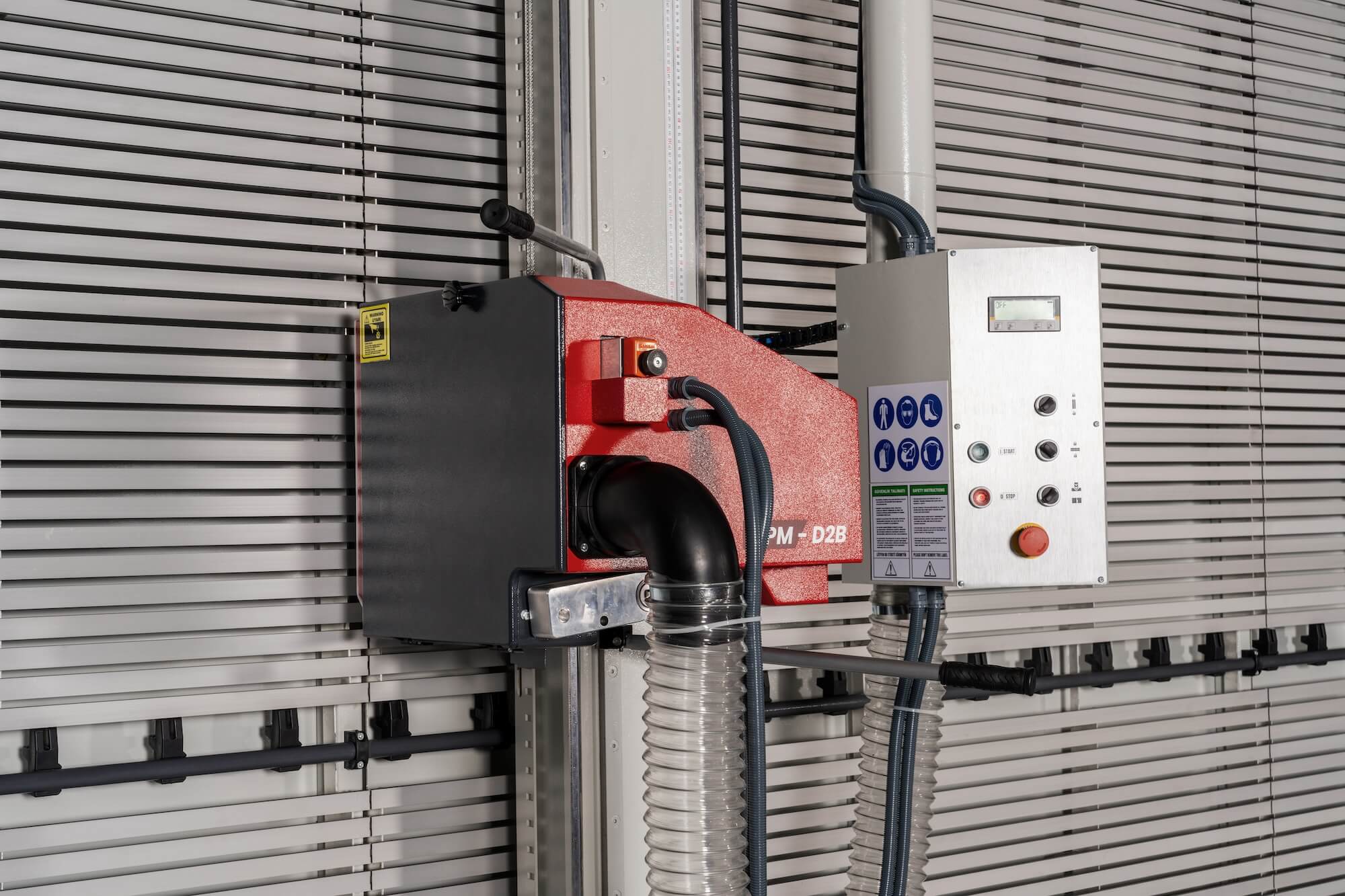

• Pneumatic clamping on the upright and blade assembly for horizontal and vertical cuts and/or milling, via selector on control panel.

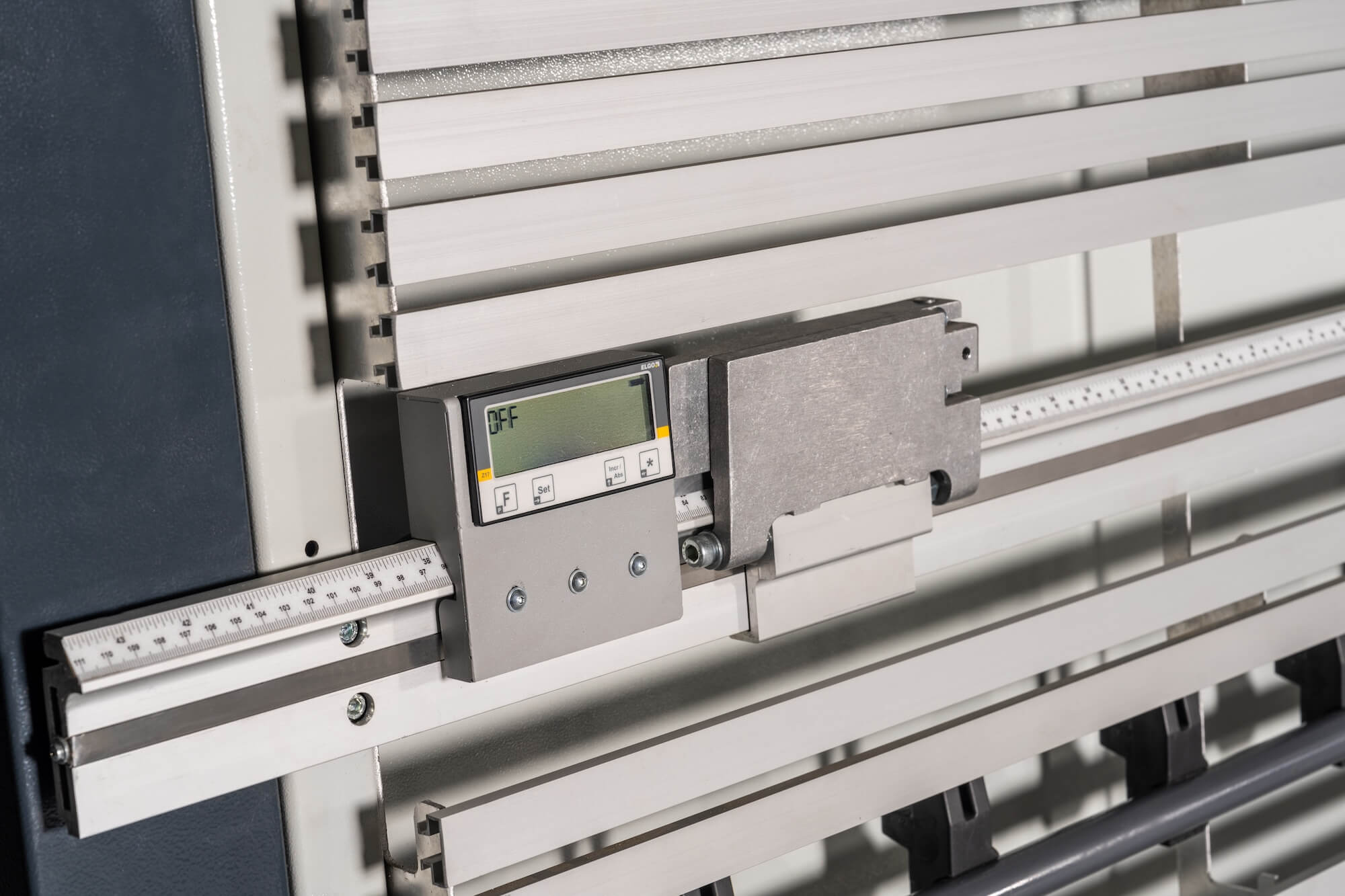

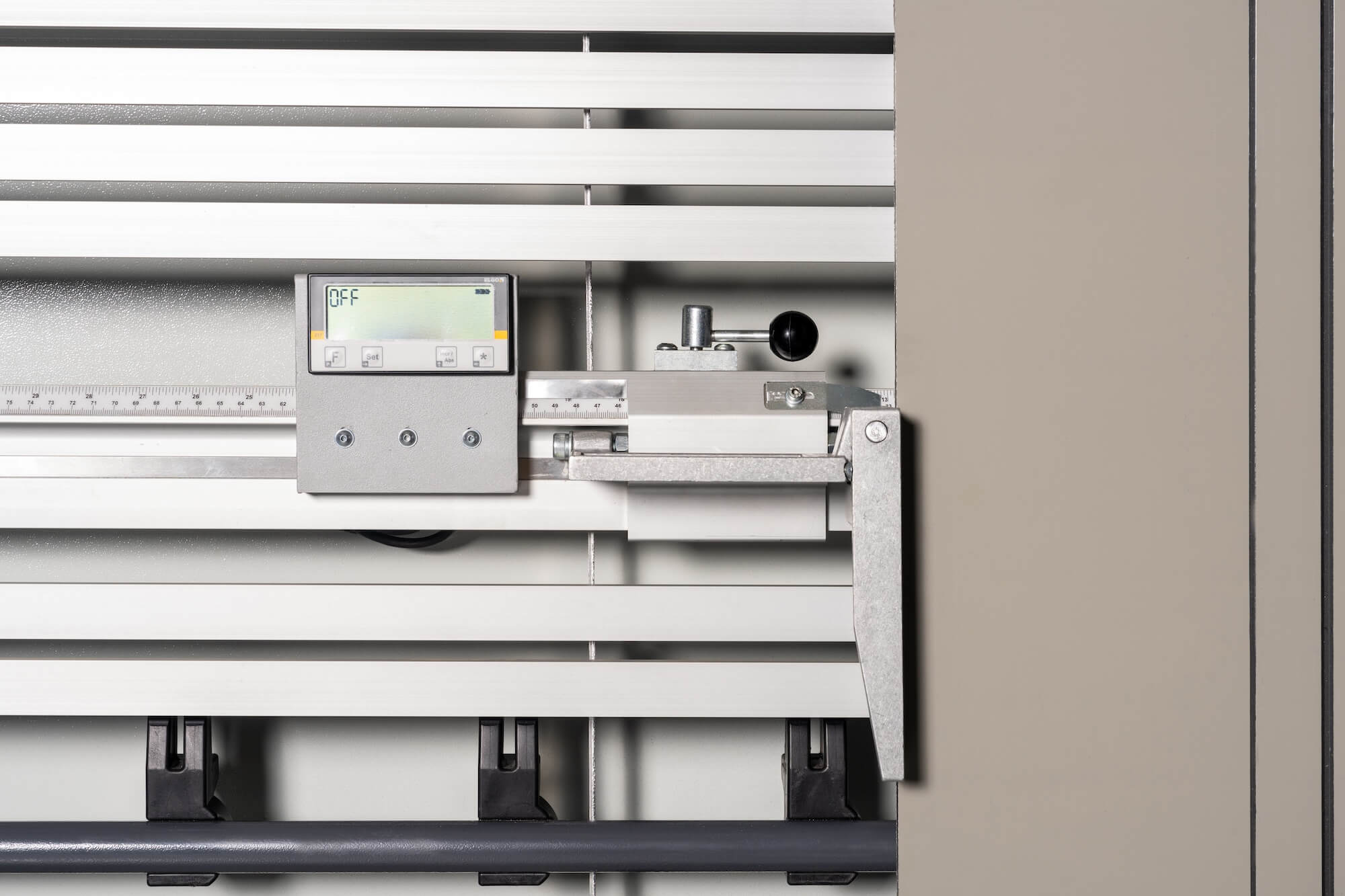

• Digital display for vertical and horizontal cutting and milling.
• Automatic sliding table, with pneumatic operation.
• Tilting device for the support of small pieces to be cut.
• Electric predisposition for simultaneous switching on/off with suction unit.

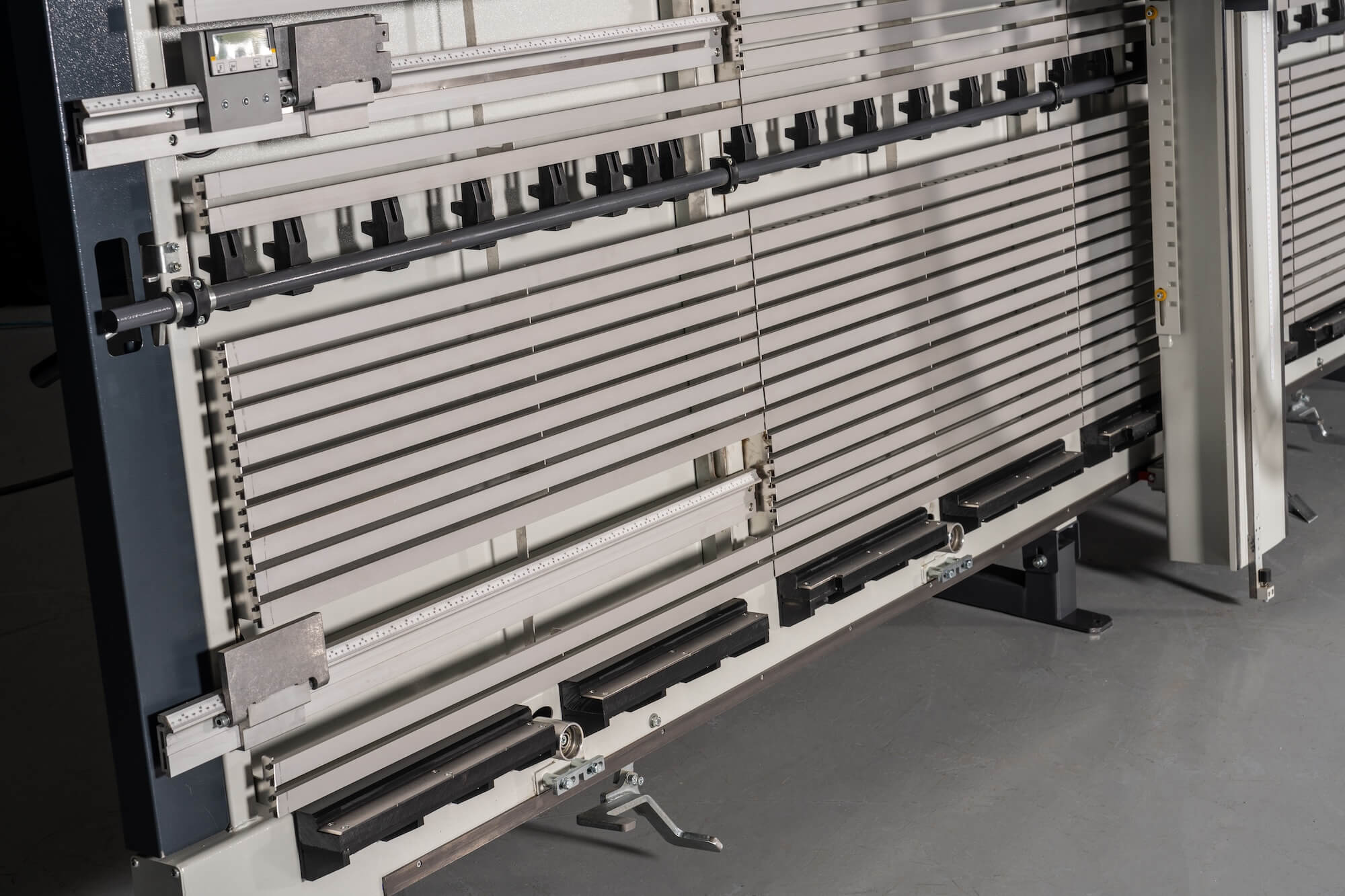

• Mechanical positioners for horizontal cuts.
• N.2 hinged for vertical cuts.
• Lower supports support panels with metal wheels.
• Safety devices.
• Instruction manual and service keys.

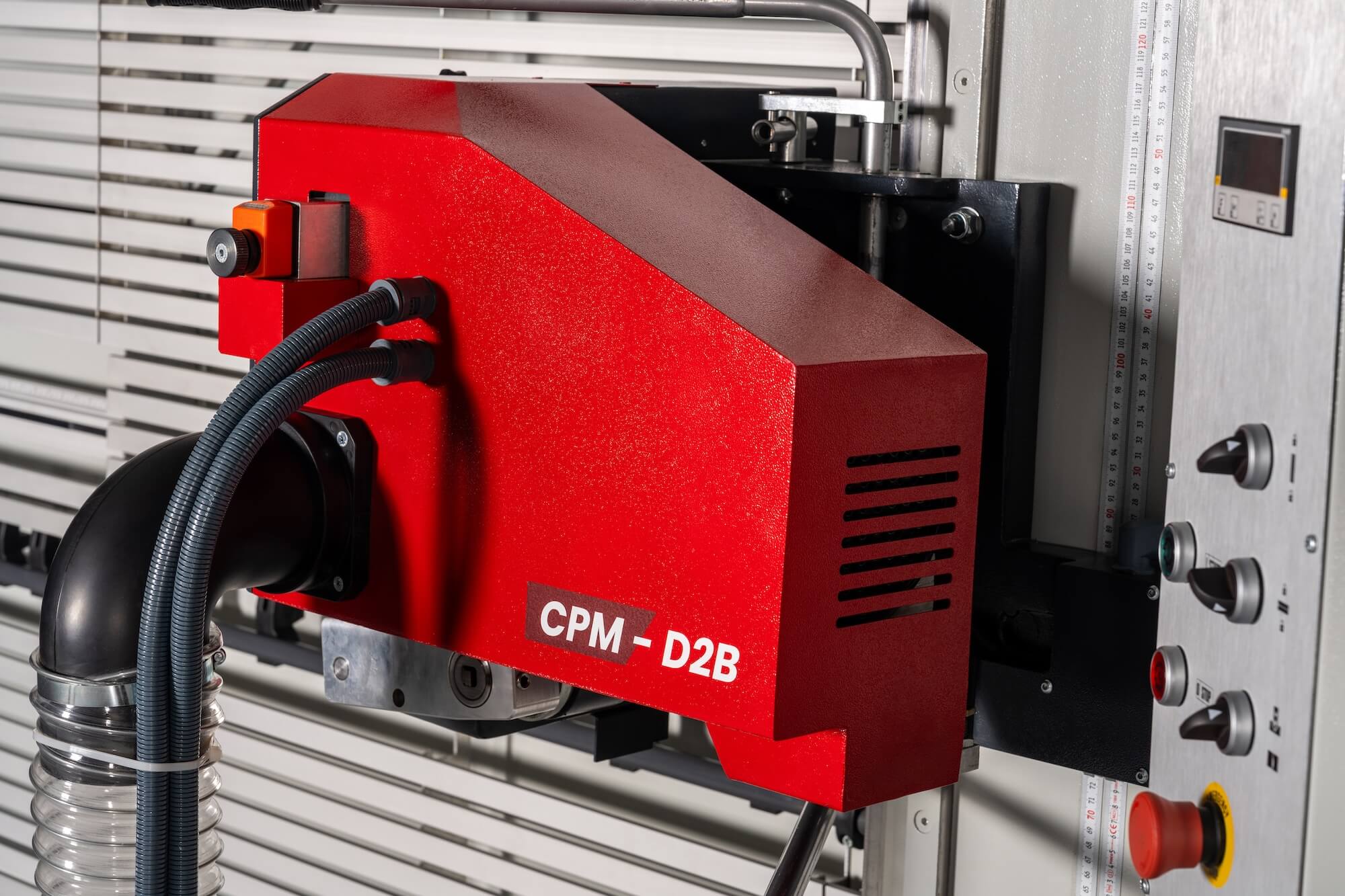

• HM circular blade for composite panels.
• Milling cutter for V 90-shaped milling (HM-cutter).

Technical Features…
– Motor power: 4 HP (3 kW)
– Volt 400/50 Hz Three-phase
– Circular blade rotation speed: 4500 rpm
– Cutter rotation speed V-Grooving: 4500 rpm
– Vertical cutting height: 2100 mm (optional mm. 2200)
– Horizontal cutting height: 1950 mm (optional mm. 2050)
– Cutting length: 4000 mm
– Cutting thickness: 24 mm
– Circular blade size: mm. 230x30x3,2 Z=64 HM
– V-Grooving cutter size V-90° mm. 200x18x30 Z=10 HM (interchangeable HM knives)
– Overall dimensions (L x H x L): mm. 5500 x 2800 x 1700
– Total weight: 700 Kg.
